Retractable Cord Reel, Electric Cord Reels
For trouble free performance even under the most demanding conditions, this lineup of retractable cord reels are designed to be long lasting. Some common areas where you may find this reel are in retail stores, automotive garages, factories, schools, or hospitals. Anywhere an extension or light is needed temporarily is a good use for this item. Give it one quick pull and it retracts out of the way to prevent tripping or tangling. Electrical cord reels are designed with safety in mind.
FEATURES
- Come in a blue powder coated finish over heavy gauge steel.
- The multi-position lock ratchet secures the cord to the desired length.
- The reels guide arm adjusts to various mounting possibilities.
- You can mount these on the wall, floor, or even overhead.
- These retractable cord reels are made in the U.S.A and supported worldwide.
Power Cord and Light Reels
Electrical Cord Reels
These spring driven retractable cord reels are heavy duty, industrial grade power sources. They replace tangled extension cords and self-retract to increase safety, productivity and efficiency. Auto rewind easily wraps, stores, and protects electrical cord.For Indoor Use Only.
Features:
- Choice of Electrical Accessories
- 115 Volts – 60 Hz Only
- AWG: 12 and 16 Gauge
- Includes 5’ Pigtail and Grounding Plug
- Rolled Edges and Ribbed Discs for Strength wand Safety
- Heavy Gauge Steel Base and Support Post
- Cartridge Style Spring Motor
- 1” Solid Steel Axle with 1” Lubricated Precision Bearing
- Guide Arm Adjusts to Wall, Floor, and Overhead Positions
- Pro-grade heavy duty steel
- 2 Year Warranty on Reel
- Weight: 34-84 lbs
| MODEL | DESCRIPTION | INDEX SIZE | AWG | CORD FT | AMPS | PRICE |
| PC13-3516-A | Single Industrial Receptacle | 1 | 16 | 35' | 13 | $478.45 |
| PC13-5016-A | Single Industrial Receptacle | 1 | 16 | 50' | 13 | $480.75 |
| PC24-0016-A | Single Industrial Receptacle | 4 | 16 | 100' | 13 | $778.55 |
| PC13-3512-B | Quad 4 Plug Receptacle | 1 | 12 | 35' | 20 | $622.30 |
| PC13-5012-B | Quad 4 Plug Receptacle | 1 | 12 | 50' | 20 | $647.05 |
| PC19-7512-B | Quad 4 Plug Receptacle | 3 | 12 | 75' | 20 | $1,025.30 |
| PC24-0012-B | Quad 4 Plug Receptacle | 4 | 12 | 100' | 20 | $1,113.50 |
| PC13-3516-E | Metal Caged Incandescent Drop Light with Tap Plug | 1 | 16 | 35' | 13 | $462.20 |
| PC13-5016-E | Metal Caged Incandescent Drop Light with Tap Plug | 1 | 16 | 50' | 13 | $467.60 |
| PC19-7516-E | Metal Caged Incandescent Drop Light with Tap Plug | 3 | 16 | 75' | 13 | $661.75 |
| PC24-0016-E | Metal Caged Incandescent Drop Light with Tap Plug | 4 | 16 | 100' | 13 | $706.60 |
| PC13-3516-F | Duplex GFCI Metal Outlet with Spring Loaded Lid | 1 | 16 | 35' | 13 | $562.75 |
| PC13-5016-F | Duplex GFCI Metal Outlet with Spring Loaded Lid | 1 | 16 | 50' | 13 | $571.25 |
| PC19-7516-F | Duplex GFCI Metal Outlet with Spring Loaded Lid | 3 | 16 | 75' | 13 | $876.00 |
| PC24-0016-F | Duplex GFCI Metal Outlet with Spring Loaded Lid | 4 | 16 | 100' | 13 | $953.35 |
SINGLE INDUSTRIAL RECEPTACLE - SUFFIX "A"

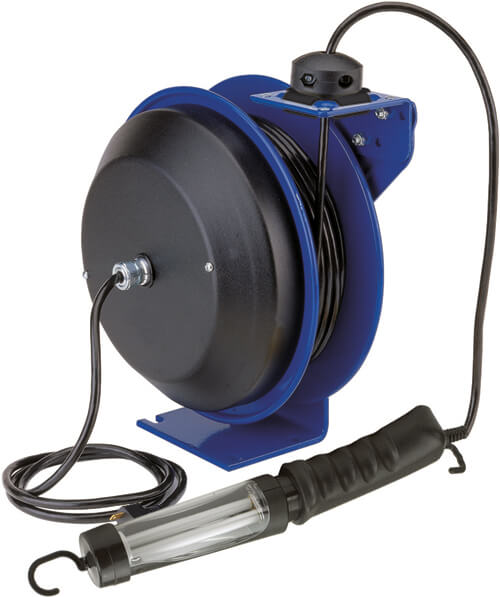

FLORESCENT TUBE LIGHT - SUFFIX “C” - Shock absorbing & shatter resistant.

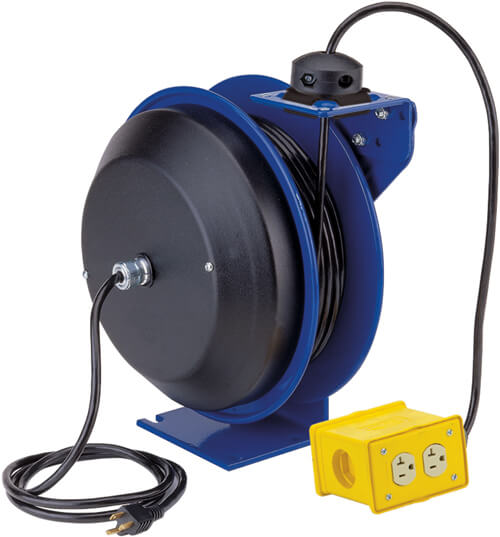

QUAD “4 PLUG” INDUSTRIAL RECEPTACLE - SUFFIX “B”
FLORESCENT ANGLE LIGHT WITH TOOL TAP PLUG - SUFFIX “D”
CAGED INCANDESCENT DROPLIGHT WITH TOOL TAP PLUG - SUFFIX “E”
DUPLEX G.F.C.I. METAL INDUSTRIAL RECEPTACLE - SUFFIX “F”
Electrical Cord Reels Spec Chart Dimensions
DUPLEX G.F.C.I. METAL INDUSTRIAL RECEPTACLE - SUFFIX “F”
| INDEX SIZE | A | B | C | D | E | Mount L-M |
| 1 | 8-1/2" | 14-1/2" | 13-3/4" | 5" | 6" | 3"-5" |
| 2 | 11" | 18-1/4" | 17-1/4" | 6" | 6" | 4"-5" |
| 3 | 9-3/4" | 21" | 19-5/8" | 6" | 6" | 4"-5" |
| 4 | 9-3/4" | 25-1/4" | 23" | 6" | 6" | 4"-5" |
Installation & Maintenance Manual (203 KB)
