Stainless Steel Heavy Duty Hose Reels
These Stainless Steel heavy duty hose reels are available in hand crank and spring driven versions. They are constructed of high quality electro-polished stainless steel, and offers clean, non-corrosive performance in applications that require it, such as food and chemical processing, marinas, and anywhere rust, corrosion and contamination thrive.
- Constructed with High Quality Electro-Polished Stainless Steel
- Professional Heavy Duty Steel Construction
- Durable Proprietary CPC™ Powder Coat Process
- Strength and Safety: Rodded Edges and Ribbed Discs
- 2-Year Manufacturer's Limited Warranty
- Made in USA
Heavy Duty Hose Reels
Stainless Steel Heavy Duty Hose Reels
Features:
- Max Pressure:5000 PSI
- Max Temperature: 250 - 400° F
- Max Capacity: 50 FT or 100' (when used with 3/8" hose, not included)
- Zinc-Plated steel base and support arm
- Handle to easily return the hose back to the reel
- Latch pin to prevent the hose from becoming unraveled
- Universal Mount
| MODEL | DESCRIPTION | PSI | INLET/OUTLET | CAPACITY | PRICE |
| 11-PW7006 | Stainless Steel Hose Reel | 5000 | 3/8" | 50 FT. | $142.50 |
| 11-PW7007 | Stainless Steel Hose Reel | 5000 | 3/8" | 100 FT. | $203.15 |
Stainless Steel Heavy Duty Hose Reels
These reels are industry standard mounting foot for easy bolt down almost anywhere. Unique friction brake allows for near infinite drag settings and prevents free-spooling.
Features:
- Max Pressure: 3500 - 5000 PSI
- Max Temperature: 400° F
- Max Capacity: 150' or 250' (when used with 3/8" hose, not included)
- Zinc-Plated steel base and support arm
- Handle to easily return the hose back to the reel
- Latch to prevent the hose from becoming unraveled
- Universal Mount
| MODEL | DESCRIPTION | PSI | INLET/OUTLET | CAPACITY | TEMP | PRICE |
| AR100 | Stainless Steel Hose Reel | 3500 | 3/8" FPT | 150' | 250° F | $310.25 |
| AR150 | Stainless Steel Hose Reel | 5000 | 3/8" FPT | 150' | 400° F | $370.95 |
* Sorry, no free freight to Texas & California. Please call 866-858-4982 for rates.
These items require California sales tax to be added to California deliveries.
Hand Crank Hose Reels
Features:
- Pressure-rated at 4000 PSI
- 50' Capacity Stainless Steel Hand Crank Hose Reel (Hose not Included)
- High Quality Electro-Polished Stainless Steel Construction
- Non-Corrosive Stainless Steel Fluid Path Featuring Stainless Steel Swivel
- Non-Toxic Grease Used in Swivel
- Professional Grade Heavy-duty construction
- Durable proprietary CPC powder coated process
- Rolled Edges & Ribbed Discs Provide Strength & Safety
- Warranty: 2 Years
- Made in U.S.A, Supported Worldwide
| MODEL | DESCRIPTION | PSI | INLET/OUTLET | CAPACITY | WEIGHT | PRICE |
| 112-4-75-SS | Stainless Steel Hand Crank Hose Reel | 4,000 | 1/2” FPT | 75' | 21 lbs | $756.10 |
| 117-4-225-SS | Stainless Steel Hand Crank Hose Reel | 4,000 | 1/2” FPT | 225' | 31 lbs | $876.00 |
| 117-5-100-SS | Stainless Steel Hand Crank Hose Reel | 4,000 | 3/4” FPT | 100' | 36 lbs | $1,003.65 |
| A | B | C | D | E | F | G | Mount L-M |
|---|---|---|---|---|---|---|---|
| 9-1/4" | 21" | 19-5/8" | 6" | 6" | - | - | 4"-5" |
Installation Manual (787 KB)
Diagram (66 KB)
Spring Driven Hose Reels
Features:
- 50 FT Capacity Stainless Steel Spring Driven Hose Reel (Hose not Included)
- High Quality Electro-Polished Stainless Steel Construction
- Non-Corrosive Stainless Steel Fluid Path Featuring Stainless Steel Swivel
- Non-Toxic Grease Used in Swivel
- Pressure-rated at 2500 - 3000 PSI
- Professional Grade Heavy-duty construction
- Durable proprietary CPC powder coated process
- Rolled Edges & Ribbed Discs Provide Strength & Safety
- Can Be Mounted on Wall, Floor, or Overhead
- Warranty: 2 Years
- Made in U.S.A, Supported Worldwide
| MODEL | DESCRIPTION | PSI | INLET/OUTLET | CAPACITY | WEIGHT | PRICE |
| MPL-N-350-SS | Stainless Steel Spring Driven Hose Reel | 3,000 | 3/8” FPT | 50 FT | 53 lbs | $1,123.55 |
| MPL-N-450-SS | Stainless Steel Spring Driven Hose Reel | 2500 | 1/2” FPT | 50 FT | 53 lbs | $1,197.00 |
| Model | I.D | O.D | LENGTH | HOSE | MAX PSI | SHIP WEIGHT (LBS) | OVERALL DIMENSIONS (WxHxL) | MOUNTING PATTERN (M)(N) | BASE(X)(Y) |
|---|---|---|---|---|---|---|---|---|---|
| MPL-N-350-SS | 3/8" | 11/16" | 50' | No | 3000 | 53 | 8.25"(W) 21.25"(H) 19.5"(L) |
4"(M) 5"(N) | 6"(X) 6"(Y) |
| MPL-N-450-SS | 1/2" | 13/16" | 50' | No | 2500 | 53 | 8.75"(W) 25.25"(H) 19.5"(L) |
4"(M) 5"(N) | 6"(X) 6"(Y) |
Diagram (66 KB)

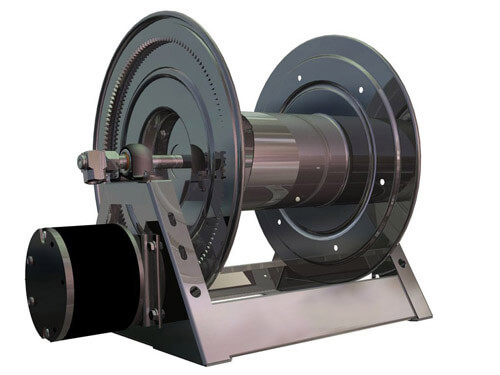

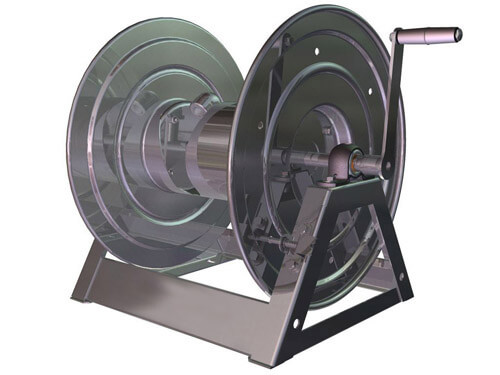

Hand Crank and Motorized Heavy Duty Hose Reels
The stainless steel 1125 series hand crank and motorized hose reels have similar features the their related series, but are constructed of high quality electro-polished stainless steel with stainless steel fluid paths. They offer clean, non-corrosive performance in applications that require it.
Features:
- 140' to 625' Capacity (When used with 3/8" hose, not included)
- Low profile riser & open drum slot for smooth even wrap
- 12V standard
- Optional 115V upon request (please call for pricing)
- Pressure-rated at 3000 PSI
- Non-corrosive stainless steel fluid path featuring stainless steel swivel for pure product flow applications
- Direct gear drive on motor driven models, no chains
- Rolled edges & ribbed discs provide strength & safety
- High quality electro-polished stainless steel construction
- Permanently lubricated pillow block bearings for smooth rotation
- Long-handled lock pin secures reel from rotation
- Adjustable friction brake assembly to brake or lock the drum
| MODEL | DESCRIPTION | PSI | INLET/OUTLET | CAPACITY | PRICE |
| 1125-4-100-E-SS | Stainless Steel Electric Hose Reel | 3000 | 1/2" FPT | 140' | $1,514.05 |
| 1125-4-200-E-SS | Stainless Steel Electric Hose Reel | 3000 | 1/2" FPT | 300' | $1,561.40 |
| 1125-4-200-SS | Stainless Steel Hand Crank Hose Reel | 3000 | 1/2" FPT | 300' | $940.60 |
