Cut Your Cleaning Times In Half - Rotary Turbo Nozzles
Rotary Nozzles
Rotating nozzles use centrifugal force to produce a strong impact and a spray pattern. Due to the reliability and effectiveness rotary turbo nozzles have been widely accepted. The nozzle rotates a powerful, zero degree spray pattern in a circular motion to break down tough dirt and grime.
By spinning the discharge water, the spray adds additional scrubbing ability to the cleaning process.

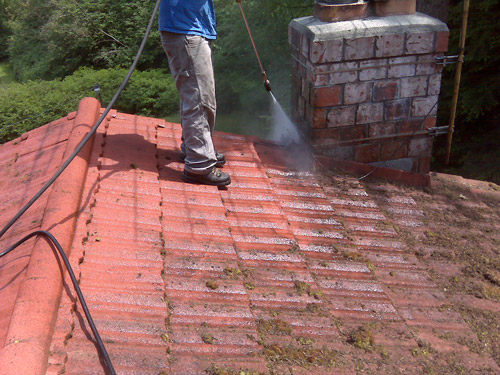

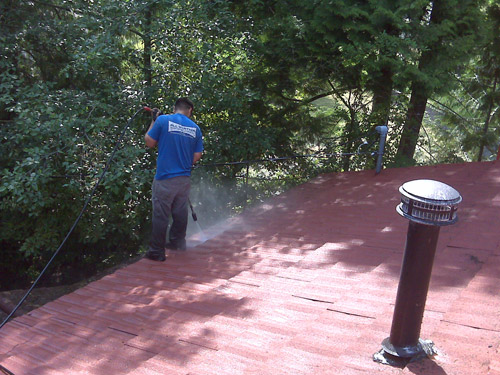

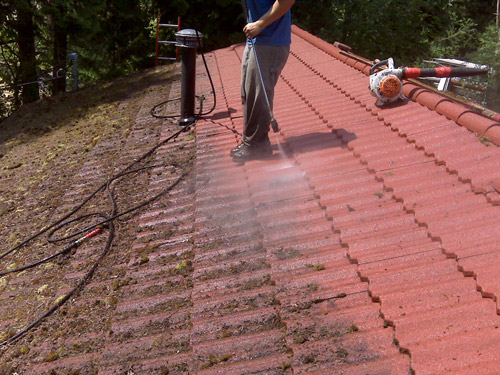

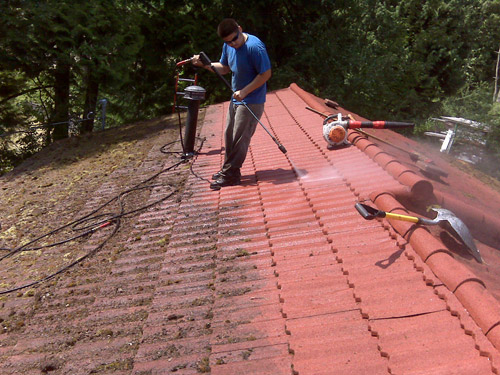

With a rotating nozzle, you can clean the following types of applications; rust removal, metal or plastic tank cleaning, paint removal and graffiti removal, wall paint stripping, washing concrete, eliminating gum from sidewalks, boat cleaning and barnacle removal, asbestos abatement, cleaning crab and lobster pots, fish nets, cleaning dirty garage floors, stripping paint from wood exterior, and removing mud and clay from highway and construction equipment. The spray pattern will cover area of 4 to 8 inches wide, depending on a distance between the wand and the surface being cleaned.
Nozzle Types
Turbo nozzles have been one of the most important accessories developed. These efficient tools provide the power of a zero-degree pattern. The circular motion also adds extra agitation to cleaning tough jobs like caked-on mud. They are designed to provide a 200% cleaning efficiency over a 25-degree flat fan nozzle. The precision ceramic orifice and matching seat, along with the high strength forged brass housing; provide a long life accessory with no gears, teeth, or bearings. When the nozzle or seat wears, you can replace parts easily to extend the life even longer. Select the proper nozzle for each type of spray application.
Click for large views
BENEFITS
- Multiplies ordinary pressure into powerful scrubbing power using a jet stream of rotating water.
- Its powerful strike makes it ideal for cleaning large, flat surfaces such as driveways and patios
- It rotates at high speeds to increase both the intensity and cleaning area of the spray
- Increase pressure washers cleaning efficiency
Click here to see what our customers think of this product...
Order Online or Call Toll Free (866) 858-4982
Rotary Nozzles

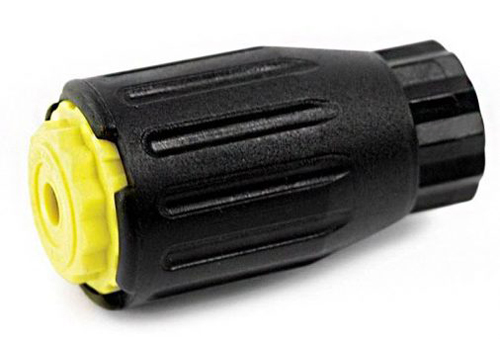

Economy Rotary Nozzle - 2000 PSI
Harness the power of your Pressure Washer with the Rotojet 2000 Turbo Nozzle. The Rotojet 2000 turbo nozzle takes maximum impact of a zero degree nozzle and spins it in a circle. This allows you to have the best of both worlds; high impact and good cleaning coverage. It is commonly stated that turbo nozzles double cleaning efficiency.
- Max Pressure: 2000 PSI
- Max Temperature: 140°F
- Max Flow: 3.0 to 3.5 GPM
- Nozzle: Brass/ABS Plastic
- Great for Economy Washers
- Weight: 5.4 oz.
NOTE: ALWAYS start spraying with rotary nozzle facing downward to prevent damage to the brass nozzle.
It is highly recommended a high pressure filter be attached to the inlet of the rotating nozzle. This will help prevent debris from your water supply from entering the nozzle and destroying the internal components, thus increasing the life of your nozzle.
| MODEL | DESCRIPTION | ORIFICE SIZE | INLET | PRICE |
| 8.711-026.0 | 2000 PSI Rotary Nozzle | 3.0 GPM | 1/4" FNPT | $68.30 |
| 8.711-027.0 | 2000 PSI Rotary Nozzle | 3.5 GPM | 1/4" FNPT | $68.30 |

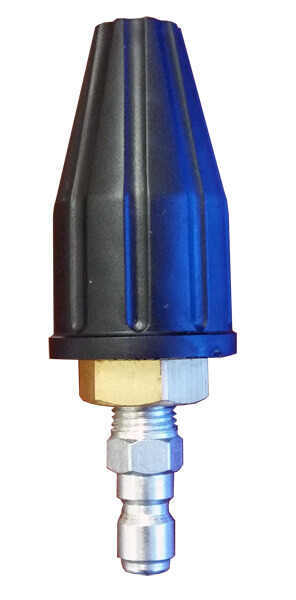

Small Rotary Nozzle - 3200 PSI
Brass spray nozzles are very resistant to abrasion. These Brass nozzles are encased in plastic which serves as a protective shield to prevent shattering or breakage.
- Max Pressure: 3200 PSI
- Max Temperature: 140° F
- Max Flow: 3.0 GPM
- Nozzle: Brass
- Dimensions: 4-1/4" L x 1-1/2" W
- Weight: 0.90 lbs.
NOTE: ALWAYS start spraying with rotary nozzle facing downward to prevent damage to the brass nozzle.
It is highly recommended a high pressure filter be attached to the inlet of the rotating nozzle. This will help prevent debris from your water supply from entering the nozzle and destroying the internal components, thus increasing the life of your nozzle.
| MODEL | DESCRIPTION | FLOW | INLET | PRICE |
| RJ-3030-CS | 3200 PSI Rotary Nozzle | 3.0 GPM | 1/4" | $46.00 |

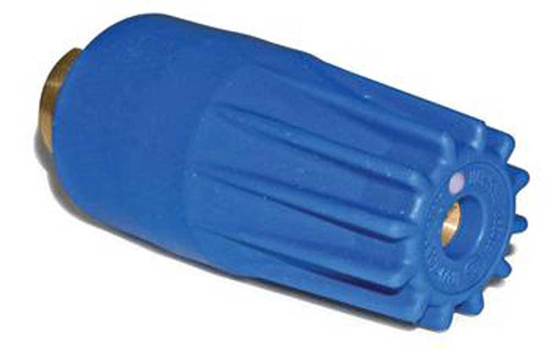

3650 MAX. PSI Turbo Nozzle
- Min Pressure: 2000 PSI
- Max Pressure: 3650 PSI
- Max Temperature: 212°F
- Min Flow: 2.7 GPM
- Max Flow: 9 GPM
- Astounding 4000 RPM cleans deeper and faster
- Inlet: 1/4" Male Pipe Thread (with optional fitting 85.300.109)
- Wear-resistant ceramic nozzle and rugged housing for longer life
- Weight: 1.10 lbs
| MODEL | DESCRIPTION | PRICE |
8.711- |
3650 Max PSI Turbo Nozzle |

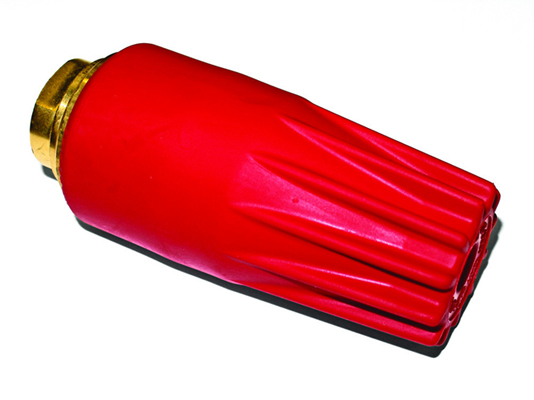

5100 MAX PSI Turbo Nozzle
- Min Pressure: 2000 PSI
- Max Pressure: 5100 PSI
- Max Temperature: 212°F
- Min Flow: 2.7 GPM
- Max Flow: 9 GPM
- Astounding 4000 RPM cleans deeper and faster
- Inlet: 1/4" Male Pipe Thread (with optional fitting 85.300.109)
- Wear-resistant ceramic nozzle and rugged housing for longer life
- Weight: 1.10 lbs
| MODEL | DESCRIPTION | PRICE |
8.711- |
5100 Max PSI Turbo Nozzle |

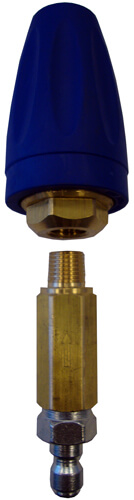

Medium Rotary Nozzle Kits
These ceramic spray nozzles are made with high quality components for extended life. Each nozzle is encased in a hard, rubber coating for additional protection and a brass inline filter to protect the nozzle from any debris in the water. Available in 3000 and 4000 PSI. Great for business and home owners alike!
- Max Pressure: 3000 or 4000 PSI (depending on nozzle)
- Max Temperature: 212° F
- Max Flow 4.0 GPM
- Nozzle Size: 4.0 Orifice
- Inlet: Brass inline filter with 1/4” quick connect (attaches to tip of wand)
- Weight: 0.9 lbs
NOTE: ALWAYS start spraying with rotary nozzle facing downward to prevent damage to the brass nozzle.
It is highly recommended a high pressure filter be attached to the inlet of the rotating nozzle. This will help prevent debris from your water supply from entering the nozzle and destroying the internal components, thus increasing the life of your nozzle.
| MODEL | DESCRIPTION | FLOW | INLET | PRICE |
| MH-16.0116-K | 3000 PSI Rotary Nozzle w/ Filter | 4.0 GPM | 1/4" | $71.75 |
| MH-16.0224-K | 4000 PSI Rotary Nozzle w/ Filter | 4.0 GPM | 1/4" | $115.60 |

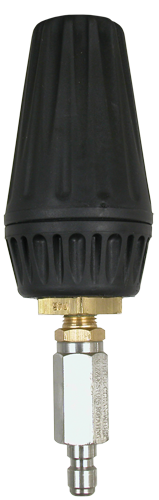

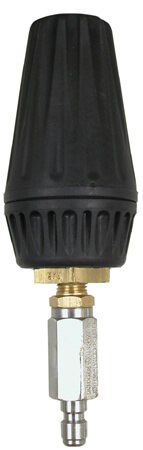

Medium Rotary Nozzle - 3700 PSI
Ceramic spray nozzles are very resistant to abrasion. These ceramic nozzles are encased in plastic which serves as a protective shield to prevent shattering or breakage.
- Max Pressure: 3700 PSI
- Max Temperature: 217° F
- Max Flow: 3.0 - 4.0 GPM
- Inlet: Stainless Steel Water Filter with 1/4" Quick-Connect (attaches to the tip of the wand)
- Nozzle: Ceramic
- Dimensions: 6 "1/4 L x 1"1/2 W
- Weight: 0.90 lbs
NOTE: ALWAYS start spraying with rotary nozzle facing downward to prevent damage to the brass nozzle.
It is highly recommended a high pressure filter be attached to the inlet of the rotating nozzle. This will help prevent debris from your water supply from entering the nozzle and destroying the internal components, thus increasing the life of your nozzle.
| MODEL | DESCRIPTION | FLOW | INLET | PRICE |
| 85.210.130 | 3700 PSI Rotary Nozzle | 3.0 GPM | 1/4" | $106.00 |
| 85.211.005 | 3000 PSI Rotary Nozzle Repair Kit | 4.0 GPM | 1/4" | $64.00 |

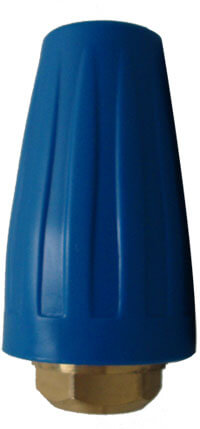

Large Rotary Nozzle - 4000 PSI
Ceramic spray nozzles are very resistant to abrasion. These ceramic nozzles are encased in plastic which serves as a protective shield to prevent shattering or breakage.
- Max Pressure: 4000 PSI
- Max Temperature: 212° F
- Max Flow 4.0 GPM
- Nozzle Size: 4.0 Orifice
- Inlet: Brass (with optional inline filter with 1/4” FPT ) (attaches to tip of wand)
- Weight: 0.9 lbs
NOTE: ALWAYS start spraying with rotary nozzle facing downward to prevent damage to the brass nozzle.
It is highly recommended a high pressure filter be attached to the inlet of the rotating nozzle. This will help prevent debris from your water supply from entering the nozzle and destroying the internal components, thus increasing the life of your nozzle.
| MODEL | DESCRIPTION | FLOW | INLET | PRICE |
| 302-404000 | 4000 PSI Rotary Nozzle | 4.0 GPM | 1/4" FPT | $74.50 |
Super Large Rotary Nozzle - 5000 PSI
Sharp Pencil Jet Super Large Turbo Nozzle is designed for heavy-duty jobs. It is intended to be used with any pressure washer models producing 5000 PSI and up to 4.5 GPM.
- Min Pressure: 2000 PSI
- Max Pressure: 5000 PSI (depending on model)
- Max Temperature: 212° F
- Max Flow: 4.5 GPM
- Inlet: Stainless Steel Water Filter with 1/4" Quick-Connect (attaches to the tip of the wand)
- Nozzle: Ceramic
- Weight: 1.80 lbs
NOTE: ALWAYS start spraying with rotary nozzle facing downward to prevent damage to the brass nozzle.
It is highly recommended a high pressure filter be attached to the inlet of the rotating nozzle. This will help prevent debris from your water supply from entering the nozzle and destroying the internal components, thus increasing the life of your nozzle.
| MODEL | DESCRIPTION | FLOW | INLET | PRICE |
| 85.210.135 | 5000 PSI Rotary Nozzle | 3.5 GPM | 1/4" | $118.00 |
| 85.210.140 | 5000 PSI Rotary Nozzle | 4.0 GPM | 1/4" | $118.00 |
| 85.210.145 | 5000 PSI Rotary Nozzle | 4.5 GPM | 1/4" | $118.00 |
| 85.210.150 | 5000 PSI Rotary Nozzle | 5.0 GPM | 1/4" | $118.00 |

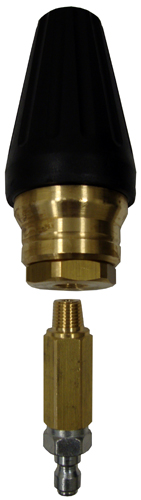

Heavy-Duty Rotary Turbo Nozzles - 6000 PSI
This rotating ceramic nozzle creates a powerful 0° spray in a 25° cone spray for expedited cleaning; cutting work time by 50%. This heavy duty nozzle is made to last 3 times longer than the competition! This 6000 PSI also has a repair kit to replace the internals of the nozzle on sight and in the field.
- Max Pressure: 6000 PSI
- Max Temperature: 212° F
- Max Flow: 5.5 GPM
- Nozzle Size: 4.5 Orifice
- Inlet: Brass inline filter with 1/4” quick connect (attaches to tip of wand)
- Weight: 1.5 lbs
NOTE: ALWAYS start spraying with rotary nozzle facing downward to prevent damage to the brass nozzle.
It is highly recommended a high pressure filter be attached to the inlet of the rotating nozzle. This will help prevent debris from your water supply from entering the nozzle and destroying the internal components, thus increasing the life of your nozzle.
| MODEL | DESCRIPTION | SIZE | INLET | PRICE |
| BN-4557-K | 6000 PSI Rotary Nozzle w/ Inline Filter | 5.5 orifice | 1/4" | $150.55 |
| BN-4556-K | 6000 PSI Rotary Nozzle w/ Inline Filter | 4.5 orifice | 1/4" | $150.55 |
| BN-4561 | 6000 PSI Rotary Nozzle Repair Kit | 4.5 orifice | 1/4" | $93.50 |
Stainless Steel Super Heavy- Duty Rotary Nozzle - 7300 PSI
Stainless steel rotary nozzles are the most resistant tips against wear and corrosion. They are to be used with super heavy duty pressure washers whose pressure reaches as much as 7300 PSI.
- Max Pressure: 7250-7300 PSI (depending on model)
- Max Temperature: 194º F
- Max Flow: 5.0 GPM
- Inlet: 1/4" FNPT
- Body: Stainless Steel
- Nozzle: Ceramic
- Weight: 1.80 lbs
NOTE: ALWAYS start spraying with rotary nozzle facing downward to prevent damage to the brass nozzle.
It is highly recommended a high pressure filter be attached to the inlet of the rotating nozzle. This will help prevent debris from your water supply from entering the nozzle and destroying the internal components, thus increasing the life of your nozzle
| MODEL | DESCRIPTION | FLOW | INLET | PRICE |
| ROTOJET500-045 | 7250 PSI Rotary Nozzle | 5.0 GPM | 1/4" | $593.65 |
| MV4059900003 | 7300 PSI Rotary Nozzle Repair Kit | 5.0 GPM | 1/4" | $390.75 |
Rotary Nozzle Shield
This clear plastic shield mounts on your lance to prevent splash back when spraying. Unit clamps onto lance and can be used with spray nozzle or rotary turbo nozzles.
- Max Pressure: 3000 PSI
- Dimension: 9" D x 12"H
- Weight: 3 lbs
NOTE: ALWAYS start spraying with rotary nozzle facing downward to prevent damage to the brass nozzle.
It is highly recommended a high pressure filter be attached to the inlet of the rotating nozzle. This will help prevent debris from your water supply from entering the nozzle and destroying the internal components, thus increasing the life of your nozzle
| MODEL | DESCRIPTION | PRICE |
| 97132600 | Rotary Nozzle Shield | AVAILABLE IN OCTOBER $80.90 |

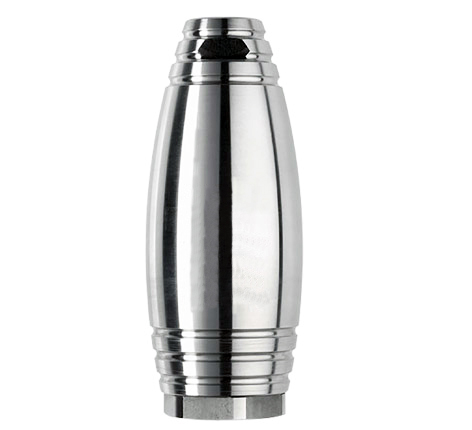

Roto Jet 600 Series Spray Nozzles
- Max Pressure: 8700 PSI
- Vertical Start
- Max Temperature: 212°F
- 20° Spray Angle
| MODEL | DESCRIPTION | MAX PSI | NOZZLE SIZE | INLET | PRICE |
| TPR600-02 | Roto Jet 600 Series Nozzles Stainless Steel | 8,700 | 2.0 | 1/4" Female | $762.95 |
| TPR600-025 | Roto Jet 600 Series Nozzles Stainless Steel | 8,700 | 2.5 | 1/4" Female | $762.95 |
| TPR600-03 | Roto Jet 600 Series Nozzles Stainless Steel | 8,700 | 3.0 | 1/4" Female | $762.95 |
| TPR600-035 | Roto Jet 600 Series Nozzles Stainless Steel | 8,700 | 3.5 | 1/4" Female | $762.95 |
| TPR600-04 | Roto Jet 600 Series Nozzles Stainless Steel | 8,700 | 4.0 | 1/4" Female | $762.95 |
| TPR600-045 | Roto Jet 600 Series Nozzles Stainless Steel | 8,700 | 4.5 | 1/4" Female | $762.95 |
| TPR600-05 | Roto Jet 600 Series Nozzles Stainless Steel | 8,700 | 5.0 | 1/4" Female | $762.95 |
| TPR600-055 | Roto Jet 600 Series Nozzles Stainless Steel | 8,700 | 5.5 | 1/4" Female | $762.95 |
| TPR600-06 | Roto Jet 600 Series Nozzles Stainless Steel | 8,700 | 6.0 | 1/4" Female | $762.95 |
| TPR600-065 | Roto Jet 600 Series Nozzles Stainless Steel | 8,700 | 6.5 | 1/4" Female | $762.95 |
| TPR600-07 | Roto Jet 600 Series Nozzles Stainless Steel | 8,700 | 7.0 | 1/4" Female | $762.95 |
| TPR600-075 | Roto Jet 600 Series Nozzles Stainless Steel | 8,700 | 7.5 | 1/4" Female | $762.95 |
Roto Jet 800 Series Spray Nozzles
- Max Pressure: 11,600 PSI
- Vertical Start
- Max Temperature: 212°F
- 20° Spray Angle
| MODEL | DESCRIPTION | MAX PSI | NOZZLE SIZE | INLET | PRICE |
| TPR800-02 | Roto Jet 800 Series Nozzles Stainless Steel | 11,600 | 2.0 | 1/4" Female | $924.55 |
| TPR800-025 | Roto Jet 800 Series Nozzles Stainless Steel | 11,600 | 2.5 | 1/4" Female | $924.55 |
| TPR800-03 | Roto Jet 800 Series Nozzles Stainless Steel | 11,600 | 3.0 | 1/4" Female | $924.55 |
| TPR800-035 | Roto Jet 800 Series Nozzles Stainless Steel | 11,600 | 3.5 | 1/4" Female | $924.55 |
| TPR800-04 | Roto Jet 800 Series Nozzles Stainless Steel | 11,600 | 4.0 | 1/4" Female | $924.55 |
| TPR800-045 | Roto Jet 800 Series Nozzles Stainless Steel | 11,600 | 4.5 | 1/4" Female | $924.55 |
| TPR800-05 | Roto Jet 800 Series Nozzles Stainless Steel | 11,600 | 5.0 | 1/4" Female | $924.55 |
| TPR800-055 | Roto Jet 800 Series Nozzles Stainless Steel | 11,600 | 5.5 | 1/4" Female | $924.55 |
| TPR800-06 | Roto Jet 800 Series Nozzles Stainless Steel | 11,600 | 6.0 | 1/4" Female | $924.55 |
| TPR800-065 | Roto Jet 800 Series Nozzles Stainless Steel | 11,600 | 6.5 | 1/4" Female | $924.55 |
| TPR800-07 | Roto Jet 800 Series Nozzles Stainless Steel | 11,600 | 7.0 | 1/4" Female | $924.55 |
| TPR800-075 | Roto Jet 800 Series Nozzles Stainless Steel | 11,600 | 7.5 | 1/4" Female | $924.55 |

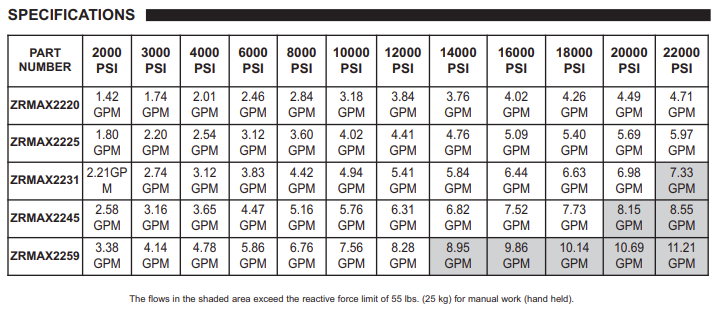

22,000 PSI Industrial Rotating Nozzles
Features:
- Max Pressure: 22,000 PSI
- Min. Pressur: 2,000 PSI
- Max Temperature: 140°F
- Inlet Size: M14 x 1/2"
- Length: 1.5 outer diameter x 4.1 Lg.
- Weight: 2.64 lbs
- Materials: Stainless Steel, Titanium
| MODEL | DESCRIPTION | MAX PSI | NOZZLE SIZE | GPM | PRICE |
| ZRMAX2220 | Industrial Rotating Nozzles | 22000 | 0.9 | 1.4 - 4.7 | $2,832.70 |
| ZRMAX2225 | Industrial Rotating Nozzles | 22000 | 1.0 | 1.8 - 5.97 | $2,832.70 |
| ZRMAX2231 | Industrial Rotating Nozzles | 22000 | 1.1 | 2.2 - 7.33 | $2,832.70 |
| ZRMAX2245 | Industrial Rotating Nozzles | 22000 | 1.2 | 2.58 - 8.55 | $2,832.70 |
| ZRMAX2259 | Industrial Rotating Nozzles | 22000 | 1.35 | 3.38 - to 11.21 | $2,832.70 |
- Feed the nozzle with filtered water only, at a maximum temperature of 1400 F.
- Before applying pressure to the nozzle, it is necessary to follow the steps listed below:
- A. Check that the visible parts are not deformed, damaged or cracked.
- B. Check that the nozzle is fastened correctly onto the lance end.
- C. Check that the nozzle components are fixed correctly to each other.
- For safety and durability reasons, the system must be started (ON) keeping the nozzle tipped 450 downward, so that the jet hits the ground first.
- Before using the nozzle, make sure that persons, animals or things that might be damaged by the high pressure jet created by the nozzle are not within its radius of action.
- Never direct the jet at persons or animals, even though they are at a safe distance and even though the nozzle is not underpressure.
- When the nozzle is not in use, engage the safety lock in the OFF position; in addition to this, the nozzle must be stored taking care that it is unreachable and cannot be used by unauthorized people.
- Before carrying out any inspection on the nozzle and before storing it, make sure that th whole circuit is totally released from possible residual pressure, even though the system is not in function.

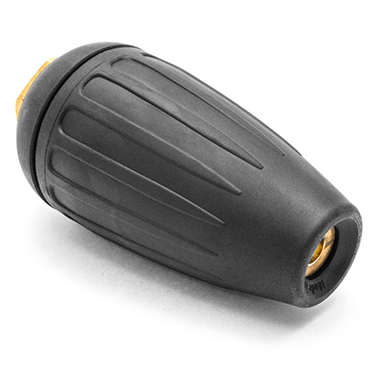

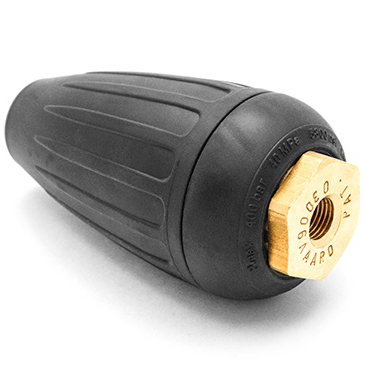

Excavation RotoJet Turbo Nozzle
This Premium Turbo Nozzle features a spring loaded pin to seal the end of the nozzle keeping out sand and mud that causes competitors' nozzles to fail. This feature also allows you to engage the turbo nozzle in any direction without the risk of damaging the internal ceramic pin or seat. As with all turbo nozzles, the RotoJet has a laser nozzle that spins at an incredible rate increasing your cleaning area from zero degrees to 26°.
The Excavation Turbo Nozzles are ideal for Sewer Cleaning, Contract Cleaning, Hydro Excavation, Mining, Potholing, Directional Drilling, Slurry Removal, Industrial Clean-up, Waste Clean-up, Lift-Station Clean-up, Manhole Clean-out, Culvert Clean-out, Lateral and Storm Drain Clean-out, and Power Pole installationg.
- Min Pressure: 2000 PSI
- Max Pressure: 5800 PSI (depending on model)
- Max Temperature: 212° F
- Max Flow: 10 - 12 GPM
- Optional:Inline High Pressure Nozzle Filter (part# 5166)
- 1/4" Female BSP inlet
- Brass Core with Black Jacket and Ceramic Internals
- Weight: 2 lbs
NOTE: ALWAYS start spraying with rotary nozzle facing downward to prevent damage to the brass nozzle.
It is highly recommended a high pressure filter be attached to the inlet of the rotating nozzle. This will help prevent debris from your water supply from entering the nozzle and destroying the internal components, thus increasing the life of your nozzle.
| MODEL | DESCRIPTION | FLOW | INLET | PRICE |
| 16.0375 | 5800 PSI Excavation RotoJet Turbo Nozzle | 10 GPM | 1/4" | $174.50 |
| 16.0377 | 5800 PSI Excavation RotoJet Turbo Nozzle | 12 GPM | 1/4" | $174.50 |
See Also
NOTE: All rotating nozzles MUST be started with the wand pointing to the ground. Eye protection must be worn while using them.
Nozzle Materials
There are many types of nozzles available to provide differences in throughput, spray angle, and pattern. Spray nozzles are made from a variety of materials including brass, aluminum, stainless steel, hardened stainless steel, ceramic, and nylon. Brass nozzle tips are common because they are relatively inexpensive but they wear rapidly when used to apply abrasive materials such as wettable powders. They are also susceptible to corrosion by some liquid fertilizers. Aluminum tips are resistant to moderately abrasive materials.
Nylon or plastic tips are sometimes more resistant to wear than metal tips because molded tips have a smoother finish. The surface of a metal tip (especially brass and aluminum tips) has microscopic grooves as a result of machining and drilling the orifice. This rough finish presumably causes turbulence and enhances the abrasive action of particles suspended in a spray liquid. There are, however, disadvantages to nylon or plastic nozzles. The threads of some nozzle bodies and caps may be easily damaged by constant use, especially if they are over-tightened. They are also subject to swelling when exposed to some solvents.
Paint Removal
Read about paint removal with a pressure washer.
From: $8.50
Each nozzle should be used based on the application and surface being cleaned. All nozzles have a 1/4" quick connect plug that easily connects to the end of the wand.
Inline High Pressure Nozzle Filters
Protect your turbo nozzle from damage caused by debris in the water flow.
Light-weight with a large cleaning area. Use this nozzle to increase the impact of your pressure washer on your cleaning job. Uses a 0 degree nozzle and rotates it in a 15 degree pattern.
