Hydrostatic Line Testers - Hydrostatic Testing
These hydrostatic test pumps are quick and reliable pressure test plumbing machines, excellent for testing leakage and integrity. They are fully tested, serviced and ready for use. These units pressure test the integrity of pipes and plumbing as required by local codes.
The user is able to pump water into a closed pipeline system (hydrostatic testing), set and lock the pressure, and test to see if there are any leaks in the pipeline system. Hydrostatic test pumps are ideal for city maintenance, contractors or rental yards.
We also provide spare parts and repair kits list recommended to specific models. Read more about test pumps in our article.
Order Online or Call Toll Free (866) 858-4982
Hydrostatic Test Pumps

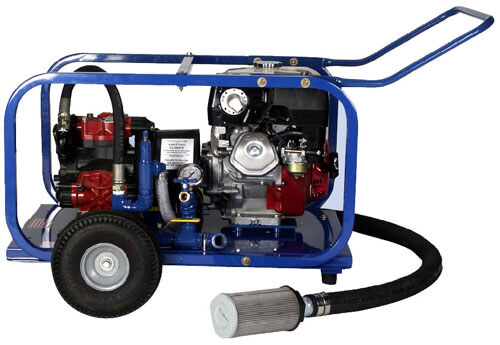

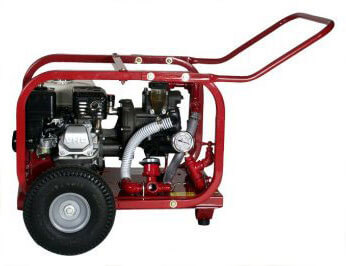

Diaphragm Seriese
The Diaphragm series hydrostatic line tester pumps are large volume, medium pressure test pumps, with flow rates up to 56 GPM, and pressures ranging to 600 PSI, designed to test large diameter water lines up to 96". EXCLUSIVE, to this triple diaphragm pump is technology where pressure is spread across the entire face of the diaphragm virtually eliminating torn, damaged diaphragms. Another design upgrade is the inlet suction diaphragm assembly, eliminating the concern for ruptured diaphragms caused by pressure feeding, is now a separate assembly from the pump, which can be added at any time.
Applications Include: The diaphragm design allows for the handling of up to a 10 chlorine solution, and the ability to be run dry without damaging the pump. A large volume, medium pressure test pump, this unit is recommended for testing up to 24" diameter lines.
Features:
- Handles up to a 10% Chlorine Solution and can be Run Dry
- Triple Diaphragm Design, with Inner Oil Bath Ensures Long Life
- Wheel & Handle Kits and Pressure Feed Tanks Available
- Pressure Test Gauge
- Adjustable Pressure
- 1/2" with quick connect couplings
- Enclosed in a virtually indestructible heavy duty welded steel roll cage
- 8 foot high pressure hose with 1/2" quick connect coupling
- 9 foot inlet hose with stainless steel strainer
- Constructed in the USA
- Optional Wheel, Handle and Tank Kits (RI-8)
- Recommended Spare Parts List (DPH-3B)
Operating Instructions (24 KB)
Diagram Series Specs Sheet (539 KB)
DPH-3B Specs Sheet (453 KB)
| MODEL | PSI | GPM | DESCRIPTION | MOTOR | PRICE |
| DPH-3B | 750-550 | 11 | Triple Diaphragm Most Popular |
Honda, 163cc w/ oil alert | $3,327.45 |
| DPH-8 | 500-300 | 32 | Triple Diaphragm | Honda, 270cc w/ oil alert | $5,550.45 |
| DPH-56/250 | 48-250 | 56 | Six Diaphragm (does not include 9' inlet hose w/ stainless steel strainer) | Honda, 389cc w/ oil alert | $8,514.45 |

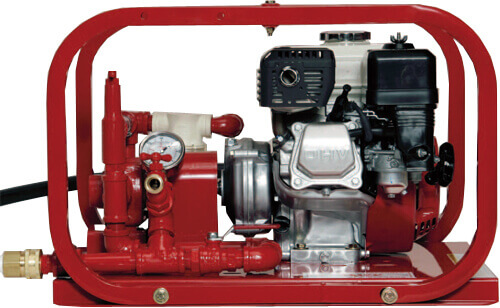

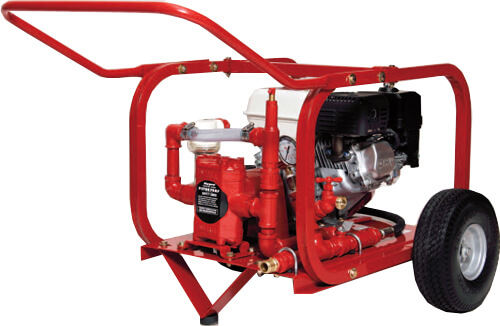

Piston Roller Series
Both these models are mid volume, medium hydrostatic test pumps, designed for testing lines up to 16 inches in diameter. On the R-DE-3C, a pulsation damper hose reduces liability while increasing operator safety. Polypropylene rollers (standard on R-RP-2C) afford exceptional smooth operation, and minimal maintenance with no valves to repair or replace. The pressure regulator with inlet bypass allows for precise setting of test pressure reducing pump wear, and minimizing repair costs. A Wheel & Handle Kit accessory is available and can be added to these units at any time.
Applications Include: This pump is a must for the plumbing and landscaping contractor.
- Max Pressure: 300-450 PSI (depending on model)
- Max Flow: 5-6 GPM (depending on model)
- Motor: 5.5 HP Birggs & Stratton, 206cc, air-cooled, 4-cycle
- Inlet: 3/4" Female hose swivel
- Outlet: 3/4" with Quick-Connect Couplings
- High Pressure Ballvalve Isolates Test Pressure
- Automatic Pressure Regulator with Inlet Bypass
- Inline Strainer with Stainless Steel Mesh Filter and Clear Bowl Assembly
- Pressure Test Gauge
- Adjustable Pressure
- Enclosed in a virtually indestructible heavy duty welded steel roll cage
- 8 foot high pressure hose with 1/2" quick connect coupling
- Constructed in the USA
- Optional Wheel and Handle Kits (RI-8)
Operating Instructions (41 KB)
DE-3C Specs Sheet (278 KB)
RP-2C Specs Sheet (44 KB)
EL Hydrostatic Electric Series
The EL-series is a low volume medium pressure line of hydrostatic test pumps designed for testing any small water line or pressure system. This lightweight compact design combines the versatility of indoor/outdoor use along with simple operation. Standard power sources include, 1 HP, 50/60 HZ, 115 volt, 15 amp electric motor. Thanks to its stainless steel vibration dampening liquid-filled gauge, smooth and accurate readings become the rule, not the exception. Electric motors are available in varieties of phase, voltages and explosion proof models.
Applications Include: The EL-series test pumps are ideal for testing sprinkler systems, irrigation lines, plant piping and pressure vessels.
- Max Pressure: 150-1800 PSI (depending on model)
- Max Flow: 1.5-4 GPM(depending on model)
- Inlet: 3/4" garden hose swivel
- Outlet: 3/8" - 1/2" hose
- Brass Unloader Valve to Regulate Pressure
- High Pressure Ballvalve to Isolate Test Pressure
- Pressure Test Gauge
- Adjustable Pressure
- Fully adjustable regulator, bypassing the inlet side of the pump
- Enclosed in a virtually indestructible heavy duty welded steel roll cage
- 8 foot high pressure hose with 1/2" quick connect coupling
- Constructed in the USA
- Optional Wheel and Handle Kits (RI-10)
- Recommended Spare Parts List(EL2 & EL3)
Operating Instructions (20 KB)
Specs Sheet (387 KB)
| MODEL | PSI | GPM | MOTOR | INLET | OUTLET | PRICE |
| EL1 | 50-300 | 3.0 | 1/2 HP, TEFC, 110/120 V, 60 HZ, 1Phase | 3/4" | 1/2" | $1,702.45 |
| EL2 | 50-1000 | 1.5 | 1 HP, TEFC, 110/120 V, 50/60 HZ, 1Phase | 3/4" | 3/8" | $2,808.75 |
| EL1A | 70-500 | 3.0 | 1 HP, TEFC, 110/120 V, 50/60 HZ, 1Phase | 3/4" | 1/2" | $2,364.15 |
| EL3 | 150-1500 | 1.5 | 1.5 HP, TEFC, 110/120 V, 60 HZ, 1Phase | 3/4" | 3/8" | $3,105.15 |

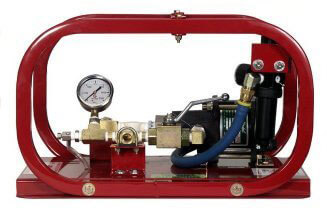

HP Pneumatic Series
The HP-Series of pneumatic hydrostatic test pumps are compact, versatile, air driven units, designed for testing environments where dangers of spark or explosion are prevalent. The pneumatic series uses a reciprocating air driven plunger assembly. Designed for maximum performance and to withstand the test of time, these easy to use pumps are made with premium high pressure fittings and components, and are protected in a steel roll cage. The stainless steel liquid-filled gauge ensures accurate readings with less flutter.
Applications Include: Lightweight and portable, these high pressure units are ideal for anywhere standard shop air is easily accessible. Designed for testing in small confined spaces or remote locations such as on board ships and oil rigs.
- Max Pressure: 10,000-20,000 PSI (depending on model)
- Water Inlet: 3/4" female hose swivel
- Air Inlet: 3/8" FNPT
- Outlet: 3/8" high pressure 8 FT outlet hose
- Uses Air Motor Assembly
- Low Pressure Kit, Increases Existing Range of Pressure up to Four Times
- High Pressure Needle Valve Quickly Bleeds Off Air and Releases Pressure
- Pressure Test Gauge
- Adjustable Pressure Regulator
- Needing only standard shop air, this unit is convenient and easy to use
- Stainless 100 mesh strainer for pump protection from debris
- High pressure valve for removal of air and pressure release
- Enclosed in a virtually indestructible heavy duty, welded, powder coated, steel frame
- Constructed in the USA
- Recommended Spare Parts List for HP Series
Operating Instructions (20 KB)
RH-HP-10 Specs Sheet (411 KB)
| MODEL | PSI | PSI REQ. | INLET | OUTLET | PRICE |
| HP-10 | 1000-10,000 | 100 PSI Shop Air | 3/8" | 3/8" | $4,809.45 |
| HP-20 | 2000-20,000 | 100 PSI Shop Air | 3/8" | 3/8" | $8,662.65 |

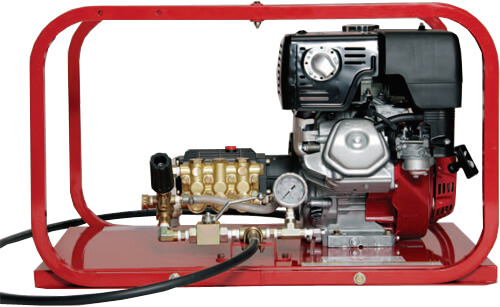

TR Plunger Series
The TR-Series are large volume high pressure hydrostatic test pumps. The ceramic plunger pump has an inner oil bath, ensuring long life and increased stability. The stainless steel liquid-filled gauge ensures accurate readings with less flutter.
Applications Include: These heavy-duty triplex ceramic plunger pumps are designed for testing boilers, vessels, process piping, steam, and gas lines.
Applications Include: Lightweight and portable, these high pressure units are ideal for anywhere standard shop air is easily accessible. Designed for testing in small confined spaces or remote locations such as on board ships and oil rigs.
- Max Pressure: 2000-5000 PSI (depending on model)
- Max Flow: 3-4 GPM (depending on model)
- Brass Unloader Valve, with inlet bypass
- High Pressure Ballvalve to Isolate Test Pressure
- Pressure Test Gauge
- Adjustable Pressure
- Automatic pressure regulator with inlet bypass
- Stainless steel ball valve to isolate pressure
- Enclosed in a virtually indestructible heavy duty welded steel roll cage
- 8 foot high pressure hose with 1/2" quick connect coupling
- Constructed in the USA
- Recommended Spare Parts List for TRH Series
Operating Instructions (20 KB)
Specs Sheet (655 KB)
| MODEL | PSI | GPM | MOTOR | INLET | OUTLET | PRICE |
| TRH2 | 2000 | 3.0 | Honda 163cc w/ oil alert | 3/4" | 3/8" | $2,808.75 |
| TRH8 | 3600 | 4.0 | Honda 389cc w/ oil alert | 3/4" | 3/8" | $3,920.25 |
| TRH-10 | 5000 | 4.5 | Honda 614cc w/ oil alert | 3/4" | 3/8" | $9,668.95 |
Hydrostatic Test Pumps

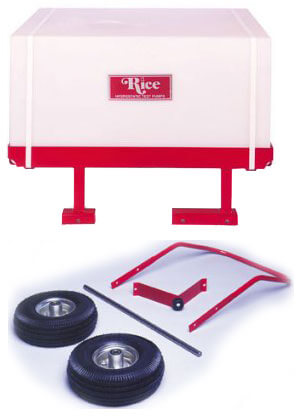

Some of the hydrostatic test pumps above can be customized with accessories to increase the value and use of your unit. Wheel and Handle Kits make portability a breeze, while saving time and minimizing liability costs due to improper lifting. Pressure Feed Tanks eliminate the need for hauling a 55-gallon drum from test site to test site. Pressure Feed Tanks save time, labor, repair, and maintenance costs.
Applications Include: This pump is a must for the plumbing and landscaping contractor.
- Simple and "Fool Proof" - describes the unique pressure feed tank accessories. This heavy duty polypropylene tank allows the pressure feeding of diaphragm pumps, normally requiring suction or gravity feed only. There is an on/off float valve for water level control, and a chemical additive opening on the top of the tank for easy chlorination or other chemical treatment of the test environment. All diaphragm models are tank ready and this accessory can be added at any time!
- Portable "Back Saver" - the wheel and handle kit instantly makes your test pump truly portable and easy to maneuver, saving you time, labor, maintenance, and repair. The new "NO FLAT" tires are made of polyurethane foam with open and closed air cells, creating a tire 2 times stronger than rubber, yet soft enough to provide bounce and absorb vibration.
| MODEL | DESCRIPTION | WEIGHT | PRICE |
| RI-6 | Small Wheel and Handle Kit | 19 lbs | $278.40 |
| RI-8 | Standard Wheel and Handle Kit | 19 lbs | $278.40 |
| RI-10 | Large Wheel and Handle Kit | 19 lbs | $278.40 |
| 3B-PRESSURED | 20 Gallon Pressure Tank Kit (for DP-3 or DPH-3 only) | 25 lbs | $780.75 |
| 8B-PRESSURED | 40 Gallon Pressure Tank Kit (for DPH-8 only) | 30 lbs | $908.60 |
Dirt Dawg Post Hole Digger
Hydrostatic Pipeline Testers
The Dirt Dawg post hole digger is a Contractors best friend!
- Swiveling handle assembly for steady, accurate drilling on hills or slopes.
- Quick disconnect pins enable the operator to make adjustments and change auger bits in seconds.
- Oil light glass on tank reservoir
- integrated tow package on all models
- Sturdy, belt drive system on self propelled model
- 3 year full product warranty
Hydrostatic Line Tester Spare Parts List
Below are the recommended spare parts list of hydrostatic line tester.
Call 1 (866) 858-4982 for pricing
If you are not sure on the part you need for hydrostatic line tester , please send us an e-mail to info@ultimatewasher.com with the model number and the part that you need.
