Car Wash Booms

Features:

• Max Pressure: 4000 PSI
• Max Temp: 250°F
• Smooth Rotation
• Polished Stainless Steel
• Solid Construction
• Extended Work Radius
• Great for car or truck wash bays, mining facilities, air craft maintenance and manufacturing plants

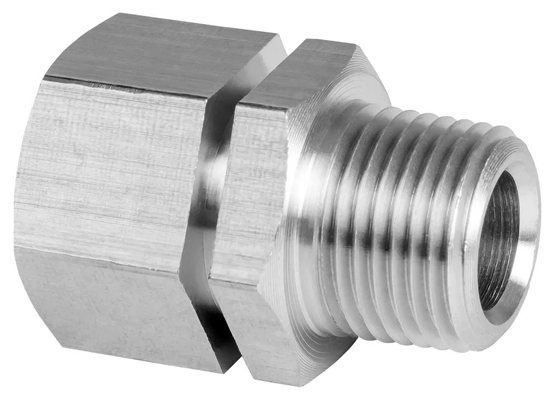

• Inlet 3/8 inch FNPT (Female National Pipe Thread)
• Outlet 3/8 inch MNPT (Male National Pipe Thread)
• Throughput medium: Water, Oil, Air at pH 3-12

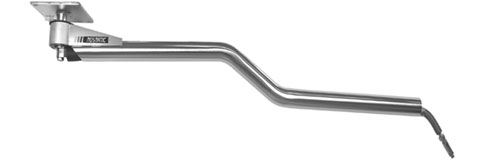

Ceiling Boom — Bent

These ceiling booms allow continuous 360° rotation for the high pressure wand or the foam brush. By ordering two booms the high pressure wand is mounted on one side and the foam brush on the opposite wall of the wash bay. The installation of an optional positioning device guarantees a designated parking position for the ceiling boom.

MODEL	DESCRIPTION	WEIGHT	BOOM SIZE	PRICE
MO-65.009	DKZ Bent Ceiling Boom	22 lbs	4 FT 9"	$977.90
MO-65.019	DKZ Bent Ceiling Boom	23 lbs	5 FT 1"	$984.85
MO-65.029	DKZ Bent Ceiling Boom	24 lbs	5 FT 5"	$993.50
MO-65.039	DKZ Bent Ceiling Boom	26 lbs	5 FT 9"	$1,000.40

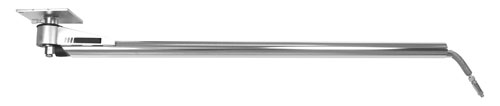

Ceiling Boom — Straight

These high pressure wand/ceiling boom car wash equipment features 360° continuous rotation for the car wash user. The high pressure ceiling boom is centered in the bay. Add the optional bracket with rubber stoppers for extra boom arm protection.

MODEL	DESCRIPTION	WEIGHT	BOOM SIZE	PRICE
MO-66.009	DKP Straight Ceiling Boom	24 lbs	4 FT 9"	$879.20
MO-66.029	DKP Straight Ceiling Boom	26 lbs	5 FT 9"	$893.90
MO-66.059	DKP Straight Ceiling Boom	22 lbs	7 FT 5"	$939.80
MO-66.069	DKP Straight Ceiling Boom	23 lbs	8 FT 2"	$954.50
MO-66.079	DKP Straight Ceiling Boom	24 lbs	9 FT	$970.10
MO-66.089	DKP Straight Ceiling Boom	26 lbs	9 FT 10"	$1,007.60

Ceiling Boom Assembly Instructions (MO-66.009)

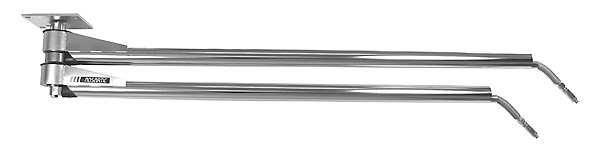

Dual Ceiling Booms

MODEL	DESCRIPTION	WEIGHT	BOOM SIZE (L1)	BOOM SIZE (L2)	PRICE
16DS-CW1EE0	Dual Ceiling Boom	39 lbs	4 FT 9"	5 FT 3"	$1,494.80
16DS-CW2F78	Dual Ceiling Boom	41 lbs	5 FT 3"	5 FT 9"	$1,509.55
16DS-CWCD84	Dual Ceiling Boom	42 lbs	5 FT 9"	6 FT 3"	$1,532.05
16DS-CW1B71	Dual Ceiling Boom	44 lbs	6 FT 3"	6 FT 9"	$1,563.25
16DS-CWE645	Dual Ceiling Boom	46 lbs	6 FT 9"	7 FT 5"	$1,608.45
16DS-CW86F7	Dual Ceiling Boom	48 lbs	7 FT 5"	8 FT 2"	$1,671.60

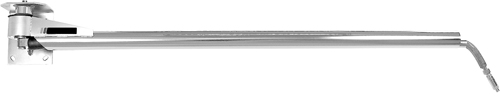

Wall Boom — Straight

These high pressure wand/ceiling boom car wash equipment features 360° continuous rotation for the car wash user. The high pressure ceiling boom is centered in the bay. Add the optional bracket with rubber stoppers for extra boom arm protection.

MODEL	DESCRIPTION	WEIGHT	BOOM SIZE	PRICE
MO-68.509	WAE Wall Boom	23 lbs	4 FT 9"	$946.70
MO-68.529	WAE Wall Boom	26 lbs	5 FT 9"	$962.30
MO-68.549	WAE Wall Boom	29 lbs	6 FT 9"	$992.60
MO-68.569	WAE Wall Boom	33 lbs	8 FT 2"	$1,022.90
MO-68.589	WAE Wall Boom	38 lbs	9 FT 10"	$1,079.10

Wall Boom Assembly Instructions (MO-68.509)

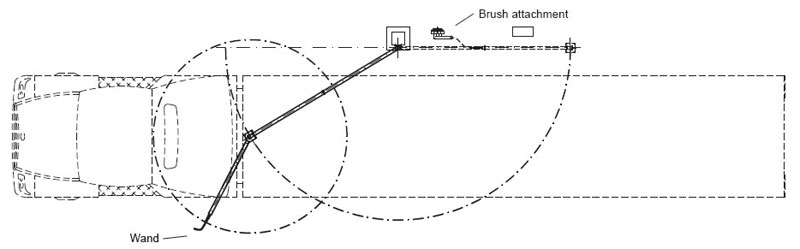

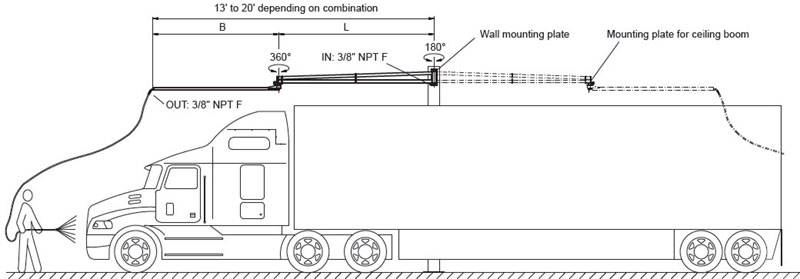

Wall Boom Extension - Single Inner Pipe = One Connection

Bus and truck wash solution featuring a wall boom extension, ceiling boom combination. The biggest advantage to the wash operator is the total extended reach of up to 40 FT. This is an ideal combination for any kind of commercial vehicle wash and is manufactured from high quality stainless steal tubing. Also available as a dual medium version.

MODEL	DESCRIPTION	WEIGHT	BOOM SIZE	PRICE
MO-60.522	Wall Boom Extension WSA-Single Pipe	53 lbs	6 FT 8"	$1,996.35
MO-60.532	Wall Boom Extension WSA-Single Pipe	58 lbs	8 FT 2"	$2,195.70
MO-60.542	Wall Boom Extension WSA-Single Pipe	64 lbs	9 FT 10"	$2,255.65

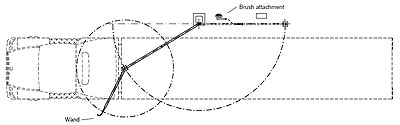

Wall Boom Extension - Dual Inner Pipes = Two Connections

Bus and truck wash solution featuring a wall boom extension, ceiling boom combination. The biggest advantage to the wash operator is the total extended reach of up to 40'. This is an ideal combination for any kind of commercial vehicle wash and is manufactured from high quality stainless steal tubing.



MODEL	DESCRIPTION	WEIGHT	BOOM SIZE	PRICE
MO-60.910	Wall Boom Extension WSA-2R Dual Pipes	55 lbs	6 FT 8"	$2,301.10
MO-60.911	Wall Boom Extension WSA-2R Dual Pipes	60 lbs	8 FT 2"	$2,346.90
MO-60.912	Wall Boom Extension WSA-2R Dual Pipes	66 lbs	9 FT 10"	$2,408.55
