Car Wash Pump Station Packages
Our car wash pump stations can be used for a variety of different applications. Whether it is for public or private use, these units combine all the features you want in an easy to service and compact design. Pumps are designed for extended and hard use and construction is professional grade. Systems can be used for small operations like golf course, boat marinas, and apartment complexes or for larger scale needs like multiple bay self service car or truck wash. You can either purchase a complete system or replace existing components of your vehicle wash. Some good tips to starting your own car wash business are as follows. Find a location that needs a car wash. A high-profile location, such as a busy street with good visibility, is a necessity for a business such as this to succeed. Contact the city or county department that handles business licenses and request an application. Inquire as to what other requirements there are for opening a business. You may be required to provide insurance or follow certain restrictions for the area. Research car washes. Decide whether you want a fully automated car wash or a partially automated one that requires workers to complete part of the washing and drying process. Make a business plan. You'll need to have all of the aspects of opening and running the business worked out for the short and long term. Advertise your new business. Use creative marketing to draw customers. Hope for rain. Rain creates mud, mud makes cars dirty, and you'll make them clean. Ultimate Washer is not limited to the selections here. We can custom design a pump station for your unique needs as well as provide for a complete line of car wash accessories
See here for fully equipped car wash pump room layout.
Complete Car Wash Bay Packages

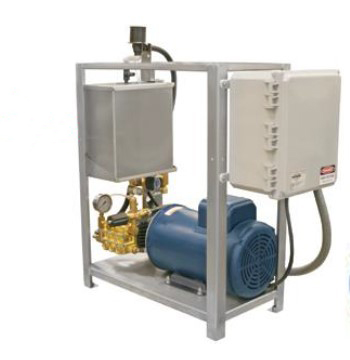

Economy High Pressure Wash Pump Station Package
This Wash System is the ideal choice for apartment complexes, boat marinas, golf courses, and many other venues. This pump station is great for self service car wash and is durable to be used daily for hours. Package comes complete with all the basic items needed for any wash application. Use it for car wash, boat wash, truck wash or bus wash. Besides being economical, the pump station is also very compact.
Features:
- 1000 to 1300 PSI at 3 to 3.2 GPM
- Triplex pump unit (2 year warranty)
- 2 to 3 HP Electric Motor, 110 to 230 V, 20 amps (1 year warranty)

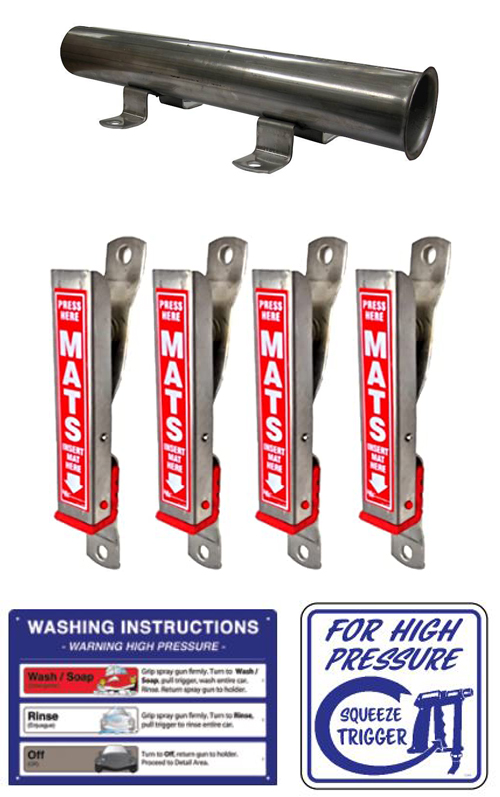

- Stainless steel wand holder and mat clamps
- Stainless Steel Wall Boom
- Soap and Rinse Valves
- 11 Gal Chemical Tank
- Trigger Gun and 18 Inch Flex Wand Assembly
- 20 FT Cord Included (no plug)
- Instruction sign
- All Units Include Rotary Switch
- On Demand Will Activate when the Trigger is Pulled and Will Turn Off when Trigger is Released
- Coin Mechanism Units Include Timer and Coin Drawer
- Free Use Units Are Activated Freely with the Rotary Switch and Must be Turned Off After Use
- Optional Foan Brush Owner's Manual
Fully Equipped Car Wash Room Layout
Applications:
- Car / Truck Wash
- Marina / Boat Wash
- Golf Cart Wash
- Bus Fleet Wash
| MODEL | DESCRIPTION | OPERATION | VOLTAGE | PSI/HP/GPM | PRICE |
| 11-PWX03S | Pump Station Package | On Demand | 110V / 1 Phase | 1300PSI / 3HP / 3.2GPM | $8,321.55 |
| 11-CW005KIT | Pump Station Package | Coin Mechanism | 230V / 1 Phase | 1300PSI / 3HP / 3.2GPM | $10,484 |
| 11-CW008KIT | Pump Station Package | Coin Mechanism | 120V / 1 Phase | 1000PSI / 2HP / 2.8GPM | $9,385.75 |
Air Driven Pump - Foam Brush System
The air driven pump foam system feature a compressed air driven chemical pump that delivers a constant supply of rich, thick foam. Pump and solenoids are mounted on a panel that mounts to the pump room wall.
Separate supply lines are run from the air and chemical solenoids in the pump room to each of the foam modules which are located out near the bay to reduce "lag time" of foam to brush.
Features:
- Air Driven Pumping Unit
- Foamer Modules for each bay
- Stainless Steel Solenoids with metering screws
- 40" Brush Handle Assemblies with hoses and swivels
- Stainless Mixing Tank with "HydroMinder" valve
- 72" Stainless Steel Wall Booms
- Turtle Wax® Brush Soap: 5 Gallon
- Bay Instruction Signs
- Weep System for freeze prevention
- Hogs Hair Brushes
- 12" x 5" Brush Buckets to help keep brushes clean
- Supply Hoses, Run Tubing & Fittings
- Made in USA
- 2 CFM Air Compressor Required
| MODEL | DESCRIPTION | WEIGHT | NO. OF BAYS | PRICE |
| 186D7 | Foam Brush System | 120 lbs | 1 | $2,383.60 |
Singles and Double Pump Stations for Truck Wash
These pump stations feature sturdy steel frames with baked enamel finish. Each leg has adjustable levels. Systems are pre-plumbed and wired for low voltage. Pumps choices include CAT, Hypro, General, AR, or Giant. CAT Pumps are featured in models depicted and indicated below with pricing. Stations with 4 or more pump systems for multiple bay configurations available upon request. Ultimate Washer can also provide a full array of accessories for vehicle wash such as wax or foam brushes, detergents, water softeners, coin and currency boxes, and boom packages. Pump stations are an integral part of any car wash setup. Whether your intended use is for car wash, boat wash, or truck wash, these systems can handle it all. Ideal for self service car wash applications.
Features:
- 1200-2300 PSI (depending on model)
- 3.5-5 GPM (depending on model)
- CAT or Emperor Pump (2 year warranty)
- 3-7.5 HP Leeson Electric Motor/ 208V/ 1-3 Phase(22 Amps) or 230V/ 1-3 Phase (12 Amps) - (1 year warranty)
- Single phase also available (Call for Pricing)
- Heavy Duty Stainless Steel Frame (Bench Style)
- Electrical Panels; high quality solid state controls (UL listed)
- Stainless steel water supply tanks
- Double inlet design for hot and cold water inlets
- Pressure gauges with stainless steel case, glycerin-filled for accurate reading
- Hour Meter for indication of pump system run time for maintenance and service
- Balanced pressure relief valve allows for use of the trigger gun as well as protecting system against damage from excessive pressures
- Automatic shut down for operator control at wand
- Dimensions are 62” H x 29” D x 22” W for Single Pump Stations (Dual are 44” W)
| MODEL | PRODUCT | PRESSURE | FLOW | MOTOR | PUMP | VOLTAGE / PH | PRICE |

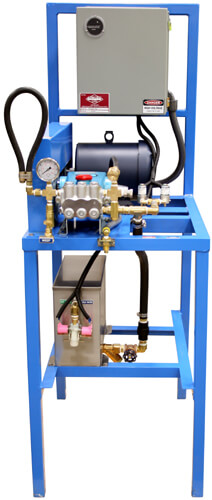

| 189AA | Single Pump Station- Cars/Trucks | 2300 PSI | 4.8 GPM | 7.5 HP | Emperor | 208V / 1 Phase | $14,617.45 |
| 189AB | Single Pump Station- Cars/Trucks | 2300 PSI | 4.8 GPM | 7.5 HP | Emperor | 208V / 3 Phase | $10,402.40 |
| 186DC | Single Pump Station- Cars/Trucks | 2300 PSI | 5 GPM | 7.5 HP | CAT | 208V / 3 Phase | $10,402.40 |

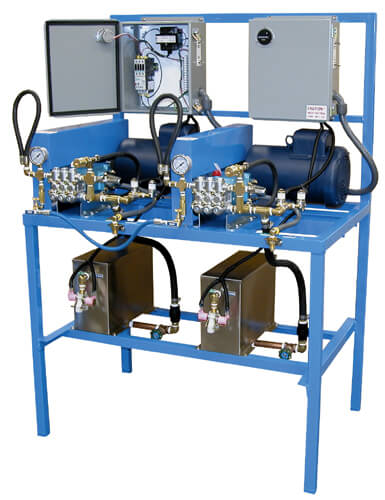

| 189AC | Double Pump Station - Cars/Trucks | 2300 PSI | 4.8 GPM | 7.5 HP | Emperor | 208V or 230V / 1 Phase | $20,556.65 |
| 189AD | Double Pump Station - Cars/Trucks | 2300 PSI | 4.8 GPM | 7.5 HP | Emperor | 208V or 230V / 3 Phase | $18,890.05 |
| 186DD | Double Pump Station - Cars/Trucks | 2300 PSI | 5 GPM | 7.5 HP | CAT | 208V or 230V / 3 Phase | $19,720.80 |

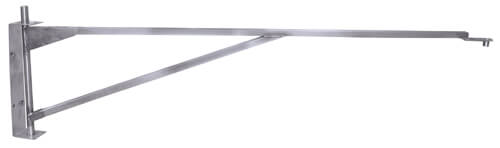

Wall Boom
Features:
- 66" Wall Boom with Swivel
- Material: Stainless Steel
| MODEL | DESCRIPTION | PRICE |
| 186EB | 66" Stainless Steel Wall Boom | $522.35 |

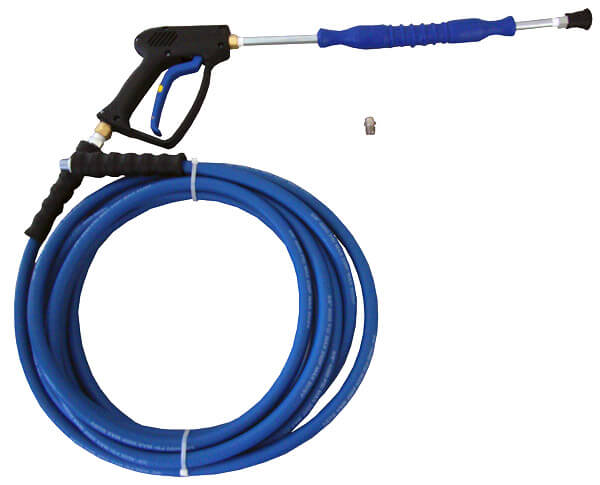

Wash Packages
Kit Includes:
- 15 FT or 25 FT Blue Non-Marking 3/8" High Pressure Hose (depending on model)
- 4000 PSI Trigger Gun with Weep Feature - to allow continuous flow after trigger is released to prevent gun from freezing
- 25° Spray Nozzle (3.5 orifice) 1/4" NPT
- 18" Blue Flex Wand - reach difficult areas (BN-TR1-KIT)
- 1/4" NPT Nozzle Protector - prevent scratching delicate services (BN-TR1-KIT)
- 47" Zink Plated Wand (BN-TR2-KIT)
- Stainless Steel Wand Holder
- Stainless Gun Swivel
- 4" Wall Hook, Stainless Steel (Hose Hanger)
| MODEL | DESCRIPTION | HOSE LENGTH | PRICE |
| BN-TR1-KIT | Wash Package - Car Wash | 15 FT | $144.75 |
| BN-TR2-KIT | Wash Package - Truck Wash | 25 FT | $147.05 |
Remote Switch Control Boxes
Actuator Switch Boxes for remote control of pump stations, pressure pumps, foaming brush, presoak systems and more. Can be mounted remotely from your equipment to control cleaning functions in the bay.
Gasketed PVC or stainless boxes are designed for moisture and dust protection, but not direct water spray (except 11-CWX41P). Switches can be pre-wired for multiple options. Complete boxes are built to order to meet your specific needs.
11-CWA1PE Features:
- PVC Box with gasketed lid
- 3 Position selector switch for soap, rinse and off.
- Size: 4"L x 4"W x 4"H
11-CW1PEU Features:
- PVC Box with gasketed lid
- 8 Position rotary switch for soap, rinse, off and 5 other options if needed.
- Size: 4"L x 4"W x 4"H
11-CWSS1P Features:
- Stainless Steel Box with gasketed lid
- 8 Position rotary switch for soap, rinse, off and 5 other options if needed.
- Size: 4"L x 4"W x 4"H
11-CWX41P Features:
- Stainless Steel Box with gasketed lid
- Control Box is rated Nema 4X for waterproof requirements
- 4 Position selector switch
- Size: 5"L x 6"W x 6"H
| MODEL | BOX | SWITCH | PRICE |
| 11-CWA1PE | PVC | 3 Function | $264.00 |
| 11-CW1PEU | PVC | 8 Function | $316.80 |
| 11-CWSS1P | Stainless Steel | 8 Functon | $865.20 |
| 11-CWX41P | Stainless Steel | 4 Function | $1,005.20 |

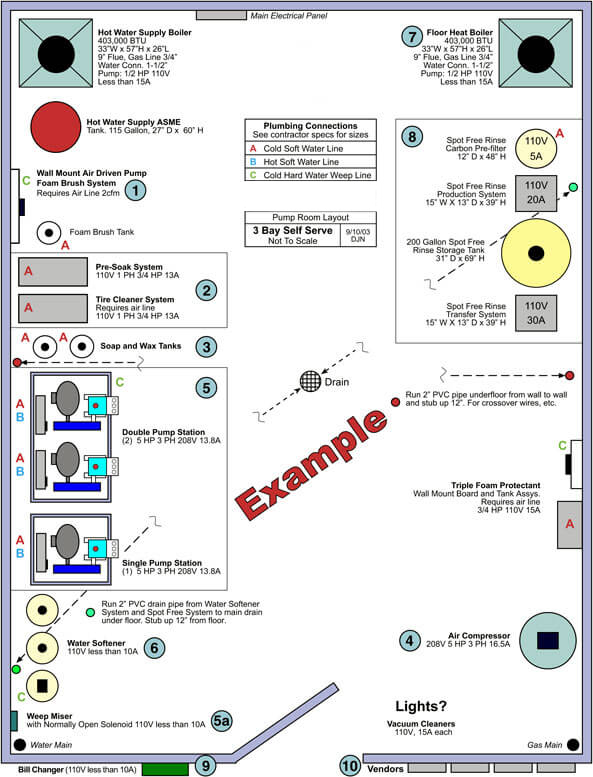

Typical Pump Room Layout
Note: This is a typical 3-Bay pump-room layout which includes the commercial reverse osmosis systems, installations and buildings may vary causing changes to this layout to be necessary!
- Foam Brush (Pump System): Height: 53", Width: 24", Depth: 12". Water inlet is 3/4" FGTH. 110 Volt required. (24 volt hookup from pumping station required).
- Tire Cleaner & Pre-Soak Systems: Height: 53", Width: 12", Depth: 24". Water inlet is 3/4" FGTH. 110 Volt required. (24 volt hookup from pumping station required).
- Soap & Wax Tanks (Automatic-Liquid): 20 Gallon Height: 22-1/8", Diameter is 18". Water inlet is 3/4" GHT. Vinyl run lines can be run from solenoids into top of the tank through the lid.
- Air Compressor: Sized for 1 cfm per bay. 110 volt required. 3/8" connector from compressor to foam brush tire cleaner systems.
- Pump Stations: Height: 62", Depth: 29", Width: 22" on single and 44" on double units. Hot and cold water inlets are 3/4" MGTH. Attach cold water solenoid to main with hoses supplied. Attach hot water solenoid to water heater with hoses supplied. (Note: Heaters are normally mounted above pump stations.) Electrical requirements are as follows: 208 or 230 volt, single or three phase required for each station. Local installation will dictate requirements.
- a Weep System: Includes thermostat and solenoid. Ports are 3/8" FPT. Tap into hard water line, run separate line to solenoid valve. Plumb valve with unions (not included) and run from valve to weep inlet on pump stations, continue run to weep inlet on brush system. Attach thermostat to solenoid. 110 volt required.
- Water Softener: Each softener includes (1) brine tank and (2) mineral tanks. 110 volt required.
- Floor Heat System: Varies with number of bays. See separate floor heat diagram for proper hookup.
- Optional Spot-Free Rinse Systems: Hookup will vary with specific system.
- Bill Changer: Mounts into pump room wall, size will vary with specific model. 110 volt required.
- Vending Machines: Mount to external walls. Height: 42", Width: 12-1/2", Depth: 5-1/2".

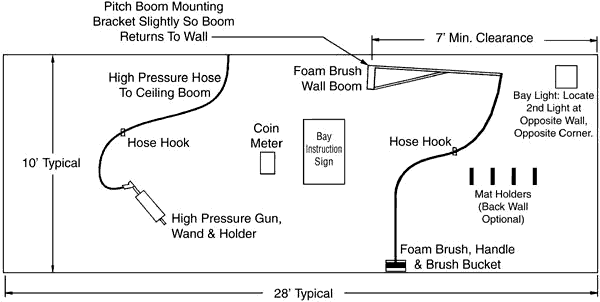

Simple Single Bay Car Wash Setup
Car Wash Parts

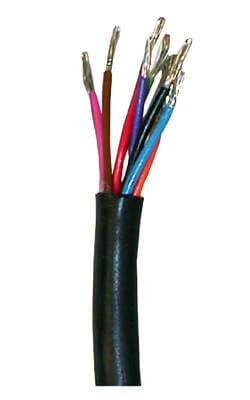

18 GA, 15-Conductor Wire
Kit Includes:
- Control wire for coin meters, motor starters and more.
- Individual color-coded wires enclosed in one outer cover for ease of wiring.
Wire Sold per Foot, Please Select Quantity for Length
| MODEL | DESCRIPTION | LENGTH | PRICE |
| 186F9 | 18 GA, 15-Conductor Wire per foot | 8FT, 15FT, 20FT, 30FT | $7.15 |
High Pressure Hose
| MODEL | DESCRIPTION | PSI | LENGTH | PRICE |
| HOS200-096 | High Pressure Jumper Hose | 4000 | 8 FT | $35.30 |
See Also
Combination vacuums offers great convenience for customers where two or three services they needed are all in one location. These commercial vacuums are combo of air/vacuum and air/water/vacuum.
For a spot free rinse for your car washing business, add commercial reverse osmosis systems to your station. Available from 600 to 8700 gallon per day production capacities.
