Fire Hose Testers — Fire Hose Testing
The FH-Series of fire hose testers meet or exceed test standards set forth by the NFPA (1962.5) and the RMA. The FH-Series is capable of testing fire hose up to 6" in diameter. A large 2-1/2" inlet allows the user to quickly fill and bleed the lines through a 1 & 1/2" manifold.
NO WILD LINES - Unique to the FH-Series of fire hose testers, is a ballvalve strategically placed on the inlet piping that allows the user to fill the lines with "LARGE VOLUME at LOW PRESSURE" and test with "LOW VOLUME at HIGH PRESSURE", eliminating the elements that may cause wild lines. All units in the series have a stainless steel liquid filled gauge that ensures accurate readings, with less flutter.
Applications Include: The FH-Series of firehose testers are a safer, less costly and more efficient way to test your fire hose, keeping your pumper how it should be… ready for action!
FEATURES
- Max Pressure: 450-1000 PSI (depending on model)
- Independent outlet ballvalves - No Wild Lines
- Automatic Pressure By-pass & Exclusive Air Bleed System
- All units come with a 2-1/2" Swivel Inlet Adapter
- All units have 4 independently controlled NST outlets (except RH-EL-FHT)
- Adjustable Pressure
- Enclosed in a virtually indestructible heavy duty welded steel roll cage
- FIVE YEAR FULL PRODUCT WARRANTY from manufacturer's defect
- Constructed in the USA
Fire Hose Testing Equipment
FH3 Hose Tester
Features:
- 3 GPM up to 500 PSI
- Motor: 1 HP Electric Motor, TEFC, MTO, 110/220V, 50/60 Hertz, Single Phase
- Pump: Triplex Plunger Pump
- Guage: Stainless Steel Liquid-Filled
- Inlet: Inlet 2-1/2” NST Swivel Coupling
- Outlet: 4 independent Ballvalves with NST Couplings
- Back Bleed: 1/2” ballvalve to bleed air and attach Pressure wand accessory
- Pressure: Manual-Operated Pressure Relief
- Regulator: Valve, adjustable settings with bypass
- Heavy-duty welded Steel Roll Cage
- Pump weight: 158 lbs
- Shipping Weight: 175 lbs
- Shipping Dimensions: 28" x 23" x 19"
- Optional: Fire Hose Anchor
| MODEL | PSI | GPM | MOTOR | INLET | PUMP | PRICE |
| FH3 | 70-500 | 3 | 1 HP Electric, TEFC, 110/120V, 50/60 Hz | 2-1/2" | Plunger | $3,253.35 |
Operating Instructions(44 KB)

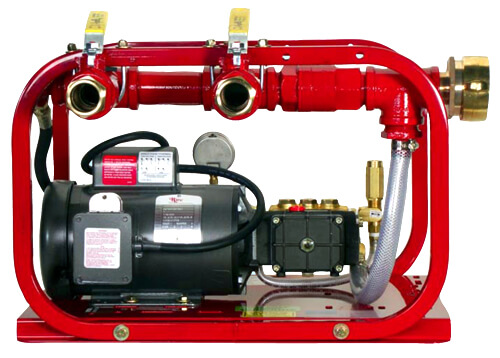

EL-FHT Hose Tester
This is a MINI fire hose tester with all the power and design. Ideal for on board ships, inside factories and plants or any confined spaces.
Features:
- 3 GPM up to 500 PSI
- Motor: 1 HP Electric, TEFC, MTO, 110/220V, 50/60 Hertz, Single Phase
- Pump: Triplex Plunger Pump
- Guage: Stainless Steel Liquid-Filled
- Inlet: Dual Swivel Inlets 2-1/2” NST and 3/4" GHT
- Outlet: 2 independent Ballvalves with NST Couplings
- Back Bleed: 1/2” ballvalve to bleed air and attach Pressure wand accessory
- Pressure: Manual-Operated Pressure Relief
- Regulator: Valve, adjustable settings with bypass
- Heavy-duty welded Steel Roll Cage
- Pump weight: 117 lbs
- Shipping Weight: 135 lbs
- Shipping Dimensions: 28" x 23" x 19"
- Optional: Fire Hose Anchor
| MODEL | PSI | GPM | MOTOR | INLET | PUMP | PRICE |
| EL-FHT | 70-500 | 3 | 1 HP Electric, TEFC, 110/120V, 50/60 Hz | 2-1/2" | Plunger | $2,920.55 |
Operating Instructions(24 KB)

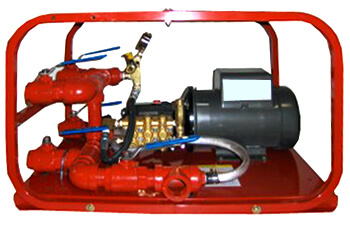

FH5-E Hose Tester
Features:
- 5 GPM up to 800 PSI
- Motor: 3 HP Electric, TEFC, MTO, 220V, 60 Hertz, Single Phase
- Pump: Triplex Plunger Pump
- Guage: Stainless Steel Liquid-Filled
- Inlet: Inlet 2-1/2” NST Swivel Coupling
- Outlet: 4 independent Ballvalves with NST Couplings
- Back Bleed: 1/2” ballvalve to bleed air and attach Pressure wand accessory
- Pressure: Manual-Operated Pressure Relief
- Regulator: Valve, adjustable settings with bypass
- Heavy-duty welded Steel Roll Cage
- Shipping Dimensions: 35" x 25" x 19"
- Shipping Weight: 206 lbs
- Optional: Fire Hose Anchor
| MODEL | PSI | GPM | MOTOR | INLET | PUMP | PRICE |
| FH5-E | 90-800 | 5 | 3 HP Electric, TEFC, 220V, 60 Hz | 2-1/2" | Plunger |  for Pricing |
Operating Instructions(24 KB)
Product Group Title
Features:
- 4 GPM up to 1000 PSI
- Motor: 3 HP Electric, TEFC, MTO, 220V, 60 Hertz, Single Phase
- Pump: Triplex Plunger Pump
- Guage: Stainless Steel Liquid-Filled
- Inlet: Inlet 2-1/2” NST Swivel Coupling
- Outlet: 4 independent Ballvalves with NST Couplings
- Back Bleed: 1/2” ballvalve to bleed air and attach Pressure wand accessory
- Pressure: Manual-Operated Pressure Relief
- Regulator: Valve, adjustable settings with bypass
- Heavy-duty welded Steel Roll Cage
- Shipping Dimensions: 35 " x 25" x 19"
- Shipping Weight: 210 lbs
- Optional: Fire Hose Anchor
| MODEL | PSI | GPM | MOTOR | INLET | PUMP | PRICE |
| FH4-E | 150-1000 | 4 | 1 HP Electric, TEFC, 220V, 60 Hz | 2-1/2" | Plunger | for Pricing |
Operating Instructions(21 KB)
FH2 Hose Testers
Features:
- 3.5 GPM up to 1000 PSI
- Engine: Honda or Briggs & Stratton (depending on model)
- Pump: Triplex Plunger Pump
- Guage: Stainless Steel Liquid-Filled
- Inlet: Inlet 2-1/2” NST Swivel Coupling
- Outlet: 4 independent Ballvalves with NST Couplings
- Back Bleed: 1/2” ballvalve to bleed air and attach Pressure wand accessory
- Pressure: Manual-Operated Pressure Relief
- Regulator: Valve, adjustable settings with bypass
- Heavy-duty welded Steel Roll Cage
- Shipping Dimensions: 35" x 25" x 19"
- Shipping Weight: 160 lbs
- Optional: Fire Hose Anchor
| MODEL | PSI | GPM | MOTOR | INLET | PUMP | PRICE |
| FH2-H | 150-1000 | 3.5 | Honda163 CC, 4 Cycle, w/ Oil Alert | 2-1/2" | Plunger | $4,957.65 |
| FH2-B | 150-1000 | 3.5 | Briggs & Stratton 206 CC 5.5 HP, 4 Cycle | 2-1/2" | Plunger | $4,851.85 |
Operating Instructions(21 KB)

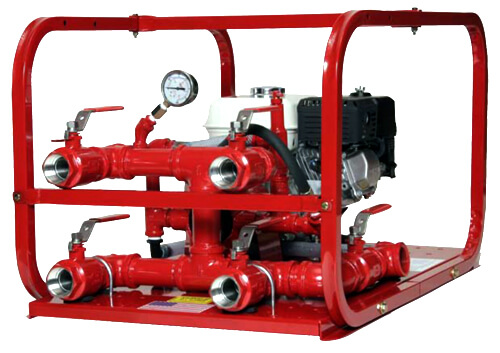

FH10 Hose Testers
These fire hose testers are excellent for testing requirements in rural and remote areas, or anywhere electricity is not readily available.
Features:
- 10 GPM uo to 450 PSI
- Engine: Honda or Briggs & Stratton (depending on model)
- Pump: Twin Piston Pump
- Guage: Stainless Steel Liquid-Filled
- Inlet: Inlet 2-1/2” NST Swivel Coupling
- Outlet: 4 independent Ballvalves with NST Couplings
- Back Bleed: 1/2” ballvalve to bleed air and attach Pressure wand accessory
- Pressure: Manual-Operated Pressure Relief
- Regulator: Valve, adjustable settings with bypass
- Heavy-duty welded Steel Roll Cage
- Pump weight: 172 lbs
- Shipping Weight: 190 lbs
- Shipping Dimensions: 35" x 25" x 19"
- Optional: Fire Hose Anchor
| MODEL | PSI | GPM | MOTOR | INLET | PUMP | PRICE |
| FH10-H | 60-450 | 10 | Honda 163 CC, 4 Cycle w/ Oil Alert | 2-1/2" | $4,895.25 |
|
| FH10-B | 60-450 | 10 | Briggs & Stratton 206 CC 5.5 HP, 4 Cycle | 2-1/2" | Piston | $4,895.25 |
Operating Instructions(46 KB)

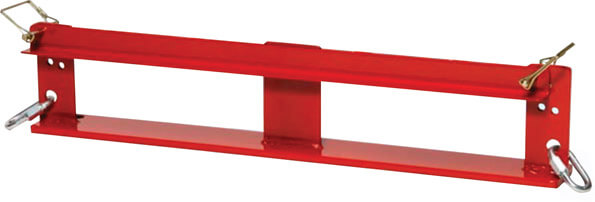

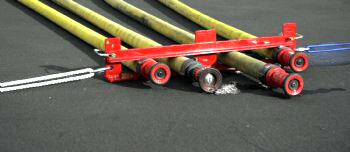

Fire Hose Anchor
The Line Cage is a new, patent pending, safety secure and anchoring device for use in fire hose testers. The Line Cage was designed by a Fire Captain, with the safety and well being of his fellow firefighting brothers in mind. Manufactured with high volume at low pressure to fill the lines, and low volume at high pressure to test, eliminating the cause of an uncontrollable wild line from rupture or failure during testing.
Features:
- Material: Powder Coated Heavy-Guage Wlded Steel Frame
- Locking hitchpins enclose and secure hose to Linecage
- Quick links installed for quick and easy ANCHORING of Linecage
- Safety – limits the mobility of line when rupture occurs
- The Linecage is designed with multiple locking holes to accommodate various hose sizes.
- Stops a burst or ruptured line from retracting beyond the location of the tool, which should be placed approximately 2 FEET from the distal end of hose line
NOTE: Meets NFPA 1962 5-5.2.3 requirements of "Securing and Anchoring" the fire hose while being tested.
| MODEL | DESCRIPTION | SIZE | WEIGHT | PRICE |
| LINECAGE-1 | Fire Hose Anchor | 5" x 32" | 18 lbs | $205.20 |
