Pressure Washer Nozzles and Attachments
GENERAL GUIDELINE ON SPRAY NOZZLE SELECTION
Pressure Washer Spray Nozzle can be identified by the nozzle "number", a four or five digit number that is stamped on the nozzle, which indicates the spray angle and orifice size. In all cases the first two digits of the nozzle number indicate the spray angle (disperse) in degrees.
EXAMPLE: 00 is 0 degree, 15 is 15 degree, 25 is 25 degree and 40 is 40 degree. The last two digits of the nozzle number indicate the orifice size, a standard industry designation. EXAMPLE: 06 is a 6.0 orifice, 55 is a 5.5 orifice. These numbers correspond to the actual dimensions, giving the size of the orifice.
They do not however directly indicate gallons per minute, flow rates or inches in diameter of the orifice. Some power washers come with an adjustable nozzle (called Vari Nozzle) that is attached to the end of the wand. The fan spray may be adjusted by turning the nozzle, chemical may also be applied by pulling out word on the nozzle.
Caution: The spray force from these nozzles can cause injuries if pointed directly at yourself or others. Before observing directly always disconnect from spray wand.
Make sure spray nozzle is properly locked in place with its quick coupler, if the collar is not in the locking position, the nozzle will become a dangerous projectile. The O-ring from your quick coupler socket will also be blown out of place.
0 DEGREE- BLASTING
- Removing caked on mud from heavy construction, farm or lawn equipment.
- Cleaning tar, glue or stubborn stains from concrete.
- Cleaning overhead areas.
- Removing rust from steel and oxidation from aluminum.
15 DEGREE- STRIPPING
- Removing paint from wood, masonry or metal.
- Removing grease or dirt from equipment.
- Removing heavy mildew stains.
- Removing marine growth from boats and marine equipment.
- Removing rust from steel and oxidation from aluminum.
25 DEGREE- CLEANING
- General cleaning of dirt, mud and grime.
- Cleaning roofs, gutters and downspouts.
- Removing light mildew stains.
- Removing algae and bacteria build-up from pools.
- Rinsing surfaces in preparation for painting.
40 DEGREE- WASHING
- Light cleaning and washing.
- Washing and rinsing of automobiles and boats.
- Cleaning roofs, windows, patios and driveways.
Spray Nozzles
1/4" Quick Connect Spray Nozzle
Each nozzle should be used based on the application and surface being cleaned (see examples). All nozzles have a 1/4" quick connect plug that easily connects to the end of the wand. Use our E-Z selector guide to determine the size of the orifice needed for your pressure washer or see the table to choose the right nozzle for your machine. The standard formula is
| MODEL | DESCRIPTION | PRICE |
85.201 |
0° red nozzle |
|
85.216 |
15° yellow nozzle |
|
85.226 |
25° green nozzle |
|
85.241 |
40° white nozzle |
1/4" Stainless Steel MEG Spray Nozzle
Our 1/4" threaded nozzles attach to the end of the wand by tightening in a normal clockwise motion. Nozzles feature specially hardened stainless steel construction for flow control accuracy as well as a longer life-span. Design provides optimized fluid dynamics to minimize turbulence and maximize spray performance. These nozzles are suitable for use with a wide range of flow rates and operating conditions and are available with a choice of spray patterns, spray angles and connections.
| MODEL | DESCRIPTION | PRICE |
85.200 |
0° 1/4" Stainless Meg Nozzle |
|
85.215 |
15° 1/4" Stainless Meg Nozzle |
|
85.225 |
25° 1/4" Stainless Meg Nozzle |
|
85.240 |
40° 1/4" Stainless Meg Nozzle |
1/8" Stainless Steel MEG Spray Nozzle
We offer a large variety of hardened stainless steel high pressure nozzles.All WashJet nozzles (MEG) are available in different sizes and spray angles. Standard nozzles are 1/8" MNPT, spray angles 15° and 25° in sizes 1.0 to 5. This size is for use with Mosmatic surface cleaners and duct cleaners. Orifice recessed for protection. 4000 PSI rated working pressure. Check your attachment for quantity of nozzles needed.
| MODEL | DESCRIPTION | PRICE |
MO-15 |
15° 1/8" Stainless Meg Nozzle |
|
MO-25 |
25° 1/8" Stainless Meg Nozzle |

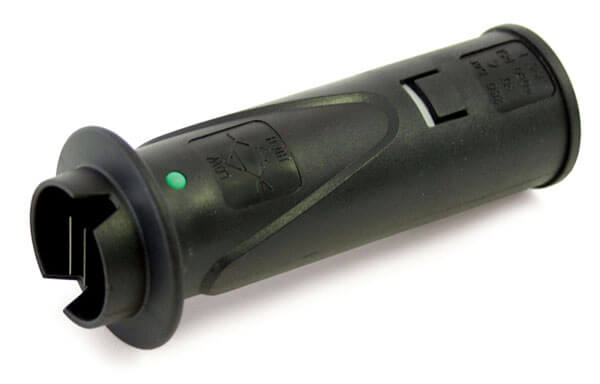

Variable Nozzle(1/4" quick connect plug included)
This Variable or Vari nozzle comes with the 1/4" quick connect plug that easily attaches to the tip of the wand. Twist the knob in order to get different spray disperes angles - from 0° to 80°. This nozzle replaces the need for other colored nozzles. Use it for pressures of up to 3000 PSI.
- Adjust spray pattern from 0° solid stream to 80° flat spray with a simple twist of the nozzle head
- High/Low feature allows for fast setting to high or low pressure mode
- Low pressure mode great for introduction of downstream chemicals
| MODEL | DESCRIPTION | PSI | PRICE |
85.210.002-K |
Variable Nozzle #4.0 |
3000 |
$23.80 |
85.210.003-K |
Variable Nozzle #4.5 |
3000 |
$23.80 |
85.210.005-K |
Variable Nozzle #5.0 |
3000 |
$35.50 |
| MODEL | DESCRIPTION | PSI | PRICE |
8.710-972.0-K |
Variable Nozzle #2.0 |
4000 |
$29.10 |
8.710-974.0-K |
Variable Nozzle #3.0 |
4000 |
$23.80 |
8.710-976.0-K |
Variable Nozzle #4.0 |
4000 |
$36.15 |
8.710-977.0-K |
Variable Nozzle #4.5 |
4000 |
$36.15 |
8.710-978.0-K |
Variable Nozzle #5.0 |
4000 |
$36.15 |
8.710-983.0-K |
Variable Nozzle #8.0 |
4000 |
$23.80 |
Soap Nozzle 1/4" quick connect, unique size #40.0)
The Soap nozzle works great and eliminates wasted time by applying cleaning solutions to your project instantly with ease. The soap nozzle has a larger orifice than spray nozzles which not only allows room for soap mixed with water; but also reduces the P.S.I. When your pressure washer is operating under low P.S.I it’s able to draw cleaning solutions from the chemical container. It’s is important to use the soap nozzle when apply soap/cleaning solutions. You can NOT use a regular spray nozzle (red, yellow, green, white) when applying soap/cleaning solutions. To make your life even easier; look at our “Roll Over Nozzle” which allows you to switch from a soap nozzle to a spray nozzle with a simple twist in less than a second.
| MODEL | DESCRIPTION | PRICE |
85.266.400 |
Soap Chemical Nozzle |
1/4" Brass MEG Soap Nozzles
These Soap nozzles produce a uniform pattern of small to medium sized drops with maximum pressure of 500 PSI. The one-piece nozzles feature unobstructed flow passages that minimize clogging. Constructed of brass, the nozzles have a recessed orifice for additional damage and wear protection. Excellent for soap application, wax application, and rinsing needs.
| MODEL | DESCRIPTION | ORIFICE SIZE | PSI | PRICE |
| 8.708-244.0 | 15° 1/4" Brass MEG Soap Nozzle | 30.0 | 500 | $7.65 |
| 8.708-246.0 | 25° 1/4" Brass MEG Soap Nozzle | 30.0 | 500 | $7.65 |
| BN-1149 | 40° 1/4" Brass MEG Soap Nozzle | 30.0 | 500 | $5.30 |
| BN-1127 | 65° 1/4" Brass MEG Soap Nozzle | 30.0 | 500 | $7.90 |
Flow Control Valve
The Flow Control Valve is a universal accessory to adjust pressure output of your pressure washer. Adjust the flow rate to reduce the pressure output for gentle surfaces like wooden decks, windows, awnings, patio furniture and other outdoor equipment. Connect between the trigger gun and wand, to adjust the flow through to control the nozzle pressure, easy to adjust the pressure and eliminate the back and forth to adjust the pressure at the pump end. Excellent for use for the pressure washer that do not provide the adjustable pressure regulator feature.
- Quickly Adjusts Pressure of Your Pressure Washer
- Regulate Water Flow Output By Turning the Control Knob at the Spray Gun; Rubber Grip for Easy Turning
- Inlet M22 Male Thread, Outlet: M22 Female Thread, Pressure 1000 PSI – 4000 PSI, Flow 1.1 GPM - 5.0 GPM
- For Most Electric and Gas Pressure Washers with Screw-On M22 Trigger-Handle Couplers
- Connects Between Spray Gun Handle and the Spray Wand
- Material: Brass, Rubber and Hard Composite Plastic
- Manufacturer Warranty: 90 days
- Use with any gas or electric pressure washer that meet the PSI recommendations
- Use with wands that have M22 male to female connections between trigger handle and the spray wand assembly
| MODEL | DESCRIPTION | PRICE |
UW16-PWBCE4 |
Flow Control Valve |
Roll Over Nozzle
The roll over nozzle is an excellent choice for anyone who uses more than one spray nozzle. Simply attach two of the most common nozzles that you use to the roll over nozzle and work continuously without wasting time to stop. This is also a great product if you often apply soap/cleaning solutions because it allows you to go from applying solutions with the soap nozzle under low P.S.I to cleaning with high pressure nozzles in a second. This product is commonly used by professionals whose projects consist of numerous surfaces and need multiple nozzles (ex. Cleaning a house/patio) Roll over nozzles are also commonly utilized at tunnel car washes where they often need to switch from applying cleaning solutions to high pressure washing.
- Simply turn over the complete assembly or swivel lance and you have access to two different nozzles.
- Water sprays through one nozzle port at a time since a stainless steel ball covers the opposite port.
- Spray depends on nozzles used.
- Max Pressure: 3600 PSI
- Max Flow : 8 GPM
- Max Temperature: 300º F
- Connectors: Inlet 1/4" FNPT, Outlet 1/4" FNPT
| MODEL | DESCRIPTION | PRICE |
8.710-895.0 |
Roll-Over Nozzle |
Meg Nozzle Removal Tool
Easily remove meg nozzles especially if seated deep in a nozzle protector. Makes quick change out of threaded nozzles easy
- For Use with 1/4" or 1/8" Meg Nozzles
- High Quality Steel Construction
| MODEL | DESCRIPTION | PRICE |
| UW11-PW120F | Tip Twister for 1/8" Meg Nozzles | $16.45 |
| HM-124 | Tip Twister for 1/4" Meg Nozzles | $16.45 |
Spray Nozzle Holder
Tired of wasting time fumbling around looking for a spray nozzle? This spray nozzle holder is excellent whether you have a pressure washing business, or just pressure washing your patio on the weekend. The spray nozzle holder is made of quality steel and rubber O-rings, designed to hold up to 7 spray nozzles. Just slide the holder onto the wand, and have easy access to your nozzles at all times.
| MODEL | DESCRIPTION | PRICE |
85.210.014 |
Nozzle Holder Plate |
Quick Connect Spray Nozzle Holder and Clip
- Includes 0,15,40,degree nozzles plus soap nozzle
- Fits most pressure washers with a 1/4" quick connect
- Comes with nozzle clip and nozzle holder
| MODEL | DESCRIPTION | PRICE |
35.210.034BEP |
3.0 GPM Nozzle Set With Holder and Clip |
|
| 35.210.037BEP | 3.5 GPM Nozzle Set With Holder and Clip | $41.05 |
| 35.210.040BEP * | 4.0 GPM Nozzle Set With Holder and Clip | $41.05 |

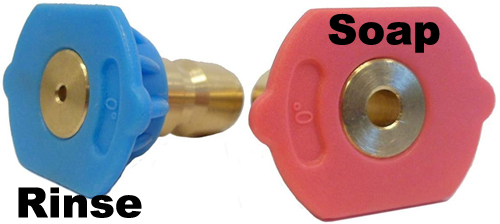

Soap and Rinse Spray Nozzle Kit
- Soap nozzle used with downstream soap injector on pressure washer
- 1/4 inch quick-change connector, compatible with most brands
- For use with pressure washers up to 4000 PSI
- Includes rinse and soap nozzle tips
- Clean hard-to-reach places quickly and easily without use of a ladder
- Provides a jet stream that reaches farther than standard spray tips
| MODEL | DESCRIPTION | PRICE |
| UWSN-K | 4000 PSI Soap/Rinse Spray Nozzle Kit for 2nd Story Cleaning | $9.95 |

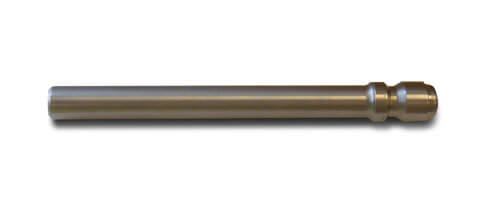

Long Distance Pressure Nozzle
Reach up to 40-60 feet away with this nozzle. Great for cleaning the sides of buildings or homes without ladders, scaffoldings or telescoping wands. It is a stainless steel, quick and easy, universal quick-connect compression fitting, that can be used with virtually any pressure washer. It can be used on vinyl siding, windows, buses, heavy equipment, hotel and restaurant windows, and the list goes on.
Features:
- Reaches heights up to 40-60 feet
- Stainless Steel
- Max Pressure: 6000 PSI
- 1/4" Quick Connect
Easy as One, Two, Three!
1. Connection - Attach nozzle to quick-connect gun.
2. Apply Chemicals - Placing siphoning hose into chemical container/bucket.
3. Rinsing - Place siphoning hose into container/bucket of clean water and rinse.

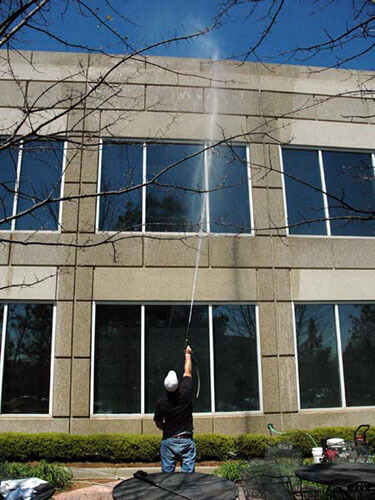

Note: To achieve the cleaning and sudsing action as shown in this picture, add 2 cups of liquid detergent and 3 gallons of cleaning solution to a 5-gallon bucket. Place the siphoning hose in the bucket and use your LS nozzle to fill it with water.
** Some pressure washers might require the use of an adjustable chemical injector in order to get the most out of the Ladder Saver.
| MODEL | DESCRIPTION | PRICE |
LS-SAVER |
Long Distance Nozzle |
$50.00 |

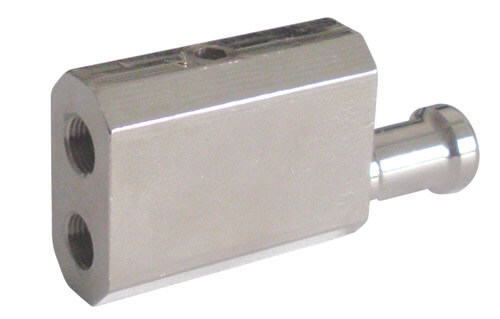

Hi Lo Trombone Valve
This trombone valve is a Hi Lo bypass valve that takes the place of a dual lance valve. It is quicker, with simple movement and features a faster change from high to low. This nozzle is good for use in auto detailing and jobs with tighter corners.
Features:
- Max Pressure: 4000 PSI
- Max Flow: 8 GPM
- Max Temperature: 195 Deg F
- 1/4" FPT Inlet, 1/4" Outlet (2X)
| MODEL | DESCRIPTION | PRICE |
20.0073 |
Hi Lo Trombone Valve |
$41.40 |
Nozzle Unclogger Tool
Nozzle opener tool quickly cleans material from nozzle orifice, extending the nozzle life.
Features:
- Brass or plastic construction
- Quick-Connect end to fit in nozzle holder
- Use for 3.5 size orofice Quick Connect nozzles or higher
| MODEL | DESCRIPTION | PRICE |
| BN-6791 | Brass Nozzle Unclogger Tool | $13.75 |
| 17.0702 | Plastic Nozzle Unclogger Tool | $5.10 |

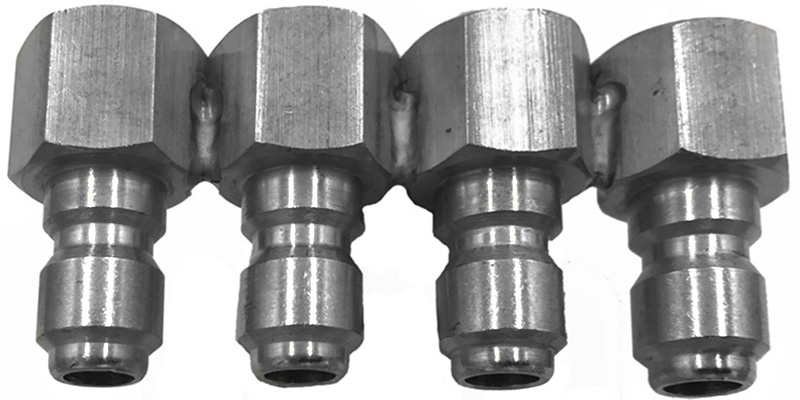

JROD 4 Nozzle Holder
Features:
- No more wet pockets!
- 304 stainless steel material
- Holds up to 4 nozzles
- For use with 1/4" MEG nozzles
- Attaches to end of your 1/4" female socket on your lance
- Nozzles not included
| MODEL | DESCRIPTION | PRICE |
| 6540 | JROD 4 Nozzle Holder | $37.85 |
