Do You Have a Pressure Hose That Gets Entangled Around Your Equipment?

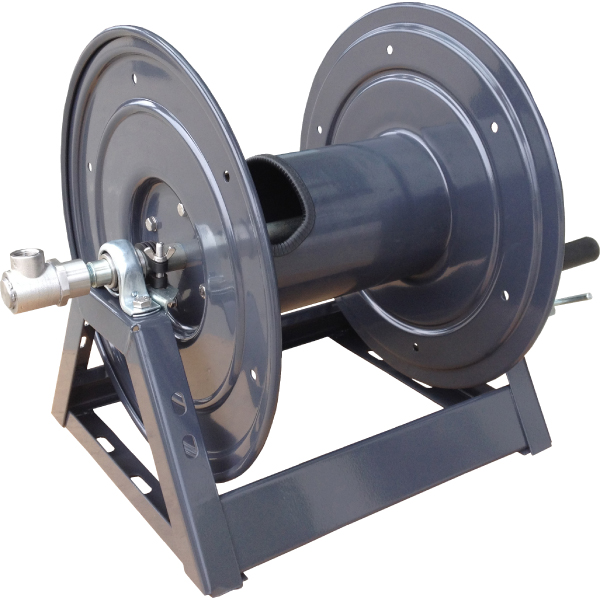

Standard Hose Reel

Hose reel will hold 50 ft or 100 ft of 3/8” hose. These reels are rated up to 3500 PSI. It is not recommended to attach a reel to any machine weighing less than two hundred pounds.

• Max Pressure: 4000 PSI
• Max Temperature 225 Degrees Fahrenheit
• Dimensions 14.4" L X 10.5" W Z 12.8" H (D3002)
• Direct hand-crank rewind with locking mechanism
• Solid steel construction
• Full flow 3/8" swivel brass joint
• Durable powder coated base and stand
• Heavy duty grip handle
• Inlet: 3/8" NPT
• Outlet: 3/8" NPT
• Excellent for truck, trailer or wall mount applications
• Warranty: 1 year
• Capacity: 50 ft, 100 ft or 200 ft of 3/8" hose (not included)
• Specification Sheet

MODEL	DESCRIPTION	WEIGHT	PRICE
D30001	50 ft Hose Reel Kit (50 ft hose not included)	12 lbs	$127.85
D30002	100 ft Hose Reel Kit (100 ft Hose not included)	14 lbs	$143.10
D30004	150 ft Hose Reel Kit (150 ft Hose not included)	17 lbs	$191.00
AHR200-1	200 ft Gen. Hose reel w/ Hardware (200' Hose not included)	18 lbs	$232.90

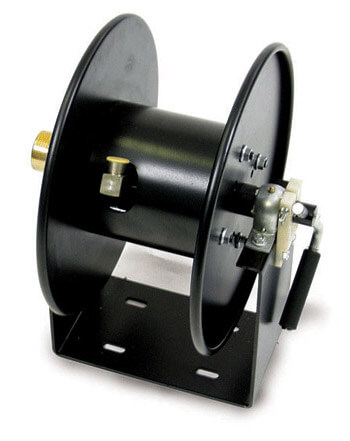

Base Mount reels

Hose reel will hold 50 ft or 100 ft of 3/8” hose. These reels are rated up to 4000 PSI. It is not recommended to attach a reel to any machine weighing less than two hundred pounds.

• Max Pressure: 4000 PSI
• Max Temperature: 225° F
• Heavy Duty Powder Coated Steel
• Easy Access External Swivel
• “Posi-Pin” lock, prevents unwanted dereeling
• Solid center core for maximum strength

MODEL	INLET / OUTLET	CAPACITY	MAX PSI	SHIP WEIGHT	PRICE
8.711-192.0	3/8"	50 FT	4000	7 lbs	$162.10
9.804-067.0	3/8"	100 FT	4000	10 lbs	$171.25
8.711-199.0	3/8"	150 FT	4000	14 lbs	$211.80
8.711-201.0	1/2"	100 FT	4000	16 lbs	$181.20

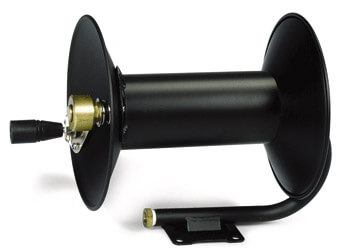

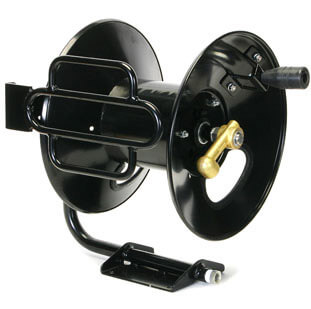

Fixed Base Hose Reels

Easy to use and extremely durable, these steel hose reels are the perfect storage solution for any serious application. A fixed base, mechanical break, and heavy-duty locking mechanism ensure that the reel can stand up to even the harshest working conditions, while features like a flip-over hose guide and an oversized drum make it adaptable to nearly any job.

• Max Pressure: 5000 PSI
• Max Temperature: 325° F
• Color: Gloss Black
• Finish: Powder Coated
• Construction: Heavy Gauge Steel
• Durable Handle
• Extended swivel prevents stress on hose
• Fully Assembled
• 2 Year Manufacturer's Warranty
• Manufactured in North America

MODEL	INLET / OUTLET	CAPACITY	MAX PSI	SHIP WEIGHT	PRICE
8.750-476.0	3/8"	100 FT	5000	21 lbs	$342.40
8.750-479.0	3/8"	200 FT	5000	30 lbs	$355.40

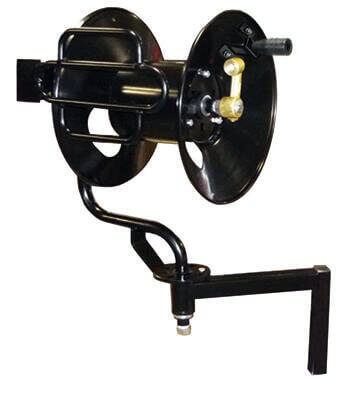

Pivoting Hose Reels

A pivoting hose reel is the perfect combination of toughness and flexibility. Steel construction and oversized locks make these reels extremely durable, while its 360° locking rotation, extended swivel, and flip-over hose guide allow it to easily supply hose from any angle. This reel also features an oversized drum that can easily fit the advertised length of hose with room to spare.

• Max Pressure: 5000 PSI
• Max Temperature: 325° F
• Color: Gloss Black
• Finish: Powder Coated
• Construction: Heavy Gauge Steel
• 100' and 200' fixed base
• 100' and 200' 360° rotating bas
• Length - 100' x 3/8"
• Easily convertible to 1/2" hose with the change to a 1/2" swivel
• Oversized, Heavy-Duty Rotation Lock
• Durable Handle
• Extended swivel prevents stress on hose 2 year Manufacturer's warranty
• Fully Assembled
• Sturdy enough for over-the-road applications
• Manufactured in North America
• Needed mounting bracket options

MODEL	INLET / OUTLET	CAPACITY	MAX PSI	SHIP WEIGHT	PRICE
8.750-485.0	3/8"	100 FT	5000	24 lbs	$420.40
8.750-482.0	3/8"	200 FT	5000	35 lbs	$462.50

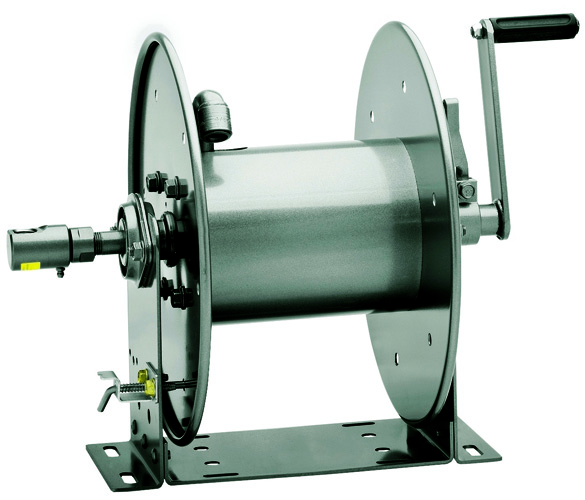

Compact Manual Rewind Hose Reels

To handle single 1/4", 3/8", or 1/2" I.D.(inner diameter) hose

Applications: Pressure Washing, Washdown, Spray Operations, Air

Features:

• Lightweight, compact with an e-coated frame
• Direct crank rewind permanently attached
• Adjustable cam-lock-brake standard
• Exterior mounting holes for easier installation
• Field installable pin lock
• Standard inlet: 90° ball bearing swivel, joint 1/2" female NPT threads
• Standard outlet: 3/8" female NPT threads, 1/2" available upon request
• Standard pressures to 3000 psi (207 bar), available up to 5,000 psi (345 bar) – must specify
• Fluid temperatures from +32° F to +400° F (0° C to +204° C)

NOTE: Hose is not included

MODEL	DESCRIPTION	PSI	CAPACITY of 1/4 Hose	CAPACITY of 3/8 Hose	CAPACITY of 1/2 Hose	PRICE
11-PW4101	3000 PSI Compact Manual Rewind Reels 75'	3000	100'	75'	40'	$361.95
11-PW6101	3000 PSI Compact Manual Rewind Reels 100'	3000	150'	100'	70'	$361.95
11-PW0201	3000 PSI Compact Manual Rewind Reels 175'	3000	250'	175'	100'	$361.95
11-PW4401	5000 PSI Compact Manual Rewind Reels 75'	5000	100'	75'	40'	$399.75
11-PW4601	5000 PSI Compact Manual Rewind Reels 100'	5000	150'	100'	70'	$399.75
11-PW02A1	5000 PSI Compact Manual Rewind Reels 175'	5000	250'	175'	100'	$399.75

Optional Upgrades for Compact Reels

Add these below items in your cart to one of the reel options above for factory installation. Cannot be ordered independently of a reel.

MODEL	DESCRIPTION	PRICE
11-PWLK71	Pinlock Installed	$43.40
11-PWRHC9	Removable Hand Crank (Instead of Permanent)	$52.00

Space Saver Reels

Features:

• Max Pressure: 4000 PSI
• Max Temperature: 225° F
• Heavy Duty Powder Coated Steel
• Easy Access External Swivel
• Snap lock prevents unwanted dereeling
• Super-reinforced core

MODEL	INLET / OUTLET	CAPACITY	MAX PSI	SHIP WEIGHT	PRICE
8.711-180.0	3/8"	140 FT	4000	30 lbs	$376.05
8.711-181.0	3/8"	200 FT	4000	33 lbs	$403.60
8.711-182.0	3/8"	150 FT	4000	31 lbs	$383.70
8.711-183.0	3/8"	300 FT	4000	34 lbs	$399.75
8.711-184.0	3/8"	350 FT	4000	37 lbs	$403.60
8.711-186.0	1/2"	115 FT	4000	30 lbs	$413.55
8.711-189.0	1/2"	200 FT	4000	35 lbs	$399.00
8.711-190.0	1/2"	270 FT	4000	38 lbs	$410.45

Manual Rewind Reels

For Pressure Washing, Steam Cleaning, Spray Operations, or Wash down

• Max Pressure: 4000 PSI
• 150 FT Capacity of 3/8” Hose
• Lightweight, compact for mobile/ portable pressure wash equipment
• Permanent direct crank rewind
• Adjustable split bearing brake assembly
• Standard inlet full-flow swivel joint with 1/2" NPT fitting
• Standard outlet 3/8" female NPT fitting
• Product temperatures from +20°F to +400°F (-7°C to + 204°C)
• Consult factory for other temperatures
• Specify mounting position when ordering mounting kits
• Black powder coat finish
• Dimensions: 16.75” x 17” x 18.25”
• Weight: 26 lbs.

Features:

• 12 and 16 gauge steel
• Black powder coat finish
• Adjustable split bearing brake assembly
• Dual side bearing support
• Flow rate of over 12 GPM
• Captive (4 sided) hose guide roller assembly
• Universal mounting pattern (2.75" x 5") optional mounting kits

MODEL	DESCRIPTION	PRICE
HN-PW-2	Manual Rewind Reel	$388.95
HN-PWK-150	Pivoting Base Mount Kit – For Base or Floor Mounting	$93.80

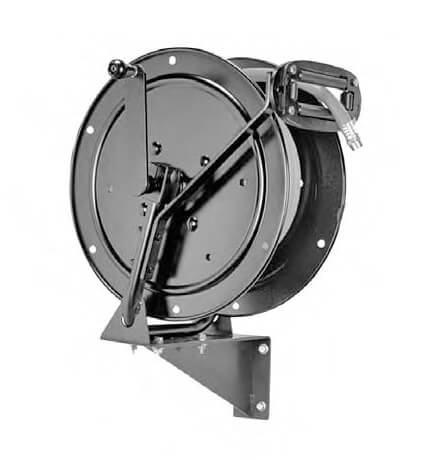

HN-PWK-200	Rigid Base Mount Kit – For Non-Pivoting Wall Mounting	$70.00

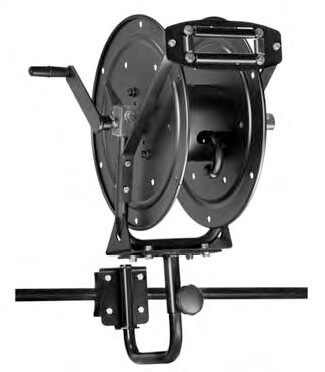

HN-PWK-300	1” Round Tube Mounting Kit	$43.40
HN-PWK-301	1 1/4” Round Tube Mounting Kit	$43.40
HN-PWK-303	1 1/4” Square Tube Mounting Kit	$43.40

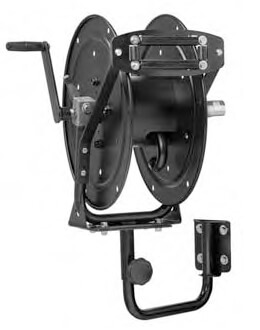

HN-PWK-400	Pivoting Wall Mount Kit – For Wall Mounting with Ability to Pivot	$93.80

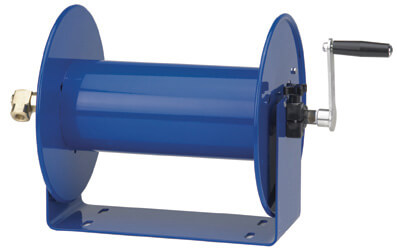

Space Saver Reels

The sturdy "U" shaped frame and all steel construction make this one tough little reel. Hose capacity ranges from 50 to 550 ft of 3/8" hose, 1/2" hose or 3/4" hose depending on model. All listed models are supplied less hose.

• Max Pressure: 4000 PSI
• Temperature: 20° F to 225° F
• Capacity: 50 FT - 550 FT (depending on model)
• Light weight compact design
• Inlet: 3/8", 1/2", or 3/4" FPT (depending on model)
• Outlet: 3/8", 1/2", or 3/4" FPT (depending on model)
• Heavy-duty construction
• Durable proprietary CPC powder coated process
• Rolled edges & ribbed discs provide strength & safety
• Direct hand crank action
• Brass NPT swivel inlet machined from solid
• Swivel Seals: NITRIL

NOTE: Hose is not included

MODEL	DESCRIPTION	INDEX SIZE	PSI	CAPACITY	WEIGHT	PRICE
112-3-50	3/8" Hand Crank Hose Reel	1	4000	50'	15 lbs	$227.55
112-3-100	3/8" Hand Crank Hose Reel	2	4000	100'	19 lbs	$227.55
112-3-150	3/8" Hand Crank Hose Reel	3	4000	150'	21 lbs	$258.00
117-3-250	3/8" Hand Crank Hose Reel	4	4000	250'	30 lbs	$281.20
117-3-400	3/8" Hand Crank Hose Reel	5	4000	400'	33 lbs	$290.45
117-3-550	3/8" Hand Crank Hose Reel	6	4000	550'	35 lbs	$295.90
112-4-75	1/2" Hand Crank Hose Reel	3	4000	75'	21 lbs	$271.15
117-4-225	1/2" Hand Crank Hose Reel	5	4000	225'	31 lbs	$298.20
117-4-350	1/2" Hand Crank Hose Reel	6	4000	350'	37 lbs	$309.05
117-5-100	3/4" Hand Crank Hose Reel	7	4000	100'	35 lbs	$331.45

Spec Chart Dimensions

INDEX SIZE A B C D E F L M 1 14-1/4" 6" 13" 12" 4-1/2" 5-1/2" 3" 4" 2 18-1/4" 9-1/2" 13" 12" 8" 5-1/2" 3" 5-1/2" 3 22-3/4" 14" 13" 12" 12-1/2" 5-1/2" 3" 10" 4 18-1/4" 9-1/2" 18" 17" 8" 5-1/2" 3" 5-1/2" 5 22-3/4" 14" 18" 17" 12-1/2" 5-1/2" 3" 10" 6 28-1/4" 9-1/2" 18" 17" 8" 5-1/2" 3" 5-1/2" 7 23-1/4" 14" 18" 17" 12-1/2" 5-1/2" 3" 10"

Installation Manual (787 KB) — Diagram (134 KB)

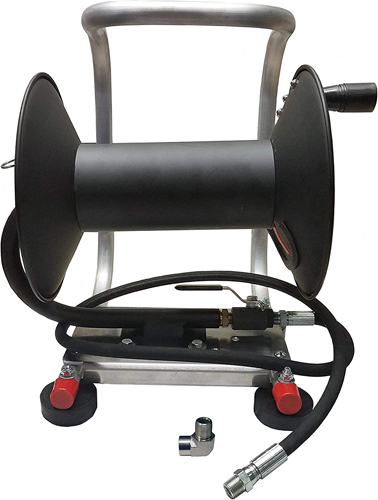

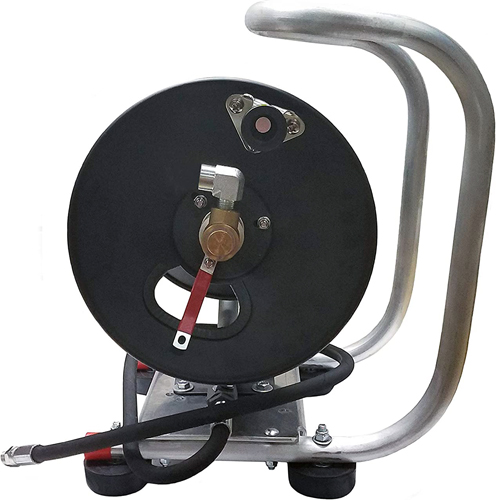

Power Washer Hose Reel Kit

This hand carrying, light weight, heavy duty pressure washing hose reel kit is great for Contractors, Municipalities, and Hobby Owners who have pressure washing trailers and trucks. Easy manuvering and simple rewind mechanism.

Features:

• Max Pressure: 4000 PSI
• 4 FT x 3/8" Jumper Hose to connect to your high pressure hose or a pressure washer
• Material: Aluminum, Alloy Steel, Rubber
• Industrial Duty Power Washing Hose Reel Kit for max Capacity of 100 ft or 200 ft of 3/8" High Pressure Hose
• 3/8" Black Carbon Ball Valve
• HP Street Elbow 90 degree 1/4"MPT x 1/4"FPT
• Small or Large Aluminum Hand Carry Hose Reel Frame (Lifetime Warranty)
• Compact Hand Carry Aluminum Frame, Solid Steel Hand-Crank Hose Reel (4000 PSI), 4 FT Jumper Hose, Ball Valve with 3/8" FPT
• Versatile, Light Weight, Durable for Heavy Duty Workload, Rubber Shock Isolating Feet, Full Flow 3/8" FPT Inlet and Outlet Swivel
• Excellent for Contractors, Municipalities, and Hobby Owners
• Weight: 15 - 18 lbs
• Small Hand Carry Frame Dimensions: 17.5" x 14" x 12.5"
• Large Hand Carry Frame Dimensions: 24.5" x 16" x 12.5"
• 100ft Kit Dimensions: 21.5" x 18.4" x 17.4"
• 200ft Kit Dimensions: 29.6" x 25.7" x 20.5"

MODEL	DESCRIPTION	FRAME SIZE	REEL SIZE	CAPACITY	PRICE
UW11-PWKIT3	Pressure Washer Hose Reel Kit	Small	100ft	25ft - 100ft (3/8" hose- hose not included)	$232.25
UW11-PWKIT4	Pressure Washer Hose Reel Kit	Large	200ft	25ft - 200ft (3/8" hose - hose not included)	$307.25

Portable Hose Reels

It is lightweight, compact and versatile with working pressure up to 4000 PSI. The hose control bar is easy to grab and go and prevents the hose from slipping off the discs. Hose capacity ranges from 100 to 315 ft of 3/8" hose.

• Max Pressure: 4000 PSI
• Capacity: 100 FT - 315 FT (when used with 3/8" hose, not included)
• Light weight compact design
• Caddy mount — Inlet: 3/8" FPT- Outlet: 3/8" FPT
• Dolly mount — Inlet: 1/2" FPT- Outlet: 1/2" FPT
• Heavy-duty construction
• Durable proprietary CPC powder coated process
• Rolled edges & ribbed discs provide strength & safety
• High quality two pieces 1" steel tube frame structure
• Hose control prevents hose from slipping off the discs.
• Direct hand crank rewind design
• Base has holes for temporary mounting or permanent installation
• Brass NPT swivel inlet machined from solid
• Brake assembly provides adjustable friction to brake or lock the drum
• Swivel Seals: NITRILE

NOTE: Hose is not included

MODEL	DESCRIPTION	INDEX SIZE	PSI	CAPACITY	WEIGHT	PRICE
112-3-100-CM	Caddy Mount Portable Hose Reel	1	4000	100'	18 lbs	$263.15
112-3-150-CM	Caddy Mount Portable Hose Reel	2	4000	150'	22 lbs	$292.00

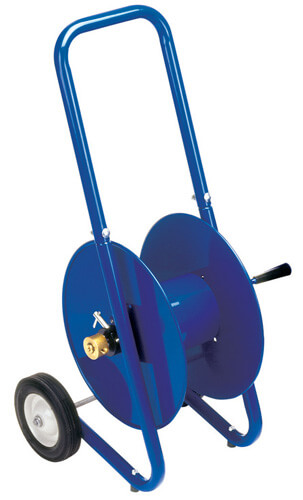

117-4-225-DM	Dolly Mount Portable Hose Reel	3	4000	315'	39 lbs	$409.60

Spec Chart Dimensions

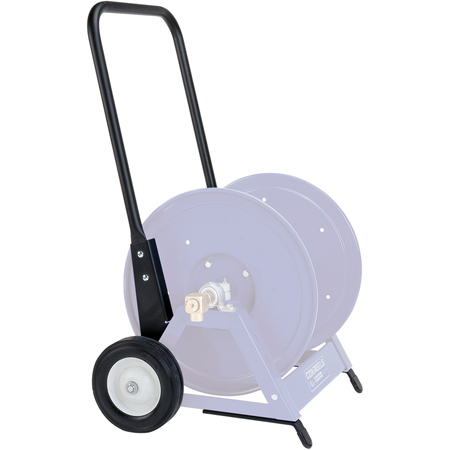

Portable Hose Reels

• Portable Cart for a Hose Reel
• Steel round handle detaches for compact storage
• Steel front legs with rubber feet prevent sliding
• High grade ball bearings with hardened cup 1/2 " diameter steel axle
• Solid 8" rubber tires
• Mounting Hardware included
• Compatible with 1125 series and 1275 series
• Weight: 17 lbs

MODEL	DESCRIPTION	PRICE
PR-1125-12	1125 or 1275 series hand crank portable hose reel cart	$219.60

Download Manual

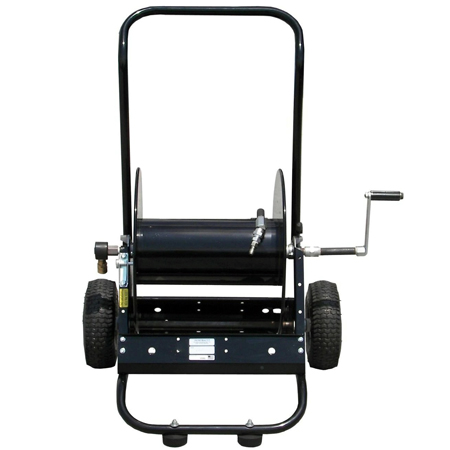

Portable Hose Reels

• Heavy Duty Portable Hose Reel Cart
• Holds 250 - 350 FT x 3/8" Hose Capacity (hose not included)
• 4000 PSI working pressure
• Live Swivel (Reels easily under full pressure)
• Black Painted Steel
• 200 Degree Max Temp.
• Inlet: 3/8" Quick Connect Socket
• Outlet: 3/8" Quick Connect Plug
• Power: Manual/Hand Crank
• 10" Pneumatic Tires
• Two Rubber Supporting Feet
• Use for High Pressure Washer Hose or Garden Hose

MODEL	DESCRIPTION	CAPACITY	WEIGHT	PRICE
PHR010	Portable Hose Reel Cart with M10-5 Hose Reel	250 FT x 3/8"	56 lbs	$794.80
PHR015	Portable Hose Reel Cart with M15-5 Hose Reel	350 FT x 3/8"	63.25 lbs	$821.65

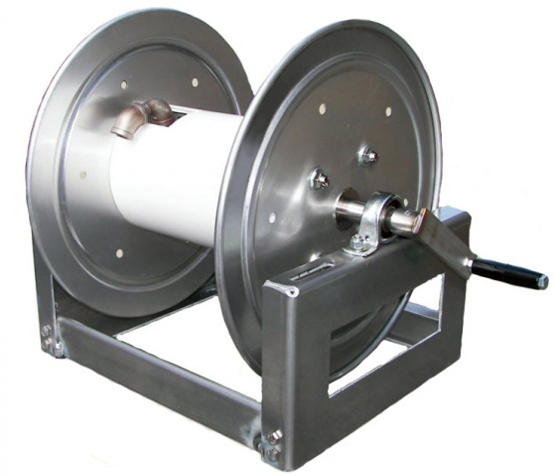

Aluminum Hand Crank Hose Reel

Features:

• Max Pressure: 3500 PSI
• 1/2" (or 1" Inlet/Outlet Available, please call for details)

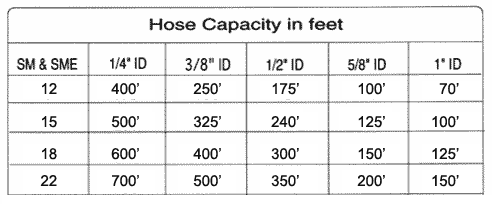

• SM-15-AL: 175 feet capacity of 1/2" hose (optional capacity 250 feet of 3/8" hose)
• SM-18-AL: 300 feet capacity of 1/2" hose (optional capacity 400 feet of 3/8" hose)
• Stainless Steel Crank Handle with Free Turning Hand Grip
• Corrosion resistant aluminum construction – weighs 35% lighter than steel
• Center drum made of extra thick 80 PVC (stronger than steel)
• High quality sealed bearings that need no lubrication
• Adjustable tension spring to keep hose from free rolling
• Bolt on spring loaded locks for easy adjustment or replacement
• Disc is made of high quality aluminum with rolled edges to strengthen ridge
• Square aluminum frame usually only found in larger heavy duty reels
• Made if the finest quality materials for long lasting service

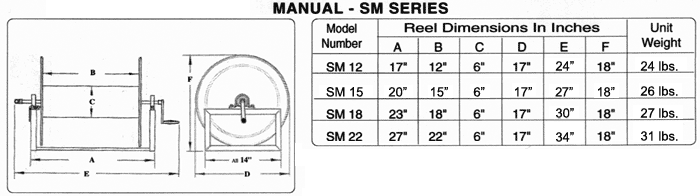

MODEL	DESCRIPTION	WEIGHT	PRICE
SM-12-AL	SM Series Aluminum Hose Reel 1/2" Inlet/Outlet	24 lbs	$486.40
SM-18-AL	SM Series Aluminum Hose Reel 1/2" Inlet/Outlet	27 lbs	$522.40

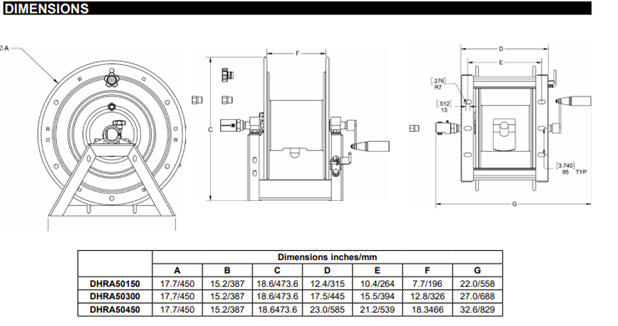

Heavy Duty "A" Frame Hose Reels

To handle single 3/4" through 3/8" I.D. (inner diameter) hose

Applications: Low Pressure Garden Hose, High Pressure Washer Hose

• 5000 PSI Rated Stainless Steel Full Flow Swivel
• Max Temperature Rating of 250 Degree (fahrenheit)
• Viton O-Ring Swivel
• Switchable Handle / Swivel
• ½" NPT Female Inlet / Outlet
• Direct Hand Crank Rewind with Locking Pin
• Solid Steel Construction
• Durable Powder Coated Finish
• Mount on Wall or Bench

NOTE: Hose is not included

MODEL	DESCRIPTION	MAX PSI	CAPACITY of 3/8" Hose	CAPACITY of 5/8" Hose	CAPACITY of 3/4" Hose	SWIVEL	PRICE
DHRA50150	Industrial "A" Frame Hose Reel Holds 150 ft of 3/8" Hose	5000 PSI	150'	125'	100'	1/2"	$364.35
DHRA50300	Industrial "A" Frame Hose Reel Holds 300 ft of 3/8" Hose	5000 PSI	300'	225'	175'	1/2"	$375.45
DHRA50450	Industrial "A" Frame Hose Reel Holds 450 ft of 3/8" Hose	5000 PSI	450'	325'	250'	1/2"	$413.05

Heavy Duty "A" Frame Hose Reel Guide

Hose guides keep your hose organized as it spools up in rewind mode. Also allows for easy removal of hose as user pulls hose out.

• Protects the hose when pulling out at an angle
• Corrosion Resistant Stainless Steel Hardware
• Durable Powder Coated Steel Construction
• 4 Way Pinch Proof Stainless Steel Guides

MODEL	DESCRIPTION	PRICE
2100462	Hose Guide Kit, Fits DHRA50150 (Hose Reel Not Included)	$127.50
2100463	Hose Guide Kit, Fits DHRA50300 (Hose Reel Not Included)	$132.25
2100503	Hose Guide Kit, Fits DHRA50450 (Hose Reel Not Included)	$148.80

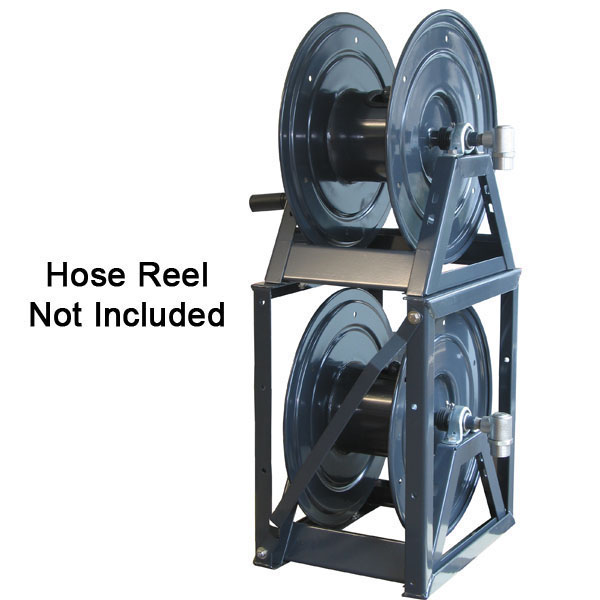

Heavy Duty "A" Frame Hose Stacking Kit

Stack up to 4 reels high! Saves space and organizes all your hose nicely!

• Stainless Steel Hardware
• Durable Powder Coated Steel Construction
• Fits all DHRA “A” frame hose reels above
• Assembly required
• Reels sold separately

MODEL	DESCRIPTION	PRICE
2100437	Hose Reel Stacking Kit, Fits DHRA Hose Reels (Hose Reel Not Included)	$105.60
