Electric Powered Hose Reels

Motorized Hose Reels

The sturdy robotically welded "A" frame base has no bolts keeping the reel rigid and free from bending, tweaking and loosening while being used. Electric powered hose reels are built from heavy gauge steel and sealed with a proprietary powder-coated scratch resistant finish. Units can handle up to 625 ft of 3/8" hose.

Features:

• 140' to 625' Capacity (When used with 3/8" hose, not included)
• One piece all welded steel "A" frame construction (No Bolt)
• Low profile riser & open drum slot for smooth even wrap
• Pressure-rated at 3000 PSI
• Heavy-duty construction
• Durable proprietary CPC powder coated process
• Rolled edges & ribbed discs provide strength & safety
• Solid steel crank with smooth round handles
• Permanently lubricated pillow block bearings for smooth rotation
• Long-handled lock pin secures reel from rotation
• Adjustable friction brake assembly to brake or lock the drum
• Brass NPT swivel inlet machined from solid
• Swivel Seals: NITRILE
• Inlet/Outlet: 1/2" FPT
• All units require a Switch Box 8281 to operate reel. Includes weather and dust-proof sealed push button switch, solenoif, and circuit breaker.

* Optional variable speed controllers available, please call for pricing.

MODEL	DESCRIPTION	INDEX SIZE	PSI	CAPACITY	WEIGHT	PRICE
1125-4-100-E	Motorized Hose Reel, 12V	1	3000	140'	49 lbs	$716.65
1125-4-200-E	Motorized Hose Reel, 12V	2	3000	300'	52 lbs	$853.60
1125-4-325-E	Motorized Hose Reel, 12V	3	3000	450'	61 lbs	$720.55
1125-4-450-E	Motorized Hose Reel, 12V	4	3000	625'	65 lbs	$739.10

Spec Chart Dimensions

Installation & Maintenance Manual (927 KB) — Diagram (365 KB)

115V Electric Hose Reels

MODEL	DESCRIPTION	INDEX SIZE	PSI	CAPACITY	WEIGHT	PRICE
1125-4-100-EA	Motorized Hose Reel, 115V	1	3000	100'	62 lbs	$853.60
1125-4-200-EA	Motorized Hose Reel, 115V	2	3000	200'	65 lbs	$853.60
1125-4-325-EA	Motorized Hose Reel, 115V	3	3000	325'	74 lbs	$872.90
1125-4-450-EA	Motorized Hose Reel, 115V	4	3000	450'	78 lbs	$889.95

MODEL	DESCRIPTION	PRICE

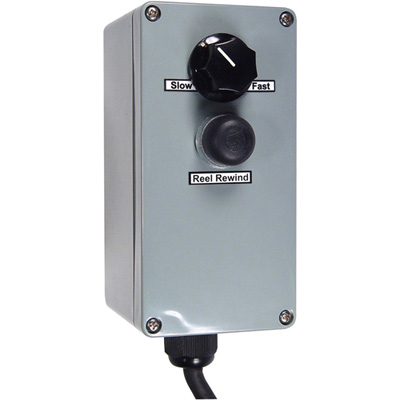

20874	On/Off Switch for 115V Electric Hose Reel	$955.70

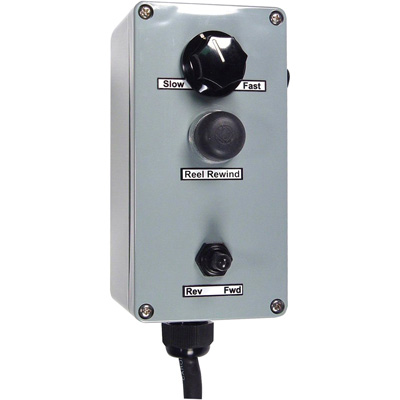

20875	Remote Control with Forward and Reverse	$1,090.50

SpecChart Dimensions

Installation & Maintenance Manual (927 KB) — Diagram (365 KB)

Switch Box

This switch box can be used with any above listed electric reel. The Switch box is used for activating the motor on the reel.

Features:

• Weather proof and dust proof sealed push button switch
• 12V D.C. Solenoid relay
• 50amp automatic reset circuit breaker

MODEL	DESCRIPTION	WEIGHT	PRICE
8281	Switch Box for 12V Powered Reels	5 lbs	$182.10

Roller Hose Guide

• 4-way enclosed pinch-proof stainless steel rollers
• Roller size: 1" diameter
• Finish: Powder coated steel brackets
• Weight: 10 lbs
• Optional: Ball Stop

MODEL	DESCRIPTION	CAPACITY	PRICE
15353-6	Roller Hose Guide	140'	$200.70
15353-12	Roller Hose Guide	300'	$204.20
15353-18	Roller Hose Guide	450'	$205.70
15353-24	Roller Hose Guide	625'	$217.55

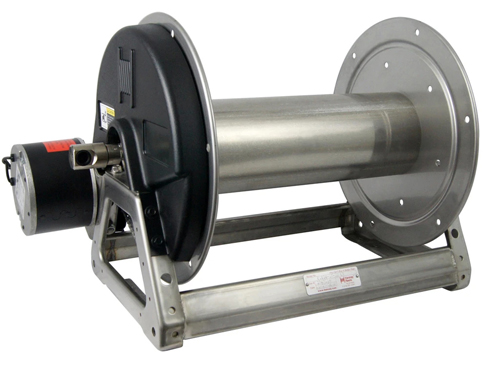

Aluminum/Stainless Steel 12 Volt Rewind Hose Reel

To handle single 3/8" through 5/8" I.D. hose

Applications: Lawn Care/ Pest Control/ Pressure Washing/ Agriculture/ High Pressure/ Horticulture

• Lightweight, low-profile reels designed for hose lengths up to 500 ft.
• Primarily 304 SST construction, including discs, axle hub and welded frame.
• Non-SST components: Drum (Aluminum), Swivel Joint and Bearings (Plated).
• Electric rewind reels (denoted by letter ‘E’ at end of model) feature plated chain/sprocket drive with guard.
• Standard inlet: 90° full-flow swivel, 1/2" FNPT threads. Standard outlet: 1/2" FNPT threads.
• Standard pressure rated to 3000 psi. Upgraded pressure rating to 5000 psi.
• Optional SST rollers and roller mounting brackets.
• Drum, swivel joint and bearings all upgradeable to SST, specify when ordering.
• Power rewind reels: Motor available in 12 or 24VDC, as well as 115VAC.

NOTE: Hose is not included

MODEL	DESCRIPTION	SPOOL SIZE	PSI	CAPACITY of 1/2" Hose	OPTIONAL CAPACITY of 3/8" Hose	SWIVEL	PRICE
SNC-12E	Aluminum/ Stainless Steel 12V Electric Rewind Hose Reel	12"	3000	200'	300'	1/2"	$1,384.25
SNC-18E	Aluminum/ Stainless Steel 12V Electric Rewind Hose Reel	18"	3000	300'	400'	1/2"	$1,436.25
SNC-22E	Aluminum/ Stainless Steel 12V Electric Rewind Hose Reel	22"	3000	400'	500'	1/2"	$1,463.25
SNC-12E H5M	Aluminum/ Stainless Steel 12V Electric Rewind Hose Reel	12"	5000	200'	300'	1/2"	1528.05
SNC-18E H5M	Aluminum/ Stainless Steel 12V Electric Rewind Hose Reel	18"	5000	300'	400'	1/2"	$1,555.05
SNC-22E H5M	Aluminum/ Stainless Steel 12V Electric Rewind Hose Reel	22"	5000	400'	500'	1/2"	$1,582.00

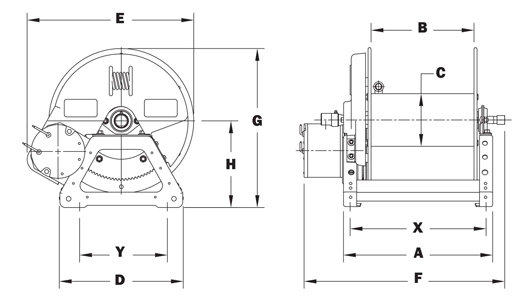

SNC Series Chart DOWNLOAD PDF

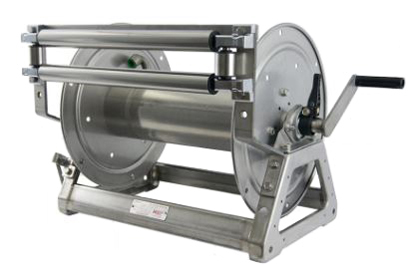

12 Volt Electric Hose Reel Guides

Hose guides keep your hose organized as it spools up in rewind mode. Also allows for easy removal of hose as user pulls hose out.

• For Spool Widths from 12-22"
• Stainless Steel and Aluminum
• Heavy-duty Construction
• Choose ONE Roller Guide Assembly and ONE Mounting Bracket Assembly for Each Hose Reel Above

NOTE: Reel is not included.

MODEL	DESCRIPTION	PRICE
9 39.0066	Roller Hose Guide for Drums No Greater Than 12"	$232.20
99 39.0066	Roller Hose Guide for Drums Greater Than 12"	218.20
99 41.0135	Mounting Bracket Assembly Kit for All Roller Hose Guides	$175.00

Available in silver or black, the remote controlled power rewind hose reel takes power-out off the reel, leaves power-in on the remote, and leaves full-speed control functionality on the base unit. Full molded chain guards on these units come standard. The remote controlled hose reels feature variable speed control, which allows the user to select their optimal unwind/rewind speed, while the bidirectional remote control has over a 2,000 ft. range. The remote control comes with a belt clip and is weather and impact resistant. The remote controlled hose reels are designed for applications that require long lengths of hose with diameters up to 1/2". These power hose reels can be controlled at the base or with the remote. Reels can be ordered either with basic functions or with emergency remote shutdown allowing user to shutdown pump/engine from the wireless remote. Functions on remote are military grade, environmentally sealed electronics. Proprietary software eliminates wireless interference. Remote controlled reels come standard as 12V DC

Remote Controlled Hose Reels

To handle single 3/8" through 1/2" I.D. hose.
Features:

• Heavy-duty 12V DC 1/3 HP Electric Powered Hose Reel
• Bidirectional Remote Control (power in, power out) with over 2,000 ft. range
• Variable Speed Control allows user to choose unwind / rewind speed
• Robust Remote Control with belt clip is weather and impact resistant
• Rechargeable with low battery light (time between charges of 3-4 months)
• Rewind, unwind, speed functions are controlled from either remote or base
• Optional Emergency Stop button allows engine/pump to be turned off remotely
• Fully adjustable brake prevents hose movement during transit
• Standard inlet: 90° ball bearing swivel joint with 1/2" FNPT threads
• Standard outlet: 1/2" FNPT
• Optional outlet threads include 3/8" FNPT or 3/4" Male GHT (garden hose)
• Max Pressure: to 3,000 PSI (20 bar)
• Max Temperature: 20°F to 400°F (-7°C to 204°C)
• Color choices: Silver (standard) or Black paint finish ( Call to order)
• Remote Control choices: Multi-function (standard) or Mini Remote

MODEL	DESCRIPTION	DIMENSIONS	WEIGHT	PRICE
HN-RME601428298-MINI	Remote Control Power Rewind Reels with Mini Remote Control	27"L x 17"W x 29"H	130 lbs	$2,841.60
HN-RME60143334105-MINI	Remote Control Power Rewind Reels with Mini Remote Control	32"L x 17"W x 34"H	137 lbs	$3,100.60
HN-ERS	Emergency Remote Shutdown – allows engine/ pump to be turned off remotely.	-	-	$195.80

* Other Control Features: The RM motor controllers have no electromechanical components that can break (relays, solenoids, circuit breakers). All functions are performed with state-of-the-art, military grade, environmentally sealed electronics. Over current, over temperature, and under voltage protection are all built into the electronics to ensure controller longevity. Automatic remote shut-off after 30 minutes. Proprietary software and controls will eliminate wireless interference. Speed control settings are adjustable while reel is operational and controller will remember last setting even when powered off.
