Transfer Pumps
You can use any of this PowerFLO Series diaphragm pumps in typical applications such as RVs, Carpet Cleaning, Construction equipment, Agriculture spraying equipment. They are useful every time you need to transfer fluid between two points (from water tank to pressure washer, from vacuum to lake...).
The pump is driven by an AC or DC motor. In front, the motor is a valve assembly containing two to five valve pump chambers. Each valve chamber has a diaphragm behind it in the lower pump housing. As the motor shaft turns, an internal cam positioned behind the diaphragms causes the diaphragms to be pushed forward, then back in a continuous sequence creating a suction. As this suction builds, fluid is pulled through the inlet, through the various valve chamber check valves to the outlet.
Read more on how to use a water pump and how to choose a transfer pump.
Transfer Pumps
Transfer Pumps - 2 GPM
Pump Features:
- Pump Head: 3 chambers, positive displacement diaphragm pump, self priming, capable of being run dry.
- Maximum capability of 2 GPM
- Certifications: NSF Standard 58
- Demand or Bypass mode available: demand is equipped with pressure switch that will shut down the pump if the pressure goes too high. On bypass pumps, the transfer pump will NOT shut off and the water will recirculate to the inlet side.
- Liquid temperature: 140°F Max
- Priming Capabilities: 14 feet
- Inlet/Outlet: 1/2" FNPT

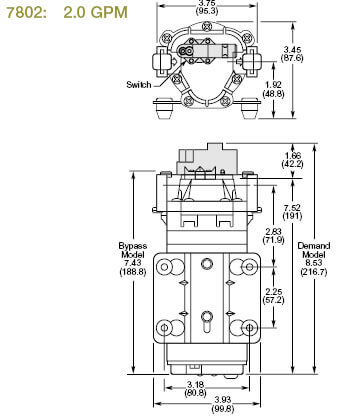

- View dimensions
Motor Features:
- 12 VDC battery, totally enclosed, non-ventilated
- Leads: 14 AWG, 12" Long
- Temperature Limits: Motor is not equipped with thermal protection. For user safety, optimal performance, and maximum motor life, the motor surface temperature should not exceed 150°F
- Maximum torque and operation efficiency; higher operating pressure and/or lower amperage than competitive pumps
- Quality components for extreme performance
- Numerous fitting option for greater mounting flexibility
| MODEL | GPM | MAX PSI | MOTOR | PUMP | PRICE |
| 7812-201 | 2 | 60 | 12 VDC with lead wires | Demand |
$165.20 |
| 7812-111 | 2 | 60 | 12 VDC with lead wires | ByPass |
$165.20 |
| PSI | GPM | Amps |
| 10 20 30 40 50 60 |
2.00 |
2.8 3.7 4.2 4.7 5.2 5.7 |
DEL-5830-104E
Transfer Pumps
Pump Features:
- Pump Head: 5 chambers, positive displacement diaphragm pump, self priming, capable of being run dry.
- Maximum capability of 5 GPM
- Certifications: NSF Standard 58
- Demand or Bypass mode available: demand is equipped with pressure switch that will shut down the pump if the pressure goes too high (45 PSI, call us for different levels). On bypass pumps, the pump will NOT shut off and the water will recirculate to the inlet side.
- Liquid temperature: 140°F Max
- Priming Capabilities: 14 feet
- Max Pressure: 100 PSI
- Inlet/Outlet: 1/2" FNPT

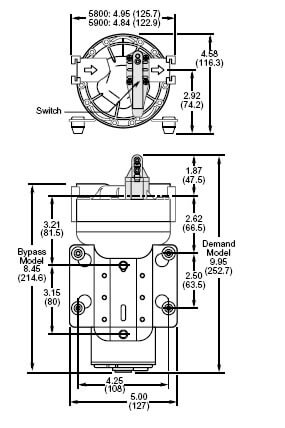

- View dimensions
Motor Features:
- 12 VDC battery, totally enclosed, non-ventilated (115 VAC available)
- Leads: 14 AWG, 12" Long
- Temperature Limits: Motor is not equipped with thermal protection. For user safety, optimal performance, and maximum motor life, the motor surface temperature should not exceed 180°F
- Maximum torque and operating efficiency; higher operating pressure and/or lower amperage than competitive pumps
- Quality components for extreme performance
- Numerous fitting option for greater mounting flexibility
- On Demand Pump - Pumps water when pressure drops below 60 PSI, and shuts off when reaches 60 PSI
| MODEL | GPM | MAX PSI | MOTOR | PUMP | PRICE |
| 5830-104E | 3 | 100 | 115 VAC with 4' Cord | On Demand (starts at 60 PSI) |
$310.70 |
| 5850-201E | 5 | 100 | 12 VDC | On Demand (starts at 60 PSI) |
$223.40 |
Performance: For DEL-5830-104E
| PSI | GPM | Amps |
| 10 20 30 40 50 60 |
3.20 |
3.5 5.8 7.2 8.3 9.1 9.9 |
Performance: For DEL-5850-101E
| PSI | GPM | Amps |
| 10 20 30 40 50 60 |
5.0 |
6.0 9.0 11.0 13.0 14.6 16.3 |
Diaphragm Pumps
DEL-5830-104E

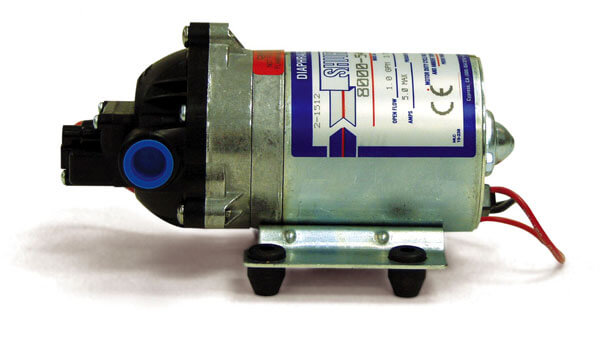

Shurflo Diaphragm Pump
1.00 - 3.8 GPM integrated pump motor units. Powered by 12V DC or 115 V AC Power. Pumps are standard with Santoprene diaphragms and Viton valves for excellent service with a wide variety of sprayable products.
- Chemical resistant materials
- Can run dry without damage
- Self priming
- Low amp draw
- Automatic demand pressure switch or internal bypass
| MODEL | POWER | MAX FLOW | MAX PSI | PORTS | DIAPHRAGM | VALVES | PRICE | ||
| 8.702-294.0 | 12V DC | 1.0 | 60 | 1.0 | Santoprene | Viton |
$206.85 |
||
| 8.702-304.0 | 12V DC | 1.2 | 60 | 1.0 | Viton | Viton |
$289.90 |
||
| 8.702-300.0 | 12V DC | 1.4 | 60 | 1.0 | Santoprene | Viton |
$206.85 |
||
| 8.702-296.0 | 12V DC | 1.4 | 100 | 1.0 | Santoprene | Viton |
$220.20 |
||
| 8.702-335.0 | 12V DC | 1.5 | 150 | 1.0 | Santoprene | Viton |
$319.55 |
||
| 8.702-302.0 | 12V DC | 1.7 | 100 | 1.0 | Santoprene | EPDM |
$262.50 |
||
| 8.702-311.0 | 115 V | 1.0 | 60 | 1.0 | Santoprene | Viton |
$289.90 |
||
| 8.702-307.0 | 115 V | 1.0 | 60 | 1.0 | Viton | Viton |
$352.20 |
||
| 8.702-306.0 | 115 V | 1.0 | 60 | 1.0 | Santoprene | Viton |
$241.70 |
||
| 8.702-334.0 | 115 V | 1.4 | 100 | 1.0 | Santoprene | Viton |
$325.50 |
8.702-308.0 | 115 V | 1.7 | 100 | 1.0 | Santoprene | Viton |
$306.95 |
| 8.702-338.0 | 115 V | 1.6 | 100 | 1.0 | Santoprene | EPDM |
$303.25 |
||
| Premium Series - self primes up to 12 foot - Built in Back Check | |||||||||
| 8.702-305.0 | 12V DC | 1.6 | 100 | 1.0 | Santoprene | EPDM |
$263.95 |
||
| 8.702-303.0 | 12V DC | 1.6 | 100 | 1.0 | Santoprene | EPDM |
$438.95 |
||
| 8.702-301.0 | 12V DC | 1.6 | 100 | 1.0 | Santoprene | EPDM |
$306.25 |
||
| 8.702-310.0 | 115 V | 1.6 | 100 | 1.0 | Santoprene | EPDM |
$341.80 |
||
| Double Head | |||||||||
| 8.702-339.0 | 12 V | 7.0 | 50 | 1/2"-14M | Santoprene | Viton |
$601.35 |
||
| Air Drive | |||||||||
| 8.702-317.0 | Air | 2.0 | 60 | 3/8" Barb | EPDM | EPDM |
$262.50 |
||
| 8.702-318.0 | Air | 2.0 | 60 | 3/8" Barb | Viton | Viton |
$230.25 |
||

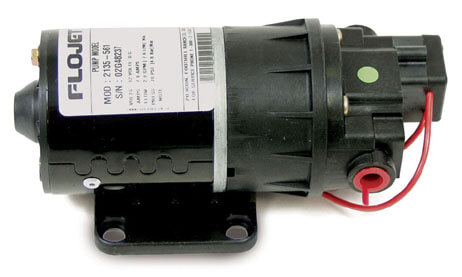

FloJet Diaphragm Pump
Built in pressure switch automatically starts and stops pump instantaneously.
- Can run dry without damage
- Excellent Self Priming capability
- Low current draw
| MODEL | POWER | MAX FLOW | MAX PSI | PORTS | DIAPHRAGM | VALVES | PRICE |
| 8.702-325.0 | 12 V DC | 1.48 | 60 | 3/8" FPT | BUNA | Viton |
$216.55 |
| 8.702-328.0 | 12 V DC | 3.30 | 40 | 1/2" Barb | Santoprene | EPDM |
$321.05 |
| 8.702-312.0 | 115 V | 1.85 | 50 | 3/8" FPT | Santoprene | Santoprene |
$289.90 |
| 8.702-337.0 | 115 V | 1.85 | 50 | 3/8" FPT | Viton | Viton |
$367.75 |
| 8.702-331.0 | 115 V | 3.70 | 35 | 1/2" Barb | Santoprene | EPDM |
$395.20 |
| 8.702-329.0 | 115 V | 4.70 | 35 | 1/2" Barb | Santoprene | EPDM |
$354.45 |
See Also
Polypro & Aluminum Camlock Fittings
Available in wide variety of sizes from 3/4" to 4" designed for water pumps. You can choose from Type A, B, C, D, E, F, DC, DP aluminum camlock fittings or polypropylene camlock fittings for your trash pumps.
Browse here our large variety of industrial rated COMET Pumps for pressure washers. Built in Italy, most of the models comes with a 5 year warranty.
Read more on how to and why should you use a transfer pump.
