Submersible Water Pumps
Submersible water pumps can be found in many applications. Smaller electric submersible pumps can used for drainage, sewage pumping, and slurry pumping. The device uses hermetically sealed motor that is close coupled to the pump body. The whole submersible pump assembly is submerged in the fluid to be pumped. The main advantage of using this type of a pump is to prevent pump cavitation, a problem associated with a high elevation difference between the pump and the water surface. A system of seals are used to prevent fluid being pumped from getting into the motor and causing a short circuit. The pump can be connected to a pipe or flexible hose. Simply drop the submersible water pump into the deepest water and turn the system on. Do not allow the pump to run dry to avoid damage to the impeller. We do offer other water and trash pumps that could be used an alternative to move water quickly. The basic difference is that these pumps are very portable and can easily get into areas the other pump types may not have easy access to.
FEATURES AND BENEFITS
- Made of Quality Materials to Ensure Long Service and Corrosion Resistance in Harsh Work Environments
- Carrying Handle, Compact and Light Design for Easy Portability and Access to Difficult to Get to Areas
- Many Available Electrical Configurations to Suit Most Work Areas to Include a 12 VDC model for Trucks
- Built In Suction Screen to Protect Pump Internals From Larger Solids
Electric Submersible Water Pumps

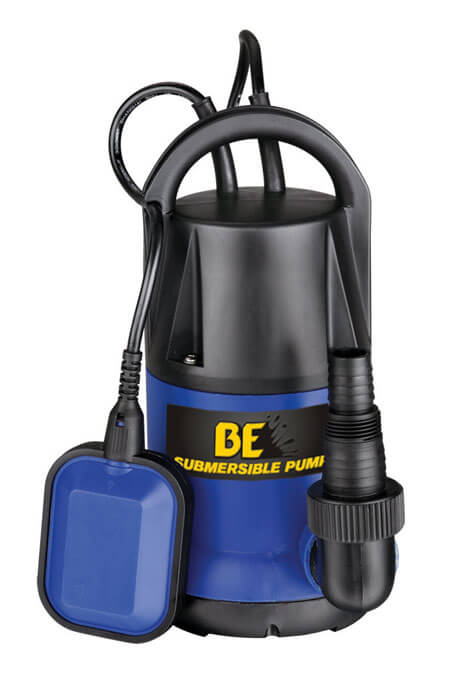

1.5" Side Discharge Submersible Pump with Float
Specifications:
- 1/2 HP, 115V, 550W
- Tethered Float Switch
- Capacity: 2420 GPH
- Max Delivery Height: 28 FT
- Max Submersible Depth: 23 FT
- Max Solid Handling: 0.2"
- Copper Windings
- Mechanical Seal
- Cord Length: 25 FT
- Material: Plastic Body
- Net Weight: 11 lbs
| MODEL | PORT SIZES | DESCRIPTION | MOTOR | PRICE |
| SP-550SD | 1.5" | Side Discharge Submersible Pump w/ Float | 1/2 HP/ 115V/ 550W | $163.50 |

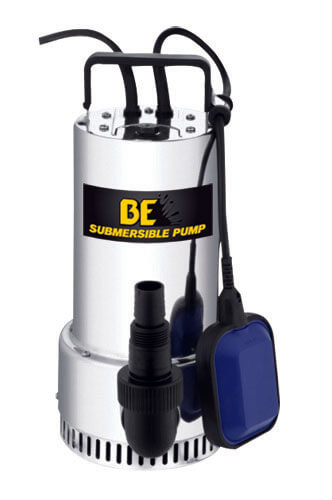

1.5" Side Discharge Submersible Pump - Stainless Body with Float
Specifications:
- 1 HP, 115V, 1100W
- Tethered Float Switch
- Capacity: 3434 GPH
- Max Delivery Height: 29.5 FT
- Max Submersible Depth: 26 FT
- Max Solid Handling: 0.2"
- Copper Windings
- Mechanical Seal
- Cord Length: 25 FT
- Material: Stainless Steel / Plastic Body
- Net Weight: 15 lbs
| MODEL | PORT SIZES | DESCRIPTION | MOTOR | PRICE |
| SP-900SD | 1.5" | Side Discharge Stainless Steel Submersible Pump w/ Float | 1 HP/ 115V/ 1100W | $242.90 |

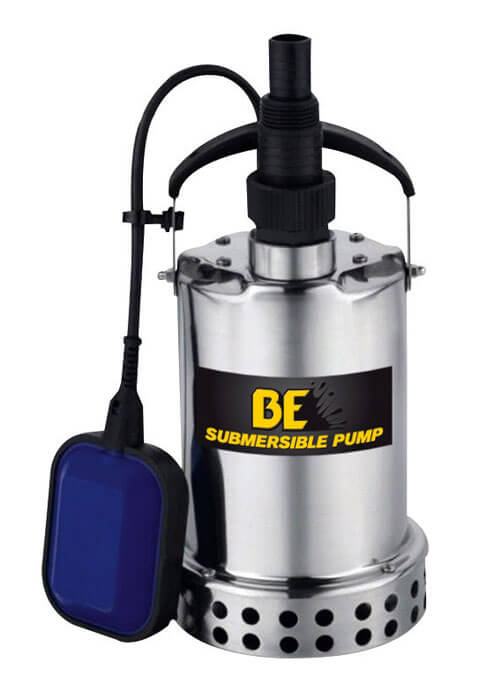

1.5" Top Discharge Submersible Pump - Stainless Steel with Float
Specifications:
- 1 HP, 115V, 1100W
- Tethered Float Switch
- Capacity: 3434 GPH
- Max Delivery Height: 29.5 FT
- Max Submersible Depth: 26 FT
- Max Solid Handling: 0.2"
- Copper Windings
- Mechanical Seal
- Cord Length: 25 FT
- Material: Stainless Steel / Plastic Body
- Net Weight: 36 lbs
| MODEL | PORT SIZES | DESCRIPTION | MOTOR | PRICE |
| SP-750TD | 1.5" | Top Discharge Stainless Steel Submersible Pump w/ Float | 1 HP/ 115V/ 1100W | $220.20 |

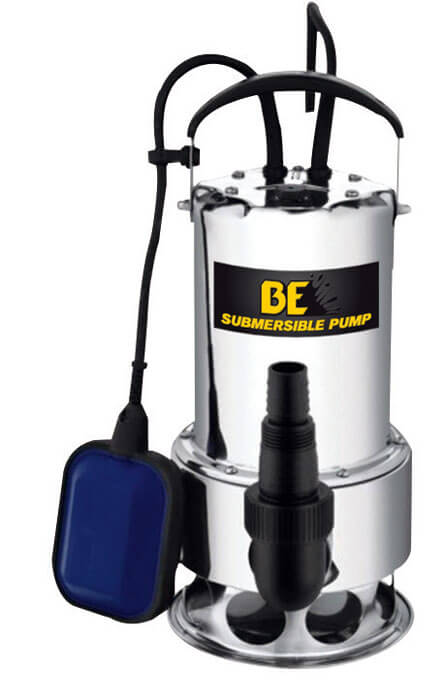

1.5" Side Discharge Trash Submersible Pump - Stainless Steel with Float
Specifications:
- 1-1/4 HP, 115V, 1100W
- Tethered Float Switch
- Capacity: 3410 GPH
- Max Delivery Height: 36 FT
- Max Submersible Depth: 16 FT
- Max Solid Handling: 1.4"
- Copper Windings
- Mechanical Seal
- Cord Length: 25 FT
- Material: Stainless Steel Body
- Net Weight: 17 lbs
| MODEL | PORT SIZES | DESCRIPTION | MOTOR | PRICE |
| ST-900SD | 1.5" | Top Discharge Stainless Steel Submersible Pump w. Float | 1-1/4 HP/ 115V/ 1100W | $265.55 |

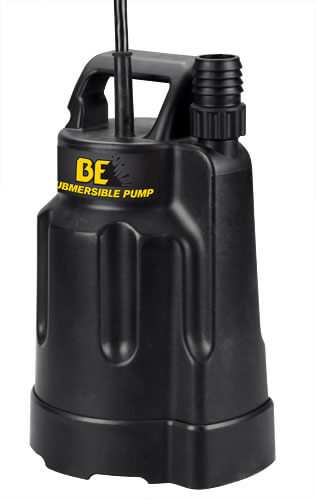

3/4" Top Discharge Submersible Pump without Float
Specifications:
- 1/4 HP, 115V, 60Hz
- Capacity: 1580 GPH
- Max Delivery Height: 28.5 FT
- Max Submersible Depth: 15 FT
- Max Solid Handling: 0.2"
- Mechanical Seal
- Cord Length: 15 FT
- Material: Plastic Body
- Net Weight: 8 lbs
| MODEL | PORT SIZES | DESCRIPTION | MOTOR | PRICE |
| ST-900SD | 1.5" | Top Discharge Stainless Steel Submersible Pump w. Float | 1-1/4 HP/ 115V/ 1100W | $265.55 |

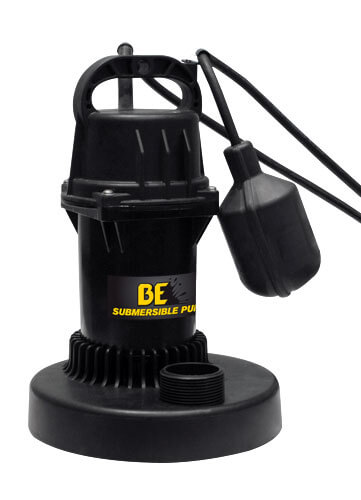

1.5" Top Discharge Submersible Pump with Float
Specifications:
- 1/3 HP, 115V, 60Hz
- Capacity: 3036 GPH
- Max Delivery Height: 20 FT
- Max Submersible Depth: 26 FT
- Max Solid Handling: 0.2"
- Mechanical Seal
- Cord Length: 15 FT
- Material: Plastic Body
- Net Weight: 14 lbs
| MODEL | PORT SIZES | DESCRIPTION | MOTOR | PRICE |
| SP-650BD | 1.5" | Top Discharge Submersible Pump w/ Float | 1/3 HP/ 115V/ 60Hz | $221.45 |
1.5" Top Discharge Submersible Pump with Float
Specifications:
- 1/3 HP, 115V, 60Hz
- Capacity: 3036 GPH
- Max Delivery Height: 20 FT
- Max Submersible Depth: 26 FT
- Max Solid Handling: 0.2"
- Mechanical Seal
- Cord Length: 15 FT
- Material: Plastic Body
- Net Weight: 10 lbs
| MODEL | PORT SIZES | DESCRIPTION | MOTOR | PRICE |

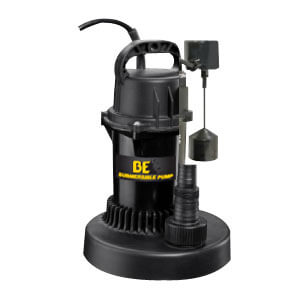

| SP-600BD | 3/4" | Top Discharge Submersible Pump w/ Vertical Float | 1/4 HP/ 115V/ 60Hz | $231.55 |
Tethered Float Switch w/ Piggy Back Plug
Specifications:
- 1/3 HP, 115V, 60Hz
- Capacity: 3036 GPH
- Max Delivery Height: 20 FT
- Max Submersible Depth: 26 FT
- Max Solid Handling: 0.2"
- Mechanical Seal
- Cord Length: 15 FT
- Material: Plastic Body
- Net Weight: 10 lbs
| MODEL | DESCRIPTION | PRICE |
| SPCORD | Tethered Float Switch with Piggy Back Plug | $82.00 |

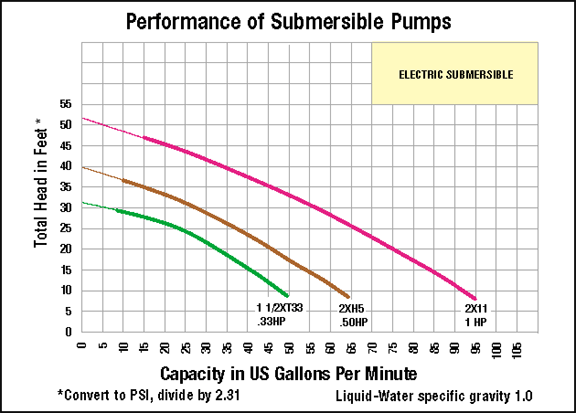

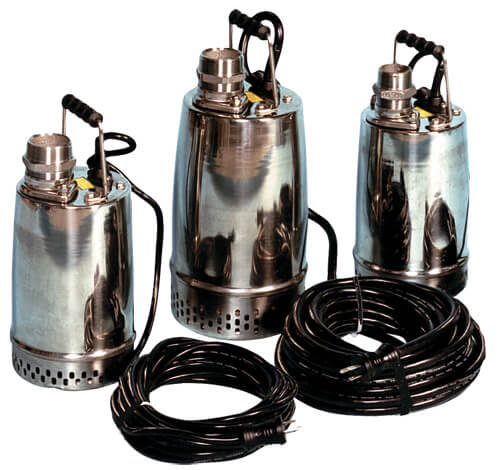

Commercial-Duty Submersible Pumps
Slim design, light weight CSA listed submersible water pumps feature top charge as well cat iron impellers, 304 stainless steel casing, motor housing, shaft and hardware. Pump motor is thermal overload protected. An optional piggyback mercury free float switch is available. Float switches have a piggyback plug molded to the cord allowing the pump motor to plug into the cord and then plug the entire assembly into a standard grounded outlet.
Features & Benefits::
- Light Weight Design - Easily Installed
- Corrosion Resistant
- Thermal Overload Protected Motor
- 30 ft Insulated Power Cord (50 Ft on 1 HP Unit)
- Cast Iron Impeller
- Silicon Carbide Lower Seal, Carbon Ceramic
- Delivers up to 95 GPM and 20 PSI (2XH5), 65GPM and 20PSI (model 2X11)
Specifications::
- Engine: 1/3 – 1 HP (depending on the model)
- Port Sizes: 1.5 – 2” NPT on Suction and Discharge (depending on the model)
- Materials: 304 Grade Stainless Steel
- Electrical Requirement: 115 Volt / 1 Phase
- Weight: 30-50 lbs (depending on the model)
| MODEL | PORT SIZES | DESCRIPTION | MOTOR | PRICE |
| 2XH5 | 2" | Electric Stainless Steel Submersible Pump | 1/2 HP - 115V | $825.40 |
| 2X11 | 2" | Electric Stainless Steel Submersible Pump | 1 HP - 115V | $1,398.55 |

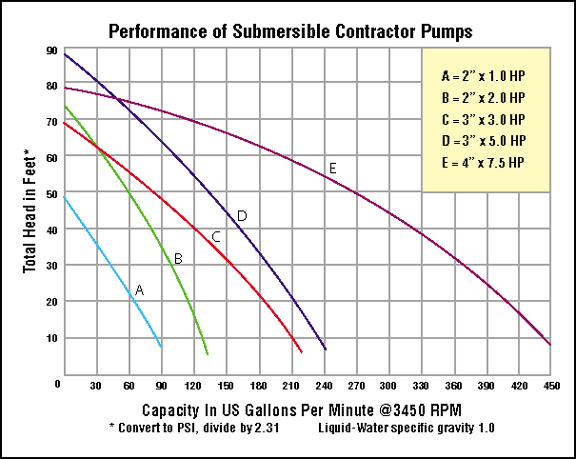

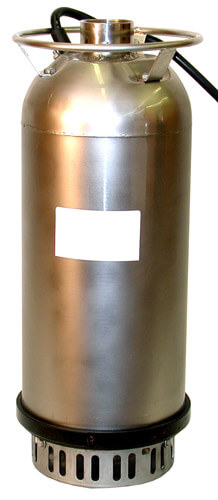

Industrial Duty Submersible Water Pumps
These contractor grade submersible pumps are intended for use in residential, commercial, and industrial settings. Common applications for this pump are construction sites, waste water, storm water, farming, irrigation, excavation, mining, marine, basement, and other general drainage application involving sediment laden liquids with solids up to 3/8” in diameter. Self cleaning impeller featuring abrasion resistant hi chromium steel construction for maximum durability. Pumps have an electric motor that requires field wiring since there is an unfinished power cord so the electrician can install as needed what your setup requires.
Features & Benefits::
- Stainless Steel Motor Housing
- Built In Carry Handle for Easy Portability
- Superior Motor Design for Quiet Low Noise Operation
- 32 Ft Insulated Power Cord (NO PLUG)
- Hi Chromium Impeller and Cover for Wear Resistance and Durability
- Silicon Carbide Seals – Maximum Liquid Temperature to 104 °F
- Delivers up to 90 GPM and 21 PSI
- UL/CSA Listed
Specifications::
- Engine: 1 – 7.5 HP (depending on the model)
- Port Sizes: 2 – 4” NPT on Suction and Discharge (depending on the model)
- Materials: Cast Iron / Stainless Steel
- Electrical Requirement: Various Options (See Below)
- Weight: 51-175 lbs (depending on the model)
| MODEL | PORT SIZES | DESCRIPTION | MOTOR | PRICE |
| 5771-95 | 2" | Cast Iron Electric Submersible Pump | 1 HP - 230V/1 Phase | $1,284.90 |
| 5773-95 | 2" | Cast Iron Electric Submersible Pump | 2 HP - 230V/1 Phase | $2,104.65 |
| 5777-95 | 3" | Cast Iron Electric Submersible Pump | 3 HP - 230V/1 Phase | $2,488.10 |
| 577A-95 | 3" | Cast Iron Electric Submersible Pump | 5 HP - 230V/3 Phase | $3,019.95 |
| 577B-95 | 3" | Cast Iron Electric Submersible Pump | 5 HP - 230V/3 Phase | $3,019.95 |
| 577D-95 | 4" | Cast Iron Electric Submersible Pump | 7.5 HP - 230V/3 Phase | $4,033.05 |
| 577E-95 | 4" | Cast Iron Electric Submersible Pump | 7.5 HP - 460V/3 Phase | $4,033.05 |
See Also
Benefits of Using Submersible Water Pumps
Submersible water pump is easy to use, it is self primed, efficient and can be used with pressure pumps. Read more about Submersible water pump advantages and benefits.
