GASOLINE & DIESEL DRIVEN SOLIDS HANDLING PUMPS
The AMT line of Engine Driven Solids Handling Industrial Duty pumps is constructed of Cast Iron and offers a superb debris handling capability. These pumps are excellent in the application of high volume liquid transfer, irrigation, commercial draining and construction. This line of pumps is designed to be reliable, cost-effective, and low maintenance. Solids Handling Pumps include heavy duty steel roll frames. For use with non-flammable liquids which are compatible with pump component materials.

Solids Handling Pump

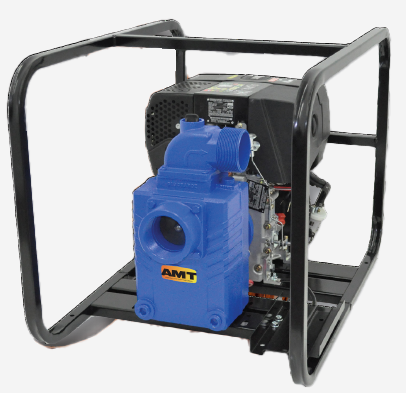

3" Cast Iron Solids Handling Pumps

Features:

Materials: Cast Iron
Solids Handling: 3/8”
Max. Working Pressure: 75 PSI
Max. Fluid Temperature: 180 °F
Self-primes to 20 ft. with Built-in Flapper/Check Valve
Wear Resistant Cast Iron Replaceable Volute / Wear plate and Impeller
Semi-Open, Clog Resistant Cast Iron Impeller
Two NPT Pipe Nipples
Stainless Steel Shaft Sleeve
Buna Mechanical Seal

Ordering Information - FREE SHIPPING

MODEL	SIZE	FRAME	ENGINE	RUN TIME	TANK SIZE	PRICE
UW11-HP91Z5	3"	Yes	Hatz Diesel 1B30 (coil start)	2.8 hours.	1.32 Gal.	$5,279.85

3" Cast Iron Solids Handling Pumps

Features:

Materials: Cast Iron
Solids Handling: 3/4”
Max. Working Pressure: 60 PSI
Max. Fluid Temperature: 180 °F
Self-primes to 20 ft. with Built-in Flapper/Check Valve
Wear Resistant Cast Iron Replaceable Volute / Wear plate and Impeller
Semi-Open, Clog Resistant Cast Iron Impeller
Buna Mechanical Seal
Two NPT Pipe Nipples
Stainless Steel Shaft Sleeve
Viton Seal

Ordering Information - FREE SHIPPING

MODEL	SIZE	FRAME	ENGINE	RUN TIME	TANK SIZE	PRICE
327A-V5	3"	Yes	5 HP Honda GC160	60 min.	1.8 qt.	$1,433.30

3" Cast Iron Solids Handling Pumps

Features:

Materials: Cast Iron
Solids Handling: 3/4”
Max. Working Pressure: 75 PSI
Max. Fluid Temperature: 180 °F
Self-primes to 20 ft. with Built-in Flapper/Check Valve
Wear Resistant Cast Iron Replaceable Volute / Wear plate and Impeller
Semi-Open, Clog Resistant Cast Iron Impeller
Buna Mechanical Seal
Two NPT Pipe Nipples
Stainless Steel Shaft Sleeve
Viton Seal

Ordering Information - FREE SHIPPING

MODEL	SIZE	FRAME	ENGINE	RUN TIME	TANK SIZE	PRICE
UW11-HP13V5	3"	Yes	8 HP Honda GX270++	2.5 hours.	1.40 Gal.	$2,640.95
