Tow-Behind Pressure Washer
AR Industrial Pump Innovations
AR Triplex Plunger Pumps are designed for a wide variety of Industrial applications. Constructed with die-cast bodies and feature a brass head. Internal components include specially thick solid ceramic plungers for long life and durability. Precision cast crank case cooling fins are anodized for maximum heat dissipation. Oversized bearings assure proper shaft alignment and maximum life. The valve cages special design provides positive seating and extended life. Connecting rods are either a special alloy aluminum or bronze, at higher pressures, oversized for strength and load disbursement. Don't forget to get some extra pump oil.
Our high pressure pumps will come as "plumbed pumps". They come with the unloader, garden hose fitting, pressure hose fitting and thermal relief valve.
If you are not sure on the part you need for yourAR pressure washer pump, please refer to the AR breakdown diagrams located near each pump. If you still need further support, please send us an e-mail to info@ultimatewasher.com with your AR model number and the part that you need.
Annovi Reverberi Pumps

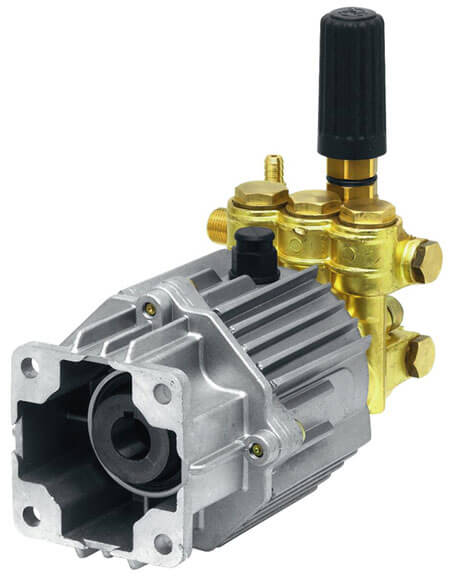

SJV 3400 rpm D Version
Features:
- 3/4" with Gas Engine Flange (F7)
- Heavy duty Annovi Reverberi industrial pump
- Direct Drive
- Warranty: 5 Year Manufacturer Defect
- Includes: Unloader, garden hose fitting, pressure hose fitting and thermal relief valve
| SKU | MODEL | PSI | GPM | ENGINE REQUIREMENTS | PRICE |
| SLPSJV25G27-930 | SLPSJV25G27-930 | 2700 | 2.5 | 5-6 HP Gasoline | $399.15 |
Specs and Diagram(1.09 MB)

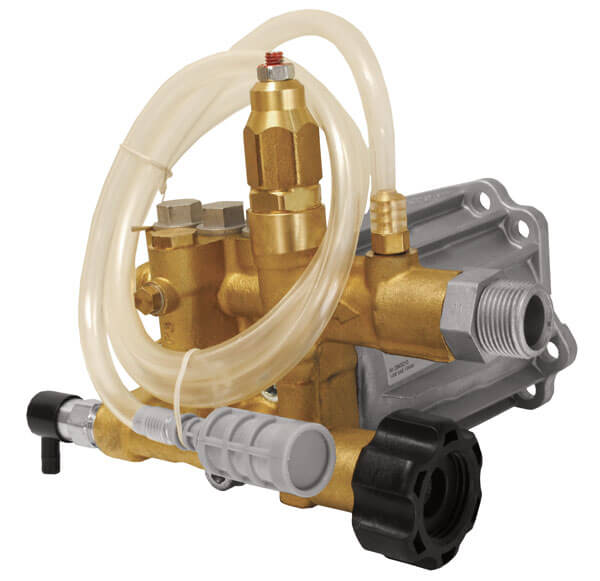

RMV 3400 rpm
Features:
- Built in one piece Unloader
- Stainless steel unitized check valves
- Forged brass manifolds
- Double sealing Buna packing
- Built in garden hose adapter
- Direct Drive
| SKU | MODEL | PSI | GPM | HP | SHAFT | MOTOR | PRICE |
| 85.120.035B | RMV25G30 | 3000 | 2.5 | 5-7 | 3/4" | Gas | $249.20 |

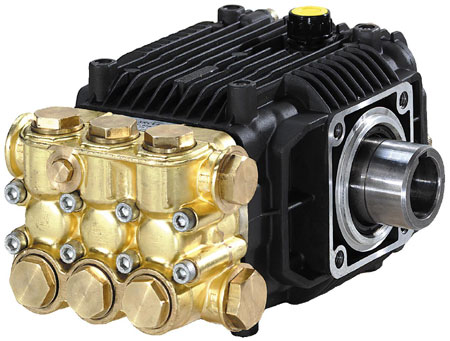

XMV 3400 rpm D Version
Features:
- 1” with Gas Engine Flange (F24)
- Includes Gas flange
- Direct Drive
- Warranty: 5 Year Manufacturer Defect
- Includes: Unloader, garden hose fitting, pressure hose fitting and thermal relief valve
| SKU | MODEL | PSI | GPM | ENGINE REQUIREMENTS | PRICE |
| SLPXMV3G32-915 | SLPXMV3G32-915 | 3200 | 3.0 | 9 HP Gasoline | $654.50 |
XMV3G32D-F24C2 Specs and Diagram (631 KB)

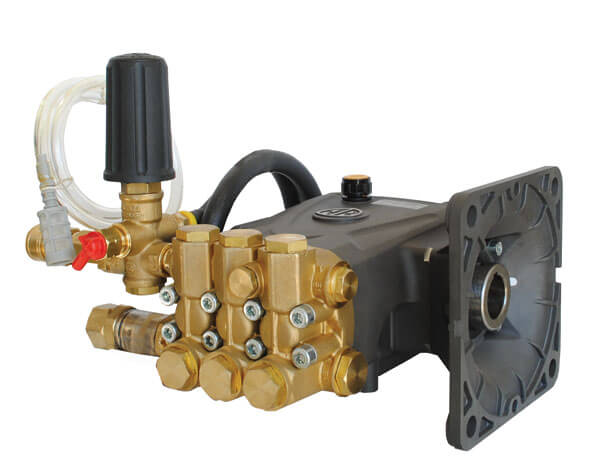

RRRV 3400 rpm
Features:
- External Unloader
- Stainless steel unitized check valves
- Forged brass manifolds
- Double sealing Buna packing
- Built in garden hose adapter
- Direct Drive
| SKU | MODEL | PSI | GPM | HP | SHAFT | MOTOR | PRICE |
| 85.129.042B | RRV4G36D | 3600 | 4.0 | 8-15 | 1" | Gas | $526.40 |

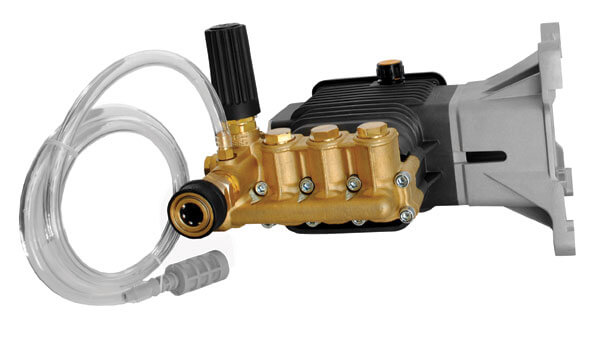

RSV 3400 rpm
Features:
- Built in one piece Unloader
- Stainless steel unitized check valves
- Forged brass manifolds
- Double sealing Buna packing
- Built in garden hose adapter
- Direct Drive
| SKU | MODEL | PSI | GPM | HP | SHAFT | MOTOR | PRICE |
| 85.129.037B | RSV4G40 | 4000 | 4.0 | 8-15 | 1" | Gas | $502.75 |

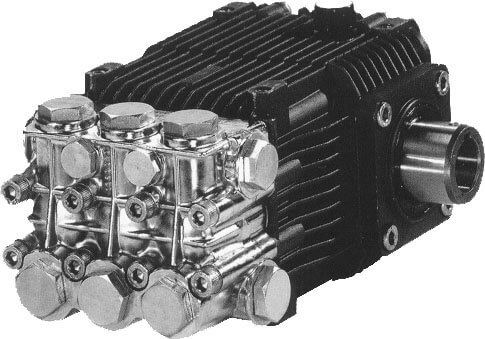

RKV 3400 rpm D Version
Features:
- 1” with Gas Engine Flange (F24)
- Includes Gas flange
- Direct Drive
- Warranty: 5 Year Manufacturer Defect
- Includes: Unloader, garden hose fitting, pressure hose fitting and thermal relief valve
| SKU | MODEL | PSI | GPM | ENGINE REQUIREMENTS | PRICE |
| SLPRRV4640-400 | SLPRRV4640-400 | 4000 | 4.0 | 9-13 HP Gasoline | $560.50 |
Specs and Diagram (795 KB)

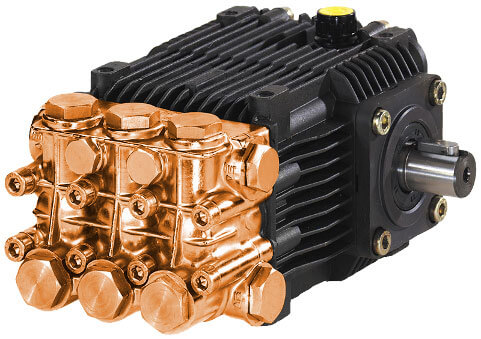

RKA 1750 rpm N Version
Features:
- 24mm Solid Shaft
- Belt Drive
- Warranty: 5 Year Manufacturer Defect
- Includes: Unloader, garden hose fitting, pressure hose fitting and thermal relief valve
| SKU | MODEL | PSI | GPM | ENGINE REQUIREMENTS | PRICE |
| SLPRKA4G40-302 | SLPRKA4G40-302 | 4000 | 4.0 | 12 HP Electric or 15 HP Gas |
 for Pricing |
Specs and Diagram (884 MB)
XW 1450 rpm N Version

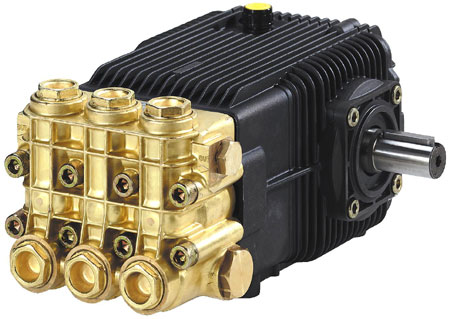

SXW 1450 rpm N Version
Features:
- 24mm Solid Shaft
- Belt Drive
- Warranty: 5 Year Manufacturer Defect
| SKU | MODEL | PSI | GPM | ENGINE REQUIREMENTS | PRICE |
| XW3025N | XW3025N | 3600 | 7.95 | 20 HP Electric or 26 HP Gas |
$1,008.20 |
| SXW1535 | SXW1535 | 5100 | 3.96 | 14 HP Electric or 18 HP Gas |
$1,233.85 |
| SXW2135 | SXW2135 | 5100 | 5.55 | 20 HP Electric or 26 HP Gas |
$1,125.80 |
XW Models Specs and Diagram (865 MB)
SXW Models Specs and Diagram (922 MB)
SHP 1450 rpm N Version
Features:
- 24mm Solid Shaft
- Belt Drive
- Warranty: 5 Year Manufacturer Defect
| SKU | MODEL | PSI | GPM | ENGINE REQUIREMENTS | PRICE |
| SHP15.50N | SHP15.50N | 7250 | 3.96 | 20 HP Electric or 26 HP Gas |
$1,181.80 |
