Giant Pumps
Our Giant triplex plunger pumps have lifetime on manifold with 5 years guarantee on gear end and 5 years on fluid end metal parts. These pumps have ceramic pistons and stainless steel valves for long life and reliability. Manifold materials are available either in brass for most applications, or high grade stainless steel for more harsh environments like marine or offshore applications would demand.
Applications used for extreme operating conditions: Agriculture, Boiler feed, Car washing, High pressure injection, Hydrostatic line testing, Pressure washing, Reverse Osmosis (RO).
FEATURES & BENEFITS
- High quality construction – brass or stainless steel manifolds for superior durability.
- Durable internals – ceramic pistons and stainless steel valves provide for reliable performance
- Available in pressures to 15,000 psi for water blasting applications where ultra high pressure is needed.
- High flow (GPM) models also available for jetting or sewer cleaning applications.
Lubrication: Prior to inital operation, add oil to crankcase so that the oil level is between the two lines on the oil dipstick. DO NOT OVERFILL. Crankcase oil should be changed after the first 50 hours of operation, then in regular intervals of 500 hours or less depending on operating conditions.
Vertical / Horizontal Pumps
GX Series
For short shaft Honda engine. The DeVilbiss pump is under the black plastic cover. Don't forget to get some extra pump oil.
Features:
- Max Pressure: 2500 PSI
- Max Flow: 2.5 GPM
- Max Temperature: 80° F
- Inlet Port: 1/2" NPT
- Discharge Port: 3/8" NPT
- Thermal Relief Valve
- Built-in Unloader
- Chemical Injector
- Engine mounting hardware
- For special Honda engines with 7/8" short shaft with special steel adapter
- For horizontal engines
- Direct Drive
This pump is a direct replacement for DeVilbiss (EXVRB2321 XR250) and Porter Cable.
| SKU# | MODEL | GPM | PSI | RPM | SHAFT | PRICE |
| BN-6077 | GXH2525A-112H |
2.5 | 2500 | 3450 | 7/8" Horizontal |
Specs and Diagram (153 KB)
Giant Triplex Plunger Pumps
Product Group Title

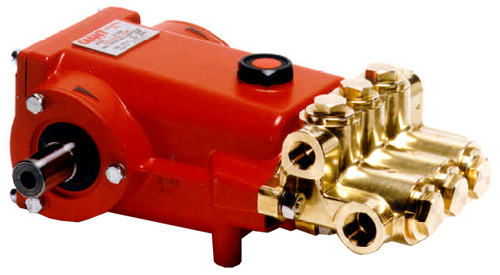

This Giant triplex plunger pump has solid ceramic plungers and is self-adjusting packing system.
Features:
- Max Flow: 6.1 GPM
- Discharge Pressure: 2320 PSI
- Max Pump Speed: 1420 RPM
- Max Temperature: 160° F
- Shaft Diameter: 22mm
- Plunger Diameter: 20mm
- Inlet Ports: Dual 1/2" BSP
- Discharge Ports: Dual 3/8" BSP
- Weight: 18 lbs.
| SKU# | MODEL | GPM | PSI | RPM | BHP | HP | STROKE | PRICE |
| BN-3166 | P56W | 6.1 | 1900 | 1450 | 10.0 | 13 HP Gas | 18.1mm | $1,323.45 |
Specs and Diagram (463 KB)
P200 Series
Features:
- Max Pressure: 2000 - 2500 PSI
- Max Flow: 1.8 - 4.2 GPM
- Max Pump Speed: 1750 - 3450 RPM
- Max Temperature: 160° F
- Shaft Diameter: 24mm
- Plunger Diameter: 18mm
- Fluid End: Brass
- Gear End: Aluminum
- Valves: Stainless Steel
- Inlet Ports: Dual 1/2" BSP
- Discharge Ports: Dual 3/8" BSP
- Weight: 12 lbs.
| SKU# | MODEL | GPM | PSI | RPM | BHP | HP | STROKE | PRICE |
| BN-3148 | P217RX | 3.3 | 2500 | 3450 | 5.7 | 7.7 HP Gas | 5.5mm | $659.40 |
| BN-3149 | P218 | 3.4 | 2500 | 1750 | 5.9 | 7.7 HP Gas | 10mm | $659.40 |
| BN-3150 | P219 | 4.2 | 2500 | 1750 | 7.2 | 11.8 HP Gas | 12.4mm | $659.40 |
Specs and Diagram (184 KB)
P300 Series
Features:
- Max Pressure: 2000 - 3000 PSI
- Max Flow: 3.7 - 5.5 GPM
- Max Pump Speed: 1450 - 3450 RPM
- Max Temperature: 160° F
- Shaft Diameter: 24mm
- Plunger Diameter: 20mm
- Inlet Ports: Dual 1/2" BSP
- Discharge Ports: Dual 3/8" BSP
- Weight: 16 lbs.
| SKU# | MODEL | GPM | PSI | RPM | BHP | HP | STROKE | PRICE |
| BN-3155 | P318R | 5.5 | 2000 | 1450 | 6.0 | 10 HP Gas | 16mm | $756.30 |
| BN-3153* | P316RX | 4.7 | 3000 | 1750 | 9.7 | 14.6 HP Gas | 14.1mm | $688.10 |
| BN-4496** | P316LX | 4.7 | 3000 | 1750 | 9.7 | 14.6 HP Gas | 14.1mm | $756.50 |
| BN-3152 | P321R | 4.1 | 3200 | 3450 | 9.9 | 11.9 HP Gas | 14.1mm | $688.10 |
| BN-3154 | P317 | 3.7 | 3000 | 1800 | 8.9 | 11.8 HP Gas |
10.6mm | $688.10 |
* Right handed shaft with short backend.
** Left Cover.
Specs and Diagram (265 KB)

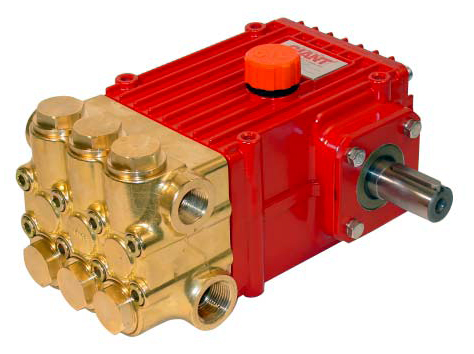

P400 Series
These Giant triplex plunger pumps are excellent for heavy-duty applications.
Features:
- Max Flow: 13.0 GPM
- Max Pressure: 1700 PSI
- Max Pump Speed: 1460 RPM
- Max Temperature: 160° F
- Shaft Diameter: 28mm
- Plunger Diameter: 25mm
- Inlet Ports: Dual 3/4" FPT
- Discharge Ports: Dual 3/4" FPT
- Weight: 37 lbs.
| SKU# | MODEL | GPM | PSI | RPM | BHP | HP | STROKE | PRICE |
| BN-3158 | P420A | 13.0 | 2000 | 1450 | 15.2 | 20 HP Gas | 28mm | $1,926.65 |
| BN-4992 | P422R | 10.0 | 2200 | 1450 | 15.0 | 20 HP Gas | 28mm | $1,927.30 |
Specs and Diagram (191 KB)
Giant High Pressure Pumps
Known in the industry as makers of quality pumps for harsh conditions and demanding conditions, these pumps will provide for a multitude of different applications with good results. Pressure ranges below are from 7,250 psi to 15,000 psi and flow ranges from 3.2 GPM to 38 GPM.

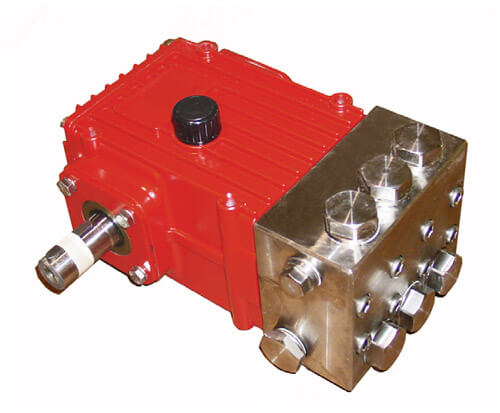

P400 Series
This series of pump is best for pressure washing applications where high pressure is needed perhaps for intensive hard surface cleaning or concrete repair restoration. Pressure of this type is also well suited for paint removal and hydro blasting.
Features:
- Max Flow: 3.2-5.3 GPM
- Discharge Pressure: 7,250 PSI
- Max Pump Speed: 1450 RPM
- Max Temperature: 104° F
- Shaft Diameter: 28 mm
- Plunger Diameter: 20-24 mm
- Inlet Ports: Dual 1/2" BSP
- Discharge Ports: Dual 3/8" BSP
- Manifold: Extruded Brass
- Weight: 36 lbs
Select left ot right shaft direction option in shopping cart.
| SKU# | MODEL | GPM | PSI | RPM | BHP | PLUNGER DIAMETER | STROKE | PRICE |
| P480 | P480 | 3.2 | 7,250 | 1450 | 16.0 | 14 mm | 20 mm | $4,542.30 |
| P460 | P460 | 3.8 | 7,250 | 1450 | 19.0 | 14 mm | 24 mm | $4,542.30 |
| P485 | P485 | 5.3 | 7,250 | 1450 | 26.3 | 18 mm | 20 mm | $3,702.30 |
Specs and Diagram (193 KB)

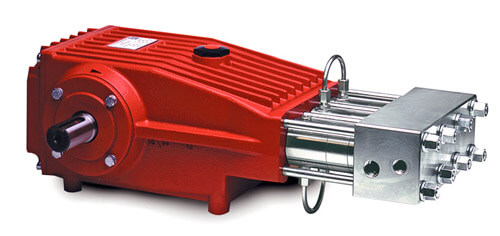

LP800/ LP1000 Series
Choose this pump for cleaning pipes or tubes blocked by concrete where pressures to 15,000 psi are needed to remove debris from walls of pipes or tubes. Lower flow is desirable in these applications, only high pressure is needed.
Features:
- Max Flow: 3.4-4.6 GPM
- Discharge Pressure: 11,600-15,000 PSI
- Max Pump Speed: 1000 RPM
- Max Temperature: 104° F
- Shaft Diameter: 35 mm
- Plunger Diameter: 12-14 mm
- Inlet Ports: Dual 1/2" BSP
- Discharge Ports: Dual 3/8" BSP
- Manifold: 303 Grade Stainless Steel
- Weight: 115 lbs.
| SKU# | MODEL | GPM | PSI | RPM | BHP | PLUNGER DIAMETER | STROKE | PRICE |
| LP800 | LP800 | 4.6 | 11,600 | 1000 | 36.8 | 14 mm | 42 mm | $16,803.30 |
| LP1000 | LP1000 | 3.4 | 15,000 | 1000 | 35.2 | 12 mm | 42 mm | $16,803.30 |
Specs and Diagram (197 KB)
LP700/ LP750 Series
This line of pumps has higher flow than the P400 series for sewer jetting or water jetting lines, or for splitting flow for dual users for pressure washing applications. Use this pump with larger surface cleaners with high pressure swivels with good results. Optional stainless steel manifolds available for corrosive environments, for example for offshore usage.
Features:
- Max Flow: 7.9 GPM
- Discharge Pressure: 7,250 PSI
- Max Pump Speed: 1000 RPM
- Max Temperature: 104° F
- Shaft Diameter: 35 mm
- Plunger Diameter: 18 mm
- Inlet Ports: Dual 3/4" BSP(LP700) Single 3/4" BSP(LP750)
- Discharge Ports: Dual 1/2" BSP(LP700) Single 1/2” BSP(LP750)
- Manifold: 303 Grade Stainless Steel (LP700) Forged Brass (LP750)
- Weight: 138 lbs.
| SKU# | MODEL | GPM | PSI | RPM | BHP | PLUNGER DIAMETER | STROKE | PRICE |
| LP700 | LP700 | 7.9 | 7,250 | 1000 | 39.5 | 18 mm | 42 mm | $18,906.40 |
| LP750 | LP750 | 7.9 | 7,250 | 1000 | 39.5 | 18 mm | 42 mm | $11,621.75 |
Specs and Diagram (195 KB)

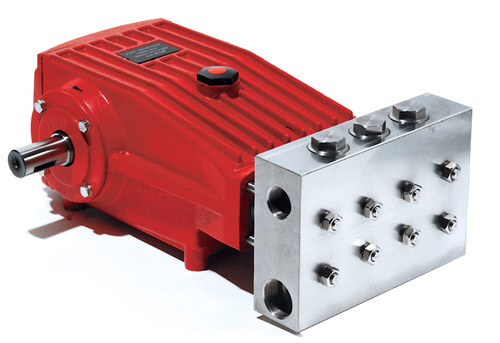

LP460/ LP600 Series
Lower pressure with higher flow for surface cleaning or dual gun usages. Optional stainless steel manifolds available for corrosive environments, for example for offshore usage. A great choice for either hard surface cleaning or jetting.
Features:
- Max Flow: 9.8 GPM
- Discharge Pressure: 5,800 PSI
- Max Pump Speed: 1000 RPM
- Max Temperature: 104° F(LP460) 140° F(LP600)
- Shaft Diameter: 35 mm
- Plunger Diameter: 20 mm
- Inlet Ports: Dual 1 1/4" BSP
- Discharge Ports: Dual 1" BSP
- Manifold: 303 Grade Stainless Steel (LP600) Aluminum Bronze-Nickel (LP460)
- Weight: 119 lbs.
| SKU# | MODEL | GPM | PSI | RPM | BHP | PLUNGER DIAMETER | STROKE | PRICE |
| LP460 | LP460 | 9.8 | 5,800 | 1000 | 39.2 | 20 mm | 42 mm | $7,546.90 |
| LP600 | LP600 | 9.8 | 5,800 | 1000 | 39.2 | 20 mm | 42 mm | $12,797.90 |
Specs and Diagram (176 KB)

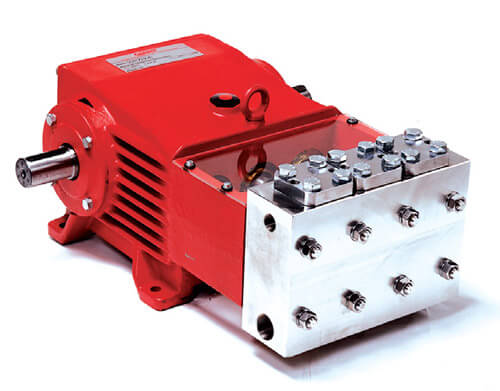

GP7120 Series
This pump offers a wide range of flows while permitting hotter inlet water temperatures up to 140 degrees F. Larger inlet ports suitable for large flow rates. This line up can cover most applications for marine environments. Manifolds for all models have high grade stainless steel construction.
Features:
- Max Flow: 9.9-17.9 GPM
- Discharge Pressure: 5,800-10,150 PSI
- Max Pump Speed: 750 RPM
- Max Temperature: 140° F
- Shaft Diameter: 48 mm
- Plunger Diameter: 22-28 mm
- Inlet Ports: Dual 1 1/4" BSP
- Discharge Ports: Dual 3/4" BSP
- Manifold: 415 Grade Stainless Steel (GP7122) 303 Grade Stainless Steel (GP7124-4000/GP7128)
- Weight: 374 lbs.
| SKU# | MODEL | GPM | PSI | RPM | BHP | PLUNGER DIAMETER | STROKE | PRICE |
| GP7122 | GP7122 | 9.9 | 10,150 | 750 | 69.3 | 22 mm | 52 mm | $28,731.45 |
| GP7124A-4000 | GP7124-4000 | 12.7 | 7,250 | 750 | 63.5 | 24 mm | 52 mm | $34,084.30 |
| GP7128 | GP7128 | 17.9 | 5,800 | 750 | 71.6 | 28 mm | 52 mm | $34,084.30 |
Specs and Diagram (361 KB)

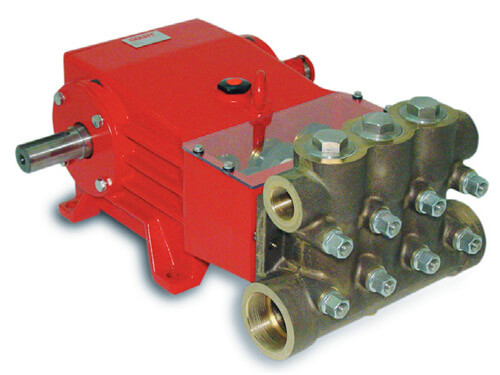

GP6124 Series
A pump that turns at a slower RPM rate than others, having a high flow rate and decent pressure is designed for hydro jetting or sewer jetting of large diameter pipes of up to 10”. Made of 303 grade stainless steel, these are also designed for marine or corrosive environments.
Features:
- Max Flow: 12.8 GPM
- Discharge Pressure: 6,090 PSI
- Max Pump Speed: 800 RPM
- Max Temperature: 140° F
- Shaft Diameter: 42 mm
- Plunger Diameter: 24 mm
- Inlet Ports: Dual 1 1/2" BSP
- Discharge Ports: Dual 1" BSP
- Manifold: 303 Grade Stainless Steel
- Weight: 309 lbs.
| SKU# | MODEL | GPM | PSI | RPM | BHP | PLUNGER DIAMETER | STROKE | PRICE |
| GP6124 | GP6124 | 12.8 | 6,090 | 800 | 53.7 | 24 mm | 48 mm | $20,618.80 |
Specs and Diagram (300 KB)

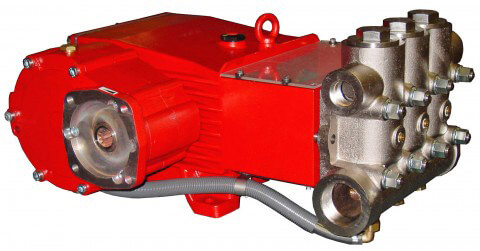

GP8000 Series
Very high flow with medium to high pressures available on these pumps for use in extreme jetting applications of up to 36” pipes, where pressure and flow is needed. Offshore rigs and platforms typically will choose this pump type for cleaning of steel pipes.
Features:
- Max Flow: 29.0-38.0 GPM
- Discharge Pressure: 5,510-7,250 PSI
- Max Pump Speed: 800 RPM
- Max Temperature: 86° F
- Shaft Diameter: 70 mm
- Plunger Diameter: 35-40 mm
- Inlet Ports: Dual 3" BSP
- Discharge Ports: Dual 1 1/4" BSP
- Manifold: 303 Grade Stainless Steel
- Weight: 767-793 lbs.
| SKU# | MODEL | GPM | PSI | RPM | BHP | PLUNGER DIAMETER | STROKE | PRICE |
| GP8035 | GP8035 | 29.0 | 7,250 | 580 | 53.7 | 35 mm | 72 mm | $43,939.35 |
| GP8135LGB-3.1 | GP8135 | 29.0 | 7,250 | 1500/1800 | 53.7 | 35 mm | 72 mm | $52,305.35 |
| GP8040 | GP8040 | 38.0 | 5,510 | 580 | 53.7 | 40 mm | 72 mm | $48,392.55 |
| GP8140LGB-4.5 | GP8140 | 38.0 | 5,510 | 1500/1800 | 53.7 | 40 mm | 72 mm | $52,305.35 |
Specs and Diagram (300 KB)
Giant Pump Replacement Part
Use the Giant pump repair kit chart below to find the correct kit or part to repair you Giant triplex plunger pump. Pricing is listed below the repair kit chart.
If you are not sure on the part you need for your Giant pump, please refer to the Giant pump breakdown diagrams located near each pump. If you still need further support, please send us an e-mail to info@ultimatewasher.com with your Giant pump model number and the part that you need.
| PUMP MODEL | PACKING KIT | PACKING W/ WEEP KIT | CHECK VALVE KIT | PLUNGER | OIL SEAL KIT | UNLOADER KIT |
|---|---|---|---|---|---|---|
| P56W | BN-4236 | BN-2405 | BN-3169 | BN-9539 | ||
| P205, P206, P207, P208, P210 | BN-3176 | BN-3529 | BN-6641 | BN-3830 | ||
| P217, P218, P219, P220, P221 | BN-3508 | BN-3529 | BN-3941 | BN-3830 | ||
| P313, P314, P316, P317 | BN-3507 | BN-3529 | BN-3941 | BN-3830 | ||
| P318 | BN-5990 | BN-3529 | BN-8452 | BN-3830 | ||
| P321 | BN-3176 | BN-3529 | BN-4529 | BN-3830 | ||
| P422R | BN-4485 | BN-3180 | BN-6247 | BN-5959 | ||
| GX Series | BN-5960 | BN-5118 | BN-6287 | BN-5992 | BN-4490 | |
| GXR Series | BN-5960 | BN-5118 | BN-6287 | BN-5992 | BN-4493 | |
| HR2020, HR2527A, HR3025, HR3030 | BN-5960 | BN-5118 | BN-6319 | BN-5992 | BN-5958 |
Packing Kits
| KIT # | GIANT # | DESCRIPTION | PRICE |
| BN-4236 | 09037 | P56W | $264.40 |
| BN-3163 | 09038 | P45, P46 | $98.50 |
| BN-5957 | 09081 | P45W, P46W | $267.15 |
| BN-3507 | 09119 | P316, P317, P319 | $124.65 |
| BN-5262 | 09138 | HR Series | $68.40 |
| BN-5990 | 09145 | 20mm, P318 | $104.30 |
| BN-3176 | 09152 | 12mm, P313, P314 | $127.00 |
| BN-3508 | 09164 | 18mm, P217 | $122.70 |
| BN-4485 | 09295 | P422 | $279.75 |
| BN-5960 | 09465 | 16mm, GX | $46.70 |
Plunger Packing w/ Weep Kits
| KIT # | GIANT # | DESCRIPTION | PRICE |
| BN-2405 | 09061 | P56W | $222.45 |
