Electric Motor - Natural Gas or Propane Fired Burners
Each model is equipped with a quick clean burner systems with a convenient slide out burner for easy maintenance. All models equipped with auto start stop function for longer pump life.
Any custom made machine can be built and would require a special quote. Call us if you have special needs!
Order Online or Call Toll Free (866) 858-4982
Industrial Hot Water Electric - Natural Gas Fired Burners
CLICK TO ENLARGE

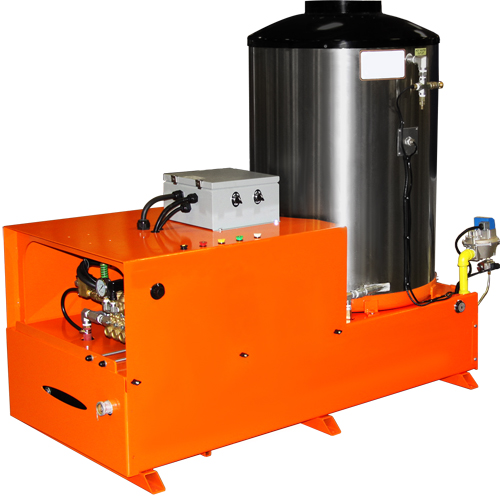

Industrial Hot Water Electric - Natural Gas Fired Burners
Features:
- 2,000 - 8,000 PSI
- 4 - 12 GPM
- 5 - 50 HP
- Belt Drive
- 390,000 - 940,000 BTU
- 220 - 460 Voltage
- 1 - 3 Phase
- General Pump - Italian-made industrial heavy-duty triplex plunger pump with oil bath crankcases, stainless steel valves, and brass manifolds. General Pumps are the most widely used pumps in the world.
- Belt Drive - Large diameter pulleys are used to reduce belt wear.
- Flange and Coupling Drive - Available for those who do not prefer belt drives.
- Heating Coil - Elliptically wound cold process of stretched reduced full body normalized ASTM A53/APIPSL schedule 80 or 160 pipe. The coil is structurally braced to minimize pipe wear and vibration. It is sealed with a ceramic blanket in a stainless steel housing.
- Burners - Quality North American-made natural gas or propane fired burners and controls with adjustable thermostats are used for efficiency, dependability, and serviceability. Units are equipped with quick kleen burner apparatuses. Burners jets have 6 oxygen orifice inlets to ensure maximum burn and minimize CO results.
- Frame - Rugged 11 gauge and 1/4” bent one-piece plate steel frame is fully welded with a powder coat finish. Frames are equipped with 11 gauge steel shrouds with integrated belt guards for maximum serviceability.
- Also Included - Gun and wand assembly, 50 feet of high-pressure hose, high-pressure chemical injection, 5 nozzles, and poly float tanks on 4 - 12 GPM units.
| MODEL | PSI | GPM | DRIVE | BTU | HP | VOLTAGE | PRICE |
| 11-PWEZ12 | 2000 | 4.0 | Belt | 390,000 | 5 | 220V-1PH | $6,680.00 |
| 11-PWEZ13 | 2000 | 4.0 | Belt | 390,000 | 5 | 460V-3PH | $5,493.60 |
| 11-PW2674 | 2000 | 8.0 | Belt | 720,000 | 10 | 220V-1PH | $9,397.25 |
| 11-PWDDB3 | 2400 | 3.5 | Direct | 290,000 | 5 | 220V-1PH | $4,738.00 |
| 11-PW18D1 | 3000 | 3.5 | Direct | 290,000 | 7.5 | 220V-1PH | $5,297.00 |
| 11-PW5D07 | 3000 | 4.0 | Belt | 390,000 | 7.5 | 220V-1PH | $5,856.00 |
| 11-PW6588 | 3000 | 4.0 | Belt | 390,000 | 7.5 | 208V-3PH | $5,856.00 |
| 11-PW1F5 | 3000 | 4.0 | Belt | 390,000 | 7.5 | 460V-3PH | $5,856.00 |
| 11-PWEZ14 | 3000 | 5.0 | Belt | 390,000 | 10 | 220V-1PH | $7,965.00 |
| 11-PWEZ15 | 3000 | 5.0 | Belt | 390,000 | 10 | 460V-3PH | $6,287.40 |
| 11-PWEZ16 | 3000 | 8.0 | Belt | 720,000 | 15 | 460V-3PH | $10,975.00 |
| 11-PWE57E | 3000 | 10.0 | Belt | 940,000 | 20 | 208V-3PH | $11,119.75 |
| 11-PW1C7B | 3000 | 10.0 | Belt | 940,000 | 20 | 460V-3PH | $11,119.75 |
| 11-PW0312 | 3600 | 6.0 | Belt | 560,000 | 15 | 460V-3PH | $9,657.25 |
| 11-PW1B01 | 3600 | 8.0 | Belt | 720,000 | 20 | 208V-3PH | $9,663.75 |
| 11-PWEZ17 | 3600 | 8.0 | Belt | 720,000 | 20 | 460V-3PH | $12,755.00 |
| 11-PWEZ18 | 2500 | 12.0 | Belt | 940,000 | 20 | 460V-3PH | $10,565.10 |
| 11-PW6549 | 4000 | 4.0 | Belt | 390,000 | 10 | 460V-3PH | $7,585.00 |
| 11-PW837A | 5000 | 5.0 | Belt | 510,000 | 20 | 208V-3PH | $11,158.75 |
| 11-PWEZ19 | 5000 | 5.0 | Belt | 510,000 | 20 | 460V-3PH | $12,020.00 |
| 11-PWEZ20 | 6000 | 4.0 | Belt | 390,000 | 20 | 460V-3PH | $13,605.90 |
| 11-PWEZ21 | 7000 | 4.0 | Belt | 390,000 | 20 | 460V-3PH | $13,532.40 |
| 11-PWEZ22 | 8000 | 8.0 | Belt | 720,000 | 50 | 460V-3PH | $35,557.20 |
Industrial Hot Water Electric - Propane Fired Burners
CLICK TO ENLARGE

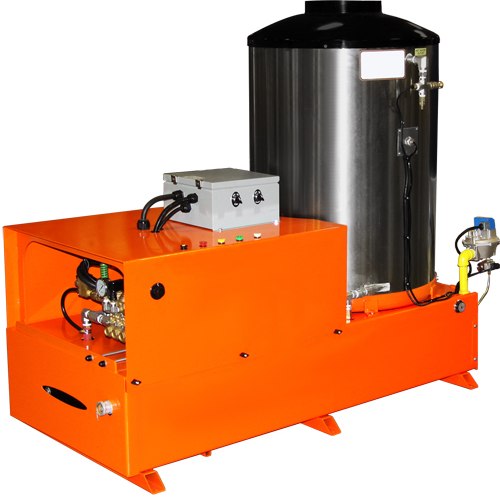

Industrial Hot Water Electric - Propane Fired Burners
Features:
- 2,000 - 8,000 PSI
- 4 - 12 GPM
- 5 - 50 HP
- Belt Drive
- 390,000 - 940,000 BTU
- 220 - 460 Voltage
- 1 - 3 Phase
- General Pump - Italian-made industrial heavy-duty triplex plunger pump with oil bath crankcases, stainless steel valves, and brass manifolds. General Pumps are the most widely used pumps in the world.
- Belt Drive - Large diameter pulleys are used to reduce belt wear.
- Flange and Coupling Drive - Available for those who do not prefer belt drives.
- Heating Coil - Elliptically wound cold process of stretched reduced full body normalized ASTM A53/APIPSL schedule 80 or 160 pipe. The coil is structurally braced to minimize pipe wear and vibration. It is sealed with a ceramic blanket in a stainless steel housing.
- Burners - Quality North American-made natural gas or propane fired burners and controls with adjustable thermostats are used for efficiency, dependability, and serviceability. Units are equipped with quick kleen burner apparatuses. Burners jets have 6 oxygen orifice inlets to ensure maximum burn and minimize CO results.
- Frame - Rugged 11 gauge and 1/4” bent one-piece plate steel frame is fully welded with a powder coat finish. Frames are equipped with 11 gauge steel shrouds with integrated belt guards for maximum serviceability.
- Also Included - Gun and wand assembly, 50 feet of high-pressure hose, high-pressure chemical injection, 5 nozzles, and poly float tanks on 4 - 12 GPM units.
| MODEL | PSI | GPM | DRIVE | BTU | HP | VOLTAGE | PRICE |
| 11-PWEZ23 | 2000 | 4.0 | Belt | 390,000 | 5 | 220V-1PH | $5,493.60 |
| 11-PWEZ24 | 2000 | 4.0 | Belt | 390,000 | 5 | 460V-3PH | $5,493.60 |
| 11-PW4A5B | 2000 | 8.0 | Belt | 720,000 | 10 | 220V-1PH | $9,397.25 |
| 11-PW8347 | 2400 | 3.5 | Direct | 290,000 | 5 | 220V-1PH | $4,738.00 |
| 11-PW1B30 | 3000 | 3.5 | Direct | 290,000 | 7.5 | 220V-1PH | $5,297.00 |
| 11-PW0C24 | 3000 | 4.0 | Belt | 390,000 | 7.5 | 220V-1PH | $5,856.00 |
| 11-PW8F7 | 3000 | 4.0 | Belt | 390,000 | 7.5 | 208V-3PH | $5,856.00 |
| 11-PW7200 | 3000 | 4.0 | Belt | 390,000 | 7.5 | 460V-3PH | $5,856.00 |
| 11-PWEZ25 | 3000 | 5.0 | Belt | 390,000 | 10 | 220V-1PH | $6,287.40 |
| 11-PWEZ26 | 3000 | 5.0 | Belt | 390,000 | 10 | 460V-3PH | $6,287.40 |
| 11-PWEZ27 | 3000 | 8.0 | Belt | 720,000 | 15 | 460V-3PH | $9,405.90 |
| 11-PW9EC7 | 3000 | 10.0 | Belt | 940,000 | 20 | 208V-3PH | $11,119.75 |
| 11-PW3945 | 3000 | 10.0 | Belt | 940,000 | 20 | 460V-3PH | $11,119.75 |
| 11-PWE2D5 | 3600 | 6.0 | Belt | 560,000 | 15 | 460V-3PH | $9,657.25 |
| 11-PW680F | 3600 | 8.0 | Belt | 720,000 | 20 | 208V-3PH | $9,663.75 |
| 11-PWEZ28 | 3600 | 8.0 | Belt | 720,000 | 20 | 460V-3PH | $9,405.90 |
| 11-PWEZ29 | 2500 | 12.0 | Belt | 940,000 | 20 | 460V-3PH | $10,565.10 |
| 11-PW7F8D | 4000 | 4.0 | Belt | 390,000 | 10 | 460V-3PH | $7,585.00 |
| 11-PW587C | 5000 | 5.0 | Belt | 510,000 | 20 | 208V-3PH | $11,158.75 |
| 11-PWEZ30 | 5000 | 5.0 | Belt | 510,000 | 20 | 460V-3PH | $10,854.90 |
| 11-PWEZ31 | 6000 | 4.0 | Belt | 390,000 | 20 | 460V-3PH | $12,518.10 |
| 11-PWEZ32 | 7000 | 4.0 | Belt | 390,000 | 20 | 460V-3PH | $13,532.40 |
| 11-PWEZ33 | 8000 | 8.0 | Belt | 720,000 | 50 | 460V-3PH | $35,544.60 |
Hot Water Gasoline Motor Power Washer
Failure to maintain heat exchanger coil may result in a system explosion which may cause serious injury or death.
Heat Exchanger Coil
Hard water conditions may eventually cause clogging in the heat exchanger coil if left unattended. Scale deposits will compromise the heating efficiency and produce an unsafe condition over time. It may be necessary to de-scale coil.
Scale buildup from certain detergents may eventually clog up the heat exchanger coil causing an unsafe condition. Use recommended detergents for better cleaning efficiency.
Black carbon deposits that collect on the outside wall of the heat exchanger coil may be a result of using a poor grade of fuel or improper burner operation. Heating fuel should be void of water and sediments to eliminate the possibility of soothing and compromising the efficiency of the coil.
Coil De-scaling
We recommend that you call your local distributor to have the unit de-scaled.
Storage and Winterizing
Storage: Protect machine from freezing temperatures by storing in heated area.
Winterizing the float tank machines: Pour antifreeze into float tank and remove water nozzle from end of wand and carefully insert wand into opening of float tank. Start machine and run until anti-freeze water mixture has circulated throughout the machine returning back to the float tank.
Direct Drive Machines: To protect the machine from freezing temperatures while storing or transporting, connect short length of garden hose (approximately 3ft.) to water inlet connection on machine. Remove the pressure nozzle from the wand and insert the short garden hose end into a container of antifreeze. Place the wand into the antifreeze container and start engine running machine until antifreeze appears from the end of the wand. Turn engine "OFF" and replace pressure nozzle. Coil up hose and move machine to storage area.
