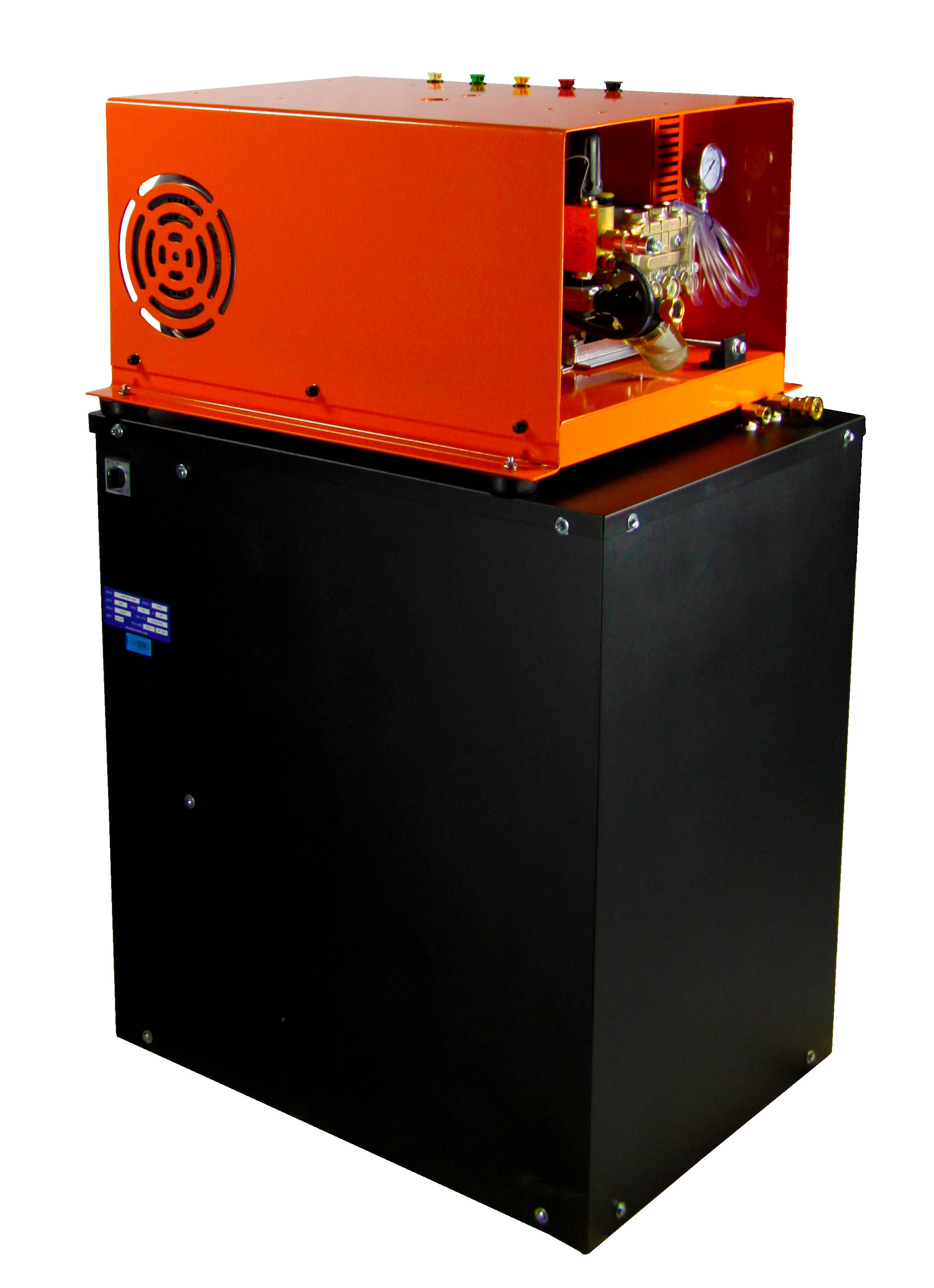

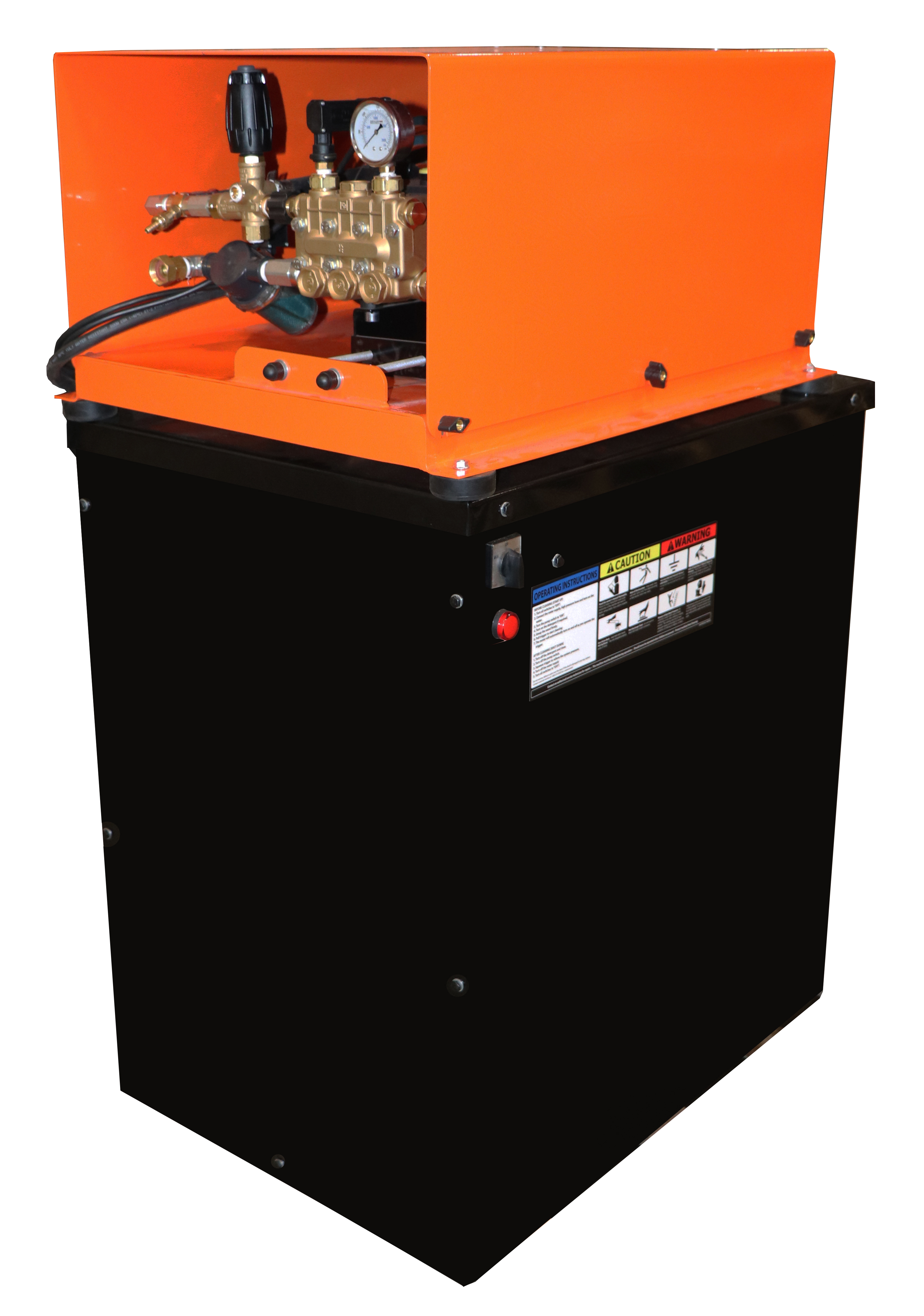

Industrial Hot Water Fully Electrically Heated Pressure Washer

Features:

• 1200 - 4000 PSI
• 4.0 - 8.0 GPM
• 208 V, 3PH, 5 - 15 HP TEFC Motor
• 1.25 Service Factor
• Belt Drive Triplex Pump
• 4,800 - 24,000 Cleaning Units
• Heavy Duty Auto Start/Stop with Time Delay
• 48 KW Heater with 316 SS Coil
• 70 Gallon Storage Tank
• Adjustable Pressure
• Thermal Relief valve
• 50’ of High Pressure Hose.
• 4 High Pressure Nozzles
• 48” Gun and Wand Assembly
• Fully Welded Steel and Powder Coated Stationary Frame
• 6 Foot Electrical Cord
• Total Amp Draw; 135 - 165

MODEL	PSI	GPM	HP	Voltage	Amp	PRICE
11-PW8EA5	1200	4.0	5.0	208	135	$8,488.50
11-PW4621	2000	4.0	5.0	208	140	$8,891.50
11-PW70D2	3000	4.0	7.5	208	148	$9,463.50
11-PW57E6	4000	4.0	10	208	155	$11,712.50
11-PWAAAE	2000	6.0	10	208	148	$11,151.50
11-PWAECE	2000	8.0	10	208	155	$12,893.50
11-PW3E7D	3000	8.0	15	208	165	$14,609.50

All Electric Pressure Washers - 230V Available Upon Request
Model: ES Series

Features:

• CSA approved / fully automatic
• Environmentally friendly / no exhaust fumes or open flame
• 2 year heater coil warranty / 3 year heater element warranty
• Belt-driven, oil-bath plunger pump
• Auto start / stop circuit controlled by trigger gun activation
• Instant hot pressurized water / no warm up time required
• Large 80 gallon heat exchanger tanks allow for continuous recovery to maintain optimum performance  on units rated less than 8 GPM (8 GPM models use large capacity tank at 140 gallons).
• No hard water scale build up or heater element to burn out as no direct immersion of elements allowed into water being pumped
• Transfer fluid in heat exchanger treated to prevent corrosion or galvanic action
• Thermo blanket lined tank provides almost 100 % energy input / output efficiency (all power is used to heat water
• Thermostatically controlled heat exchanger with low water shut off
• Downstream chemical injection (8gpm or larger models include upstream chemical injection)
• Cold water through pump for long life
• Automatic high temperature shut down (thermo probe) for pump protection
• Ideal for centralised systems with multi station outlets
• Available with 24, 48, 72 & 99 kW input and working pressures of  up to 4000 psi
• Complete with 50 ft. steel braid pressure hose, trigger gun, variable pressure wand and hardened stainless steel nozzle (8 gpm or larger models include 2 sets)
• Multi-gun systems for high capacity cleaning

Functional Design

• Ease of use - trigger gun controlled start/stop system with solid state time delay shutdown
• Instant hot water - heat exchanger is thermally insulated allowing for almost 100% energy input/output and continuous, efficient operation
• Large 80 gallon heater storage tanks - allows for continuous heat recovery even when the gun is triggered off (depending on model)
• No open flame - can be installed in virtually any location
• Inherent pump protection - automatic high temperature shut down (thermo-probe) on pump bypass
• System weight: dry - 600 lbs. / operating - 1185 lbs. The PCA cart is designed to allow one operator to push/pull complete washing system on a smooth surface.
• Frame mounted on casters available for $550.00

Reliable Performance

• Low-rpm, belt-driven, oil-bath plunger pump - longer pump life when compared to direct drive systems
• Flow switch activated - not affected by small system leaks (i.e. trigger gun)
• #316 Stainless steel heat exchanger coil - designed for continuous duty use
• No direct immersion of heating elements - no scale buildup or element burnout

MODEL	Dimensions L" x W" x H"	PSI	GPM	HP	Voltage	Amp at 230 V	Amp at 480 V	PRICE

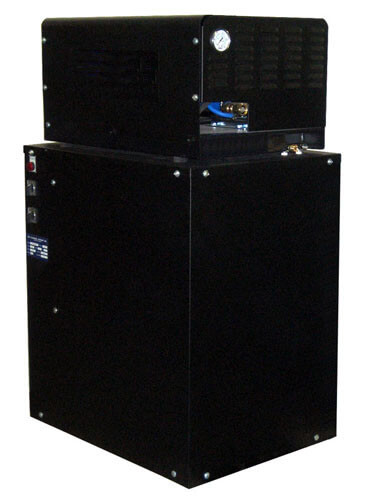

ES411K448A	32x24x52	1100	4.0	3.0	Choose Voltage 480V	134.8	62.2	Click for Price
ES420K448A	32x24x52	2000	4.0	5.0	Choose Voltage 480V	147.5	64.4	Click for Price
ES429K448A	32x24x52	2900	4.0	7.5	Choose Voltage 480V	147.5	68	Click for Price
ES440K448A	32x24x52	4000	4.0	10.0	Choose Voltage 480V	154	70.9	Click for Price
ES543K448A	32x24x52	3000	5.4	10.0	Choose Voltage 480V	154	70.9	Click for Price
ES562K448A	32x24x52	2000	5.6	7.5	Choose Voltage 480V	147.5	68	Click for Price

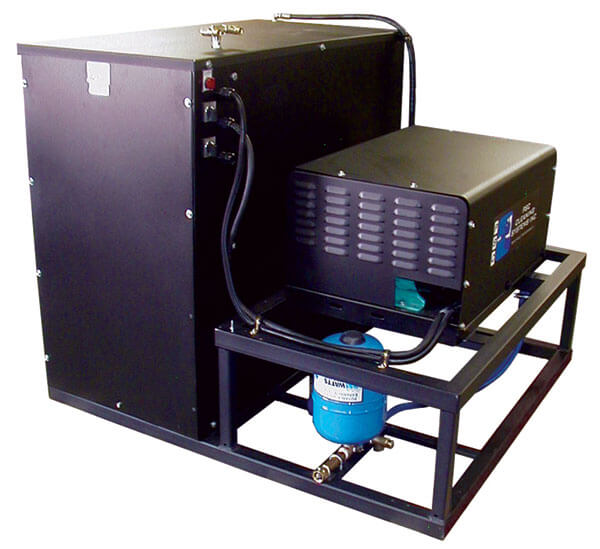

ES820K2448A	53x48x38	2000	8	10.0	Choose Voltage 480V	147.5	70.9	Click for Price
ES830K2448A	53x48x38	3000	8	15.0	Choose Voltage 480V	147.5	75.9	Click for Price

Documents

Preventive maintenance instructions

System requirements

HD-PCA Cart Assembly

Diagrams

See all the drawings of this portable system.
The ES Series comes on a cart assembly with casters.

Customer Application for Design Specifications

Occasionally a machine will need to be built to certain, specific specifications not common on our standard units. We provide this online form for this purpose. Please choose to download an Adobe Acrobat version of the form or fill out our online version.

Why consider a PSC Electrically Heated Cleaning System?

This equipment is approved by special inspection, giving the flexibility of design and offers the customer the knowledge of a more stringent testing/approval protocol. Once a product is listed or certified it is up to the manufacturer of the product to ensure the product continues to follow code. CSA or UL only sees the product once, when they test the initial unit. Other than a semi yearly visit, they do not monitor quality and approval procedures. With a field approval, the CSA representative comes to your facility and does the testing on each individual unit and then issues the CSA approval. These unit will carry a US field approval and will be compliant to NEC codes and all local fire codes. All the major components carry both CSA and UL listings.

Versatile

• 1000 psi to 5000 psi - 2 gpm to 16 gpm
• Standard-build and explosion-proof models
• Ideal centralized cleaning system
• Portability carts available
• Available with 24, 48, 72, 96 and 115 kW input (call for pricing)

Cost Effective

• Low installation cost - no venting required, can be installed virtually anywhere
• Low maintenance costs - heat exchanger coil does not require decalcification, only periodic pump oil changes required
• Low operating costs - compares favorably with oil-fired machines and requires less kW input than direct-immersion type electrically heated models

Ease of maintenance

• Pump/motor/controls/coil easily accessible
• No water/soap scale buildup - skin temperature of heat exchanger coil never exceeds 190°F

Safety

• Heat exchanger vented to atmosphere
• Low heat exchanger solution cut-off switch
• High temperature limit control
• CSA approved

Support

• Special application designed systems
• Backed by qualified and responsive sales and technical personnel
