Explosion Proof Pressure Washers
When safety is top priority...
Designed for use in hazardous environments, where safety is critical. These cleaners feature explosion proof components and a heavy duty, sealed, cast aluminum enclosure with galvanized steel conduit. This equipment meets the National Electric Code (NEC) and complies with OSHA Regulation 1910.303(a)
All models with the explosion proof option meet Class 1, Division 1 and 2, Group C and D.
Clean Air Assurance
These explosion proof pressure washers are ideal for indoor/outdoor use, and in potentially hazardous environments. Unlike fuel-fired washers, this line produces no fumes, exhaust or open flames. This makes these cleaners well-suited for indoor applications and enclosed spaces where air quality is a concern.
Easy to Install and Operate
Designed with a minimal number of controls and moving parts, making them simple to operate and easy to service. They make set-up easy, requiring only an electrical hookup and water supply. We use over-sized components that operate below full capacity, resulting in longer, trouble-free operation.
Order Online or Call Toll Free (866) 858-4982

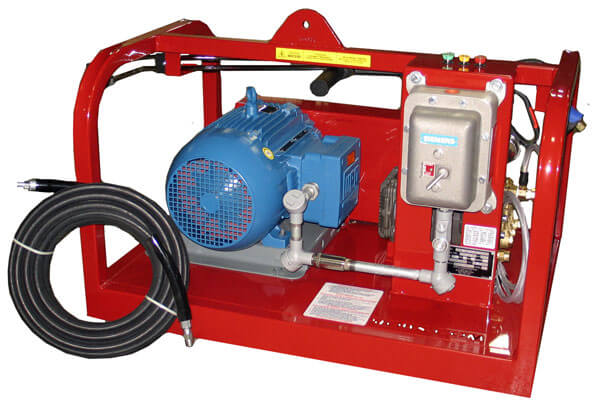

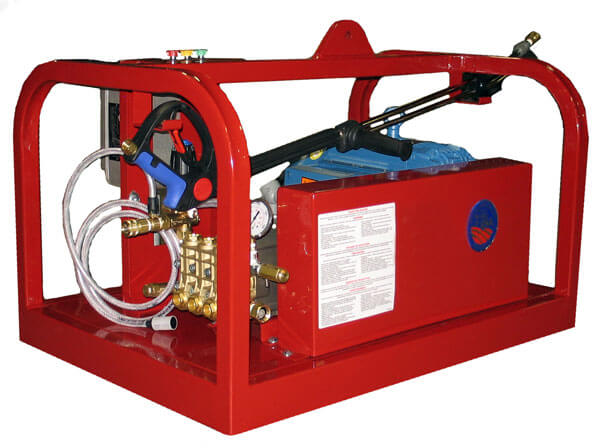

Explosion Proof Electric Cold Water Models
Electric Cold Explosion Proof Pressure Washers
These explosion proof pressure washers are great for jobs when hot water is not required, such as blasting away dirt, mud or dust. They are excellent for vehicle and grounds maintenance, as well as applications where cold water cleaning is preferred. Few units on the market equal the performance and durability of this line of cleaning equipment. Cold pressure washer with electric motors are the easiest to operate since they require no fossil fuels, no exhaust ventilation and very little maintenance.
Features:
- Max Pressure: 1200 - 5000 PSI
- Max Flow: 5.0 GPM
- Electric Motor Drive: 5 - 20 HP
- 60Hz (50 Hertz Electric Available)
- Relief Valve
- Pressure Gauge
- AR Pumps
- 50 FT x 3/8" ID High Pressure Hose with Quick Disconnects
- Trigger type, pistol grip gun with 36" Extension Pressure Wand
- Three Spray Tips Included 0°, 15°, 25°
- Heavy Duty Welded Steel Stationary Frame with Lifting Eye
- Belt Drive
- Triplex plunger, oil bath, positive displacement pump
- Weight: Between 400 lbs - 500 lbs
- Each of these cold water models are certified for Class 1, Divisions 1 and 2, Group C and D (classified) locations, with sealed cast-aluminum explosion-proof electrical control enclosure and conduit
| MODEL | PSI | GPM | MOTOR | ELECTRICALS Volts / Phase / Hz / Amp | PRICE |
| C5.0E1200-60XP | 1200 | 5.0 | 5.0 HP | 230V/3PH/60Hz/ 14 Amp | $13,175.35 |
| C5.0E1800-60XP | 1800 | 5.0 | 7.5 HP | 230V/3PH/60Hz 22 Amp | $14,095.45 |
| C5.0E3000-60XP | 3000 | 5.0 | 10 HP | 460V/3PH/60Hz 60 Amp | $14,269.05 |
| C5.0E5000-60XP | 5000 | 5.0 | 20 HP | 460V/3PH/60Hz/ 60 Amp | $27,435.40 |

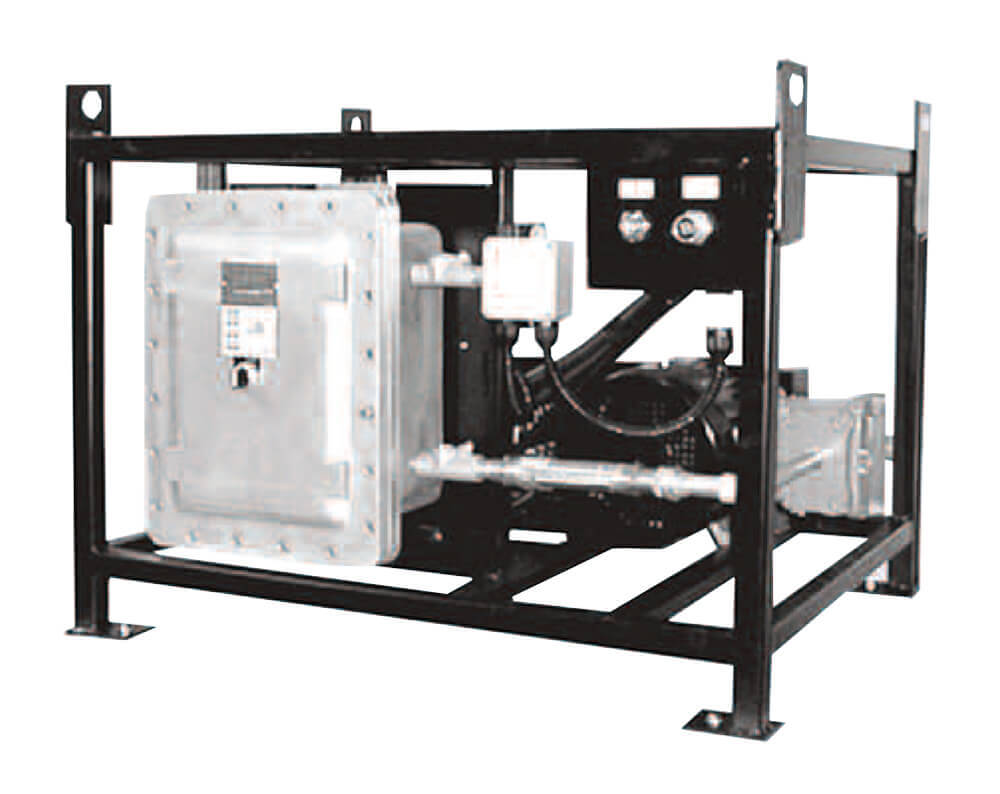

Electric Cold Explosion Proof Pressure Washers
CSA approved Class 1, Division 1, Group C and D or Class 2 Division 1, Group E, F, and G. Models are also available with stainless steel frames for offshore applications. Call for details on these models.
Features:
- General belt-driven oil-bath plunger pump with pressure regulator (multi gun capability) and powder coat painted pump cover with louvered end covers
- CSA approved / UL listed explosion-proof motor — 1800 rpm, IP56 ingress protection, 1.15 service factor, class F insulation
- Fully automatic start / stop circuit with solid state time delay shutdown — controlled by trigger gun activation
- Steel cage construction with mounting feet and lifting eyes — powder coat painted
- Automatic high temperature shut down (thermo probe) for pump protection
- 50 FT high pressure hose assembly complete with lance, trigger gun and chemical injection
- CSA approved / UL listed control box, heating elements, flexible coupling, conduit and seals
- CSA inspected and certified for use in hazardous location environments
- Dimensions 61"L x 48"W x 54"H
| MODEL | PSI | GPM | MOTOR | ELECTRICALS Volts / Phase / Hz / Amp | WEIGHT | PRICE |
| ES420EA3-EX1 | 1900 | 4.0 | 5 HP | 480V/3PH/60Hz/6.6 Amp | 560 lbs | $14,382.40 |
| ES429EA3-EX1 | 2900 | 4.0 | 7.5 HP | 480V/3PH/60Hz/10.2 Amp | 580 lbs | $16,011.90 |
| ES440EA3-EX1 | 4000 | 4.0 | 10 HP | 480V/3PH/60Hz/13.1 Amp | 600 lbs | $17,165.60 |

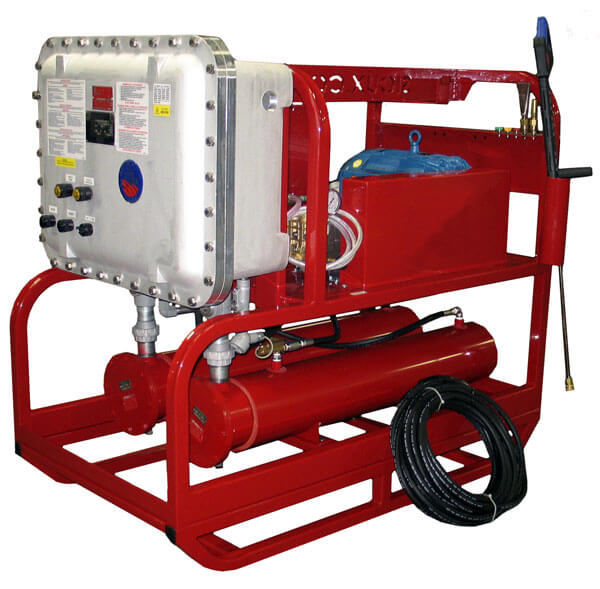

Explosion Proof Electric Hot Water Models
Electric Motor Hot Explosion Proof Pressure Washers
Powerful, Non-Stop Cleaning Capability
You can operate these explosion proof pressure washers continuously without a decrease in discharge water temperature (hot water models). They use an immersion heater design in which water is heated as it passes through a heating vessel. No preheating or recovery time is required which means hot water is available within minutes. This design assures a constant discharge water temperature so cleaning effectiveness is not compromised.
These explosion proof pressure washers produce high pressure hot water to blast away grime, encrusted dirt and oily films. High pressure hot water greatly increases the cleaning power of detergents and chemicals. Cold pressure washing is available for rinsing by turning off the heating element.
Features:
- Pressure:3000 PSI
- GPH: 120 - 300
- Optional SCR Controller: Advanced Temperature Control System
- 30 - 38 KW Heating Element
- Triplex Pumps
- 3/8" x 50 FT Wire Braid Hose
- Trigger type, insulated pistol grip, shutoff gun with 36" barrel lance and side grip
- Three Spray Tips Included 0°, 15°, 25°
- Heavy-Duty Welded Steel Frame
- Skid Mounted
- Sealed cast aluminum explosion-proof electrical control enclosure, and explosion-proof conduit
- Each of these hot water models are certified for Class I, Division 2, Group D
- ETL Certified to following standards: UL1776, CSA 22.2 No.68, UL1203, CAN/CSA C22.2 No.25, AND CAN/CSA C22.2 No.30
- Meets National Electric Code (NEC), Canadian Electric Code (CEC), and complies with OSHA Regulation 1910.303(a)
| MODEL | PSI | GPM | MOTOR | TEMP | ELECTRICALS Volts / Phase / Hz / Amp | WEIGHT | PRICE |
| EN2.4H3000-60XP | 3000 | 2.4 | 5 HP | 145°F | 480V/3PH/60Hz/ 44 Amp | 1100 lbs | $34,213.70 |
| EN4.0P3000-60XP | 3000 | 4.0 | 10 HP | 185°F | 480V/3PH/60Hz/107 Amp | 1,480 lbs | $45,655.30 |
| EN5.0H3000-60XP | 3000 | 5.0 | 10 HP | 140°F | 480V/3PH/60Hz/ 87 Amp | 1,300 lbs | $41,421.70 |

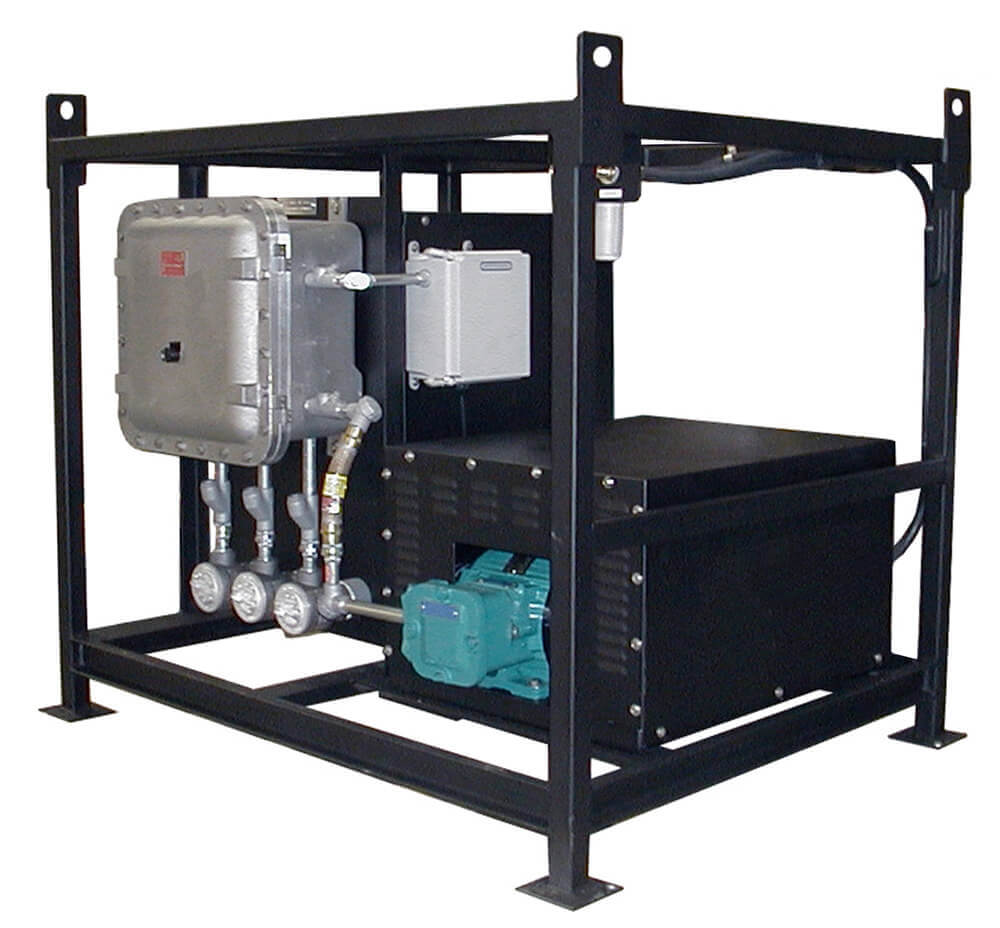

Electric Hot Explosion Proof Pressure Washers
CSA approved Class 1, Division 1, Group C and D or Class 2 Division 1, Group E, F, and G. Models are also available with stainless steel frames for offshore applications. Call for details on these models.
Features:
- General belt-driven oil-bath plunger pump with pressure regulator (multi gun capability) and powder coat painted pump cover with louvered end covers
- CSA approved / UL listed explosion-proof motor — 1800 rpm, IP56 ingress protection, 1.15 service factor, class F insulation
- Non-direct immersion heat exchanger with #316 stainless steel heat exchangecoil, Calrod elements with Incoloy sleeves, adjustable temperature controller and low water (heat exchanger fluid) level switch
- Fully automatic start / stop circuit with solid state time delay shutdown — controlled by trigger gun activation
- Steel cage construction with mounting feet and lifting eyes — powder coat painted
- Automatic high temperature shut down (thermo probe) for pump protection
- 50 FT high pressure hose assembly complete with lance, trigger gun and chemical injection
- CSA approved / UL listed control box, heating elements, flexible coupling, conduit and seals
- CSA inspected and certified for use in hazardous location environments
- Dimensions 61"L x 48"W x 54"H
| MODEL | PSI | GPM | MOTOR | ELECTRICALS Volts / Phase / Hz / Amp | WEIGHT | PRICE |
| ES420K448A-EX1 | 1900 | 4.0 | 5 HP | 480V/3PH/60Hz/65 Amp | 1,130 lbs | $29,697.25 |
| ES429K448A-EX1 | 2900 | 4.0 | 7.5 HP | 480V/3PH/60Hz/68 Amp | 1,170 lbs | $31,351.85 |
| ES440K448A-EX1 | 4000 | 4.0 | 10 HP | 480V/3PH/60Hz/70 Amp | 1,210 lbs | $31,988.70 |
Definition of Hazardous Locations
| Class 1 Flammable Gases or Vapors | Class 2 Explosive Dusts | ||
| Division 1 | Concentrations of Gases or Vapors exist under normal operating conditions. | Division 1 | Explosive dusts exist under normal operating conditions. |
| Division 2 | Concentrations of Gases or Vapors are normally prevented. Group C Atmospheres such as Cyclopropane, Ethyl Ether, Ethylene, or gases or vapors equivalent in hazard. Note: Equipment must be special ordered with Group C motor. Group D Atmospheres such as Acetone, Alcohol, Ammonia, Benzene, Benzol, Butane, Gasoline, Hexane, Lacquer solvents, Naphtha, Natural Gas, Propane, or gases or vapors equivalent in hazard. | Division 2 | Explosive dusts are normally prevented. Group E Atmospheres containing metal dust and other combustible dusts including aluminum, magnesium, and their commercial alloys, and other metals of similarly hazardous characteristics. Note: Not appropriate for atmospheres containing Uranium, Thorium or Zirconium dust Group F Carbon black, charcoal, coal, or coke and similar materials. |
See Also
Oil rig platforms require explosion proof power washers for safety reasons. These explosion proof pressure washers are excellent for cleaning grease, oil, salt build-up in oil rig platforms.
Oil Rig, Oil Refinery, Oil Field Cleaning
Explosion proof pressure washer can do the job for oil rig, oil refinery, and oil field cleaning effectively with maximum safety.
|
