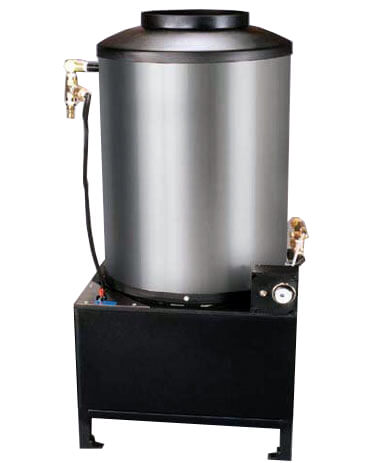

Pressure Washer Burners

Gas and Diesel Burners

These models are to be used with existing pressure washers. All units are completely factory assembled and tested in the USA and delivered ready to operate.

Features:

• Powdercoated frames
• Stainless steel coil wrap
• Schedule 80 coil
• Adjustable thermostat
• High limit over temp protection
• Safety pop-off over pressure protection
• 9 gallon fuel tank on diesel models
• Inline flow switch
• 35 foot cord with GFCI on 115 volt models
• Weight: 400 lbs, all stand alone models

MODEL	DESCRIPTION	PSI	GPM	DIMENSIONS	PRICE
HBS12V40	12 Volt Diesel Burner	4000	4.0	18"W x 28 "L x 41"H	$2,922.65
HBS12V60	12 Volt Diesel Burner	4000	6.0	31"W x 24 "L x 44"H	$3,257.95
HBS12V80	12 Volt Diesel Burner	4000	8.0	32"W x 25"L x 54"H	$3,822.50
HBS115-40	115 Volt Diesel Burner	4000	4.0	18"W x 28"L x 41"H	$2,900.35
HBS115-60	115 Volt Diesel Burner	4000	6.0	31"W x 21"L x 44"H	$3,382.80
HBS115-80	115 Volt Diesel Burner	4000	8.0	32"W x 25"L x 54"H	$3,784.75

LP Gas Specifications:

• 5 or 7 GPM at 4000 PSI (Depending on the model)
• 450,000 BTUs for model PP-HBSLP50
• 650,000 BTUs for model PP-HBSLP70
• 130° F Temperature Rise (180° - 190° total output)
• Minimum requirements: 2 x 60lbs LP tanks for 6 to 8 hours operation.

12 Volt Specifications:

• 9 gallon fuel tank
• Requires 12 volt battery (Purchased separately. Deep cycle marine battery recommended)
• 6 or 8 GPM at 4000 PSI (Depending on the model)

115 Volt Specifications:

• 6 or 8 GPM at 4000 PSI (Depending on the model)
• 9 gallon fuel tank
• 35 foot cord w/GFCI for operator safety

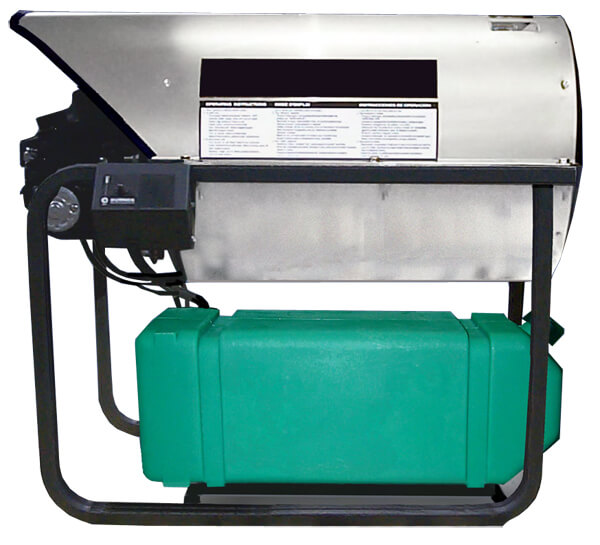

IH Series "HotBox"

This Hot Box attaches to a cold water pressure washer and converts it into a hot water cleaning machine. The cold water pressure washer sends the high-pressure water into the Bot Box which heats the water before dispatching it to the wand. When the gun is pulled, the burner automatically fires and stops when the gun is released. Simply quick couple the Bot Box's jumper hose to almost any cold water pressure washer, and attach the pressure washers hose, gun, wand and nozzles to the outlet on the Bot Box. Rugged, dependable, and easy to operate with low maintenance costs, this unit continuously heats as much as 6gpm up to 195°.

Features:

• Powdercoated frames
• Oil fired WAYNE burner
• Stainless steel coil wrap
• 1 1/4 Square Tubular Steel Chassis
• Schedule 80 coil
• 195 Degree thermostat
• High limit temp protection
• Safety Pop-off over pressure protection
• 120 Volt AC (3.5 amps) or 12 Volt DC (12 amps)
• 10 gallon fuel tank
• Weight: 350 lbs

MODEL	DESCRIPTION	PSI	GPM	DIMENSIONS	PRICE
RM-EHB-115V	120 Volt AC Diesel oil fired	4000	6.0	38"L x 44 "W x 24 "H	Request a Quote

LP Gas Specifications:

• 5 or 7 GPM at 4000 PSI (Depending on the model)
• 450,000 BTUs for model PP-HBSLP50
• 650,000 BTUs for model PP-HBSLP70
• 130° F Temperature Rise (180° - 190° total output)
• Minimum requirements: 2 x 60lbs LP tanks for 6 to 8 hours operation.

12 Volt Specifications:

• 9 gallon fuel tank
• Requires 12 volt battery (Purchased separately. Deep cycle marine battery recommended)
• 6 or 8 GPM at 4000 PSI (Depending on the model)

115 Volt Specifications:

• 6 or 8 GPM at 4000 PSI (Depending on the model)
• 9 gallon fuel tank
• 35 foot cord w/GFCI for operator safety

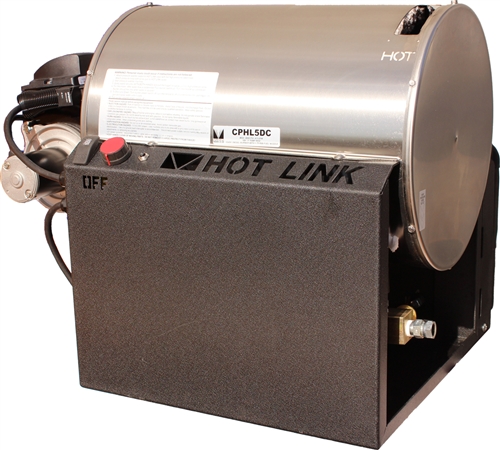

Hot Link Series

Convert your existing cold water pressure washer into a hot water pressure washer. Do you already own a cold water pressure washer but wish it had hot water? Attach a Hot Link to your existing cold water pressure washer and you have the power of hot water to quickly melt away grease and grime. The Hot Link System allows you the flexibility of using hot water on those stubborn jobs such as grease, gum, or graffiti that require the impact of hot water to get the job done right. It will save you money by getting the job done faster, and you do not have to buy a new pressure washer if you already have a cold water system. Its compact size allows for easy storage when not in use and takes up little room on your truck or trailer. You can choose from two diesel heated models or a propane heated model.

Features:

• Use with your cold water pressure washer
• 100 – 4350 PSI
• 1-5 GPM
• Includes 48" jumper hose
• 3 gallon diesel fuel tank
• Adjustable temp up to 200°F
• Stainless steel insulated coil enclosure
• Redundant safety features include flow switch, pressure relief valve, and burst disc
• Compact: 29" x 22" x 22"
• Model 1: 12v DC for remote use, hook to the battery on your pressure washer (requires 14 amp charging system)
• Model 2: 115v includes 37’ GFCI cord, plugs into any standard 15 amp outlet
• Weight: 235 lbs

MODEL	DESCRIPTION	PSI	GPM	PRICE
CPHL5DC	12v VDC Diesel Hot Link Hot Water Generator	4350	3.5	$2,604.15
CPHL5E1	115v VAC Diesel Hot Link Hot Water Generator	4350	4.75	$2,604.15
UW11-PWAH25	Optional Wheel Kit - 4 wheels, no handle	n/a	n/a	$372.65

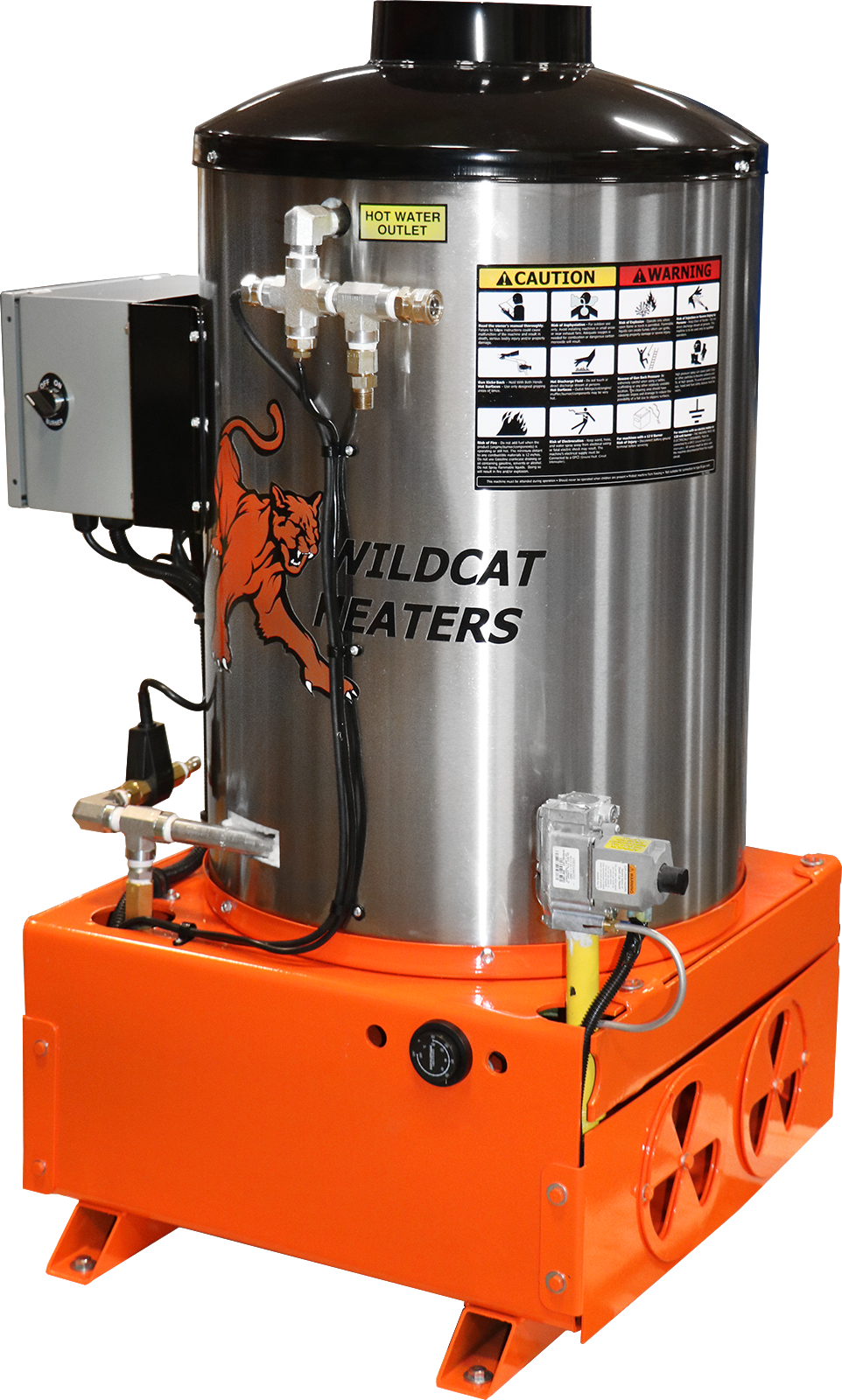

Natural Gas, Propane, Oil Fired Modular Hot Water Heaters

Features:

• Up to 5000 PSI
• 195,000 - 720,000 BTU Natural Gas
• 1/2” ASTM A53 Schedule 80 Coil w/ Stainless Steel Housing
• 25ft Electrical Cord Length
• Fully Welded/Powder Coating Steel Frame

MODEL	DESCRIPTION	PSI	Dimensions	PRICE
Natural Gas Fired
11-PW7BE8	5000 PSI Natural Gas Fired Hot Water - 195,000 BTU 24V Heater	5000	34x32x51 inches 418 LBS	$2,602.25
11-PWC3DD	5000 PSI Natural Gas Fired Hot Water - 295,000 BTU 24V Heater	5000	34x32x51 inches 418 LBS	$2,979.85
11-PWF313	5000 PSI Natural Gas Fired Hot Water - 390,000 BTU 24V Heater	5000	34x32x54 inches 453 LBS	$3,299.85
11-PW31D5	5000 PSI Natural Gas Fired Hot Water - 510,000 BTU 24V Heater	5000	44x34x59 inches 685 LBS	$5,485.10
11-PW80C8	5000 PSI Natural Gas Fired Hot Water - 560,000 BTU 24V Heater	5000	35x27x50 inches 698 LBS	$5,485.10
11-PW35D5	4000 PSI Natural Gas Fired Hot Water - 720,000 BTU 24V Heater	4000	38x42x60 inches 698 LBS	$5,485.10
Propane Fired
11-PW0BA8	5000 PSI Natural Gas Fired Hot Water - 195,000 BTU 24V Heater	5000	34x32x51 inches 418 LBS	$2,602.25
11-PW7AA4	5000 PSI Natural Gas Fired Hot Water - 295,000 BTU 24V Heater	5000	34x32x51 inches 418 LBS	$2,979.85
11-PW37CA	5000 PSI Natural Gas Fired Hot Water - 390,000 BTU 24V Heater	5000	34x32x54 inches 453 LBS	$3,299.85
11-PW5626	5000 PSI Natural Gas Fired Hot Water - 510,000 BTU 24V Heater	5000	44x34x59 inches 685 LBS	$5,485.10
11-PW3597	5000 PSI Natural Gas Fired Hot Water - 560,000 BTU 24V Heater	5000	35x27x50 inches 698 LBS	$5,485.10
11-PWEC17	4000 PSI Natural Gas Fired Hot Water - 720,000 BTU 24V Heater	4000	38x42x60 inches 698 LBS	$5,485.10
Oil Fired
11-PW3A89	5000 PSI Oil Fired Modular Hot Water - 200,000 BTU 12V	5000	54x38x54 inches 641 LBS	$2,752.30
11-PW596E	5000 PSI Oil Fired Modular Hot Water - 440,000 BTU 12V	5000	46x30x49 inches 310 LBS	$3,709.45
11-PW609B	5000 PSI Oil Fired Modular Hot Water - 700,000 BTU 12V	5000	38x32x55 inches 498 LBS	$4,016.65

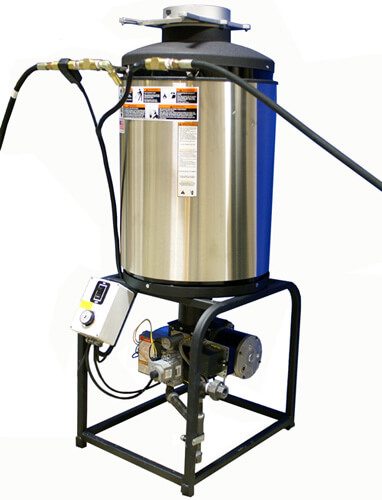

Forced Air Burner

These forced air burners can be attached to any cold water pressure washer to make them into a hot water pressure washer.

• Max Pressure: 4000 PSI
• Max Flow: 5.0 or 8.0 GPM (depending on model)
• Max Temperature: 190 degrees F
• Required Voltage: 120 AC
• All unit comes with: thermostat, pressure switch, on/off switch and blast gate
• Shipping Dimensions: 43" L x 33" W x 64" H

MODEL	DESCRIPTION	PSI	GPM	PRICE
CS-FLP5	Liquid Propane Burner	4000	5.0	$5,239.80
CS-FLP8	Liquid Propane Burner	4000	8.0	$8,335.60
CS-FN5	Natural Gas Burner	4000	5.0	$5,239.80
CS-FN8	Natural Gas Burner	4000	8.0	$8,335.55

Burner Feature Comparison	Old Burner System	New Burner System
Number of Gas Orifices to Maintain The new forced air burner only has one orifice to maintain, this saves troubleshooing and service time.	44	1
Gas Volume necessary to obtain 140 degree temperature rise. Shown in inches of water column. Variances in gas delivery due to outside temperature, tank capacity levels and facilities total gas usage dictates a less that adequate gas supply resulting in poor combustion and coil soot buildup. The new forced air burner requires 30% less fuel to operate and eliminates soot buildup.	11"	3" to 5"
Burner blower system provides air flow to insure 100% combustion of fuel. The new forced air burner eliminates soot buildup resulting in costly repairs and poor temperature rise.	No blower system, relies on natural air flow to provide proper draft.	Blower is integral part of design
Burner blower reduces downdraft. The new forced air burner has an internal blower system that reduces possible downdrafts, eliminating dangerous carbon monoxide in the work area and potential for severe equipment damage.	No blower system, relies on natural air flow to provide proper draft.	Blower is integral part of design
Burner system senses proper air flow for combustion. The new forced air burner senses for adequate airflow and combustion. If the sensors reveal unsafe conditions the system automatically shuts down.	No safety monitoring system.	Integrated safety monitoring system.
All burner components are designed, assembled and provided by one manufacturer as an engineered system. The new forced air burner includes the blower, gas valve, gas regulating system, electronic ignition, burner orifice and safety sensing system in one bolt on package that provides dependable operation, easy troubleshooting and service.	Burner components are provided by three or four different suppliers.	Fully engineered package from gas inlet to burner orifice.
Burner base is sealed eliminating intrusion from rodents causing costly damage. The new forced air burner blower system provides all the intake air necessary for combustion and eliminates that naturally asperated burner ring that was open and allowed rodents up into the coil. This eliminated costly repairs and potential fire hazard of igniting the rodent nesting material.	Open base allows for any rodents to contaminate the burner chamber.	Sealed base keeps all foreign material and rodent from entering the burner chamber.

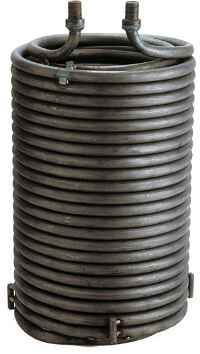

Coils

MODEL	DESCRIPTION	MAKE	DIMENSIONS	PRICE
CU-4118	(Vertical) Gas Fired 20" Housing	MiTM	17.5 x 27	$1,423.50
CU-4101	(Horizontal) Oil Fired 18" Housing	Hydrotek	16 x 22.25	$981.30
CU-4013	Coil – AK/WC 14" x 25"	Alkota 110	13.5 x 26.5	$937.75
CU-4090	Oil Fired 16.5" x 30"	Hotsy 1040	16 x 30	$1,306.25
CU-4073	(Horizontal) 18" Housing	Landa PHW 2-1000	16 x 22.5	$1,018.15
CU-4048	18" Housing	Aladdin 1300 Series	15 x 12	$773.60
CU-4001	(Old Style) 18" Housing	Delco, Whitco	16 x 22	$971.25

If you are not sure what is the right coil for your burner, download the spec sheet below and send it back to us via email or fax.

Burner Coil Spec Sheet Form (592 KB)



Ceramic Fiber Insulations

Made from high quality spun ceramic fibers. Composed of long, high strength fibers needled into a tight blanket with superior handling properties. Superior thermal conductivity calues. Completely inorganic.

• Recommended Temperature: 2150 °F
• Max Use Limit: 2300° F

MODEL	DESCRIPTION	DIMENSIONS	PRICE
BN-3093	4 lbs. Roll Coil Wrap Insulation	1" x 24" x 25'	$179.20
BN-4417	8 lbs. Roll Coil Wrap Insulation	1" x 24" x 25'	$268.65
