Burner Transformers Igniters

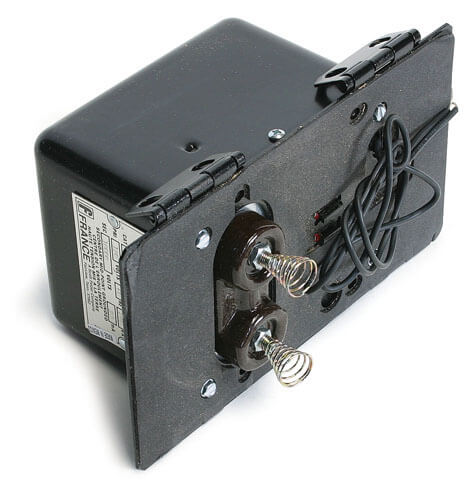

Burner Transformers

Features:

• Maximum Requirements: 240V
• 10,000 Volt spark
• 2.2 Amp @ 120V
• 8.5 lbs

** AFG, ADC, SDC refers to the burner type
** CB Stands for Control Board or Timer Eye

MODEL	VOLTS	MOUNTING	PRICE
9.802-661.0	230V	AFG	$140.20
8.701-125.0	120V	S-SF-SR-SM	$150.85
9.803-055.0	240V	SM	$140.20
8.700-804.0	120V	Side/EH-EHA	$194.25
8.700-806.0	120V	Back/M-MSR	$210.70
8.700-809.0	230V	Side/EH-EH	$193.90
8.700-810.0	120V	10KVA/Side	$212.95

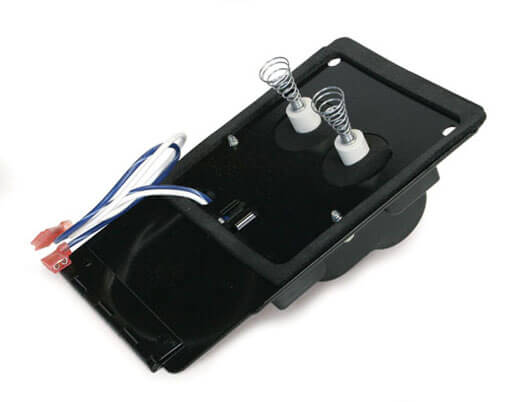

Burner Igniters

Features:

• Maximum Requirements: 220V
• 14,000 Volt spark
• Only .35 Amp @ 120V
• 1.7 lbs

** AFG, ADC, SDC refers to the burner type
** CB Stands for Control Board or Timer Eye

MODEL	VOLTS	MOUNTING	PRICE
9.802-647.0	115V	AFG/Lo Amp	$145.95
8.751-784.0	12VDC	ADC w/ CB	$288.15
8.701-149.0	12VDC	SDC w/ Con BD	$238.50
9.803-060.0	120V	SDC	$153.05
8.701-140.0	12VDC	SDCw/o CB	$205.55
8.700-802.0	120V	Side/EH-EHA, France	$187.15
8.700-803.0	120V	Back/M-MSR, France	$190.70
8.700-800.0	220V	Side/EH-EHA, Allanson	$253.20
8.700-801.0	220V	Back/M-MSR	$258.50
8.700-807.0	12V	Rear Mount, Carlon	$281.80
8.700-820.0	12V	Side Mount (E)	$284.40

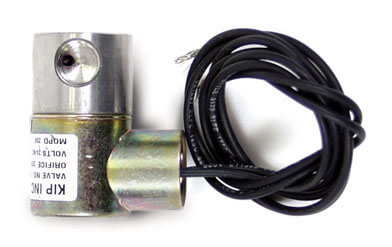

12 VDC KIP Fuel Solenoid Valve

Features:

• Brass Body
• 12V DC coil
• 1/8" FPT 1/O ports
• Cunduit connector
• 5/64" orifice = 6 watt

MODEL	DESCRIPTION	PRICE
8.701-120.0	Fuel Solenoid Valve	$129.50

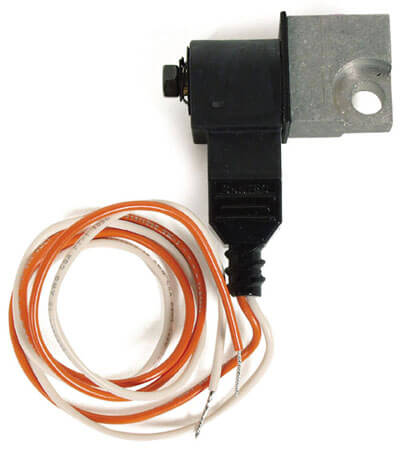

Solenoid Valve

Features:

• Unitized mounting on Suntec fuel pumps
• 1/8" FPT Inlet
• 300 PSI
• Uses standard SUNTEC coil

MODEL	DESCRIPTION	PRICE
8.700-779.0	110V Oil Valve - R642	$78.30
8.700-780.0	220V Oil Valve - R753	$82.40
8.700-782.0	12/24V Oil Valve - R261	$90.05
8.700-811.0	Flow Thru Connector Bolt	$20.30
8.700-812.0	Aluminium Seal Washer	$5.60
8.900-081.0	110V Coil w/Cord Set	$30.75
8.900-082.0	230V Coil w/Cord Set	$39.70
8.900-080.0	12/24 Coil w/Cord Set	$43.05
9.802-640.0	115V Coil w/o Cord Set	$30.30
9.802-641.0	230V Coil w/o Cord Set	$31.15
8.700-794.0	12/24VDC Coil w/o Cord Set	$32.50
8.700-795.0	Cord Set Only	$14.00
8.900-079.0	8mm Nut for Old Style Coil	$12.75
