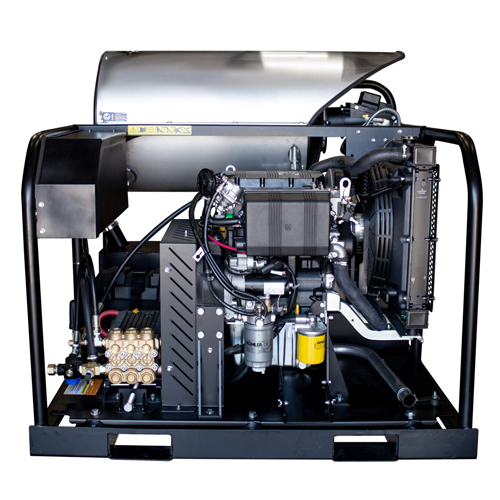

Stationary or Portable Hot Water Pressure Washers

Diesel Powered Unit

The Super Brute Diesel 65122 offers an enhanced cleaning experience that provides maximum power and efficiency. Equipped with (50-State compliant) Kohler engine and premium General industrial triplex plunger pump with safety relief valve and bypass hose.

Features:

• 4000 PSI at 6.0 GPM
• KDW1003 Kohler Diesel Engine with Electric Start (3 year warranty)
• 3-Cylinder with low oil shut down feature
• TSF1819 General Pump Industrial Triplex (5 year warranty)
• Fully anodized crankcase. Improved thermal shock resistances and hydrostatic performance
• Engine Fuel Capacity: 30 gal Diesel w/ 1 tank
• Burner Fuel Capacity: 30 gal Diesel w/ 1 tank
• Horizontal 12Vdc Wayne Burner
• Drive: Belt
• Single fuel burner with stainless steel top wrap
• Simplified control panel / non-adjustable thermostat
• Tires: Fork lift Feet / Permanent Mount
• Frame: Welded steel frame construction with powder coated finish for durability and corrosion resistance with fork lift pockets on frame. Isolated power platform (10 year warranty)
• Dimensions: 48" x 48" x 45"
• Weight: 1050 lbs

MODEL	PSI	GPM	ENGINE	PRICE
65122	4000	6.0	KDW1003 Kohler Diesel	$16,999.99

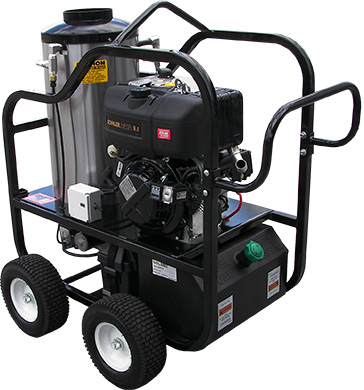

Diesel Powered Unit

Features:

• 3200 PSI at 4.0 GPM
• KD420ES Kohler Diesel Engine with Electric Start
• General or CAT Pump with Ceramic Plunger (5 year warranty)
• Diesel Fired Burner with Electric Start
• Includes Battery, roll cage and lifting hook
• 8 gallon poly diesel fuel tank w/ fuel filter
• Maxi-Flo chemical injector
• Super efficient schedule 80 coil with onepiece molded insulation combustion chamber
• Safety Pop-Off over pressure protection
• Thermo Bypass Protection
• 4-wheel dimensions: 39" L x 31" W x 49" H
• Quick Connect Nozzles – 0°, 15°, 25°, 40°
• Trigger Gun control and wand assembly with insulated grip and quick connects
• 50 FT Gates Hose with quick connect
• Rugged powder coated steel roll cage frame with lifting hook and 13" flat-free tires plus threaded axles
• Direct Drive
• Optional: Adjustable Thermostat
• Assembled and Tested in the USA
• Delivered Ready to Operate

MODEL	PSI	GPM	ENGINE	PRICE
4012-15G	3200	4.0	KD420ES Kohler Diesel	$8,893.10

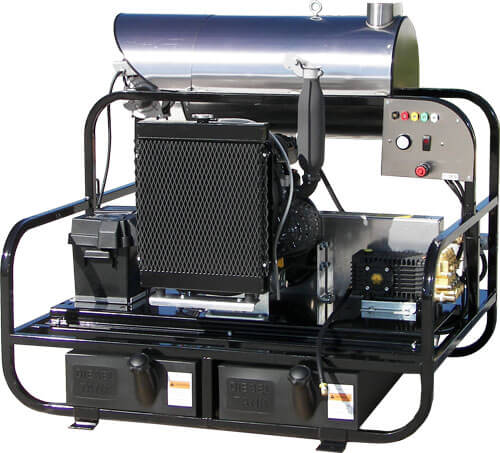

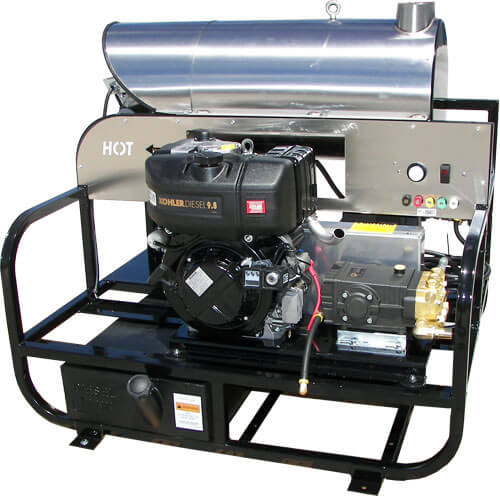

Diesel Powered Unit

Features:

• 3200 to 4000 PSI, 4.0 to 8.0 GPM(depending on model)
• Kohler Diesel Engine with Electric Start
• General or AR Pump with Ceramic Plunger (5 year warranty)
• Diesel Fired Burner with Electric Start. Can also use kerosene as burner fuel
• Dual 15 Gallon Poly diesel Fuel Tanks with Filters
• Includes 12 Volt Battery and Marine Battery Box, 45 AMP Charging System
• Maxi-Flo 20% chemical injector
• Reliable Beckett Burners
• Super Efficient Schedule 80 Coil
• Stainless Steel Coil Wrap, Burner Hood, and Control Panel
• Fully Self contained, No External Power Required
• Quick Connect Nozzles – 0°, 15°, 25°, 40°
• Trigger Gun control and wand assembly with insulated grip and quick connects
• 50 FT Hose with quick connect
• Rugged Low Profile Powder Coated Frame
• Belt Drive, 3VX System for Balanced Power Transfer
• Adjustable Thermostat
• Safety Pressure Relief Valve
• Dimensions: 53"L x 50"W x 44"H
• Weight: 600 lbs
• Assembled and Tested in the USA
• Delivered Ready to Operate

MODEL	PSI	GPM	PUMP	ENGINE	PRICE
6012PRO-40KLDG	4000	5.5	General	Kohler Diesel	$13,076.80
8012PRO-35KLDG	3500	8.0	General	Kohler Diesel	$17,611.30

Wheel Kits

These are optional wheels kits for diesel hot water power washer SK35003DG.

MODEL	DESCRIPTION	PRICE
AHB12	Deluxe Wheel Kit with 13” Pneumatic tires, chrome rims & Pull Yoke for towing by Golf Cart or ATV	for Pricing

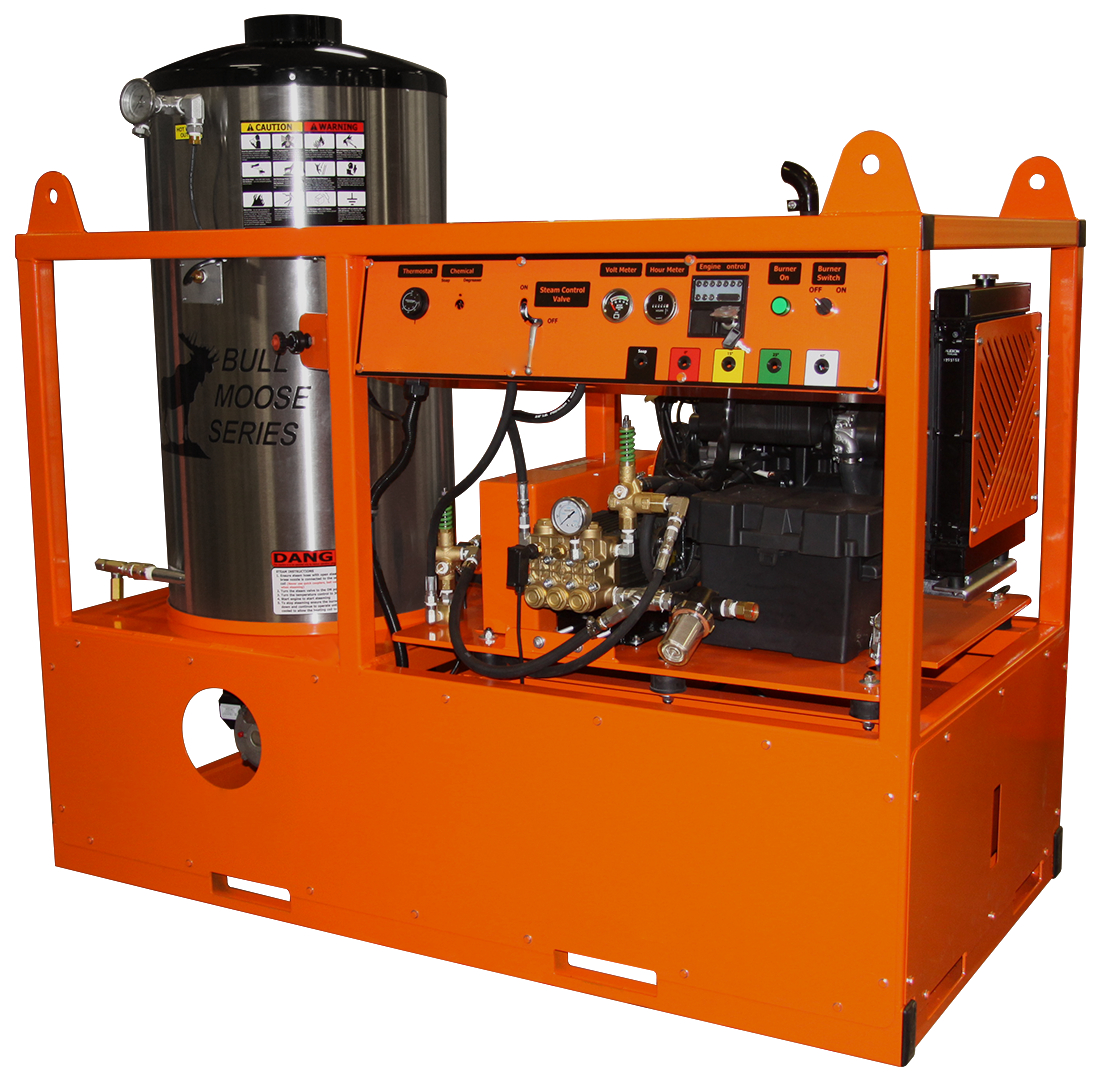

Industrial Oil Fired Hot Water Diesel Pressure Cleaning System

Features:

• 3,200 - 8,000 PSI at 4.0 - 8.0 GPM (depending on model)
• Belt Drive
• 9.8 - 58 HP Kohler Diesel Engine
• Oil Burner: 400,000 - 1,000,000 BTU, 12 volt
• 12,800 - 64,000 Cleaning Units
• Fully Welded/Powder Coated Steel Skid Frame w/ Lifting Bar
• Adjustable Pressure
• Thermal Relief Valve
• 50’ of High Pressure Hose.
• 4 High Pressure Nozzles
• 48” Gun and Wand Assembly

MODEL	PSI	GPM	Tanks	ENGINE	Dimensions & Weight	PRICE
11-PWAF9F	3200	4	10 Gallon Gas/Fuel Tank	9.8 HP Kohler Diesel	61x30x63 950 LBS	$11,502.00
11-PWC6A0	3500	8	Two 20 Gallon Gas/Fuel Tanks	26 HP Kohler Diesel	45x74x60 1524 LBS	$18,672.00
11-PW2320	5000	5	Two 20 Gallon Gas/Fuel Tanks	26 HP Kohler Diesel	69x39x58 1800 LBS	$17,872.50
11-PW2835	7000	4	Two 20 Gallon Gas/Fuel Tanks	26 HP Kohler Diesel	69x40x58 1800 LBS	$21,616.50
11-PWABD1	8000	8	100 gallon Gas/Fuel Tank	58 HP Kubota Diesel	40x103x76 3592 LBS	$58,483.00
