Cold Water Wall Mount Power Washers — Electric Models
Wall mount power washers are medium size, medium weight (90 - 290 lbs.) and are very convenient for usage in the areas with limited space. Since they run on electricity, they are very quite and easy to use. Compared to gas powered pressure washers they can be used and stored in closed area without worries regarding the exhaust fumes and gases. These washers come in two different types of frames. One is powder coat frame and the other is the stainless steel frame and both are equipped with wand and pressurehose racks. As such, they can be suitably placed on the wall saving much needed room on the floor.Pumps have ceramic plungers with replaceable stainless steel valves, forged crankshafts, roller bearings in oil bath lubrication. In addition, they are protected by a ground fault circuit interrupter for operator safety.
Water pumps can handle fluids up to 180 degrees Fahrenheit and therefore they are great for use in any place that requires warm water powerwash cleaning. All our wall mounted electric powered pressure washers come with a downstream chemical injection for steady and even application of the cleaning solution, 50 FT of pressurehose for more freedom and uninterrupted work, professional trigger gun and heavy duty wand for secure grip and smooth operation.
Some units come with auto start/stop feature. This feature will allow the unit to start automatically when trigger is pulled, and will shut down automatically when trigger is released.
Power within your reach.
Your best choices for your best values!
Electric Wall Mount Power Washers

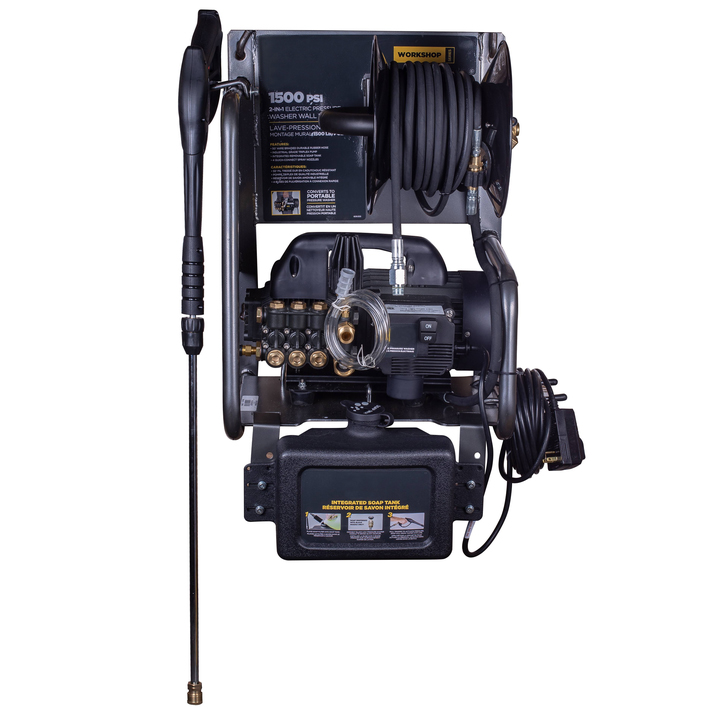

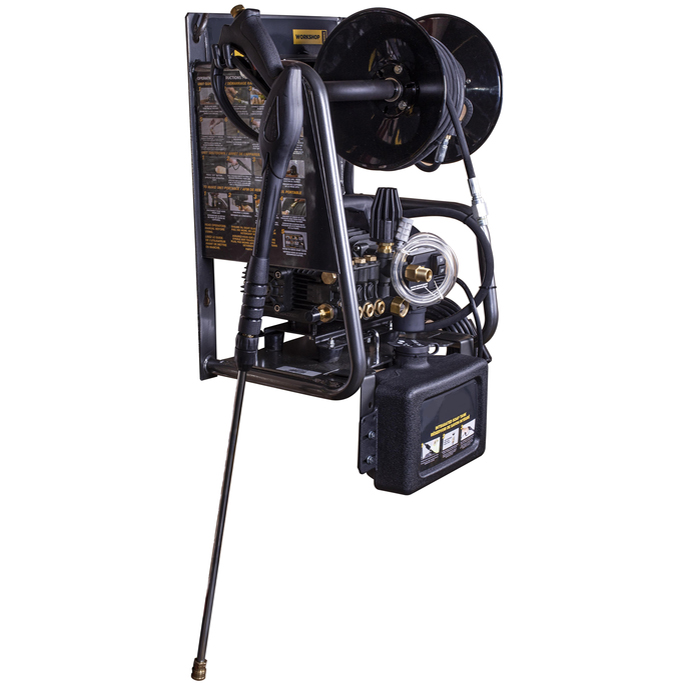

Electric Pressure Washer with Powerease Motor
Features:
- 1500 PSI at 1.6 GPM
- Electric motor is rated at 1.5 HP, quiet running, and can be safely used indoors.
- Triplex pump with forged brass manifold, ceramic coated pistons, built-in soap injector and thermal valve.
- Built-In unloader effectively regulates water flow in a compact design.
- Accessories include high-pressure hose, spray gun wand assembly with a variable nozzle so that it can be used right out of the box.
- Powder coated steel frame with storage for accessories, and hand carry option. The pump-motor quickly detaches from the frame if needed.
- Includes built-in soap container that is right below the pump making soap applications quick and easy.

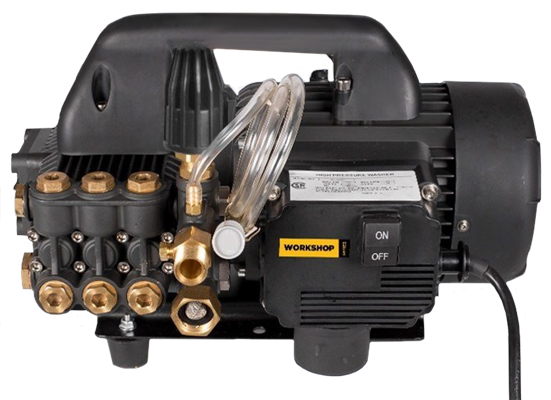

- Hand carry option. The pump-motor quickly detaches from the frame if needed.
- AMP:13
- Engine/Motor: Powerease
- Unloader: Built-in
- Series: Workshop
- Shipping Dimensions:19” x 15” x 25” (LxWxH)
- Shipping Weight: 92 lbs.
| MODEL | PSI | GPM | HP | PUMP | PRICE |
| P1515EPNW | 1500 | 1.6 | 1.5 | Triplex | $1,054.70 |

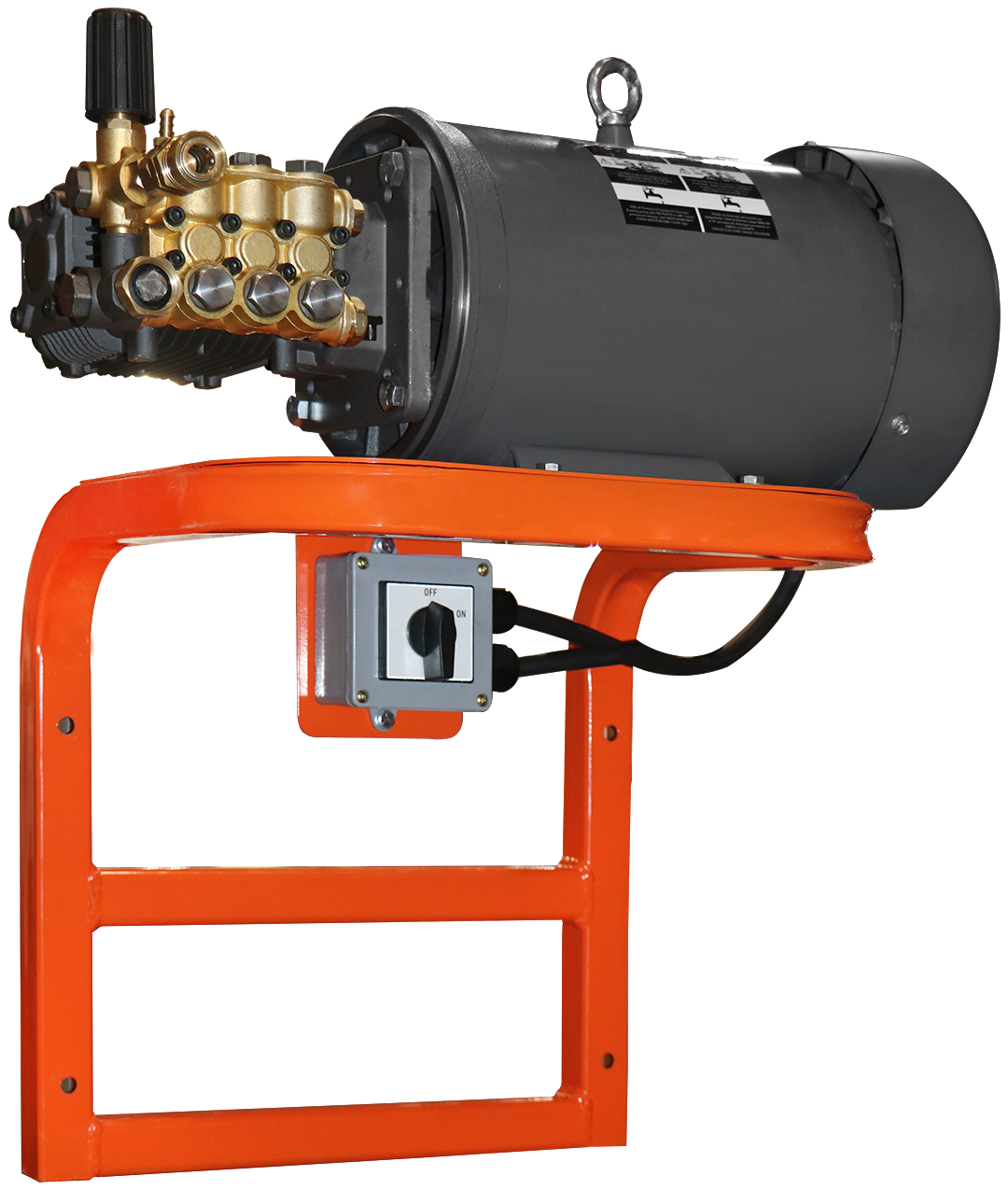

Commercial Cold Water Electric Pressure Washer
Features:
- 2400 PSI at 3.6 GPM
- 220 V, 1PH, 1750 RPM, 5 HP TEFC Motor
- 1.15 Service Factor with Heavy Duty Cam Switch
- Direct Drive Triplex Pump
- 8,640 Cleaning Units
- Low Pressure Chemical Injection
- Adjustable Pressure
- Thermal Relief valve
- 50’ of High Pressure Hose
- 4 High Pressure Nozzles, 1 Soaper Nozzle
- 36” Gun and Wand Assembly
- Wall Mount Frame
- Fully Welded Steel and Powder Coated Frame
- 25 Foot Electrical Cord
- Dimensions; 48x35x25 Inches
- Weight; 230 LBS
| MODEL | PSI | GPM | HP | PUMP | PRICE |
| 11-PW1A84 | 2400 | 3.6 | 5 | Triplex | $1732.5 |
X-1520FW1ARH
Electric Wall Mount Power Washers
Features:
- 1,500 to 3,000 PSI at 2.0 to 4 GPM (depending on model)
- 2 HP to 10 HP (depending on model)
- Electric Baldor Motor (1 Year Warranty)
- AR Industrial Triplex Plunger Pump or General Pump (5 Year Warranty)
- Auto Start / Stop Feature
- External unloader provides enhanced pump cooling.
- Adjustable Pressure
- Downstream Chemical Injection
- 50' of 3/8” Pressure hose
- Heavy Duty Wand with Quick Change Tips in 0 ° , 15 ° , 40 ° soap tip
- Trigger Gun and Wand
- Totally Enclosed Motor
- 35' Power Cord with Ground Fault Interrupter
- Powder Coat Frame with Wand/Hose Rack
- 50 Foot Capacity Hose Reel
- Product Dimensions: 40"L x 21"W x 32"H
- Product Weight: 200 - 290 lbs (depending on model)
| MODEL | PSI | GPM | HP | VOLTAGE | AMP | PUMP | PRICE |
| X-1520FW1ARH | 1500 | 2.0 | 2.0 | 120v / 1 ph | 17 | AR | $1,951.05 |
| X-2050FW1AR | 2000 | 4.0 | 5.0 | 230v / 1ph | 23 | AR |
$2,877.30 |

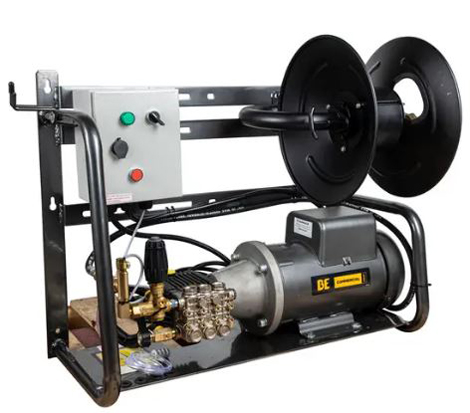

| X-2050FW3GENHT2 | 2000 | 4.0 | 5.0 | 230v / 3ph | 16 | General | $3,901.40 |

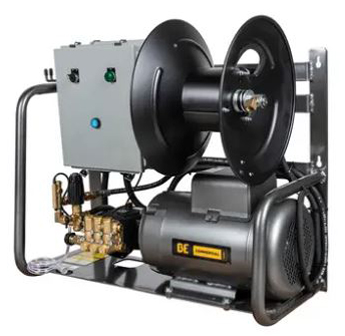

| X-2775FW1A | 3000 | 4.0 | 7.5 | 230v / 1ph | 34 | AR | $4,024.15 |
| X-2775FW3GENHT2 | 3000 | 4.0 | 7.5 | 230v / 3ph | 20 | General | $4,392.45 |
| X-2775FW3GENHT4 | 3000 | 4.0 | 7.5 | 460v / 3ph | 16 | General | $4,448.25 |
Electric Powered Unit
Features:
- 1000 to 1500 PSI at 2.2 to 3 GPM
- 1.5 HP Electric Motor 120V (1 Year Warranty)
- Industrial Pump (2 Year Warranty)
- Pump handles fluids up to 180° degrees Fahrenheit
- Triplex Plunger Pump with Ceramic Plungers and Stainless Steel Valves
- 2,200 Cleaning Units
- Adjustable Pressure
- Dual Chemical Injection with 10' feed hoses: Allow you to switch between two chemicals tank, just switch the valve.
- 50' Non-marking Pressurehose
- Heavy Duty Wand with Quick Change Tips in 0°F ,15°F ,25°F ,40°F soap tip
- Trigger Gun
- Totally Enclosed Motor
- 35' Power Cord with Ground Fault Interrupter
- Powder Coat Frame with Wand/hose Rack
- Look for accessories like the wall mount swivel hose reels
- Dimensions: 28"x22"x30"
- Weight: 115 lbs
- Optional Auto-Start/Stop: 540288.2HP
| MODEL | PSI | GPM | HP | VOLTAGE/ amp/phase |
PUMP MAX TEMP | THERMAL | PRICE |
| 1000WM | 1000 | 2.2 | 1.5 | 120 V / 15 amp / 1 | 160° F | Electrical Cut-out | $2,408.90 |
| 1500WM | 1500 | 3.0 | 3.0 | 230 V / 20 amp / 1 | 160° F | Mechanical | $2,892.75 |
Electric Powered on Light, Durable Aluminum Platform
Features:
- Minimum: 1500 PSI at 2.0 GPM
- Maximum: 2000 PSI at 4.0 GPM
- 2 HP, 3 HP or 6 HP (depending on model) Electric Motor 115V or 230V (1 Year Warranty)
- General Pump (5 Year Warranty)
- Thermal: Mechanical
- Pump handles fluids up to 140° F
- General Modular Unloader Valve
- Thermal Relief
- Chemical Injection
- Adjustable Pressure
- 50' Pressurehose
- Trigger Gun and 36" wand
- 4 Nozzles (0° to 40°)
- 115V unit includes GFCI w/36 ft cord with plug
- 230V units include a 1725 RPM low speed pump and 12 ft cord (no plug included)
- Aluminum Wall Mount Platform with Bracket
- Look for accessories like the wall mount swivel hose reels
- Weight: 90 lbs
| MODEL | PSI | GPM | HP | VOLTAGE/ amp/phase |
PUMP MAX TEMP | PRICE |

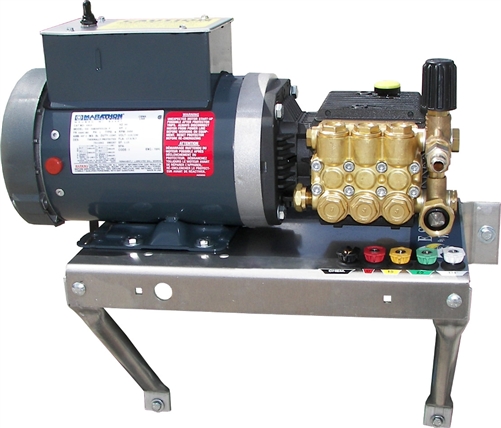

| WM/EE3010G | 1000 | 3.0 | 2.0 | 115 V / 18 amp / 1 | 140° F | $1,477.55 |
| WM/EE3015G-UPS | 1500 | 3.0 | 3.0 | 230 V / 12 amp / 1 | 140° F | $1,618.70 |
| WM/EE2015G | 1500 | 2.0 | 2.0 | 115 V / 18 amp / 1 | 140° F | $1,461.80 |
| WM/EE4020G | 2000 | 4.0 | 6.0 | 230 V / 26 amp / 1 | 140° F | $3,751.90 |

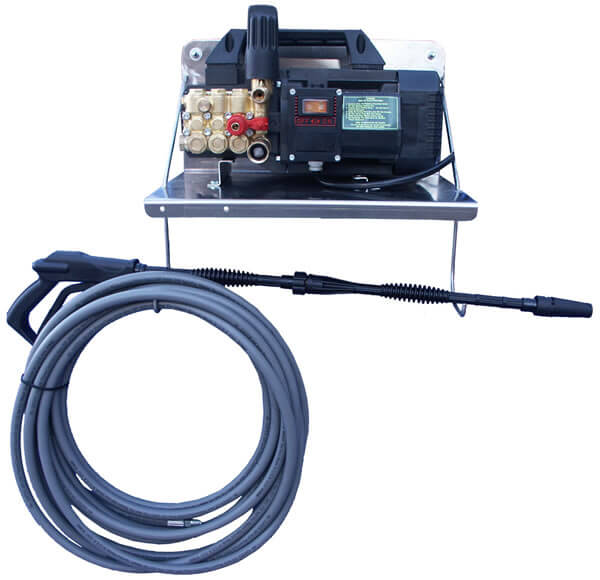

Powered Wall Mount Unit
Features:
- 1450 PSI at 2.0 GPM
- 2.0 HP Electric Motor 120V (1 Year Warranty)
- Industrial Pump (2 Year Warranty)
- Pump handles fluids up to 140° F or 180° F
- Triplex Plunger Pump with Ceramic Plungers and Stainless Steel Valves
- 2,000 Cleaning Units
- Thermal Relief
- Chemical Injection
- Adjustable Pressure
- 50' Non-marking Pressurehose
- Trigger Gun and 36" wand
- Multi-Reg Adjustable Nozzle (0° to 60°)
- 35' Power Cord with Ground Fault Interrupter
- Stainless Steel Wall Mount Bracket
- Wand and Hose hooks for storage
- Look for accessories like the wall mount swivel hose reels
- Dimensions: 20"x12"x20"
- Weight: 98 lbs
- Optional Auto Start/Stop: 540288.2HP
| MODEL | PSI | GPM | HP | VOLTAGE/ amp/phase |
PUMP MAX TEMP | THERMAL | PRICE |
| 1500AEWM | 1450 | 2.0 | 2.0 | 120 V / 20 amp / 1 | 140°F | Mechanical |
$1,487.30 |
Operators Manual (200 KB)
Electric Powered Unit
Features:
- 1000 or 1500 PSI at 2.2 to 3 GPM
- 1.5 HP Electric Motor 120V (1 Year Warranty)
- Industrial Pump (2 Year Warranty)
- Pump handles fluids up to 140° degrees Fahrenheit
- Triplex Plunger Pump with Ceramic Plungers and Stainless Steel Valves
- 2,200 Cleaning Units
- Adjustable Pressure
- Dual Chemical Injection with 10' feed hoses: Allow you to switch between two chemicals tank, just switch the valve.
- 50' Non-marking Pressurehose
- Heavy Duty Wand with Quick Change Tips in 0 ° , 15 ° , 25 ° , 40 ° soap tip
- Trigger Gun
- Totally Enclosed Motor
- 35' Power Cord with Ground Fault Interrupter
- Stainless steel frame with wand/hose rack
- Look for accessories like the wall mount swivel hose reels
- Dimensions: 28"x22"x30"
- Weight: 115 lbs
- Optional Auto Start/Stop: 540288.2HP for 1000WM/SS and 540288.3HP for 1500WM/SS
| MODEL | PSI | GPM | HP | VOLTAGE/ amp/phase |
PUMP MAX TEMP | THERMAL | PRICE |
| 1000WM/SS | 1000 | 2.2 | 1.5 | 120 V / 15 amp / 1 | 140°F | Electric Cut-out | $2,547.15 |
| 1500WM/SS | 1500 | 3.0 | 3.0 | 230 V / 20 amp / 1 | 140°F | Mechanical | $3,013.70 |

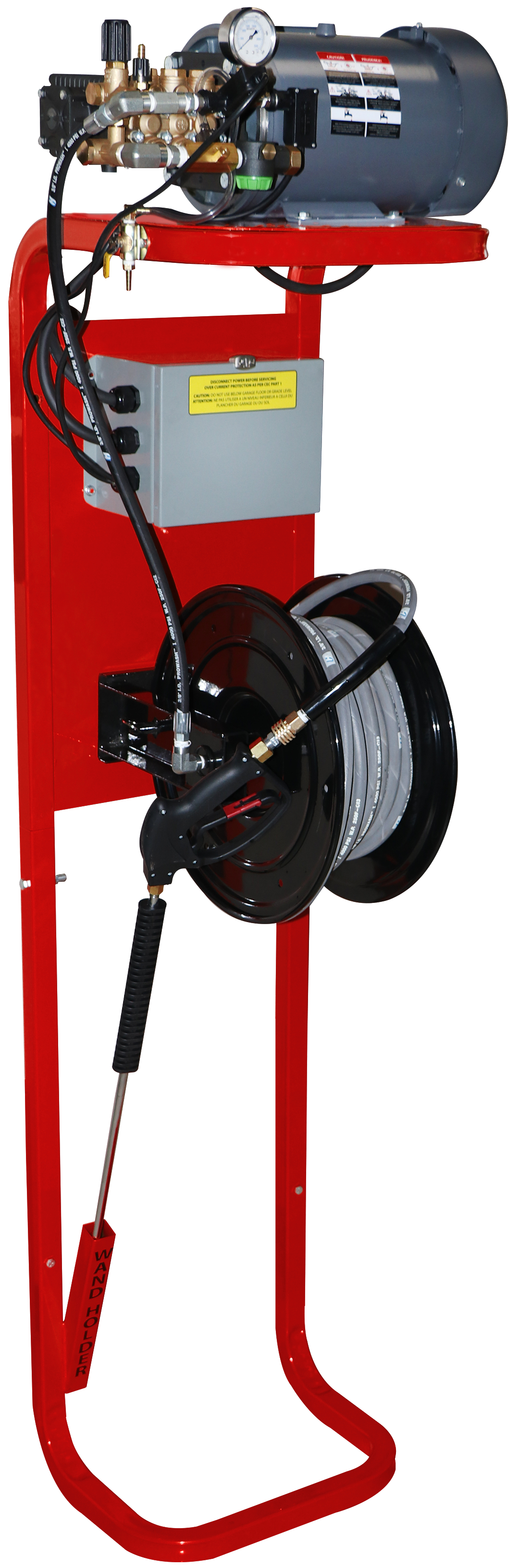

Firehouse & Car Detailing Cold Water Pressure Washer Cleaning Systems
Features:
- 2000 - 3000 PSI at 3.0 - 4.0 GPM
- 5 - 7.5 HP TEFC Electric Motor: 220v – 1ph – 1750 RPM
- 6ft Electrical Cord Length
- 8,000 - 8,400 Cleaning Units
- Electric Start/Stop
- Wall Mounted Stand Up Frame
- Adjustable Pressure
- Thermal Relief Valve
- 100’ of High Pressure Hose
- 150’ Capacity Hose Reel
- 4 High Pressure Nozzles
- 48” Gun and Wand Assembly
| MODEL | PSI | GPM | VOLTAGE | MOTOR | PRICE |
| 11-CWF225 | 2000 | 4.0 | 220V | TEFC, 1 Phase | $3052.5 |
| 11-CW5509 | 2400 | 3.5 | 220V | TEFC, 1 Phase | $3477.5 |
| 11-CW8FEB | 3000 | 3.5 | 220V | TEFC, 1 Phase | $3521.25 |
Electric Cold Water Power Washers
Features:
- 2,400 PSI
- 3.3 - 5.0 Gallons per minute
- Kranzle AQ industrial grade pump with 10 year manifold warranty
- Adjustable pressure unloader
- 220 volt, 21-23 amp. TEFC single phase, electric motor
- Steel frame with cover for mounting on a wall
Accessories Included:
- Professional gun-jet lance
- 33' wire braided hose
- Safety coupler screw connections
- Fan spray nozzle
Special Features:
- Pump design gives multi-hour bypass and run-dry capability preventing accidental pump damage and self primes
- Auto on/off gunjet control with variable 30 -90 second time delay
- Safety shut-down after non-use
- Optional low pressure soap injection (Injector kit extra)
- Gauge
- (KWS700TS) Requires 220 volt, 15 amp, single phase electrical circuit
- (KWS1200TS) Requires 220 volt, 20 amp, Three phase electrical circuit
| MODEL | PSI | GPM | VOLTAGE | MOTOR | PRICE |
| KWS700TS | 2400 | 3.3 | 220V 23 Amps | TEFC, 1 Phase | $3,905.00 |
| KWS1200TS | 2400 | 5.0 | 220V 21 Amps | TEFC, 3 Phase | $3,969.00 |
Electric Powered Unit
Features:
- 2000 PSI at 4.0 GPM
- 5 HP Electric Motor 230V (1 Year Warranty)
- Industrial Pump (2 Year Warranty)
- Triplex Plunger Pump with Ceramic Plungers and Stainless Steel Valves
- Thermal: Mechanical
- Pump handles fluids up to 140° degrees Fahrenheit
- 12,000 Cleaning Units
- Adjustable Pressure
- Dual Chemical Injection with 10' feed hoses: Allow you to switch between two chemicals tank, just switch the valve
- 50' Non-marking Pressure hose
- Heavy Duty Wand with Quick Change Tips in 0 ° , 15 ° , 25 ° , 40 ° soap tip
- Trigger Gun
- Totally Enclosed Motor
- 10' Power Cord
- Stainless steel frame with wand/hose rack
- Look for accessories like the wall mount swivel hose reels
- Dimensions: 27"x18"x30"
- Weight: 200 lbs
- Optional Auto Start/Stop: 540288.7.5HP for 2000WM/SS and 540288.7.5HP-3PH for 2000WM/SSM3
| MODEL | PSI | GPM | HP | VOLTAGE/ amp/phase |
PUMP MAX TEMP | PRICE |
| 2000WM/SS | 2000 | 4.0 | 5 | 230 V / 26 amp / 1 | 140°F | $4,308.38 |
| 2000WM/SSM3 | 2000 | 4.0 | 5 | 230 V / 15 amp / 3 | 140°F | $4,134.78 |
Operators Manual (200 KB)
Electric Powered Unit
Features:
- 3000 PSI at 4.0 GPM
- 7.5 HP Electric Motor 230V (1 Year Warranty)
- Industrial Pump (2 Year Warranty)
- Triplex Plunger Pump with Ceramic Plungers and Stainless Steel Valves
- Thermal: Mechanical
- Pump handles fluids up to 180° degrees Fahrenheit
- 12,000 Cleaning Units
- Adjustable Pressure
- Dual Chemical Injection with 10' feed hoses: Allow you to switch between two chemicals tank, just switch the valve
- 50' Non-marking Pressure hose
- Heavy Duty Wand with Quick Change Tips in 0 ° , 15 ° , 25 ° , 40 ° soap tip
- Trigger Gun
- Totally Enclosed Motor
- 10' Power Cord
- Stainless steel frame with wand/hose rack
- Look for accessories like the wall mount swivel hose reels
- Dimensions: 27"x18"x30"
- Weight: 260 lbs
- Optional Auto Start/Stop: 540288.7.5HP for 3000WM/SS and 540288.7.5HP-3PH for 3000WM/SSM3
| MODEL | PSI | GPM | HP | VOLTAGE/ amp/phase |
PUMP MAX TEMP | PRICE |
| 3000WM/SS | 3000 | 4.0 | 7.5 | 230 V / 34 amp / 1 | 140°F | $5,435.85 |
| 3000WM/SSM3 | 3000 | 4.0 | 7.5 | 230 V / 17 amp / 3 | 140°F | $4,897.38 |
* 460 volts available on 3000WM/SSM3 only. Please call Toll Free 866-858-4982 for more information.
Operators Manual (200 KB)

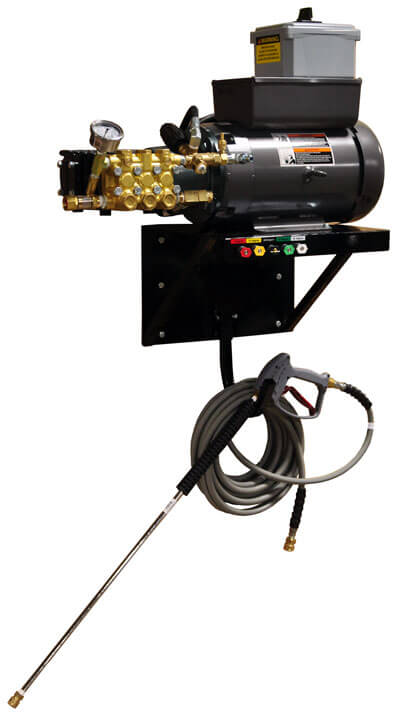

Electric Powered Unit
Features:
- 4000 PSI at 4.0 GPM
- 10 HP Electric Motor 230V 1 or 3 Phase (1 Year Warranty)
- Industrial Pump (2 Year Warranty)
- Triplex Plunger Pump with Ceramic Plungers and Stainless Steel Valves
- Thermal: Mechanical
- Pump handles fluids up to 140° degrees Fahrenheit
- 16,000 Cleaning Units
- Adjustable Pressure
- Dual Chemical Injection with 10' feed hoses: Allow you to switch between two chemicals tank, just switch the valve
- 50' Non-marking Pressure hose
- Heavy Duty Wand with Quick Change Tips in 0 ° , 15 ° , 25 ° , 40 ° soap tip
- Trigger Gun
- Totally Enclosed Motor
- 10' Power Cord
- Powder Coated Steel frame with wand/hose rack
- Look for accessories like the wall mount swivel hose reels
- Dimensions: 27"x18"x30"
- Weight: 290 lbs
- 4040EWMA & 4040EWM3A Include factory installed auto-start/auto-stop
| MODEL | PSI | GPM | HP | VOLTAGE/ amp/phase |
PUMP MAX TEMP | PRICE |
| 4040EWM | 4000 | 4.0 | 10.0 | 230 V / 40 amp / 1 | 140° F | $4,525.38 |
| 4040EWM3 | 4000 | 4.0 | 10.0 | 230 V / 23 amp / 3 | 140° F | $4,440.20 |
| 4040EWMA | 4000 | 4.0 | 10.0 | 230 V / 40 amp / 1 | 140° F | $5,690.98 |
| 4040EWM3A | 4000 | 4.0 | 10.0 | 230 V / 23 amp / 3 | 140° F | $5,728.18 |
Auto-Start/Stop with Time Delay
The auto-start / stop with time delays can be field installed, special ordered, or ship it installed on your wall-mounted power washer.
| MODEL | DESCRIPTION | VOLTAGE | PHASE | PRICE |
| 540288.3HP | Auto-Start/Stop up to 3 HP | 220V | 1 | $643.80 |
| 540288.7.5HP | Auto-Start/Stop up to 5 HP and 7.5 HP | 220V | 1 | $1,322.20 |
| 540288.7.5HP-3PH | Auto-Start/Stop up to 5 HP and 7.5 HP | 220V | 3 | $1,350.00 |
Note:If auto start/stop feature is purchased along with the following pressure washers on this page above (1000WM, 1500WM, 1500AEWM, 1500ADEWM, 1000WM/SS, 1500WM/SS, 2000WM/SS, 2000WM/SSM3, 3000WM/SS, 3000WM/SSM3), it will come installed when purchased at the same time. Ordering this part to install with any other unit will require proper installation by certified electrician. Ultimate Washer inc. assumes no responsibility for incorrectly installed auto start/stop kits. There are no returns or warranty issued.
Parts Washer FAQ
For information on gas powered pressure washers go to our Cold Water Models page.
Powerwasher users who bought these models also bought the wall mount Swivel Hose reel.
Hand Carry Pressure Washer | Cold Electric Pressure Washers | Hoop Handle Electric Washer |
Large Electric PressureWasher | Auto Start/Stop Power Washer
