Kranzle Electric Powerwashers

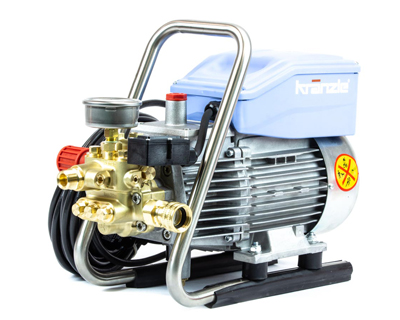

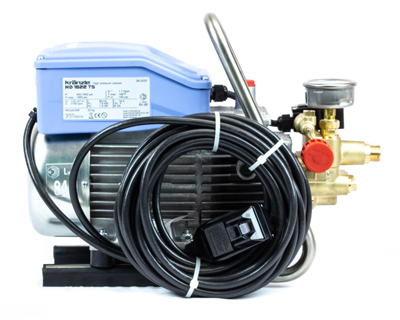

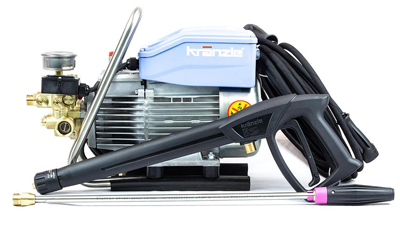

K1622TS Hand Carry Powerwasher

This kranzle electric powerwasher is designed for portability for homeowners but is durable enough for industrial usage. Ideal for hotels and buildings, auto or boat wash, screen printing, or HVAC maintenance.

Features:

• 1600 PSI
• 1.7 Gallons per minute
• Kranzle AZ industrial grade pump
• Kranzle adjustable pressure unloader
• 110 volt, 14 amps TEFC electric motor with 35' cord and ground fault interrupter (GFI)
• Steel hand carry frame
• Inlet water filter
• Equipped with Total Stop

Accessories Included:

• Professional gun-jet lance
• 33' wire braided hose
• Pressure Gauge
• Safety coupler screw connections
• Vario-jet nozzle
• Optional exit side chemical injection (Injector kit extra, part no. 97133765)

Special Features:

• Pump design gives multi-hour bypass and run-dry capability preventing accidental pump damage
• Ground fault interrupter prevents shocks
• Weight: 42 lbs. (Can Ship UPS)

MODEL	DESCRIPTION	VOLTAGE	PSI	GMP	MOTOR	PRICE
K1622TS	K1622TS Hand Carry Powerwasher	110V 15 Amps	1600	1.7	1.5 HP Electric	$1,331.10

K1122TST Portable Power Washer

The Mini Power Pack Unit is designed for portability for homeowners but is durable enough for industrial usage. Ideal for cleaning siding, auto or boat wash, removing stains, or stripping paint.

Features:

• 1400 PSI at 2.1 GPM
• 1.5 HP Electric Motor: 110 Volts/15 amps (1 year warranty)
• Pump: Kranzle AZ Industrial Grade (1 year warranty)
• Direct Drive
• 2,940 Cleaning Units
• Inlet Water Filter
• Down Stream Chemical Injector
• Adjustable Pressure Unloader
• Self Priming: Able to independently pump water from most water sources (buckets, ponds, etc.) and does not require water to be pumped into if from a hose
• Pump design gives multi-hour bypass and run-dry capability preventing accidental pump damage
• 50 FT 1/4” wire braided hose with 22MM Connections
• 0-35 Degree Vario-jet Nozzle (4.5)
• Professional Gun-jet Lance
• Pressure Gauge
• Two Wheel Cart Frame with Built-in Storage
• 25 Foot Cord and Plug
• Weight: 57 lbs. (Can Ship UPS)

MODEL	DESCRIPTION	VOLTAGE	PSI	GMP	MOTOR	PRICE
K1122TST	K1122TST Portable Power Washer	110V 15 Amps	1400	2.1	1.5 HP Electric	$1,522.05

Other Kränzle Powerwasher models also available, please call 1-866-858-4982.

K2017 Portable Power Washer

The Space Shuttle Cold Water Electric Power Washer comes with the ground fault interrupter which helps prevent shocks. Other special features are the Dirt Killer nozzle which doubles the cleaning efficiency, the Kranzle adjustable pressure unloader, and the steel frame with plastic cover that stores all of the accessories. This pressure washer has downstream chemical injection, a gauge, safety coupler screw connections (M22), and Knife-jet (high pressure wash/soap) nozzle. This is a great pressure washer for the lighter commercial projects.

Features:

• 1,600 PSI
• 1.7 Gallons per minute
• Kranzle APG industrial grade pump with 10 year manifold warranty
• Kranzle adjustable pressure unloader
• 110 volt, 15 amps. TEFC electric motor with 35' cord and ground fault interrupter (GFI)
• Steel frame with plastic cover that stores all accessories
• Inlet water filter

Accessories Included:

• Professional gun-jet lance
• 33' wire braided hose
• Exit side chemical injection
• Gauge
• Safety coupler screw connections
• Vario-jet (high-pressure wash/soap) nozzle
• Dirt Killer turbo nozzle

Special Features:

• Pump design gives multi-hour bypass and run-dry capability preventing accidental pump damage and is freeze proof
• Dirt Killer nozzle doubles cleaning efficiency
• Ground fault interrupter (GFI) prevents shocks
• Rated #1 in independent laboratory tests
• Weight: 90 lbs.

MODEL	DESCRIPTION	VOLTAGE	PSI	GMP	MOTOR	PRICE
K2017	K2017 w/ GFI	110V 15 Amps	1600	1.7	1.6 HP Electric	$1,851.90

Other Kränzle Powerwasher models also available, please call 1-866-858-4982.

K2017T Portable Power Washer

The Space Shuttle Cold Water Electric Power Washer comes with the ground fault interrupter which helps prevent shocks. Other special features are the Dirt Killer nozzle which doubles the cleaning efficiency, the adjustable pressure unloader, and the steel frame with plastic cover that stores all of the accessories. This pressure washer has downstream chemical injection, a gauge, safety coupler screw connections (M22), and Knife-jet (high pressure wash/soap) nozzle. This is a great pressure washer for the lighter commercial projects. Extra feature is a handy built-in hose reel and 50 foot of hose.

• 1,600
• 1.7 Gallons per minute
• Kranzle APG industrial grade pump with 10 year manifold warranty
• Kranzle adjustable pressure unloader
• 110 volt, 15 amps. TEFC electric motor with 35' cord and ground fault interrupter (GFI)
• Steel frame with plastic that stores all accessories
• Inlet water filter

Accessories Included:

• Professional gun-jet lance
• 50' wire braided hose on hose reel
• Exit side chemical injector
• Gauge
• Safety coupler screw connections
• Vario-jet (high pressure wash/soap nozzle
• Dirt Killer turbo nozzle

Special Features:

• Pump design gives multi-hour bypass and run-dry capability preventing accidental pump damage and is freeze-proof
• Hose reel with 50' high pressure wire braided hose
• Dirt Killer nozzle doubles cleaning efficiency
• Ground fault interrupter (GFI) prevents shocks
• Rated #1 in independent laboratory tests
• Weight: 100 lbs.

MODEL	DESCRIPTION	VOLTAGE	PSI	GMP	MOTOR	PRICE
K2017T	K2017T w/ GFI	110V 15 Amps	1600	1.7	1.6 HP Electric	$1,944.90

Other Kränzle Powerwasher models also available, please call 1-866-858-4982.

K2020 Portable Power Washer

The Space Shuttle Cold Water Electric Power Washer comes with the ground fault interrupter which helps prevent shocks. Other special features are the Dirt Killer nozzle which doubles the cleaning efficiency, the adjustable pressure unloader, and the steel frame with plastic cover that stores all of the accessories. This pressure washer has downstream chemical injection, a gauge, safety coupler screw connections (M22), and Knife-jet (high pressure wash/soap) nozzle. This is a great pressure washer for the lighter commercial projects. Extra feature is a handy built-in hose reel and 50 foot of hose.

• 2,000 PSI
• 1.9 Gallons per minute
• Kranzle APG industrial grade pump with 10 year manifold warranty
• Kranzle adjustable pressure unloader
• 110 volt, 20 amps. TEFC electric motor with 35' electrical cord
• Steel frame with plastic cover capable of storing all accessories
• Inlet water filter

Accessories Included:

• Professional gun-jet lance
• 33' wire braided hose
• Exit side chemical injection
• Gauge
• Safety coupler screw connections
• Vario-jet wash/soap nozzle
• Dirt Killer turbo nozzle

Special Features:

• Pump design gives multi-hour bypass and run-dry capability preventing accidental pump damage and is freeze proof
• Dirt Killer turbo nozzle doubles cleaning efficiency
• Weight: 90 lbs.

MODEL	DESCRIPTION	VOLTAGE	PSI	GMP	MOTOR	PRICE
K2020	K2020 with GFI	110V 20 Amps	2000	1.9	1.9 HP Electric	$2,026.75

Other Kränzle Powerwasher models also available, please call 1-866-858-4982.

K2020T Portable Powerwasher

Other special features are the Dirt Killer nozzle which doubles the cleaning efficiency, the adjustable pressure unloader, and the steel frame with plastic cover that stores all of the accessories. This pressure washer has downstream chemical injection, a gauge, safety coupler screw connections (M22), and Knife-jet (high pressure wash/soap) nozzle. This is a great pressure washer for the lighter commercial projects.

• 2,000 PSI
• 1.9 Gallons per minute
• Kranzle APG industrial grade pump with 10 year manifold warranty
• Kranzle adjustable pressure unloader
• 110 volt, 20 amps. TEFC electric motor with 35' electrical cord with Ground Fault Interrupter (GFI)
• Steel frame with .plastic cover for storing all accessories
• Inlet water flter

Accessories Included:

• Professional gun-jet lance
• 50' wire braided hose on hose reel
• Exit side chemical injector
• Gauge
• Safety coupler screw connections
• Vario-jet (high pressure wash/soap nozzle
• Dirt Killer turbo nozzle

Special Features:

• Pump design gives multi-hour bypass and run-dry capability preventing accidental pump damage and is freeze proof
• Dirt Killer turbo nozzle doubles cleaning efficiency
• Ground fault interrupter prevents shocks
• Weight: 90 lbs.

MODEL	DESCRIPTION	VOLTAGE	PSI	GMP	MOTOR	PRICE
K2020T	K2020T with GFI	110V 20 Amps	2000	1.9	1.9 HP Electric	$2,026.75

Other Kränzle Powerwasher models also available, please call 1-866-858-4982.

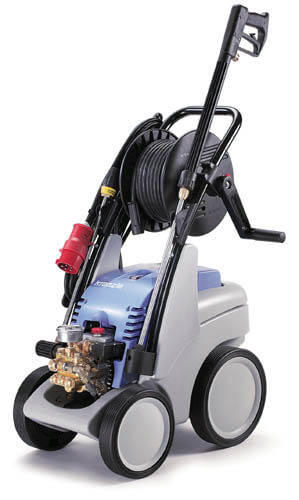

K399TST Portable Powerwasher

This compact Quadro Cold Water Electric Power Washer has a unique design that delivers 20% more cleaning power at tip. It also has the benefit of an auto on/off gun-jet control with 30 second time delay and ground fault interrupter (GFI) which helps prevent against shocks. With these amenities, this pressure washer is perfect for medium industrial duty projects like cleaning your boat or vehicle, food processing, at a hotel or restaurant, or various jobs around the house.

• 1,600
• 1.7 Gallons per minute
• Kranzle APG industrial grade pump with 10 year manifold warranty
• Kranzle adjustable pressure unloader
• 110 volt, 15 amps. TEFC electric motor with 35' cord and ground fault interrupter (GFI)
• Steel frame with plastic that stores all accessories
• High pressure soap with float tank
• Inlet water filter

Accessories Included:

• Professional gun-jet lance
• 50' wire braided hose on hose reel
• Gauge
• Safety coupler screw connections
• Knife-jet nozzle
• Dirt Killer turbo nozzle

Special Features:

• Pump design gives multi-hour bypass and run-dry capability preventing accidental pump damage and is freeze-proof
• Auto on/off gun-jet control with 30 second delay
• Safety shut-down after non-use
• Hose reel with 50' high pressure wire braided hose
• Unique design delivers 20% more cleaning power at tip
• Dirt Killer nozzle doubles cleaning efficiency
• Ground fault interrupter (GFI) prevents shocks
• Weight: 100 lbs.

MODEL	DESCRIPTION	VOLTAGE	PSI	GMP	MOTOR	PRICE
K399TST	K399TST Portable Power Washer	110V 15 Amps	1600	1.7	1.6 HP Electric	$2,307.00

Other Kränzle Powerwasher models also available, please call 1-866-858-4982.

K499TST Portable Powerwasher

The K 499 TST with GFI Small Quadro Cold Water Electric Power Washer is very similar to the K 399 TST but makes a big step up with power. Staying at the same weight and relatively the same size, power is the main difference. If you need a pressure washer that reaches up 2,000 PSI, this is the pressure washer for you. Having a medium weight, it is great for portability. This unit also has auto on/off gun-jet control with 30 second time delay, ground fault interrupter (GFI), professional gun-jet lance, and Dirt Killer turbo nozzle, this pressure washer is the complete package.

• 2,000
• 1.9 Gallons per minute
• Kranzle APG industrial grade pump with 10 year manifold warranty
• Kranzle adjustable pressure unloader
• 110 volt, 20 amps. TEFC electric motor with 35' cord and ground fault interrupter (GFI)
• Steel frame with plastic that stores all accessories
• High pressure soap with float tank
• Inlet water filter

Accessories Included:

• Professional gun-jet lance
• 50' wire braided hose on hose reel
• Gauge
• Safety coupler screw connections
• Knife-jet nozzle
• Dirt Killer turbo nozzle

Special Features:

• Pump design gives multi-hour bypass and run-dry capability preventing accidental pump damage and is freeze-proof
• Auto on/off with 30 second delay gun-jet control
• Safety shut-down after non-use
• Hose reel with 50' high pressure wire braided hose
• Unique design delivers 20% more cleaning power at tip
• Dirt Killer nozzle doubles cleaning efficiency
• Ground fault interrupter (GFI) prevents shocks

MODEL	DESCRIPTION	VOLTAGE	PSI	GMP	MOTOR	PRICE
K499TST	K499TST Portable Powerwasher	110V 20 Amps	2000	1.9	2 HP Electric	$2,381.00

Other Kränzle Powerwasher models also available, please call 1-866-858-4982.

Suction Filter Foot Valves

This is a unique inlet suction filter for drawing out of pond, lake, drum, ocean, barrel, and river.

MODEL	DESCRIPTION	FITS	PRICE
9800186	Suction Filter Foot Valve w/ check valve	1/2" and 3/4" hose	$95.00
9800187	Suction Filter Foot Valve w/o check valve	1/2" and 3/4" hose	$99.00

Technology

Make your pressure washer twice as effective

The pattern of the Dirt Killer nozzle is forceful and wide.

Blast dirt, grime, slime, molds, mildew, etc. off instantly using the Dirt Killer nozzle. Save chemical, water, time and money. The Dirt Killer nozzle generates a whirlwind of water droplets so powerful that the imbedded dirt is blown away. Dirt Killer nozzles, which feature a rotating turbine, deliver the punch of a 0° nozzle with a 25° fan - creating 10 times the cleaning impact of a standard flat tip nozzle - effectively cutting cleaning time in half. Fits any pressure washer. Nozzle has 1/4" female threads at inlet. Use standard nozzle chart to select correct nozzle size.

DK Applications
Brick cleaning (both new and restoration); kennels; paint and graffiti removal; removal of mildew from stucco, concrete and wood decks; removal of gum from sidewalks; boat cleaning and barnacle removal.

• Spins faster
• No lines or streaking
• Used for cleaning
• 3200 PSI
• 180°F

IDK Applications
Removal of concrete from forms; mud and clay from earth moving equipment, cleaning of crab and lobster pots; fish nets; asbestos abatement; hog confinements and farrowing crates; boat cleaning and barnacle removal.

• Spins slower
• Produces greater impact
• Used for water blasting
• Heavy duty cleaning
• 4700 PSI
• 180°F

Examples of how to use the Dirt Killer nozzle

Clean by applying soap and rinsing it off with the vario nozzle. Just push the vario forward to have the soap injector begin applying soap. Then push it back to start the high-pressure rinse. Wash your car, house or deck quickly without changing nozzles.

Clean those difficult hard to reach areas like the crevices in wheel covers. Gets objects clean quickly that otherwise would require tedious hand cleaning.

Use the dirt killer nozzle to act like a water-powered sweeper. Let the power of the swirling nozzle push the dirt and debris. Acts like water powered leaf blower.

Examples of how to use the Dirt Killer nozzle

Blast off dirt, mold, and loose paint. The nozzle acts like a water blaster making your pressure washer twice as effective. Edge the drive, blast grass out of cracks, clean garbage cans, grills, lawn furniture. The usefulness is limited only by your imagination.

Rotate the cover of the vario to adjust the angle of the fan spray to get a narrower fan for greater cleaning power. Clean wood surfaces like curbs, decks, and fences. No need to change nozzles just adjusts the vario to apply soap and rinse.

Adjust the vario to a zero degree stream. The pinpoint stream of water can be used to clean cracks, and narrow spots that are otherwise hard to reach. This concentrated stream can clean the toughest dirt spots.

Maintenance of Dirt Killer nozzles

Sand, grit or rust particles in water or hot water, further reduce the life expectancy of a Dirt Killer. If the Dirt Killer fails prematurely, return for inspection at no charge. Follow the steps listed below to insure longer life of your Dirt Killer nozzle.

1. If the nozzle slows, shoots a bad pattern, or stops, cease using the nozzle immediately. Failure to do so causes turbine damage. Take nozzle apart: clean nozzle and nozzle shaft with paper clip or gas tip cleaner.
2. Filter inlet water before the pump and use high-pressure filter.
3. Do not cavitate the pump; this will cause seat damage.
4. Do not hit against hard objects or drop.
5. Works best with pressure regulating unloaders. Flow regulated unloaders reduce Dirt Killer life.
6. When starting, point nozzle down to prevent ceramic tip damage.
7. Keep temperature below 180° F.
8. Important: Do not trigger on and off. This causes excessive wear.
9. Do pre-cleaning of heaviest dirt and grease with the heat turned off and then do final cleaning with hot water.
10. Best to use a high-pressure filter. Hot water machines pass a lot of calcium, iron and soap build up that must be filtered.

By following recommendations for long life the Dirt Killer will perform as follows:

3000 PSI = Approx. 150-300 hours before rebuilding
2000 PSI = Approx. 300-500 hours before rebuilding
1000 PSI = Approx. 400-700 hours before rebuilding



Rebuilding instructions for the Dirt Killer nozzle

• Remove cover and unscrew inlet adapter.
• Remove turbine nozzle and check for clogs.
• If clogged, clear turbine nozzle and re-assemble.
• To rebuild entire nozzle remove entire contents, to include seat.
• Put small O-ring on tip of seat. Smear seat with 272 Loctite and press seat into tip of nozzle.
• Change large O-ring on inlet adapter.
• Drop turbine nozzle into nozzle body and screw inlet adapter on. Back of nozzle turbine should not be centered.
• Put cover back on Dirt Killer.



Sizing Dirt Killer nozzles

Often when end-users report problems with Dirt Killer nozzles there are two causes: dirt in the nozzle, or the wrong size nozzle has been put on the pressure washer. One of the symptoms that the Dirt Killer nozzle you are using is too small is when the O-ring at the tip of the Dirt Killer nozzle begins to come out around the ceramic seat. It is critical to properly size the Dirt Killer nozzle to your pressure washer. Failure to do so will cause premature failure of the Dirt Killer nozzle.

The orifices of the Dirt Killer nozzles are standard sizes as defined by Spraying Systems. Use a standard nozzle chart to size the Dirt Killer nozzle with your pressure washer. Cross-reference the flow and psi of the pressure to determine the proper nozzle size. However a problem can arise in the event that the pressure washer calls for a size that does not specifically match the sizes offered for the Dirt Killer nozzles. For example, if your pressure washer produces 3,000 PSI and generates 4.0 GPM, the nozzle chart would call for a 5.0 nozzle. Since Dirt Killer nozzles only come in sizes 3.0, 3.5, 4.5, 5.5 and 7.0 you have a choice of either the 4.5 of 5.5. We recommend selecting the 5.5 Dirt Killer or Industrial Dirt Killer nozzle.

We have found that though you may lose a little pressure, due to the slightly larger orifice size, the Dirt Killer nozzle will last considerably longer -- and you will still have the great cleaning effect of the DK or IDK nozzle.
