Frameless Onion Tanks

Water Containment Systems	Frameless Onion Tanks	Collapsible Tanks	Portable Dams and Drain Covers	Drain Seals and Covers
Pillow Tanks	Catch Basin Drain Filters

Self supporting portable frameless onion tanks are used for containing large volumes of water. The advantage of these tanks is they are totally collapsible and can be easily stored in its own storage bag. It can be easily stored in a truck or cargo hold in an aircraft. It only requires one man to set up as it has no frame work. These tanks do no inflate so no pump or auxiliary air is needed. No assembly required as it supports itself as it is filled. All tanks are supplied with one threaded flange coupling in your choice of 1 1/2” to 6” NST or IPT, Male or Female. All seams are welding for longer life. The construction of the tanks is heavy duty vinyl (PVC) and can be easily repaired. Other accessories available such as ground covers, patch kits, stenciling, top covers, or Storz connections.

APPLICATIONS:

Oil Spill
Fire Fighting
Water Relay
Water Storage
Mixing Tank
Hazardous Waste

Larger sizes are available.

All tanks are protected by a one year warranty against defects.
Can be ordered in several color choices: RED , YELLOW, ORANGE, BLUE, BLACK, or GREEN

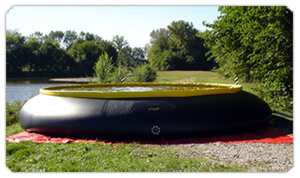

Self-Supporting Frameless Onion Tanks

Frameless Onion Style Portable Water Tank

Action Shots of this product

Click pictures for large views

Available in 500 to 20,000 Gallon Sizes
Choose from Colors: Red, Yellow, Orange, Blue, Black, Green
Weights Vary Between 50-400 Lbs (depending on model)
Constructed on Heavy Duty Vinyl Material (PVC)
Various Coupling Sizes Range From 1 1/2” to 6”
Includes Compact Storage Bag with 4 Support Rings
Up to 2000 Gal. Models Go UPS, Larger via Common Carrier.
Can Be Ordered in FDA Approved, Artic, or XR5 Fabrics ( Call to order)

Ordering Information - FREE SHIPPING

You can choose your preferred connection type, coupling size, threaded type and color in shopping cart.

MODEL	DESCRIPTION	PRICE
EE-SSTFS-500	500 Gallon Onion Style Tank	$1,788.55
EE-SSTFS-1000	1000 Gallon Onion Style Tank	$1,788.55
EE-SSTFS-1200	1200 Gallon Onion Style Tank	$1,788.55
EE-SSTFS-1600	1600 Gallon Onion Style Tank	$1,861.45
EE-SSTFS-1800	1800 Gallon Onion Style Tank	$1,891.50
EE-SSTFS-2000	2000 Gallon Onion Style Tank	$1,909.35
EE-SSTFS-2500	2500 Gallon Onion Style Tank	$2,035.95
EE-SSTFS-3000	3000 Gallon Onion Style Tank	$2,426.30
EE-SSTFS-4000	4000 Gallon Onion Style Tank	$2,760.20
EE-SSTFS-4800	4800 Gallon Onion Style Tank	$3,298.60
EE-SSTFS-5000	5000 Gallon Onion Style Tank	$3,484.50
EE-SSTFS-6000	6000 Gallon Onion Style Tank	$4,030.80
EE-SSTFS-10000	10,000 Gallon Onion Style Tank	$5,875.50
EE-SSTFS-14000	14,000 Gallon Onion Style Tank	$6,660.20
EE-SSTFS-20000	20,000 Gallon Onion Style Tank	$8,019.40

Ground Cover for Tanks

Ground Covers

Protects portable pillow and frameless onion tank bottoms from excessive wear, abrasion or punctures. Increases tank life. Stays cleaner. All seams are heat sealed for longer life.

Available for 600 to 4000 Gallon Tanks.
Choose from Colors: Red or Yellow
Weights Vary Between 10-94 Lbs (depending on model)
Constructed on Heavy Duty Vinyl Material (22 Oz PVC)
All Sizes are Carried via UPS.
22 Oz.Hypalon or 30 Oz. Vinyl Material Available on Request

Ordering Information - FREE SHIPPING

You can choose your preferred color in shopping cart.

MODEL	DESCRIPTION	PRICE
EE-SSTC-500-22V	Portable Tank Ground Cover - 500 Gallon	$327.10
EE-SSTC-1000/1200-22V	Tank Ground Cover - 1000/1200 Gallon	$408.60
EE-SSTC-1500/1600-22V	Tank Ground Cover - 1500/1600 Gallon	$476.50
EE-SSTC-1800/2000-22V	Tank Ground Cover - 1800/2000 Gallon	$515.10
EE-SSTC-2500-22V	Tank Ground Cover - 2500 Gallon	$555.90
EE-SSTC-3000-22V	Tank Ground Cover - 3000 Gallon	$600.20
EE-SSTC-4000-22V	Tank Ground Cover - 4000 Gallon	$804.70
EE-SSTC-5000-22V	Tank Ground Cover - 5000 Gallon	$863.35
EE-SSTC-6000-22V	Tank Ground Cover - 6000 Gallon	$988.45
EE-SSTC-10000-22V	Tank Ground Cover - 10000 Gallon	$988.45
EE-SSTC-14000-22V	Tank Ground Cover - 14000 Gallon	$1,054.95

Frameless Onion Tank Dimensions and Weights

Part No.	US Gal.	Imp. Gal.	Liters	Apx. Weights lbs./kg	Dimensions ft/meter	Apx. folded dimensions inches/cm
*EE-SSTFS-500	500	420	1900	50/23	3' x 5' x 6'6" / .9 x 1.5 x 2	24" x 17" / 61 x 43
*EE-SSTFS-1000	1000	830	3800	60/27	4' x 7' x 8'2" / 1.2 x 2 x 2.5	26" x 18" / 66 x 46
*EE-SSTFS-1200	1200	1000	4500	60/27	4' x 7' x 8'10" / 1.2 x 2 x 2.7	26" x 20" / 66 x 51
*EE-SSTFS-1600	1600	1300	6000	75/34	4' x 7' x 9'6" / 1.2 x 2 x 2.9	26" x 20" / 66 x 51
*EE-SSTFS-1800	1800	1500	6800	75/34	4' x 7' x 9'10"/ 1.2 x 2 x 3	26" x 20" / 66 x 51
*EE-SSTFS-2000	2000	1650	7500	75/34	4' x 7'5" x 10'8"/ 1.2 x 2.3 x 3.2	26" x 20" / 66 x 51
EE-SSTFS-2500	2500	2000	9500	95/43	4' x 8' x 12'6" / 1.2 x 2.4 x 3.8	34" x 22" / 86 x 56
EE-SSTFS-3000	3000	2500	11300	105/48	4' x 9'10" x 13'1"/ 1.2 x 3 x 4	34" x 22" / 86 x 56
EE-SSTFS-4000	4000	3300	15000	110/50	4' x 12'2" x 16'10"/ 1.2 x 3.7 x 5	36" x 24" / 91 x 61
EE-SSTFS-4800	4800	4000	18200	110/50	5' x 11' x 16' / 3.3 x 5 x 1.5	38" x 26" / 97 x 66
EE-SSTFS-5000	5000	4100	19000	130/59	4' x 13' x 17'6" / 1.2 x 4 x 5.3	38" x 26" / 97 x 66
EE-SSTFS-6000	6000	5000	22700	125/57	5' x 12' x 17' / 5.3 x 3.7 x 1.5	40" x 28" / 102 x 71
EE-SSTFS-10000	10000	8000	36320	200/91	6'8" x 12' x19'8" / 6 x 3.7 x 2	44" x 36" / 112 x 92
EE-SSTFS-14000	14000	12000	54500	250/113	7'9" x 23" /6.6 x 3.7 x 2.4	48" x 38" / 121 x 97
EE-SSTFS-20000	20000	16667	75700	400/181	8'x18'x24'/2.44x5.5x7.3	48"x38"/121x97

*Can Ship UPS or FedEx
