Collapsible Water Tanks

More than 50 years ago, these portable water tanks were introduced. Portable collapsible water tank is used for holding large volumes of water. The convenience of these tanks is they are totally collapsible and can be easily stored. It can be easily stowed in a truck. hese tanks do no inflate so no pump or auxiliary air is needed. No assembly required. All seams are welding for longer life. The construction of the tanks is heavy duty vinyl (PVC) and can be easily repaired. Other accessories available such as ground covers, patch kits, stenciling, top covers, or Storz connections. All tanks are protected by a one year warranty against defects. Larger sizes are available. Can be ordered is several color choices: red, yellow, orange, blue, black, or green. These tanks double the ability of fire fighting tanker truck at an affordable price. Two men can set up the tank in less than 30 seconds. Quickly drains from a 10” sleeve.

APPLICATIONS:

Homeland Security
Construction
Pollution Control
Agriculture Road Construction
Laboratory Use
Mine dewatering
Industrial waste water
Municipal sludge
Chemical processing wastewater

Radioactive runoff water
Emergency cleanup
Decontamination
Equipment wash down
Liquid containment
Water purification storage tank
Oil skimming
Portable water storage

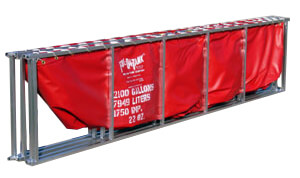

Portable Collapsible Tanks

Portable Hinged Steel Frame Storage Tanks

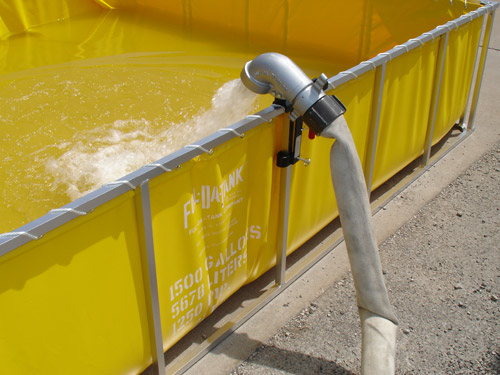

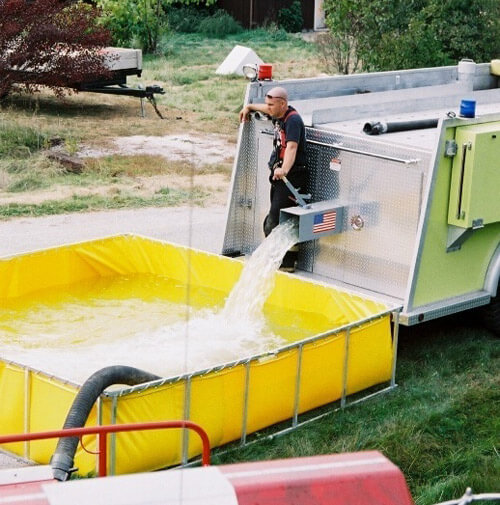

Action shots of this product

Click pictures for large views

For temporary emergency liquid containment transfer and storage. It is a practical solution for rural area or where water pressure is low. Ideal for fire-fighting tanker trucks as a backup water supply.

Features:

Available in 600 to 4000 Gallon Sizes (Custom Sizes Available)
Choose from Colors: Red, Yellow, Orange, Blue, Black, Green
Weights Vary Between 95-250 Lbs (depending on model)
Constructed on Heavy Duty Vinyl Material (22 Oz PVC)
Other Material Choices are Available Upon Request
Various Coupling Sizes Range From 2 ½” to 5”
Coupling Choices Either Storz or NST
14 Gauge 7/8” Round Steel Tubing with Snag Free Finish.
All sizes are Carried via Common Carrier.
Can Be Ordered in Aluminium Frame Also (Call for Details)
Hypalon, FDA, Chemical Resistant, or Canvas Material Available

Ordering Information - FREE SHIPPING

MODEL	DESCRIPTION	PRICE
EE-FDTS-600-22V	600 Gallon Collapsible Tank	IN STOCK NOW! $2,973.30
EE-FDTS-1000-22V	1000 Gallon Collapsible Tank	IN STOCK NOW! $2,047.45
EE-FDTS-1500-22V	1500 Gallon Collapsible Tank	IN STOCK NOW! $2,087.20
EE-FDTS-2100-22V	2100 Gallon Collapsible Tank	IN STOCK NOW! $2,347.75
EE-FDTS-2500-22V	2500 Gallon Collapsible Tank	IN STOCK NOW! $2,436.65
EE-FDTS-3000-22V	3000 Gallon Collapsible Tank	IN STOCK NOW! $2,493.60
EE-FDTS-3500-22V	3500 Gallon Collapsible Tank	IN STOCK NOW! $2,737.65
EE-FDTS-4000-22V	4000 Gallon Collapsible Tank	IN STOCK NOW! $2,863.20
EE-SLHS-2.5-NST	2.5” NST Holder	IN STOCK NOW! $600.20
EE-SLHS-3.0-NST	3.0" NST Holder	IN STOCK NOW! $621.65
EE-SLHS-4.0-NST	4.0" NST Holder	$756.80
EE-SLHS-5.0-NST	5.0"NST Holder	$849.75

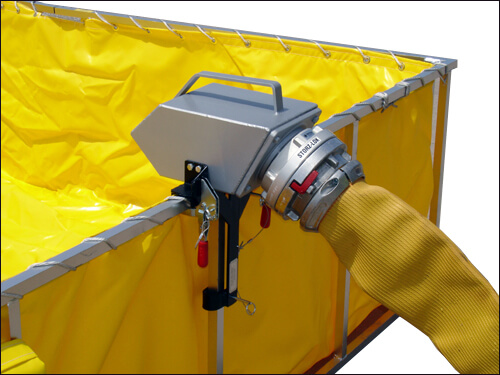

EE-SLHS-2.5-STORZ	2.5"Storz Holder	$631.65
EE-SLHD-2.5-STORZ	2.5" Storz Holder-D	$776.80
EE-SLHS-4.0-STORZ	4.0" Storz Holder	IN STOCK NOW! $798.25
EE-SLHS-5.0-STORZ	5.0" Storz Holder	IN STOCK NOW! $959.85

* NST holder with D indicated heavy-duty version.

Narrow Single Lane Portable Collapsible Tanks

Mounting Plate with Flange — Mounting Plate w/ Flange

Portable Hinged Steel Fram Storage Tanks for Narrow Spaces

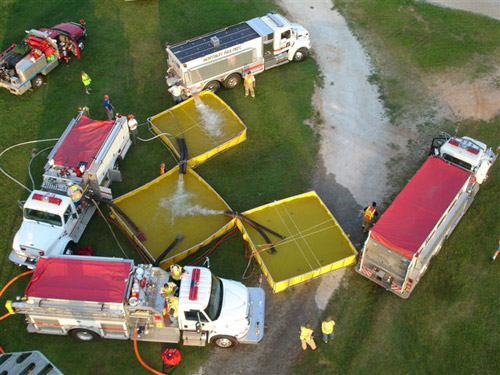

Action shots of this product

Click pictures for large views

A single lane tank design allows for water in high traffic areas by using minimal space. If using more than one single lane tank on opposite sides of traffic, you can maximize water availability in tight areas. This new design permits water storage in rural areas and roads that have no side shoulder. These tanks come in multiple frames and liner fabrics. Frame sizes are 14' x 8' x 29" or 16' x 9' x 29" with steel or Aluminium tubing. Liner fabrics choices are all 22 oz. vinyl, 22 oz. vinyl sides with 30 oz. floor, all 22 oz. HPR, 22 oz. HPR sides with 30 oz. floor and all 30 oz. vinyl. Included in the assembly is: mounting plate, flange (sizes available are 4", 4.5", 5" and 6". Mounting plates can be adapted on any tank size.

Features:

Available in 2000 to 2500 Gallon Sizes (Custom Sizes Available)
Choose from Colors: Red, Yellow, Orange, Blue, Black, Green
Constructed on Heavy Duty Vinyl Material (22 Oz PVC)
Inner/Outer flange set (1 female swivel and flange for outside and 1 male flange for the inside of the tank. Sizes 4"-6") Allows use of Low-Flow strainer through tank liner without bracing. Reduces pump priming time. Reduces gravity/friction loss from running suction hose up and over frame.
Flange mounting plate Helps to stabilise your flange
90° elbow - 6" tubing elbow Keeps suction hose in line with truck for narrow roads. All Aluminium construction. Threaded, Storz or Cam-Lock connections available.
LDH Flexible Suction Hose 4" - 6" x 10' length (5" and 6" most widely used.)
Low Flow Strainer 4" - 6" For optimum drafting.
Power Jet Siphon 4" - 6" Use with LDH flexible suction hose to equalize water in multiple tanks.
All sizes are Carried via Common Carrier.
Can Be Ordered in Aluminium Frame Also (Call for Details)
Hypalon, FDA, Chemical Resistant, or Canvas Material Available (Call for Details)
Weights Vary Between 95-250 lbs (depending on model)

Ordering Information - FREE SHIPPING

You can choose your preferred color in shopping cart.

Ground Cover for Collapsible Water Tanks

Ground Covers

Protects collapsible water tank bottoms from excessive wear, abrasion or punctures. Increases tank life. Stays cleaner. All seams are heat sealed for longer life.

Features:

Available for 600 to 4000 Gallon Tanks.
Choose from Colors: Red or Yellow
Weights Vary Between 10-94 Lbs (depending on model)
Constructed on Heavy Duty Vinyl Material (22 Oz PVC)
All Sizes are Carried via UPS.
22 Oz.Hypalon or 30 Oz. Vinyl Material Available on Request

Ordering Information - FREE SHIPPING

You can choose your preferred color in shopping cart.

MODEL	DESCRIPTION	PRICE
EE-FDTGC-600-22V	Collapsible Tank Ground Cover - 600 Gallons	$160.80
EE-FDTGC-1000-22V	Collapsible Tank Ground Cover - 1000 Gallons	$225.75
EE-FDTGC-1500-22V	Collapsible Tank Ground Cover - 1500 Gallons	$289.00
EE-FDTGC-2100-22V	Collapsible Tank Ground Cover - 2100 Gallons	$328.30
EE-FDTGC-2500-22V	Collapsible Tank Ground Cover - 2500 Gallons	$436.20
EE-FDTGC-3000-22V	Collapsible Tank Ground Cover - 3000 Gallons	$496.65
EE-FDTGC-3500-22V	Collapsible Tank Ground Cover - 3500 Gallons	$560.80
EE-FDTGC-4000-22V	Collapsible Tank Ground Cover - 4000 Gallons	$701.25

Part No.	EE-FDTS-600	EE-FDTS-1000
Us.Gal./Imp.Gal./Liter	600/500/2200	1000/830/3800
Dimensions: Feet Open	6'3" x 6'3" x 29"	8'3" x 8'3" x 29"
Dimensions: Feet Closed	6'3" x 7" x 29"	8'3" x 7" x 29"
Dimensions: Meters Open	1.8 x 1.8 x .71	2.4 x 2.4 x .71
Dimensions: Meters Closed	1.8 x 1.8 x .71	2.4 x .18 x .71
Approximate Weight (Steel/Aluminium)	95 lbs. / 70 lbs. 43 kg / 31 kg	125 lbs. / 95 lbs. 52 kg / 43 kg

Part No.	EE-FDTS-1500	EE-FDTS-2100
Us.Gal./Imp.Gal./Liter	1500/1250/5600	2100/1650/7500
Dimensions: Feet Open	10'3" x 10'3" x 29"	11'3" x 11'3" x 29"
Dimensions: Feet Closed	10'3" x 7" x 29"	11'3" x 7" x 29"
Dimensions: Meters Open	3 x 3 x .71	3.4 x 3.4 x .71
Dimensions: Meters Closed	3 x .18 x .71	3.4 x .18 x .71
Approximate Weight (Steel/Aluminium)	145 lbs. / 110 lbs. 66 kg / 50 kg	165 lbs. / 125 lbs. 75 kg / 57 kg

Part No.	EE-FDTS-2500 (2 drain sleeves)
Us.Gal./Imp.Gal./Liter	2500/2000/9500
Dimensions: Feet Open	12'3" x 12'3" x 29"
Dimensions: Feet Closed	12'3" x 7" x 29"
Dimensions: Meters Open	3.7 x 3.7 x .71
Dimensions: Meters Closed	3.7 x 3.7 x .71
Approximate Weight (Steel/Aluminium)	175 lbs. / 130 lbs. 80 kg / 59 kg

Part No.	EE-FDTS-3000 (2 drain sleeves)	EE-FDTS-3500 (2 drain sleeves)
Us.Gal./Imp.Gal./Liter	3000/2500/11300	3500/2900/13250
Dimensions: Feet Open	13'3" x 13'3" x 29"	14'3" x 14'3" x 29"
Dimensions: Feet Closed	13'3" x 7" x 29"	14'3" x 7" x 29"
Dimensions: Meters Open	4 x 4 x .71	4.2 x 4.2 x .71
Dimensions: Meters Closed	4 x .18 x .71	4.2 x .18 x .71
Approximate Weight (Steel/Aluminium)	185 lbs. / 135 lbs. 84 kg / 61 kg	210 lbs. / 155 lbs. 95 kg / 70 kg

Part No.	EE-FDTS-4000 (2 drain sleeves)	EE-FDTS-5000 (2 drain sleeves)
Us.Gal./Imp.Gal./Liter	4000/3300/15000	5000/4100/19000
Dimensions: Feet Open	15'3" x 15'3" x 29"	17' x 17' x 29"
Dimensions: Feet Closed	15'3" x 7" x 29"	17' x 7" x 29"
Dimensions: Meters Open	4.6 x 4.6 x .71	5.2 x 5.2 x .71
Dimensions: Meters Closed	4.6 x .18 x .71	3.0 x .38 x .61
Approximate Weight (Steel/Aluminium)	255 lbs. / 185 lbs. 114 kg / 84 kg	300 lbs. / 220 lbs. 136 kg / 100 kg

** Custom Sizes Available.
