Thermal Relief Valves

The thermal relief valve keeps pressure cleaner pumps operating in a safe range to prevent overheating (caused by recirculating water). At water temperatures above 145º F, packing seals may fail. The pump then overheats. When the system is in bypass mode, the thermal relief valve opens to release hot water. Cold water can then enter the pump so it continues to operate at a safe temperature. Should the pump overheat, thermal relief valves must be replaced.

Need help with finding the right dimensions and threading? CLICK HERE

Thermal Relief Valves

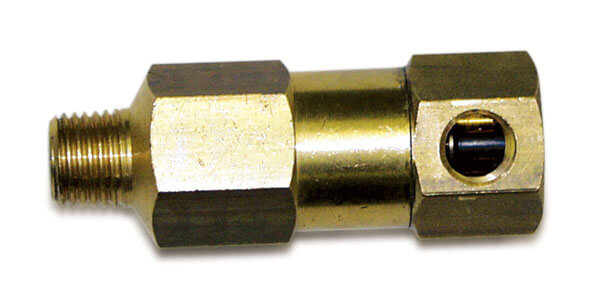

Thermal Relief Valve

A MUST for any pump that might ever be left in bypass mode (unloading) for more than 15 seconds! Protects the pump from overheating caused by recirculating water.

Features:

Installs in bypass line
Automotive style wax element
Automatically resets at cool down to 115° +F
No adjustment required
1/8" FPT side discharge
125 PSI inlet pressure
2.5 GPM flow

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	INLET	"Trip" TEMP	PRICE
8.904-565.0	3/8"MPT	140° F	$53.70
8.723-942.0	3/8"MPT	170° F	$77.55
8.904-566.0	1/2"MPT	140° F	$56.75
8.723-943.0	1/2"MPT	170° F	$91.25

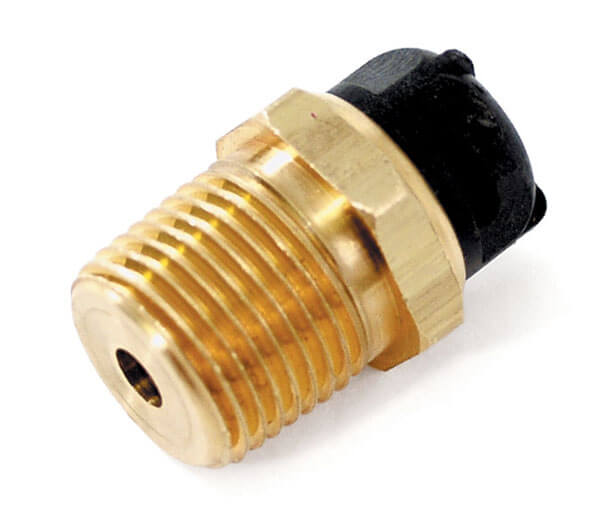

Compact Thermal Relief Valve

A MUST for any pump that might ever be left in bypass mode (unloading) for more than 15 seconds! Protects the pump from overheating caused by recirculating water.

Features:

Installs in bypass line
Automotive style wax element
Automatically resets at cool down to 115° +F
No adjustment required
1/8" FPT side discharge
125 PSI inlet pressure
2.5 GPM flow

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	INLET	"Trip" TEMP	PRICE
8.712-544.0	1/4"MPT	145° F	$40.55
8.712-545.0	3/8"MPT	145° F	$39.70
9.802-182.0	1/2"MPT	145° F	$15.60

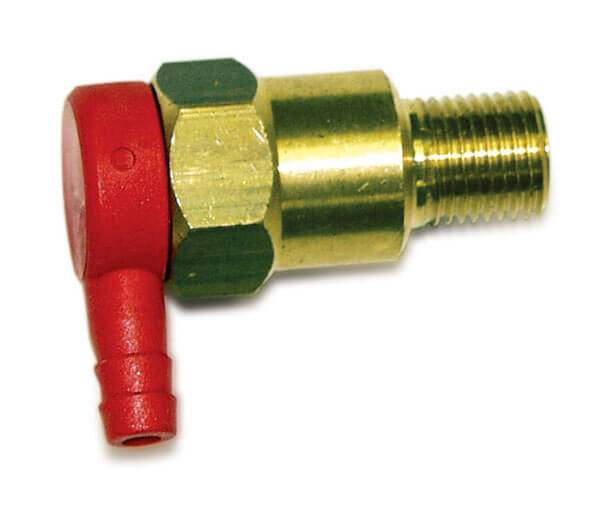

TRV Thermal Relief Valve

A MUST for any pump that might ever be left in bypass mode (unloading) for more than 15 seconds! Protects the pump from overheating caused by recirculating water.

Features:

Brass Body
Plastic covered barb
7mm Hose barb
145 PSI
Opens at 145°

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	INLET	"Trip" TEMP	PRICE
8.712-546.0	1/4"	145° F	$33.75
8.712-547.0	3/8"	145° F	$37.10
8.712-548.0	1/2"	145° F	$39.45

Steam Valves

Steam Valve

For "Combo" Hot Pressure Washer/Steamer units. The single turn on/off diverter valve by-passes pump flow to reduce water flow to the coil, creating steam in place of normal hot water.

Features:

Panel mount in 11/16" or 3/4" hole
Machined brass body
Easy-grip plastic knob
3600 PSI
175° F
1/4" MPT inlet/outlet

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	ORIFICE (mm)	PRICE
8.711-263.0	0.8	$57.10
8.904-406.0	1.2	$54.15
8.904-407.0	1.5	$63.60
8.904-408.0	1.8	$64.75
8.904-409.0	2.0	$55.10

Rupture Disk

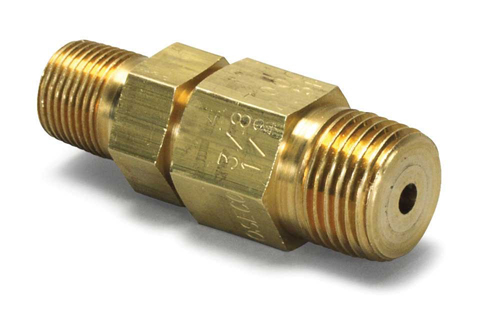

Rupture Disk Assembly

Features:

Machined brass body
7000 PSI
1/2" MPT & 3/8" MPT

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	PSI Rating	PRICE
9.802-192.0	7000	$72.40
