Easy Start and Pressure Relief Valves
The easy start valve is a low pressure relief valve, which directs enough water into by-pass to reach a certain pressure. Redirecting water to by-pass in low pressure, produces less load on the pump and engine. This lower system pressure eases system start-up by eliminating back pressure when starting the pressure washer.
Pressure relief valves automatically open to relieve dangerous system pressure overloads which can harm equipment and can also be dangerous for the operator.
Need help with finding the right dimensions and threading? CLICK HERE
Safety Pressure Relief Valves

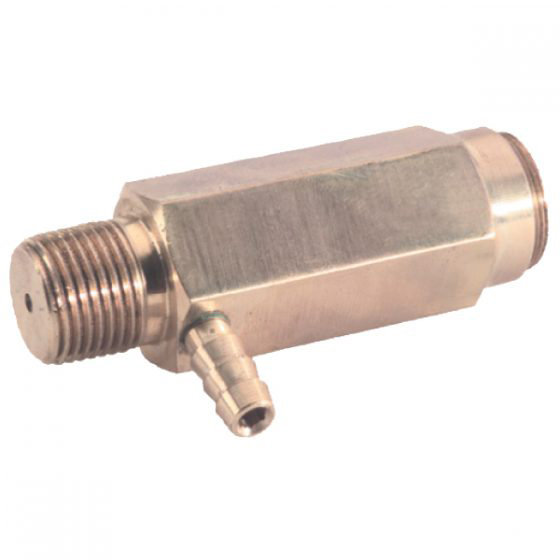

Safety Pressure Relief Valve
- Prevents pressure overloads, protecting people and equipment
- Machined brass
- Automatically resets
- 3/8" MNPT
- 2 - 6 GPM
| MODEL | SIZE | MAX PSI | PRICE |
| 100723 | 3/8" (Outlet Side 1/4" Hose Barb) | 6000 | $31.40 |
| 8.722-192.0 | 1/4" | 1200 (Silver Spring) | $38.60 |
| 8.722-193.0 | 1/4" | 2400 (Red Spring) | $39.30 |
| 8.722-194.0 | 1/4" | 3600 (Orange Spring) | $40.00 |
| 8.722-190.0 | 3/8" | 3600 (Orange Spring) | $43.45 |
| 9.802-191.0 | 3/8" | 5000 (Blue Spring) | $36.10 |
Easy Start Valves

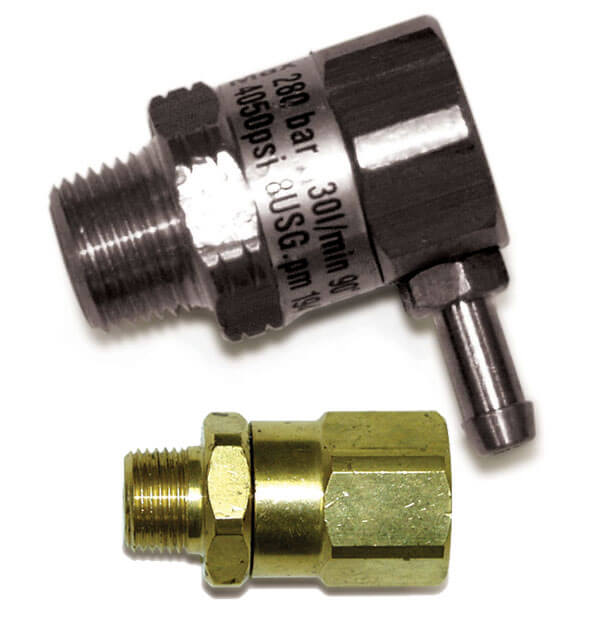

Easy Start Valve
Allows for easy start due to lack of compression of head pressure. Reduces amp draw on motor start-up.
- 3/8" MPT Inlet
- Hose barb outlet (8mm)
- Machined brass body
- Stainless Steel spring and ball
- 3200 PSI
- 176° F
- 7.8 GPM
| MODEL | DESCRIPTION | PRICE |
| 8.709-867.0 | Easy Start Valve | $31.20 |

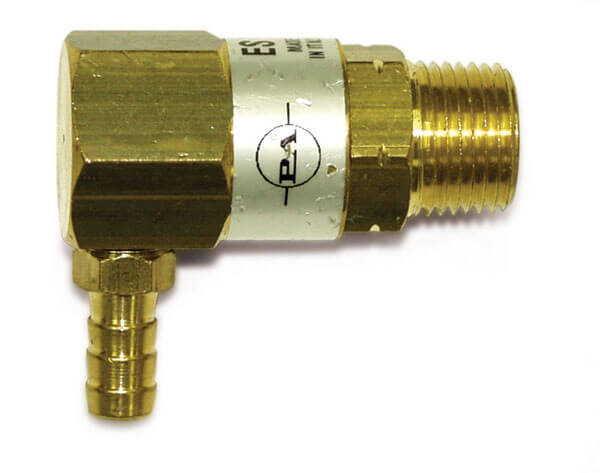

Easy Start Valve
- 3/8" MPT Inlet
- 1/8" FPT outlet
- Machined brass housing
- Hose barb outlet
- Stainless Steel internal
- 200° F
- 8 GPM
| MODEL | DESCIPTION | PRICE |
| 8.709-865.0 | Easy Start Valve, 4100 PSI | $30.80 |
| 8.709-866.0 | Easy Start Valve, 3500 PSI | $47.00 |
| 8.705-097.0 | Hose barb, 1/8 x 1/4 barb | $8.05 |
|
