Stainless Steel Swivels

A Live swivel coupling has a hollow first housing and a hollow second housing, each of which is open on opposing ends in a main axial direction. When using high pressure, quality construction on the body of the swivel is key.

Use with ROTOR ARMS for designing your own wash system or upgrade your existing equipment. Quadruple bearing swivels can be mounted vertical or horizontal, upright or face down for optimum cleaning in various positions. Our tire cleaners are ready to use kits combining a high quality swivel and a 4 nozzle rotor arm ideal for a car wash, truck wash, or any other need requiring a fixed mount rotating cleaner. Choose your NOZZLES depending on the pressure washer you intend to use with it.

FEATURES:

Our high RPM swivels are able to spin at a max of 2000 RPM and upon request can handle up to 7200 PSI.
The group below offers 4000-5000 PSI rated swivels that have high quality stainless steel construction with longevity and reliability in mind.
These swivels are maintenance free with a carbide seal system.
Various styles allow for a range of mounting options.

TECHNICAL DATA

Pressure - 3000 psi (20 MPa) | 5800 psi (40 MPa)
Temperature - 250°F
RPM - Max 30 rpm

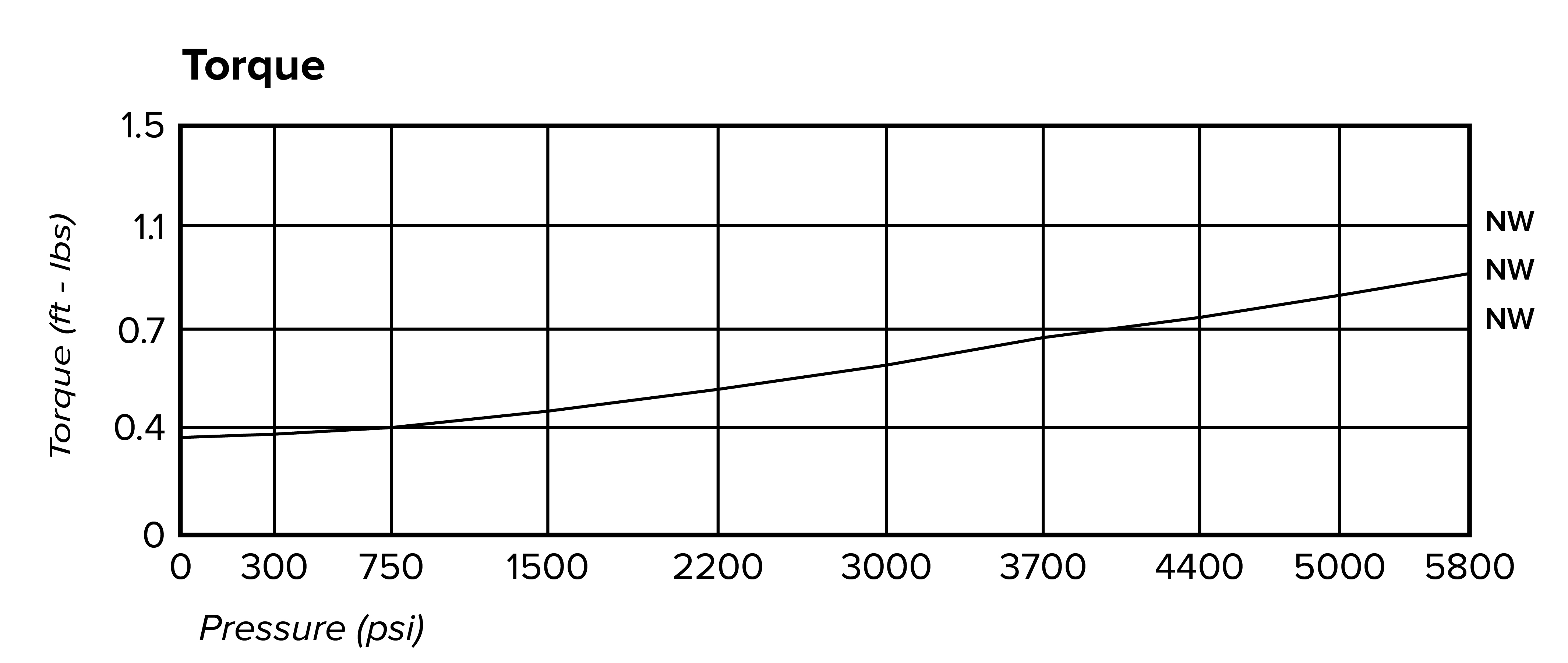

Torque - Max 37 ft-lbs
Body - Stainless Steel
Inner Part - Stainless Steel
Seal - O-ring NBR (optinal: EPDM or FKM)
Bearing - Siding Bearings
Throughput - pH 3 to 12
Medium - Filtered 10 microns | Compressed Air (290 psi)

High RPM Stainless Steel Swivels

These high performance stainless steel swivels are made either of high quality INOX Stainless Steel or Brass Nickel plated Stainless Steel. High RPM swivels are designed for longevity and are maintenance free. The swivels can be used for applications such as automatic car washes, parts washers, surface cleaners, and undercarriage cleaners. Swivels in this group have a 6 month warranty.

4000 PSI High Pressure Swivels

Features:

Max Pressure: 4000 PSI
Max Temperature: 250° F
Max RPM: 2000
pH 3-12 Throughput Medium
Size: 1/4" ID
Brass Nickel Plated Stainless Steel Body

Ordering Information - FREE SHIPPING

MODEL	DESCRIPTION	SEAL	OUTLET	INLET	PRICE
MO-58.053	DYF Triple Bearing Swivel	Carbide Seal w/ Flange	3/8"MPT	1/4"FPT	$260.15
MO-58.153	DYF Triple Bearing Swivel	Carbide Seal w/ Flange	3/8"MPT	3/8"FPT	$305.05
MO-57.053	DYG Triple Bearing Swivel	Carbide Seal w/ Bulkhead Fitting	3/8"MPT	1/4"FPT	$258.90
MO-57.153	DYG Triple Bearing Swivel	Carbide Seal w/ Bulkhead Fitting	3/8"MPT	3/8"FPT	$258.90

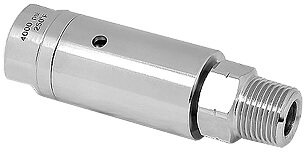

MO-56.053	DYL Triple Bearing Swivel	Carbide Seal, Inline	3/8"MPT	1/4"FPT	$236.35
MO-56.153	DYL Triple Bearing Swivel	Carbide Seal, Inline	3/8"MPT	3/8"FPT	$236.35

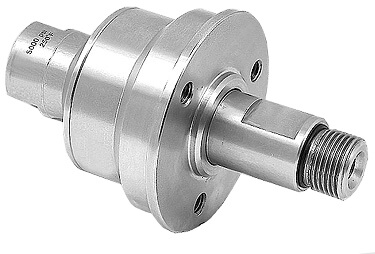

DYCI Stainless Steel Swivels — DYCI Swivel

5000 PSI High Pressure Swivels

This Swiss engineered swivel is the toughest in the business. This swivel boasts long lasting performance under the toughest of conditions. Constructed of High RPM stainless steel, the swivel is reinforced with a self-lubricated stainless steel ball bearing and features a dual spring based carbide seal system.

Features:

Max Pressure: 5000 PSI
Max Temperature: 250° F
Max RPM: 2000
pH 3-12 Throughput Medium
Size: 1/4" ID
Stainless Steel Body

Ordering Information - FREE SHIPPING

MODEL	DESCRIPTION	SEAL	OUTLET	INLET	PRICE

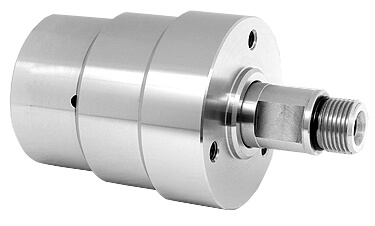

MO-59.053	DYT Quadruple Bearing Swivel	Carbide Seal	3/8"MPT	1/4"FPT	$404.65
MO-59.153	DYT Quadruple Bearing Swivel	Carbide Seal	3/8"MPT	3/8"FPT	$404.65
MO-55.053	DYCI Triple Bearing Swivel	Carbide Seal	3/8"MPT	1/4"FPT	$258.75
MO-55.153	DYCI Triple Bearing Swivel	Carbide Seal	3/8"MPT	3/8"FPT	$282.65

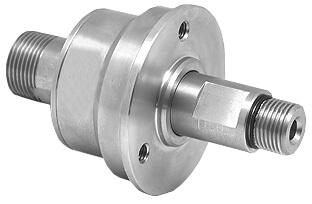

MO-55.253*	DYC Triple Bearing Swivel	Carbide Seal	3/8"MPT	M22	$282.65

* Replacement Swivel for all Mosmatic Surface Cleaners

5000 PSI High Pressure Swivels

Features:

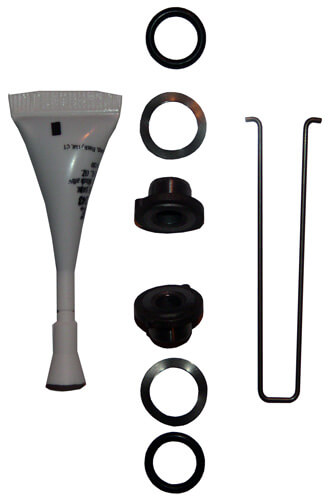

Kit contains: two (2) carbide seals, two (2) o-rings, two (2) spring washers, tool and adhesive.
Replacement Kits for the following swivels: 56.051, 56.053, 56.053, 56.151, 56.153, 56.153, 56.057, 56.059, 56.157, 56.159, 56.356, 56.358, 56.453, 56.463

Ordering Information - FREE SHIPPING

MODEL	DESCRIPTION	PRICE
MO-36.906	Seal Kit for Carbide Seal System, Adhesive	$96.90

90 Degree Swivels

90° Swivels (30 RPM)

These stainless steel 90° swivel series are engineered for high pressure, low pressure as well as high speeds. These swivels work great for automatic car wash systems, hose reels, and in ceiling booms.

Features:

Max Pressure: 5000 PSI
Max Temperature: 250° F
Max RPM: 2000
pH 3-12 Throughput Medium
Size: 1/4" ID
Stainless Steel Body

Ordering Information - FREE SHIPPING

MODEL	DESCRIPTION	OUTLET	INLET	ID	HEIGHT	PRICE

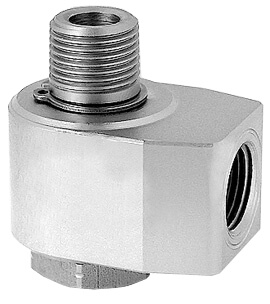

MO-43.251	WDB Dual Bearing Swivel	1/4"MNPT	1/4"FNPT	1/4"	1"	$89.65
MO-43.252	WDB Dual Bearing Swivel	3/8”MNPT	3/8"FNPT	3/8"	1"	$89.65
MO-43.259	WDB Dual Bearing Swivel	1/4"MNPT	3/8"FNPT	1/4"	1.3"	$86.60

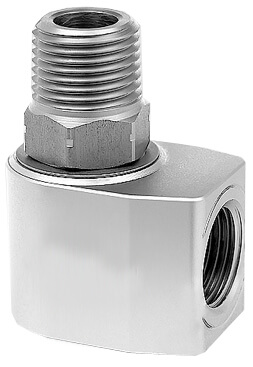

MO-43.353	WDC Dual Bearing Swivel	1/2" MNPT	1/2" FNPT	1/2"	1.3"	$118.50
MO-43.354	WDC Dual Bearing Swivel	1/2" FNPT	1/2" FNPT	1/2"	1.3"	$118.50

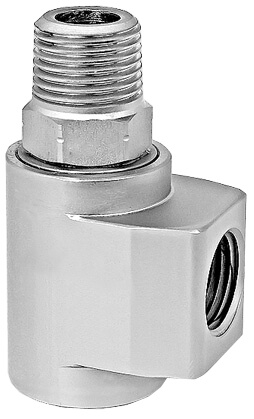

WDCL Stainless Steel Swivels — WDCL Swivel

90° Swivels (200 RPM)

Features:

Max Pressure: 5000 PSI
Max Temperature: 250° F
Max RPM: 200
pH 3-12 Throughput Medium
Size: 1/4" ID
Stainless Steel Body

Ordering Information - FREE SHIPPING

MODEL	DESCRIPTION	OUTLET	INLET	ID	HEIGHT	PRICE

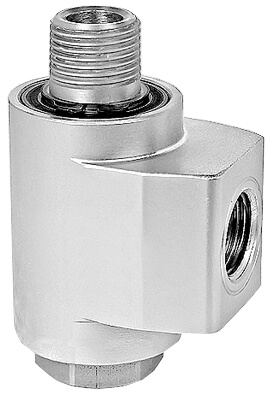

MO-43.262	WDBL Dual Bearing Swivel w/ 2 radial bearings	3/8"MNPT	3/8"FNPT	3/8"	1.8"	$164.05
MO-43.363	WDCL Dual Bearing Swivel w/ 2 radial bearings	1/2"MNPT	1/2"FNPT	1/2"	1.8"	$164.05
MO-43.364	WDCL Dual Bearing Swivel w/ 2 radial bearings	1/2"FNPT	1/2"FNPT	1/2"	1.8"	$164.05

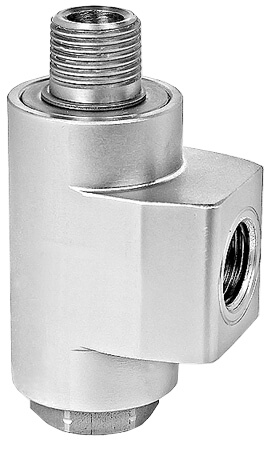

MO-43.272	WDBS Dual Bearing Swivel w/ 2 radial bearings & protection plate	3/8"MNPT	3/8"FNPT	3/8"	2.2"	$194.70

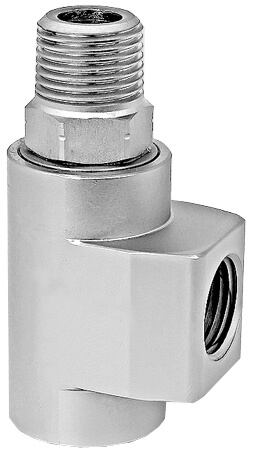

MO-43.373	WDCS Dual Bearing Swivel w/ 2 radial bearings & protection plate	1/2"MNPT	1/2"FNPT	1/2"	2.2"	$194.70

Toggle Swivels

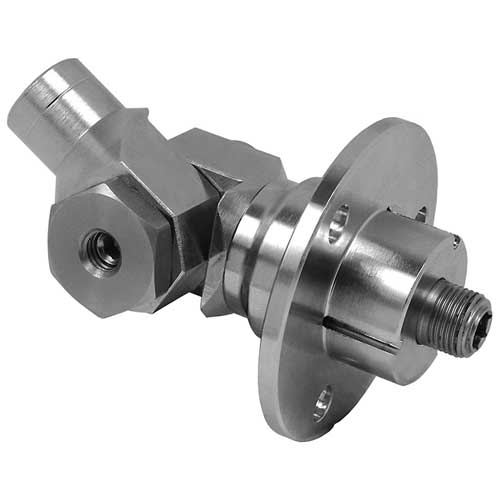

Toggle Swivel

Introducing the industries first contractor-duty, high RPM Toggle Swivel. This swivel is designed with an integrated toggle swivel with an adjustable tension system that is excellent for application involving Floor and Wall Cleaners. Perfect for cleaning walls or hard to reach angled areas.

Ordering Information - FREE SHIPPING

MODEL	DESCRIPTION	PRICE
MO-58.908	KYDF Toggle Swivel	$297.65
