Rotor Arms

Tire Cleaners

High Pressure Swivels

High Pressure Rotor Arms can be used for a wide range of applications. Coupled with a high pressure swivel, rotor arm serve a variety of purposes. They are light and sturdy stainless steel construction and can be mounted vertically or horizontally or even upside down. Several variations exist whether you need 1/4" or 1/8” nozzle sizes as well and different shapes to the bar depending on the specific needs. These rotor arms are high quality you would expect from Swiss engineering. The only other components needed to complete the build is a high pressure swivel, supply hose, and a method to mount it using either a bracket or bar.

Some more common uses are for:

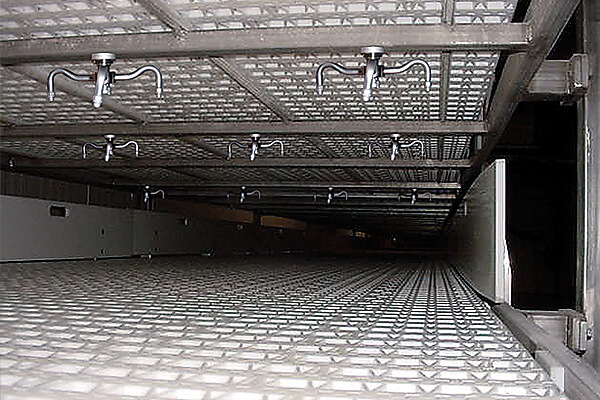

Conveyor sprayers
Car wash tire cleaners
Undercarriage cleaning
Parts washers
Surface cleaners

Call us with your application so we can give our best recommendation on the rotor arm.

Stainless Steel Rotor Arms

Dual Bar Rotor Arms

The complete stainless versions of these various cleaning units are specially designed for use with water and cleaning additive at high rpm. MOSMATIC Turbo-Rotors from the TKA series for use as a self rotating unit on: Flat Surface Cleaners, Tire Cleaner Applicators, Parts Washers and Undercarriage Cleaners. Available also for 1/4” Meg Nozzles and also other variations other than straight and rated to 7200 PSI upon request. Call for details.

Features:

Rated to 4000 PSI
Requires two 1/8” Meg Nozzles
Can Accept Up to 250 °F
3/8” FPT Inlet
pH 3-12 Throughput Medium
Width: 4”-24”
Stainless Steel

Ordering Information - FREE SHIPPING

MODEL	DESCRIPTION	LENGTH	PRICE
MO-82.805	Dual Rotor Arm	4”	$125.00
MO-82.806	Dual Rotor Arm	6”	$126.65
MO-82.807	Dual Rotor Arm	8"	$128.25
MO-82.808	Dual Rotor Arm	10"	$129.90
MO-82.809	Dual Rotor Arm	12"	$131.50
MO-82.810	Dual Rotor Arm	14"	$133.15
MO-82.811	Dual Rotor Arm	16"	$134.75
MO-82.812	Dual Rotor Arm	18"	$136.40
MO-82.813	Dual Rotor Arm	20"	$138.00
MO-82.814	Dual Rotor Arm	22"	$139.65
MO-82.815	Dual Rotor Arm	24"	$141.30

Dual Bar Rotor Arms

Rated to 4000 PSI
Requires three 1/8” Meg Nozzles
Can Accept Up to 250 °F
3/8” FPT Inlet
pH 3-12 Throughput Medium
Width: 4”-24”
Stainless Steel

Ordering Information - FREE SHIPPING

MODEL	DESCRIPTION	LENGTH	PRICE
MO-82.865	Tri Rotor Arm	4”	$164.00
MO-82.866	Tri Rotor Arm	6”	$165.60
MO-82.867	Tri Rotor Arm	8"	$167.25
MO-82.868	Tri Rotor Arm	10"	$168.85
MO-82.869	Tri Rotor Arm	12"	$170.45
MO-82.870	Tri Rotor Arm	14"	$172.10
MO-82.871	Tri Rotor Arm	16"	$173.75
MO-82.872	Tri Rotor Arm	18"	$175.35
MO-82.873	Tri Rotor Arm	20"	$177.00
MO-82.874	Tri Rotor Arm	22"	$178.60
MO-82.875	Tri Rotor Arm	24"	$180.25

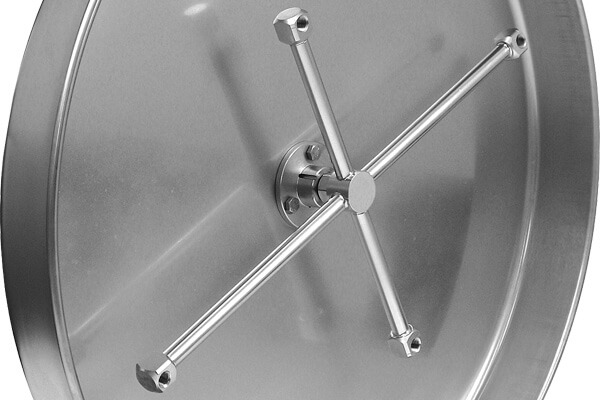

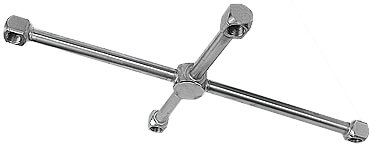

Quad Bar Rotor Arms

Rated to 4000 PSI
Requires four 1/8” Meg Nozzles
Can Accept Up to 250 °F
3/8” FPT Inlet
pH 3-12 Throughput Medium
Width: 4”-24”
Stainless Steel

Ordering Information - FREE SHIPPING

MODEL	DESCRIPTION	LENGTH	PRICE
MO-82.831	Quad Rotor Arm	8”	$191.45
MO-82.833	Quad Rotor Arm	14” / 8"	$192.90
MO-82.837	Quad Rotor Arm	16" / 10"	$195.80
MO-82.842	Quad Rotor Arm	19" / 14"	$198.75
MO-82.843	Quad Rotor Arm	20" / 14"	$200.20
