Electric Motor - Diesel Burner Hot Water Power Washers

2 - 4 Wheel Portable Direct Drive Electric Pressure Washer

Features:

• 1500 PSI, 1.8 GPM (depending on model)
• 2 HP Motor, 115 - 230V
• GP pump   (5 year warranty)
• Diesel Fired Burner
• Adjustable pressure regulator
• Safety relief valve
• Rugged powder coated steel frame
• Super efficient schedule 80 coil w/ one-piece molded insulation combustion chamber
• Stainless steel coil wrap
• 9 gallon poly diesel fuel tank w/ fuel filter
• Commercial and Industrial grade motors
• Reliable Beckett burners
• High limit over temp protection
• Safety pressure relief valve
• Thermo-sensor (prevents over heating in bypass mode)
• Chemical injector
• Gun and Wand Assembly with  insulated grip and quick connects
• 50' high pressure hose w/quick connects
• Two 10" or pneumatic tires
• Weight: 600 lbs
• 4 - Color-coded quick connect HP spray nozzles, and 1 color-coded chemical nozzle
• Assembled and tested in the USA

NOTE: 115V units include GFCI with 35' cord, 230V include 12' cord (no plug). All units are completely factory assembled, tested in the USA, and delivered ready to operate.

MODEL	PSI	GPM	HP	VOLTAGE / AMP	PUMP TYPE	PRICE
60363	1500	1.8	2HP	120V / 15 Amp	Industrial	$2,799.99

4 Wheel Electric Motor Diesel Burner Pressure Washers

Features:

• 2000 - 4000 PSI, 3 - 5 GPM (depending on model)
• 4 - 10 HP Motor, 115 - 230V Single Phase
• GP or AR pump   (5 year warranty)
• Diesel Fired Burner
• Adjustable pressure regulator
• Safety relief valve
• Powder coated frame
• 4 - Color-coded quick connect HP spray nozzles, and 1 color-coded chemical nozzle
• Chemical injector
• Gun and Wand Assembly
• 50' high pressure hose w/quick connects
• Four 10" pneumatic tires
• Assembled and tested in the USA
• Skid Mount also available

NOTE: 115V electric models include GFCI with 35' cord, 230V include 12' cord (no plug)

MODEL	PSI	GPM	HP	VOLTAGE / AMP	PUMP TYPE	PRICE
3230-30A1	3000	3.0	6.0	230V / 26 Amp	AR	$5,938.75

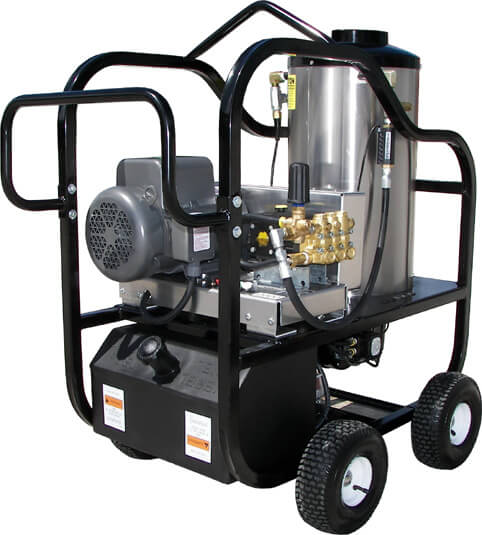

4 Wheel Hot Shot Series Diesel Burner Pressure Washers

Features:

• 2000 - 4000 PSI, 3 - 7.5 GPM (depending on model)
• 5 - 10 HP Motor, 115 - 230V Single Phase
• GP or AR pump   (5 year warranty)
• Diesel Fired Burner (Beckett)
• Adjustable pressure regulator
• Safety relief valve
• Rugged powder coated steel roll cage frame w/ lifting hook & 13" flat free tires & threaded axles
• 4 - Color-coded quick connect HP spray nozzles, and 1 color-coded chemical nozzle
• Chemical injector
• Super efficient schedule 80 coil w/ one-piece molded insulation combustion chamber
• Gun and Wand Assembly
• 8 gallon poly diesel fuel tank w/ fuel filter
• Commercial/Industrial grade motors
• High limit over temp protection
• Low speed pump w/ thermo-sensor (prevents over heating in bypass mode)
• 50' high pressure hose w/quick connects
• Four 10" pneumatic tires
• 4-wheel dimensions 39" L x 31" W x 49" H
• Assembled and tested in the USA
• Skid Mount also available

NOTE: 115V electric models include GFCI with 35' cord, 230V include 12' cord (no plug)

MODEL	PSI	GPM	HP	VOLTAGE / AMP	PUMP TYPE	PRICE
4230VB-20G1	2000	4.0	5.0	230V / 25 Amp	GP	$6,297.60
4230VB-30G1	3000	4.0	7.5	230V / 33 Amp	GP	$7,337.40

Optional Thermostat

Features:

• Temperature gauge 0-250 ° F
• 2 Terminals
• 4' of plastic conduit
• NOTE: This option will be installed on your pressure washer

NOTE: 115V electric models include GFCI with 35' cord, 230V include 12' cord (no plug)

MODEL	DESCRIPTION	PRICE
ATK010	Inline adjustable thermostat	$333.55

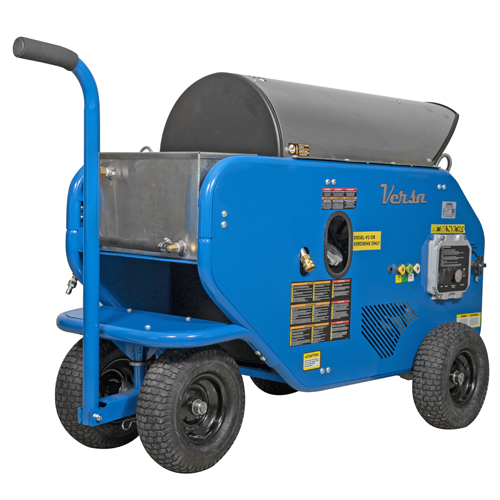

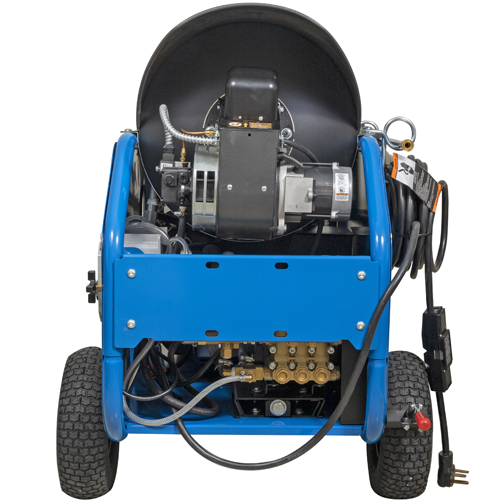

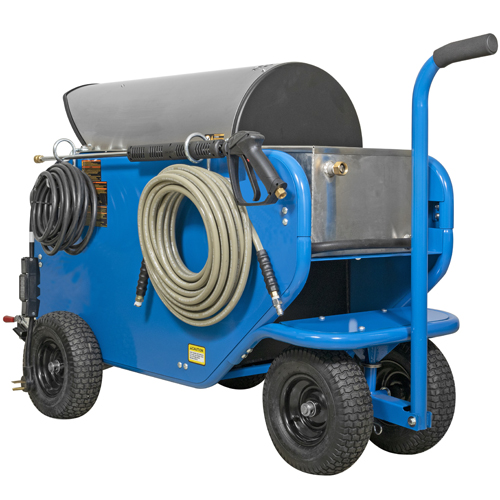

Powder Coated Portable Versa Series Hot Water Pressure Washer

Features:

• 1000 - 3000 PSI at 2.5 - 4.0 GPM
• 8.75 gallon diesel tank
• 120 - 230 Voltage
• Powder coated corrosion resistance super steamer
• Wheel brake system
• 13" Premium heavy-duty tires for easy mobility and vibration dampening
• Stainless steel float tank

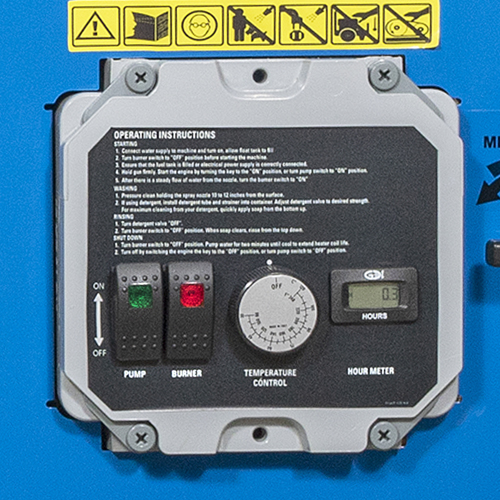

• NEMA 4X electrical enclosure with burner on/off rocker switch, thermostat control and hour meter, time delay-shut off
• Horizontal heat exchanger with stainless steel housing
• Heavy-duty 1.5 round tubular steel design
• Steerable pull handle
• Dimensions: 31"L x 61"W x 40"H
• Weight: 600 - 719 lbs
• Accessories (A) Heat-resistant spray gun (up to 320°F)
• Accessories (B) 48" Steel lance with insulated grip and 1/4" QC fitting
• Accessories (C) 3/8" x 50' Steel-braided Armor Hose
• Accessories (D) High quality QC nozzles 15°, 25°, 40°

MODEL	DESCRIPTION	PSI	GPM	VOLTAGE / PHASE	PRICE
65070	Versa 3040	3000	4.0	230V / 1 Ph	$6,707.40
65071	Versa 2040	2000	4.0	230V / 1 Ph	$6,316.80
65072	Versa 1030	1000	3.0	120V / 1 Ph	$6,064.80
65079	Versa 1030	1000	3.0	230V / 1 Ph	$6,323.10

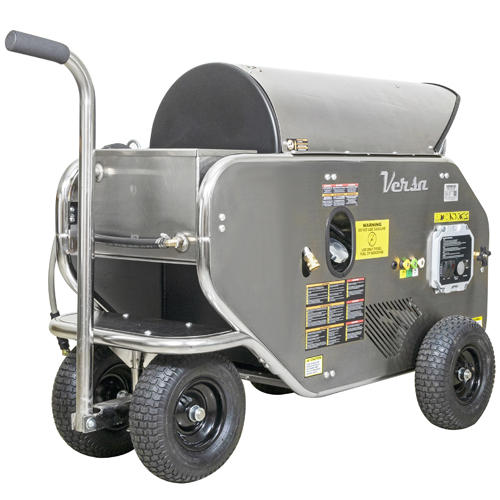

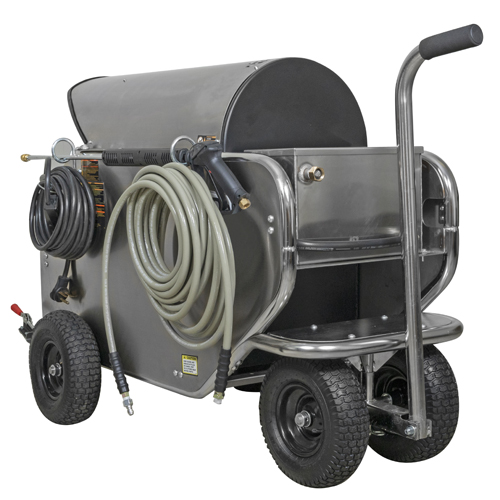

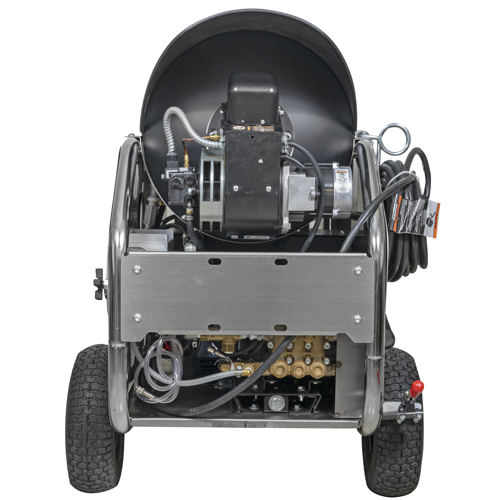

Stainless Steel Portable Versa Series Hot Water Pressure Washer

Features:

• 1000 - 3000 PSI at 2.5 - 4.0 GPM
• 8.75 gallon diesel tank
• 120 - 230 Voltage
• All stainles steel frame and panels
• Wheel brake system
• 13" Premium heavy-duty tires for easy mobility and vibration dampening
• Stainless steel float tank

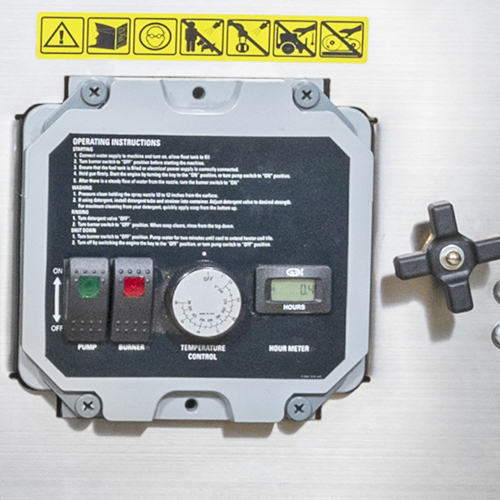

• NEMA 4X electrical enclosure with burner on/off rocker switch, thermostat control and hour meter, time delay-shut off
• Horizontal heat exchanger with stainless steel housing
• Steerable pull handle
• Dimensions: 31"L x 61"W x 40"H
• Weight: 600 - 719 lbs
• Accessories (A) Heat-resistant spray gun (up to 320°F)
• Accessories (B) 48" Steel lance with insulated grip and 1/4" QC fitting
• Accessories (C) 3/8" x 50' Steel-braided Armor Hose
• Accessories (D) High quality QC nozzles 15°, 25°, 40°

MODEL	DESCRIPTION	PSI	GPM	VOLTAGE / PHASE	PRICE
65074	Versa SS 3040	3000	4.0	230V / 3 Ph	$6,965.70
65075	Versa SS 3040	3000	4.0	230V / 1 Ph	$6,965.70
65076	Versa SS 2030	2000	4.0	230V / 1 Ph	$6,707.40
65077	Versa SS 1030	1000	3.0	120V / 1 Ph	$6,449.10

GFCI Cords and Plugs

From: $114.80
GFCI's protect people and equipment by interrupting potentially lethal ground circuits exceeding 6mA. The dangers of electrical shocks have been long known - GFCI's are the only real way to be safe. Most city & county codes now require GFCI protection on power cleaning equipment.

Consumers should not use "adapter plugs" to connect the three-wire plug to a two-prong household receptacle without properly grounding the adapter plug. Learn more about ground fault current interrupters.
