We offer many choices for trigger gun and wand assemblies to suit your application needs. We provide from 36" long lances up to 79" and cover pressures up to 8100 PSI. These well priced assemblies take the guess work out of what fittings, guns, and wand you need, since they are already made up and ship together in whatever your choice is. Some have inlets for high pressure hose that are a male plug, while others and female sockets, depending on what your hose connection requires. All gun and wand assemblies carry a 90 day warranty from the manufacturer.

BENEFITS OF GUN & WAND ASSEMBLY

High quality zinc plate or stainless steel lances
Multiple pressure and flow rates for up to 8100 PSI at 27 GPM
Strong insulated grip for higher temperature applications
Various choices of lengths for many uses
Quick connects inlet either male plug or female socket on most models
Industrial quality trigger guns for long service life

Order Online or Call Toll Free (866) 858-4982

Spray Gun & Wand Assembly

180 degree flexible car wash wand and spray gun

Flexible Wand and Spray Gun Assembly

Complete assembly of spray gun and wand with nozzle

Features:

Galvanized Wand with Industrial Grade Flex Section is 18" in Length.
Overall length: 28"
Max Pressure: 3000 PSI
Max Flow: 8 GPM
Max Temperature: 200 °F
Prevents Bent Lances & Broken Hoses
Inlet Connection: 3/8" Female Pipe Thread, Outlet Connection: Rubber Protector with 1/4" Stainless Spray Nozzle -15 Degree
Rubber Protecting Tip to Protect from Accidentally Scratching a Vehicle or Surface Being Cleaned
Perfect for Self-Serve Car Wash Bays, Pressure Washing Contractors or for Car Wash Enthusiasts

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	PSI	GPM	DESCRIPTION	LENGTH	PRICE
UW11-PW8F31	3000	8	180 degree Flexible Car Wash Wand & Spray gun w/ nozzle	28" Overall - 18" Lance	$89.90

Gun and Wands Assembliese

Complete assembly of gun and wands with quick disconnect couplers.

Features:

Material: Chrome
Length: 36" to 79"
Max Pressure: 4,000 PSI
Max Flow: 10.5 GPM
Max Temperature: 300 °F
Connectors: 3/8" Male Quick-Connect on the inlet side of the gun, 1/4" Female Quick-Connect on the tip of the wand
Requires (1) one Quick Connect Spray Nozzle

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	PSI	GPM	DESCRIPTION	LENGTH	PRICE
25252GA-12-4K	4000	7	12" Extension Wand w/ Couplers	12"	$62.65
25252GA-24-5K	5000	10	24" Extension Wand w/ Couplers	24"	$99.85
85.205.026	4000	10.5	36" Extension Wand	36"	$60.39
85.205.027	4000	10.5	47" Extension Wand	47"	$80.00
85.205.028	4000	10.5	59" Extension Wand	59"	$96.65
85.205.029	4000	10.5	79" Extension Wand	79"	$113.00

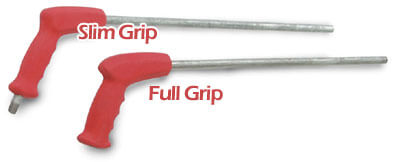

Flow Thru Gun

Complete assembly of gun and wands with quick disconnect couplers.

Features:

Pistol grip handle
Tough Polyurethane insulation
Cushion grip
Slim or full handle

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	DESCRIPTION	GRIP	PRICE
8.710-403.0	1/4" Flow Thru Gun	Slim Grip	$50.15
8.710-404.0	3/8" Flow Thru Gun	Full Grip	$69.45

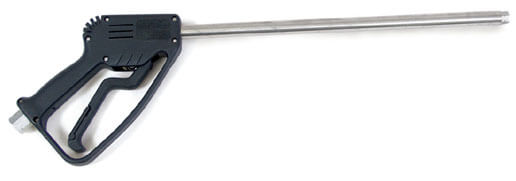

Single-Barrel Dump Gun

Water continues to run through the tube even when trigger gun is closed.

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	PSI	GPM	DESCRIPTION	LENGTH	PRICE
8.710-405.0	3000	10.5	Dump Gun 16" Lance	16"	$170.70
8.710-406.0	3000	10.5	Dump Gun 40" Lance	40"	$194.25

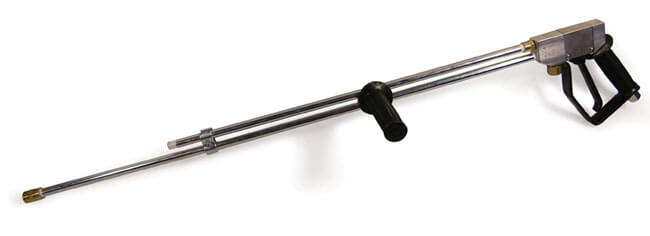

Dual-Barrel Dump Gun

A continuous stream of water flows from the top barrel for machines without an unloader valve. When trigger is opened the lower barrel shoots high pressure water through the threaded outlet.

Features:

Max Pressure: 3000 PSI
Max Flow: 10 GPM
Max Temperature: 200 °F
Connector: 3/8" FPT inlet
Top Barrel: 1/8" FPT outlet
Bottom Barrel: 1/4" FTP outlet

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	PSI	GPM	DESCRIPTION	LENGTH	PRICE
8.710-408.0	3000	10..0	Dump Gun Dual Barrel 36" Lance	36"	$420.55

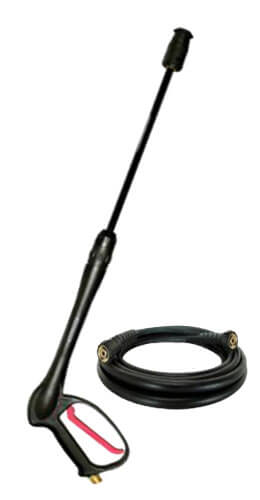

1800 PSI Accessory Kit

Kit for gun and wand assembly

Features:

M22 Rear Spray Gun Load
M22 Split Lance
Variable Nozzle
25 FT M22 Hose
M22 Screw Type Fittings

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	DESCRIPTION	PRICE
85.400.320	1800 PSI Accessory Kit	$100.00

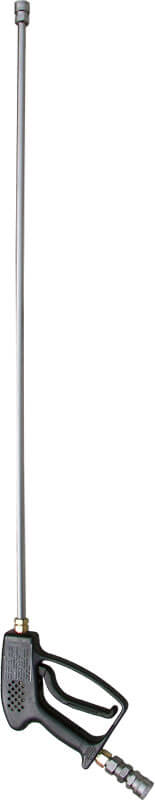

Gun and Lance Assembly — AGU03621290C5000

Gun and Lance Assemblies

Complete assembly of gun and lance with quick connect socket.

Features:

Inlet: 3/8" Stainless Steel Quick-Connect Socket
Outlet: 1/4" Stainless Steel Quick-Connect Socket
Requires(1) one Quick Connect Spray Nozzle

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	PSI	GPM	DESCRIPTION	LENGTH	WEIGHT	PRICE
AGU036YG4060SS	5000	10.0	Stainless Steel Gun & Lance	36"	3.1 lbs	$434.90
AGU03621290C5000	5000	10.0	Stainless Steel Lance	36"	2.9 lbs	$150.95

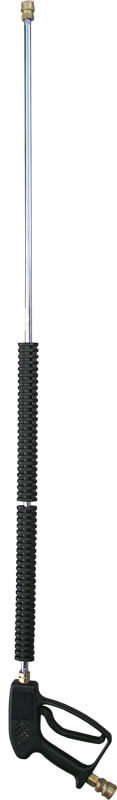

AGU04821290C-I	4000	10.0	Zinc Molded Grip Lance	48"	4.4 lbs	$69.70
AGU048YG5000-I	4000	10.0	Zinc Molded Grip Lance	48"	3.95 lbs	$96.55
AGU04821290C	4060	10.5	Aluminum Lance	48"	2.9 lbs	$79.85
AGU048SS21290C-I	5000	10.5	Stainless Steel Molded Grip Lance	48"	3.95 lbs	$116.40
AGU06021290C-I	4000	10.0	Zinc Molded Grip Lance	59"	5 lbs	$75.00

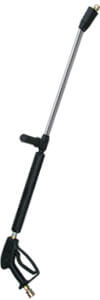

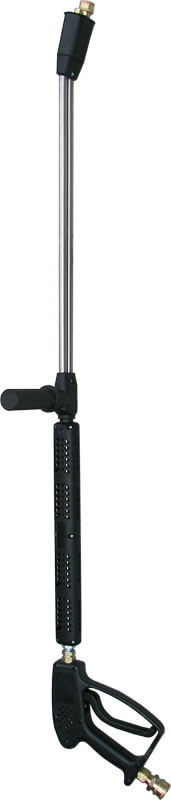

Trigger Gun and Dual Wand Assemblies

Complete assembly of gun and dual wand with quick-connect socket.

Features:

Inlet: 3/8" Quick-Connect Socket
Outlet: 1/4" Quick-Connect Socket
Includes (1) Chemical Nozzle, Installed
Requires (1) one Quick Connect Spray Nozzle

MODEL	PSI	GPM	DESCRIPTION	LENGTH	WEIGHT	PRICE
AGU34421290C	5000	10.5	Stainless Steel Dual Wand with Brass Spray Gun	40"	5 lbs	$196.10
AGU344YG4060SS	5000	10.5	All Stainless Steel Gun & Dual Wand	40"	5 lbs	$503.45

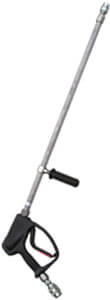

Industrial Gun & Wand Assemblies w/ Side Handle

Complete assembly of industrial grade gun and wand with quick-connect socket

Features:

1/2" Stainless Steel Wand with Side Handle
Requires (1) one Quick Connect Spray Nozzle with Standard 1/4" or 10K plug as appropriate

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	PSI	GPM	LENGTH	INLET	OUTLET	PRICE
AGU020	1950	21.0	31"	1/2" QC	1/4" QC	$581.75
AGU036ST3300-L31	2170	21.0	31"	1/2" FNPT	1/4" QC	$710.10

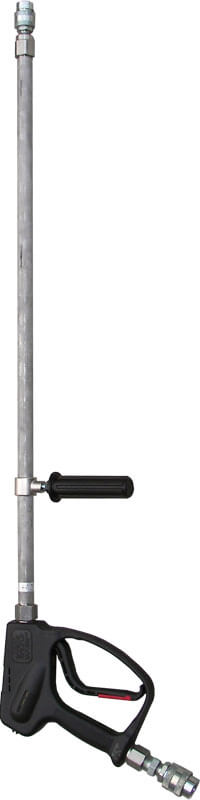

AGU070	8100	21.0	31"	3/8" 10K Steel QC	1/4" 10K Steel QC	$775.60
AGU048ST3300-L51	2170	27.0	51"	1/2" FNPT	1/4" QC	$848.70

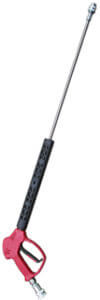

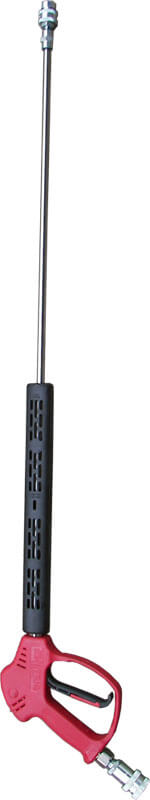

Industrial Gun & Wand Assemblies w/ Vented Grip

Complete assembly of industrial grade gun and wand with quick-connect socket.

Features:

1/4" Stainless Steel Wand w/ Vented Grip
Inlet: 3/8" 10K Steel QC Socket
Outlet: 1/4"10K Steel QC Socket
Requires (1) one Quick Connect Spray Nozzle with Standard 1/4" or 10K plug as appropriate

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	PSI	GPM	DESCRIPTION	LENGTH	WEIGHT	PRICE
AGU070-S	7300	8.0	1/4" Stainless Steel w/ Vented Grip	36"	3.25 lbs	$395.15
AGU058	5650	8.0	1/4" Stainless Steel w/ Vented Grip	42"	3.8 lbs	$329.85
AGU060	6400	10.5	1/4" Stainless Steel w/ Vented Grip	42"	4.1 lbs	$745.20
