Cold Water Diesel Pressure Washers
X Cart Style and Skid Style

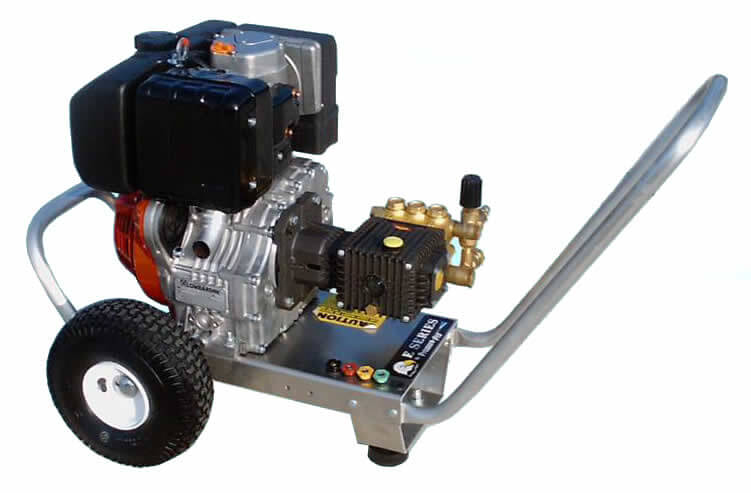

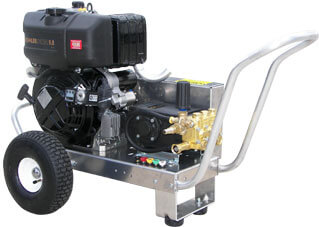

Direct Drive Pressure Washer

Features:

• 3200 PSI, 4.0 GPM & 10.0 HP
• Kohler Diesel Engine (2 Year Warranty)
• Pump: GENERAL (5 Year Warranty)
• Chemical Injector
• Adjustable Pressure Regulator
• Low Oil Shutdown
• 10" Tubed Pneumatic Tires
• Dual Padded Shock Absorbing Feet
• 50 FT Steel Braided Hose
• 3 Quick-Connect Spray Nozzles and 1 Chemical Nozzle
• Thermo-sensor (Prevents Overheating in Bypass Mode)
• 4,000 PSI Trigger Gun and Wand
• Aircraft Aluminum Frame (Lifetime Warranty)
• Direct drive
• Dimensions: 42"x24"x26"
• Weight: 165 lbs
• Assembled and Tested in the USA

MODEL	PSI	GPM	PUMP	ENGINE	PRICE
E4032KLDGE	3200	4.0	General	10 HP - Kohler Diesel Electric Start	$5,273.65

The Diesel Pressure Washer Cart Style

For more power, speed and freedom, consider a pressurewasher with a diesel engine. This is the one of the most popular units on the market today. The X Cart is a handy heavy duty industrial diesel fired machine that is especially easy to maneuver with its hand cart design. 2500 / 3000 PSI at 4.0 gpm is plenty of power to high - pressure clean anything from sidewalks to semi trailers. The weight can vary between 185 and 300 lbs depending on the size of the engine. These units are intended to be used outdoors and must be properly vented if used indoors.

Features:

• Triplex plunger pump with ceramic plungers and stainless steel valves
• Thermal relief valve
• Chemical Injection
• 50 FT Non-Marking Pressurehose
• Trigger Gun
• Adjustable pressure
• Heavy duty 36" wand with quick change tips in 0°, 15°, 25°, 40° soap tip
• Pumps handle fluids up to 160° F
• Engine Fuel Capacity: 5.3 Quarts
• 10" pneumatic tires with tube on X Cart model
• Powder coated frame
• Dimensions: 30"x21.5"x36" (model 25006DX)
• Battery not included on electric start models

MODEL	psi	gpm	engine	ship weight	PRICE
25006DX	2500	3.0	6.5 HP Hatz Diesel	185 lbs	$3,936.38

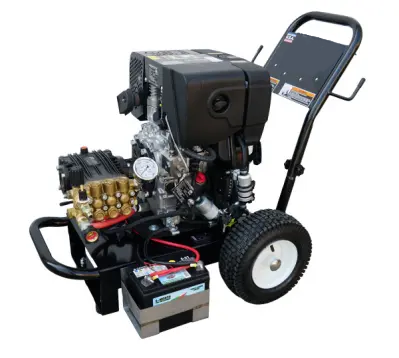

Features:

• 3000 PSI, 4.0 GPM
• 10HP Diesel Engine with Electric Start
• Triplex plunger pump with ceramic plungers and stainless-steel valvesstainless-steel valves
• Thermal relief valve
• Chemical Injection
• 50 FT Non-Marking Pressure Hose
• Trigger Gun
• Adjustable pressure
• Heavy duty 36" wand with quick change tips in 0°, 15°, 25°, 40° soap tip
• Pumps handle fluids up to 160° F
• Engine Fuel Capacity: 5.3 Quarts
• 10" pneumatic tires
• Powder coated frame
• Dimensions: 48” x 29” x 44”
• Shipping weight: 295 lbs
• Group 24 Battery not included on electric start models

MODEL	psi	gpm	ship weight	PRICE
3000DXE	3000	4.0	295 lbs	$8,946.60

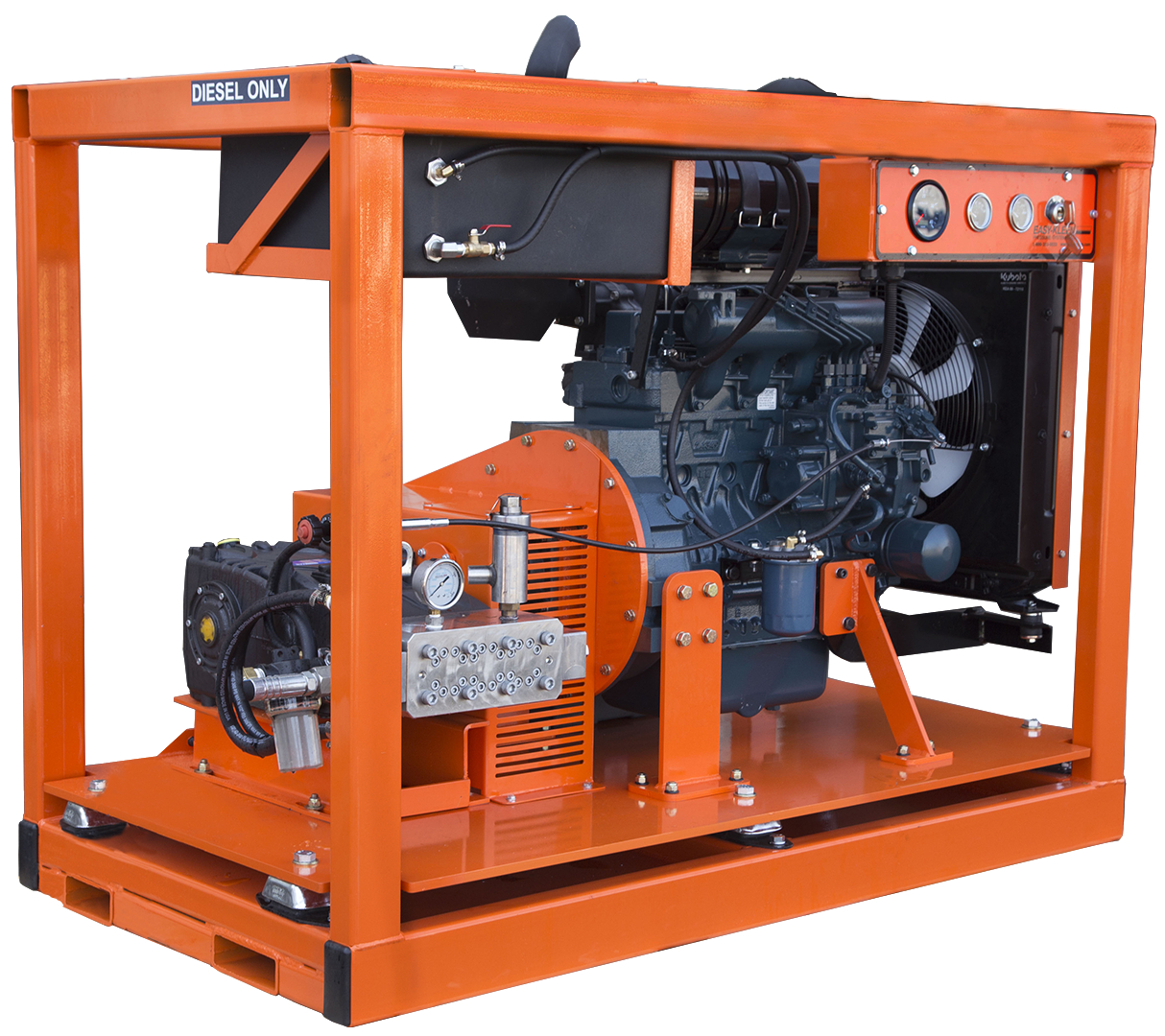

The Diesel Power Washer Skid Style

The difference between this and the previous power washer model is that the Skid Style does not come with a pushing bar and has no wheels. However, this type of diesel power washer has models that have more power in three categories: PSI, GPM, and horsepower. Consequently, engine fuel capacity is almost 50 % larger. Pumps can handle fluids on as much as 160° degrees Fahrenheit. This type of diesel powerwasher is great as a stationary unit suitable for truck, van or a large open indoor areas, which require constant powerwash cleaning.

Features:

• 4000 PSI at 4.5 GPM
• Hatz Diesel Engine with electric start, Tier 4, ID81Z
• Triplex plunger pump with ceramic plungers and stainless steel valves
• 18,000 cleaning units
• Thermal relief valve
• Adjustable pressure regulator
• Chemical Injection
• 50 FT Pressure Hose
• 5000 PSI Trigger Gun and Wand
• Heavy duty 36" wand with quick change tips in 0°, 15°, 25°, 40° soap tip
• Powder coated skid
• Dimensions: 36"L x 30"W x 30"H
• Battery not included

MODEL	psi	gpm	engine	ship weight	PRICE
UW11-PWDE40	4000	4.5	13.7 HP Hatz Diesel	300 lbs	$14,125.00

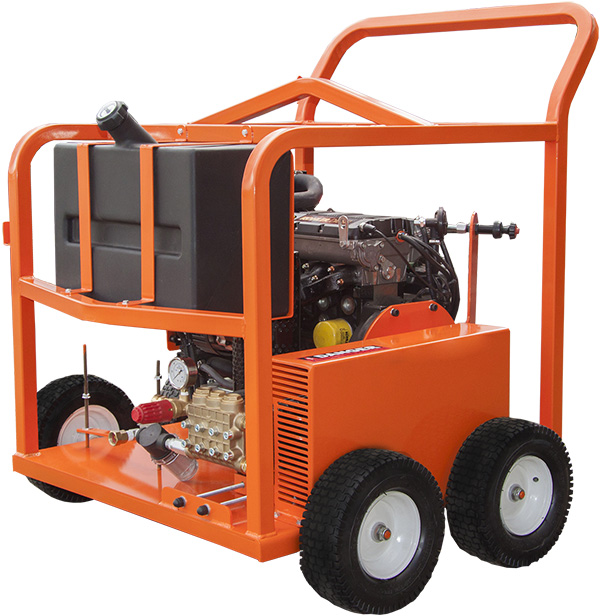

The Diesel Power Washer Wheeled Style

Features:

• 3200 - 8000 PSI at 4 - 8 GPM (depending on the model)
• 9.8 - 58 HP Diesel Engine (depending on the model)
• Triplex plunger pump with ceramic plungers and stainless steel valves
• Electric Start/Stop
• Belt drive pump
• 12,800 - 25,000 cleaning units (depending on the model)
• Thermal relief valve
• Adjustable pressure regulator
• Chemical Injection
• 50 FT Pressure Hose
• 5000 PSI Trigger Gun and Wand
• Heavy duty 36" wand with quick change tips in 0°, 15°, 25°, 40° soap tip
• Fully Welded/Powder Coated Steel Roll Cage Frame C/W: 3/4" Axel, 13” Foam Filled Tires
• Fully Welded/Powder Coated Steel Skid Frame with fork slots (11-PWF64D)
• Dimensions: 36"L x 30"W x 30"H
• Battery not included

MODEL	psi	gpm	engine	shiping information	PRICE
11-PW29D6	3200	4	9.8 HP Kohler Diesel	48x40x53 451 LBS	$7055
11-PW0A3A	3000	12	35 HP Vanguard Gas	48x40x53 451 LBS	$7605
UW11-PWDE50	5000	5	26 HP Kohler Diesel	48x40x57 740 LBS	$14,890.00
11-PWB0AD	7000	4	26 HP Kohler Diesel	48x48x47 831 LBS	$16455
11-PWF64D	8000	8	58 HP Kubota Diesel	58x35x57 1780 LBS	$47225

Belt Drive Pressure Washer

Features:

• 3200 PSI at 4.0 GPM
• 9.8 HP Kohler Diesel Engine with Electric Start (2 Year Warranty)
• Industrial GENERAL Pump (5 Year Warranty)
• Chemical Injector
• Adjustable Pressure
• Low Oil Shutdown
• 10" Tubed Pneumatic Tires
• Dual Padded Shock Absorbing Feet
• 50 FT Steel Braided Hose
• 3 Quick-Connect Spray Nozzles and 1 Chemical Nozzle
• Thermo-sensor (Prevents Overheating in Bypass Mode)
• 4,000 PSI T rigger Gun and Wand
• Aircraft Aluminum Frame (Lifetime Warranty)
• Belt drive
• Dimensions: 42"L x 24"W x 26"H
• Assembled and Tested in the USA
