Water Recovery Systems and
Water Capture and Containment Systems
We offer a large variety of water recovery systems, water capture systems and containment options. Simple, easy to use designs help you conform to EPA standards. With low initial costs and low maintenance costs, these water recovery and capture options are perfect when water must be reused or extracted from the job site.
Clean and Capture Tools
Recover up to 98% of the water being used with no run-off or damage to surroundings!
Expand your opportunities for higher-paying environmentally sensitive jobs and more profit. This is an independent, self contained unit that works in conjunction with your pressure washer.

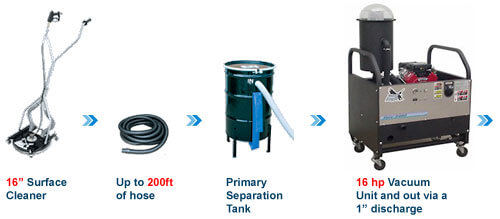

The process starts with a 16" surface cleaner, specially designed vacuum hose attachments. To this you connect up to 200' of 2 inch vacuum hose (this is done in 50' lengths). The hose will feed into a Primary Separation Tank, this will trap the large debris. Finally the water flows into a 200 micro filter contained in the main vacuum unit. This will collect any small particles or sediment. The captured waste water is discharged, up to 200ft distance, via a 1" garden hose (not included) into a storm drain or separate water storage tank.
16" Surface Cleaner
Features:
- 16 " Cleaning and water capturing path
- 4 easy maneuverable casters
- Floating handle for easier maneuverability
- Adjustable Height from 1/2" to 1"
- Stainless Steel inner and outer shell
- Directed in any way
- Maximum Requirements: 4,000 PSI at 8.0 GPM, 200 °F
- Weight: 35 lbs
- 1 year warranty
| MODEL | DESCRIPTION | PRICE |
| SE-ASE-0120 | 16" Surface Cleaner + Capture Tools | $1,712.40 |

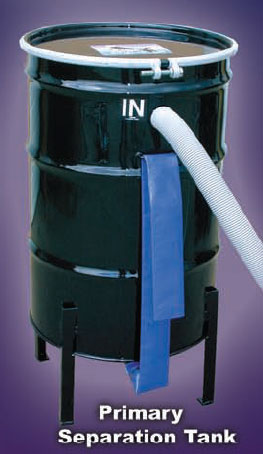

Primary Separation Tank
This tank captures large and small debris. Ideal for construction sites, marinas and warehouses. Its sturdy vertical design makes it convenient to work with. A thick coat of paint helps prevent any rust from occurring, as well as allowing it to withstand most climate conditions.
Features:
- Pressure tight lid
- Blue collapsible discharge hose
- 55 gallon capacity
- 4 Support legs which have been pre-drilled for mounting (hardware not included)
| MODEL | DESCRIPTION | PRICE |
| SE-K01-2450 | Primary Separator Tank |
$1,339.75 |
| SE-11-195010K | 50 FT of 2" Vacuum Hose |
$241.20 |
Primary Separation Tank
Features:
- Vacuum Operating 12" Hg
- Engine 16 HP OHV - Electric Start with Maintenance-Free battery
- 250 CFM
- High-Efficiency Vacuum Pump
- Vacuum Gauge
- 200 Micro Waste Collection Bag Filter
- High Vacuum Engine Shut Down
- Automatic Waste Water Pump Out
- Heavy-Duty Frame & Water Tank
- Hour Meter
- 50' Vacuum Hose
- Max Hose Length 200'
- One year warranty
- Dimensions: 39"x35"x64"
- Weight: 590 lbs
| MODEL | DESCRIPTION | PRICE |
| SE-ASE-2100 | 16 HP Briggs Gasoline Vacuum Unit |
$9,356.45 |
* If you are considering a wider surface cleaner, you will need the more powerful vacuum unit below.
24" Clean and Capture Tool
Features:

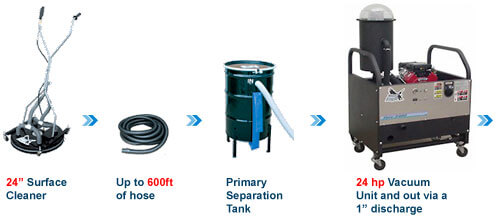

This is the same procedure as above but with a 24" surface cleaner, specially designed vacuum hose attachments. To this you connect up to 600' of 2 inch vacuum hose (this is done in 50' lengths). The hose will feed into a Primary Separation Tank, this will trap the large debris. Finally the water flows into a 200 micro filter contained in the main vacuum unit. This will collect any small particles or sediment. The captured waste water is discharged, up to 200ft distance, via a 1" garden hose (not included) into a storm drain or separate water storage tank.
24" Surface Cleaner
Recovers debris and water from hundreds of feet away when used with a proper vacuum and pressure washer. Cleaning is easy and comfortable with the floating handle for easy maneuverability and adjustable height settings. This cleaner practically glides along a surface on its 4 casters while cleaning 24” in a moment, making your job nice and easy. Its stainless steel body assures its longevity from rough and tough conditions.
Features:
- 24 " Cleaning and water capturing path
- 4 easy maneuverable casters
- Floating handle for easier maneuverability
- Adjustable Height from 1/2" to 1"
- Stainless Steel inner and outer shell
- Directed in any way
- Maximum Requirements: 4,000 PSI at 8.0 GPM, 200 °F
- Weight: 52 lbs
- 1 year warranty
| MODEL | DESCRIPTION | PRICE |
| SE-ASE-0140 | 24" Surface Cleaner + Capture Tools |
$2,310.90 |
| SE-11-195010K | 50 feet of 2" Vacuum Hose |
$241.20 |
| SE-K01-2450 | Primary Separator Tank |
$1,339.75 |
24 HP Vac Recovery System
Provides a one-step unit that pressure washes, rinses and instantly recovers the waste stream for proper treatment. Whether you’re trying to "go green" or you have an environmentally sensitive job, this powerful tool is for you. Also transports easily with its caster wheels.
Features:
- Vacuum Operating 12" Hg
- Engine 24 HP OHV - Electric Start with Maintenance-Free battery
- 330 CFM
- High-Efficiency Vacuum Pump
- Vacuum Gauge
- 200 Micro Waste Collection Bag Filter
- High Vacuum Engine Shut Down
- Automatic Waste Water Pump Out
- Heavy-Duty Frame & Water Tank
- Hour Meter
- 50' Vacuum Hose
- Max Hose Length 600'
- One year warranty
- Dimensions: 39"x35"x64"
- Weight: 590 lbs
| MODEL | DESCRIPTION | PRICE |
| SE-ASE-2800 | 24 HP Briggs Gasoline Vacuum Unit |
$10,854.05 |
