Water Pump Pulleys
Conversion Factors
| 1 inch = 25.4mm | 1 gal H20 = 8.33lbs | 1 gal = 3.79 liter | 1 kg =2.205 lbs |
| 1 cm =0.394 inch | 1 oz = 23.35 gram | 1 liter = 0.2642 gal | 1 KW = 1.341 HP |
Horsepower (HP) Equations
| HP = GPM x PSI | PSI = HP x 1460 | GPM = HP x 1460 |
| 1460 | GPM | PSI |
Pulley Equations: Pump Pulley diameter x Pump RPM = Manufacturer Pulley Diameter x Manufacturer RPM.
| Q: How fast do I turn my pump to give me a desired GPM? | |
|---|---|
| A: Required RPM = | (desired GPM x Rated RPM) |
| Rated GPM |
| Q: What size pump pulley do I use to get a certain RPM? | |
|---|---|
| A: Pump Pulley Diameter = | Motor Pullye Diameter x Motor RPM |
| Pump RPM |
Download Pump Pulley Speed Guide and Pulley Selection Guide (169 KB)

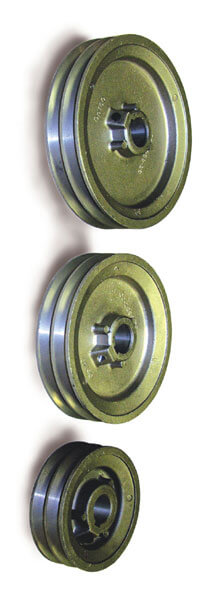

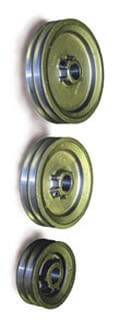

Double Grooved Pulleys
Double Groove Pulley
Fits Interpump, General and Admiral XLS, DDS Series Pumps, plus XD3040, XD3047, XD3055, and XD3065.
Features:
- Double groove
- 24mm
- 2 x A groove
| MODEL | DESCRIPTION | OUTSIDE DIAMETER | PRICE |
| 8.711-115.0 | Double Grooved Pulley | 4.0" | $124.80 |
| 8.711-116.0 | Double Grooved Pulley | 5.5" | $90.65 |
| 8.711-117.0 | Double Grooved Pulley | 6.3" | $93.60 |
Pulleys, Bushings, Sheaves
V-Belt is the leader in the industry when it comes to its time-tested pulleys, sheaves, and bushings. Able to adapt to most pressure washer pumps, V-Belt will be your go to part, with its dependable construction and affordability.
Pulleys
V-Belt pulleys are made from cast iron and are very effective and cost-efficient. Pulleys or sheaves are designed to mate with drive belts in many diverse power transmission applications. V-Belt pulleys are tailored for non-critical ratio drives.
| MODEL | DESCRIPTION | PRICE |
| 1-3V3.15 | Pulley | $16.45 |
| 2-3V3.00 | Pulley | $24.20 |
| 3-3V3.35 | Pulley | $37.60 |
| 3-3V4.12 | Pulley | $43.55 |
| 4-3V3.35 | Pulley | $75.00 |
| 4-3V6.00 | Pulley | $92.65 |
| 4-3V8.00 | Pulley | $107.70 |
QD Bushings
V-Belt bushing has cylindrical lining designed to reduce friction and wear inside a hole, or constrict and restrain motion of mechanical parts. Please us the example below to determine the correct bushing needed for your pump pulley.
QD (Quick-Detach) bushings are used with hubs in sprockets and sheaves and other items to lock the part onto the shaft.
| MODEL | DESCRIPTION | BORE SIZE | PRICE |
| JA-1 | JA 1" Bushing | 1" | $14.70 |
| JA-3/4 | JA 3/8" Bushing | 3/4" | $14.95 |
| SDS-20MM | SDS Bushing | 20mm | $22.45 |
| SDS-24MM | SDS Bushing | 24mm | $21.05 |
| SH-1 | SH 1" Bushing | 1" | $24.95 |
| SH-20MM | SH Bushing | 20mm | $27.75 |
| SH-24MM | SH Bushing | 24mm | $20.55 |
| SK-24MM | SK Bushing | 24mm | $41.30 |
| JAX11/8 | JAX 1 1/8" Bushing | 1 1/8" | $13.35 |
| JAX7/8 | JAX 7/8" Bushing | 7/8" | $13.35 |
| SHX1-1/8 | SHX 1 1/8" Bushing | 1 1/8" | $24.95 |
| SHX1-3/8 | SHX 1 3/8" Bushing | 1 3/8" | $17.75 |
