Industrial Curtains - Vinyl Curtain Wall
Curtain walls are used to contain a workspace from work being done within the walls. Sometimes, they are needed for preventing water from spraying out of an area, or for noise insulation, sealing off a welding workspace, containing cold air for refrigeration, to name a few applications. Ultimate Washer can offer solutions for many applications with these vinyl curtain walls. Below are just a few options available. We can also offer customized curtains to suit your existing space if the sizes indicated here will not fit.
These soft sided partitioned industrial curtains are used in industries like:
- Agriculture - Heavy grade outdoor curtains are made of 18oz coated vinyl equipped with a 40 mil pvc window section. Reinforced curtains are designed to withstand extreme weather conditions.
- Assembly - Eliminates costly brick and mortar permanent type walls. Separates conflicting tasks within work environments.
- Automotive Finishing - Confining contaminants such as dust, paint & primer overspray, grinding sparks, and water or chemical mist.
- Aviation - A highly effective and economical way to confine operations often performed within aircraft hangars.
- Construction - Quickly creates privacy areas. Easy to install, clean and replace. Isolate work areas from dust and chemicals.
- Environmental - Helps to control contaminants, temperature, sound and light.
- Manufacturing - Designed to withstand numerous types of chemicals and hazardous materials as well as spray and wash down situations.
- Food Processing - Welded seams prevent trapping of contaminants, and panel hung using stainless steel attachments and track. Can eliminate one sanitation cycle per week .
- Pharmaceutical - Easily slides out of the way when not needed. Separate work areas where there are sensitive chemicals and prevents intrusion in a contained area.
- Welding - Custom made for each application and block 100% of U.V. light.
- Wood Working - Improves working conditions. Helps to contain dust and debris.
Adding industrial curtains to your facility can make for a safer work environment and increase productivity. It will help to confine contaminants while making for a cleaner work area. Not only can you separate areas but you might need to protect against sparks or hazardous debris. Another big advantage for using the vinyl curtain wall may be to reduce loss of cold or heat hence saving energy and time.
* Curtains with white top and blue bottom vinyl section can ship within 24 hours, all other color variations may have longer lead times for production and prices may vary.
Vinyl Wall Curtain Packages

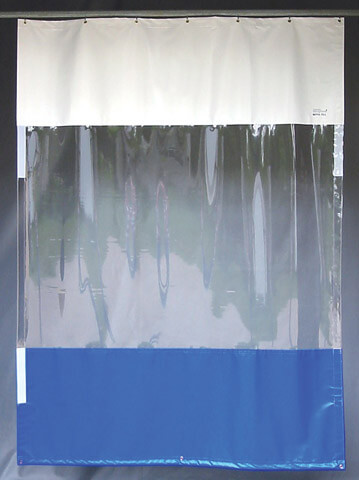

Single Wall Curtain
Constructed with a combination of some of the finest industrial vinyl available. The upper and lower opaque, PVC sections are 14 Oz per square yard, reinforced with a polyester denier weft inserted scrim which is laminated into fabric to give the curtain a high tear and tensile. Meets NFPA-701 tests for fire resistance, water repellant, mildew and rot resistant. Can withstand temperatures to 180° F. Cold and crack resistance to -4° F. 12 standard colors In stock. Rolls side to side on a heavy galvanized track and roller system.

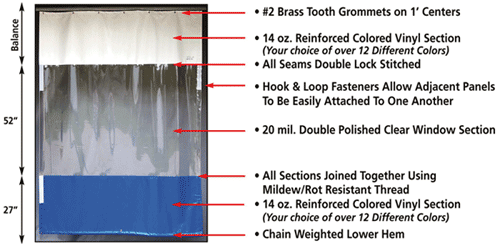

Features:
- Includes HARDWARE (end mounts, splices), TRACK, AND ROLLERS (customer provides own hardware to mount track to their surface)
- #2 Brass Tooth Grommets on 1’ Centers
- 14 Oz Reinforced Colored Vinyl Top Section (beige, black, blue, grey, teal, forest green, maroon, orange, purple, red, white, yellow)
call for special color request. - All Seams Double Lock Stitched
- Hook and Loop Fasteners Allow Adjacent Panels to Be Attached Together
- 20 Mil Double Polished Clear Window Section
- All Sections Joined Together Using Mildew/Rot Resistant Thread
- 14 Oz Reinforced Colored Vinyl Bottom Section (beige, black, blue, grey, teal, forest green, maroon, orange, purple, red, white, yellow) call for special color request.
- Chain Weighted Lower Hem
- Custom Sizes Available Upon Request
- Customer can trim track for space requirements, tracks come in fixed lengths
Optional Mounting Brackets
Create your own Custom Single Side Vinyl Curtain
| MODEL | DESCRIPTION | COLOR | WIDTH | HEIGHT | PRICE |
| 11135 | Single Curtain Wall | Blue/White | 6 FT | 8 FT | $262.20 |
| 11136 | Single Curtain Wall | Blue/White | 6 FT | 9 FT | $259.85 |
| 11134 | Single Curtain Wall | Blue/White | 6 FT | 10 FT | $263.05 |
| 11133 | Single Curtain Wall | Blue/White | 6 FT | 12 FT | $288.95 |
| 11083 | Single Curtain Wall | Blue/White | 12 FT | 8 FT | $451.60 |
| 11084 | Single Curtain Wall | Blue/White | 12 FT | 9 FT | $479.30 |
| 11089 | Single Curtain Wall | Blue/White | 12 FT | 10 FT | $508.35 |
| 11082 | Single Curtain Wall | Blue/White | 12 FT | 12 FT | $558.50 |
| 11088 | Single Curtain Wall | Blue/White | 24 FT | 8 FT | $815.70 |
| 11085 | Single Curtain Wall | Blue/White | 24 FT | 9 FT | $864.60 |
| 11086 | Single Curtain Wall | Blue/White | 24 FT | 10 FT | $917.10 |
| 11087 | Single Curtain Wall | Blue/White | 24 FT | 12 FT | $1,007.70 |
| 10292 | Flush Mounted Curve | Blue/White | 4 FT | 1.5" | $173.30 |
| 10277 | Suspended Curve | Blue/White | 4 FT | 1.5" | $153.55 |
| 10289 | Suspended Support Bracket | Blue/White | 2" | 4.25" | $28.60 |
Any curtain not blue and white requires price quote. Blue/white are standard colors and can ship in 24 hours.
2 Sided Industrial Curtains
Features:
- Includes HARDWARE, TRACK, AND ROLLERS
- #2 Brass Tooth Grommets on 1’ Centers
- 14 Oz Reinforced Colored Vinyl Top Section (beige, black, blue, grey, teal, forest green, maroon, orange, purple, red, white, yellow)
- All Seams Double Lock Stitched
- Hook and Loop Fasteners Allow Adjacent Panels to Be Attached Together
- 20 Mil Double Polished Clear Window Section
- All Sections Joined Together Using Mildew/Rot Resistant Thread
- 14 Oz Reinforced Colored Vinyl Bottom Section (beige, black, blue, grey, teal, forest green, maroon, orange, purple, red, white, yellow)
- Chain Weighted Lower Hem
- Custom Sizes Available Upon Request
- Optional Mounting Brackets
Create your own Custom 2 Side Vinyl Curtain
| MODEL | DESCRIPTION | WIDTH | DEPTH | HEIGHT | PRICE |
| 11137 | 2 Sided Curtain Wall | 12 FT | 24 FT | 8 FT | $1,212.85 |
| 11146 | 2 Sided Curtain Wall | 12 FT | 24 FT | 9 FT | $1,278.40 |
| 11140 | 2 Sided Curtain Wall | 12 FT | 24 FT | 10 FT | $1,351.10 |
| 11143 | 2 Sided Curtain Wall | 12 FT | 24 FT | 12 FT | $1,399.15 |
3 Sided Industrial Curtains
Features:
- Includes HARDWARE, TRACK, AND ROLLERS
- #2 Brass Tooth Grommets on 1’ Centers
- 14 Oz Reinforced Colored Vinyl Top Section (beige, black, blue, grey, teal, forest green, maroon, orange, purple, red, white, yellow)
- All Seams Double Lock Stitched
- Hook and Loop Fasteners Allow Adjacent Panels to Be Attached Together
- 20 Mil Double Polished Clear Window Section
- All Sections Joined Together Using Mildew/Rot Resistant Thread
- 14 Oz Reinforced Colored Vinyl Bottom Section (beige, black, blue, grey, teal, forest green, maroon, orange, purple, red, white, yellow)
- Chain Weighted Lower Hem
- Custom Sizes Available Upon Request
- Optional Mounting Brackets
Create your own Custom 3 Side Vinyl Curtain
| MODEL | DESCRIPTION | WIDTH | DEPTH | HEIGHT | PRICE |
| 11138 | 3 Sided Curtain Wall | 12 FT | 24 FT | 8 FT | $1,956.55 |
| 11147 | 3 Sided Curtain Wall | 12 FT | 24 FT | 9 FT | $2,060.75 |
| 11141 | 3 Sided Curtain Wall | 12 FT | 24 FT | 10 FT | $2,172.95 |
| 11144 | 3 Sided Curtain Wall | 12 FT | 24 FT | 12 FT | $2,366.65 |
4 Sided Vinyl Curtain Walls
Features:
- Includes HARDWARE, TRACK, AND ROLLERS
- #2 Brass Tooth Grommets on 1’ Centers
- 14 Oz Reinforced Colored Vinyl Top Section (beige, black, blue, grey, teal, forest green, maroon, orange, purple, red, white, yellow)
- All Seams Double Lock Stitched
- Hook and Loop Fasteners Allow Adjacent Panels to Be Attached Together
- 20 Mil Double Polished Clear Window Section
- All Sections Joined Together Using Mildew/Rot Resistant Thread
- 14 Oz Reinforced Colored Vinyl Bottom Section (beige, black, blue, grey, teal, forest green, maroon, orange, purple, red, white, yellow)
- Chain Weighted Lower Hem
- Custom Sizes Available Upon Request
- Optional Mounting Brackets
Create your own Custom 4 Side Vinyl Curtain
You can choose your preferred top & bottom vinyl color in shopping cart.
| MODEL | DESCRIPTION | WIDTH | DEPTH | HEIGHT | PRICE |
| 11139 | 4 Sided Curtain Wall | 12 FT | 24 FT | 8 FT | $2,517.35 |
| 11148 | 4 Sided Curtain Wall | 12 FT | 24 FT | 9 FT | $2,643.10 |
| 11142 | 4 Sided Curtain Wall | 12 FT | 24 FT | 10 FT | $2,777.90 |
| 11145 | 4 Sided Curtain Wall | 12 FT | 24 FT | 12 FT | $3,010.15 |
