Cold Water Hydraulic Powered Pressure Washers
Hydraulic pressure washing equipment is ideal for farm and agriculture industries, allowing you to clean using your existing Hydraulics. Simply hook up to a tractor or other type of farm machinery that has hydraulic power and you will be able to clean in remote areas without the need for electricity or gasoline. With a very compact design, the hydraulic driven pressure washers are able to be mounted in very tight spaces. Some models have flow controllers to ensure the motor is not sped up too much and is regulated. Commonly found on equipment like tractors, ag spraying equipment, industrial sewer cleaning trucks, or cement haulers, hydraulic pressure washers are not limited to these usages. Other common applications where this type pressure washer can be found is in the petrochemical, chemical, pharmaceutical, semiconductor, and biotechnology industries as well.
FEATURES & BENEFITS
- No noisy motors: Quiet and smooth operation using your existing hydraulic power source for areas that may have noise sensitivity. Just couple with your hydraulics for cleaning effectively and quietly.
- Compact and Lightweight: Small design for easy portability and operation in confined spaces or where electrical power is not available. Can be used in remote areas to clean heavy equipment.
- Durable Industrial Grade Pump: Constructed with high quality pressure pumps with ceramic plungers and stainless steel valves for longevity. Designed to last in harsh environments outdoors.
- Flexible Specifications: Available in a complete array of pressures and flows to suit most application needs. From 500 -4000 PSI models whether light cleaning is needed or more intensive can only do the job.
Cleaning a cement truck dump area with convenience of using hydraulic power on that vehicle.
Washing a concrete laser screed with a hydraulic pressure washer connected to the equipment it is cleaning.
Rinsing an agricultural spraying vehicle with after a day of use in the fields.
Hydraulic Driven Pressure Washers
Cold Water Hydraulic Powered Washers
A fantastically powerful light weight hydraulic pressure washer developing 1000 / 4350 PSI at 3.0 / 8.6 gallons per minute can tackle almost any job and still leave you time to watch the ball game. When operating this hydraulic power washer you must not exceed required ratings for oil flow and pressure. This is a very light (49 lbs.) and small oil powered hydraulic pressure washer that allows an easy and practical transport. Dimensions are 10" x 10" x 10". It also contains triplex plunger pump with ceramic plungers and stainless steel valves. This is one of the most economical hydraulic power washers in our line.
Features:
- Udor Pump and Motor Combo Unit
- Transforms hydraulics pressure and flow already available in your system to water pressure
- Attaches to any hydraulic power source that meets the specifications listed below
- Triplex plunger pump with ceramic plungers and stainless steel valves
- Adjustable pressure
- Chemical Injection
- 50' non-marking pressure hose
- Trigger Gun
- Heavy duty wand with a single fixed nozzle
- Warranty: Pump (5 years), Motor (1 year)
- Both styles are the size of a normal shoe box
- Dimensions: 10"x10"x10"
- Weight: 49 lbs
| MODEL | PSI | GPM | REQUIRED OIL FLOW | REQUIRED OIL PRESSURE | PRICE |
| 304HYD | 3000 | 4.0 | 12 GPM | 2000 PSI without flow control | $2,800.60 |
| 404HYD | 4000 | 4.0 | 12 GPM | 1500 PSI without flow control | $2,869.70 |
Hydraulic Pressure Washers
This line of hydraulic powered pressure washers are designed to be compact and low maintenance utilizing your existing hydraulic source. Pressure ranges between 500 – 3000 psi at 3 – 13.5 GPM. Choose these models where frequent clean up is required on mobile, off-site vehicles. Some models include a flow control. The flow control only allows the correct amount of Hydraulic oil into the hydraulic motor so you don't over speed the water pump. Any oil above the rated flow is diverted to the tank line. This feature can be purchased and added later on models that are bought at first without it.
Features:
- General Pump and Motor Combo Unit (Comet Pump on Model 320)
- Transforms hydraulics pressure and flow already available in your system to water pressure
- Attaches to any hydraulic power source that meets the specifications listed below
- Triplex plunger pump with ceramic plungers and stainless steel valves
- Unloader valve for adjusting pressure for various cleaning applications
- 50 Feet of 3/8 Inch Pressure Hose Rated to 3000 PSI
- Industrial trigger gun and 36 inch wand assembly
- Variable nozzle allows user to go from 0-80 degrees with one device
- Warranty: Pump (5 years), Motor (1 year)
- Dimensions: 16"x13"x10" (Models 215, 313, 320)
- Dimensions: 19"x13"x10" (Models 420, 430, 4530)
| MODEL | PSI | GPM | REQUIRED OIL FLOW | REQUIRED OIL PRESSURE | PRICE |
| 313SPEC | 1200 | 3 | 6 GPM | 1300 PSI without Flow Control | $1,572.10 |
| 313STD | 1200 | 3 | 6 GPM | 1300 PSI with Flow Control | $1,739.95 |
| 320SPEC | 2000 | 3 | 7 GPM | 1500 PSI without Flow Control | $1,572.10 |
| 320STD | 2000 | 3 | 7 GPM | 1500 PSI with Flow Control | $1,739.95 |
| 420SPEC | 2000 | 3.6 | 7 GPM | 2000 PSI without Flow Control | $1,697.50 |
| 420STD | 2000 | 3.6 | 7 GPM | 2000 PSI with Flow Control | $2,064.25 |
| 430SPEC | 3000 | 4 | 10 GPM | 2300 PSI without Flow Control | $1,925.35 |
| 430STD | 3000 | 4 | 10 GPM | 2300 PSI with Flow Control | $2,331.30 |
| 4530SPEC | 3000 | 4.5 | 10 GPM | 2300 PSI without Flow Control | $2,331.30 |
Hydraulic Drive Marine On-Board High Pressure Cleaning System
Features:
- 3500 - 3500 PSI at 3.0 - 4.0 GPM
- Hydraulic Drive
- 9,000 - 14,000 Cleaning Units
- Black Frame (11-PW445C)
- Adjustable Pressure
- Thermal Relief Valve
- 50’ of High Pressure Hose
- 4 High Pressure Nozzles
- 36” Gun and Wand Assembly
- Hydraulic Specifications: 11 Gallons per minute at 1850 PSI. Motor Displacement 1.55in Cubed
- ORB Port Size #12 (11-PW445C)
- Dimensions; 35x30x23 Inches
- Weight; 144 LBS
| MODEL | PSI | GPM | REQUIRED OIL FLOW | REQUIRED OIL PRESSURE | PRICE |
| 11-PW4C0A | 3000 | 3.0 | 5 GPM | 2550 PSI | $1588.75 |
| 11-PW445C | 3500 | 4.0 | 11 GPM | 1850 PSI | $2738.75 |
Hydraulic Driven Pumps

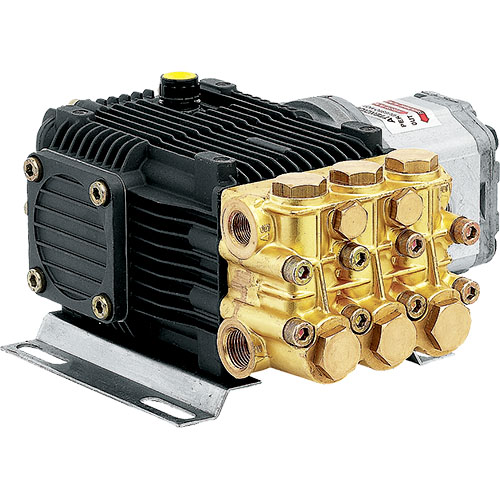

Hydraulic Drive Pump-RK
Features:
- Hydraulic Drive Triplex Plunger Pump with Mounting Rails
- Motor - Sauer Danfass
- Motor - 1/2" Inlet and Outlet
- Pump - 1/2" Female Inlet and 3/8" Female Outlet
- Motor Max Bar: 175
- Motor Max GPM: 7.5 to 7.7
- Motor Max PSI: 2500
| MODEL | PSI | GPM | MOTOR | RPM | PRICE |
| HYD-RK21.15 | 2200 | 5.5 | Sauer Danfass | 1450 | $1,180.90 |
| HYD-RK15.20 | 3000 | 4.0 | Sauer Danfass | 1450 | $1,180.90 |

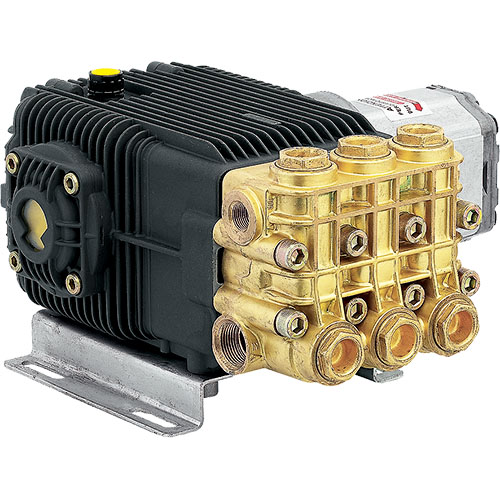

Hydraulic Drive Pump-XW
Features:
- Hydraulic Drive Triplex Plunger Pump with Mounting Rails
- Motor - Sauer Danfass
- Motor - 3/4" Inlet and Outlet
- Pump - 3/4" Female Inlet and 3/8" Female Outlet
- Motor Max Bar: 180
- Motor Max GPM: 9.5
- Motor Max PSI: 2610
| MODEL | PSI | GPM | MOTOR | RPM | PRICE |
| HYD-XW30.10 | 2200 | 8.0 | Sauer Danfass | 1450 | $1,498.50 |
| HYD-XWL50.09 | 1300 | 13.2 | Sauer Danfass | 1450 | $1,498.50 |

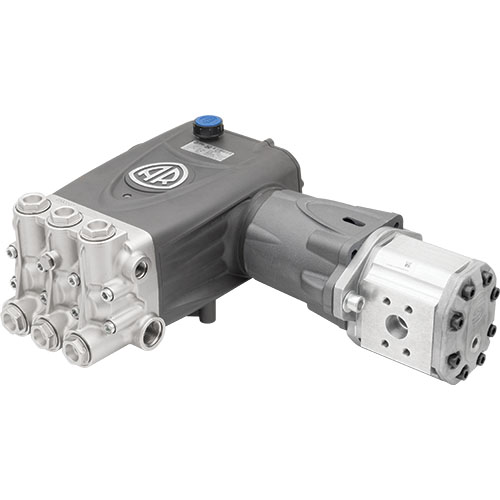

Hydraulic Drive Pump-RTX
Features:
- Hydraulic Drive Triplex Plunger Pump with Mounting Rails
- Motor - Sauer Danfass
- Motor - 3/4" Inlet and Outlet
- Pump - 1" Female Inlet and 1/2" Female Outlet
- Motor Max Bar: 150 to 225
- Motor Max GPM: 18.5
- Motor Max PSI: 2175 to 3265
| MODEL | PSI | GPM | MOTOR | RPM | PRICE |
| HYD-RTX30 | 4350 | 7.92 | Sauer Danfass | 1450 | $3,009.70 |
| HYD-RTX50 | 2900 | 13.2 | Sauer Danfass | 1450 | $3,009.70 |
| HYD-RTX70 | 2200 | 18.5 | Sauer Danfass | 1450 | $3,009.70 |
| HYD-RTX85 | 2200 | 22.5 | Sauer Danfass | 1450 | $3,291.75 |
| HYD-RTX100 | 1740 | 26.4 | Sauer Danfass | 1450 | $3,291.75 |
Hydraulic Base Kits

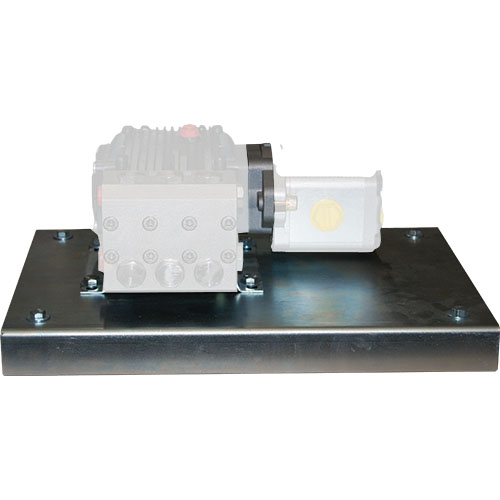

Hydraulic Base Kit 1
Features:
- Size: 12" x 18" x 1-5/8"
- Compatible with Hydraulic Motors: HYDM116, HYDM203, HYDM320
- Zinc plated 10 gauge steel
- Rubber feet included
- Pre-drilled for XT, XM, RK, RC & XW series pumps w/standard mounting rails
- Closed couple hydraulic motor flange and spacer (if required) for 5/8" hollow shaft (RC, XT & XM series)
| MODEL | SIZE | MATERIAL | COMPATIBLE | PRICE |
| HYDBK1 | 12" x 18" x 1-5/8" | Zinc plated 10 Gauge Steel | HYDM116, HYDM203, HYDM320 | $211.80 |

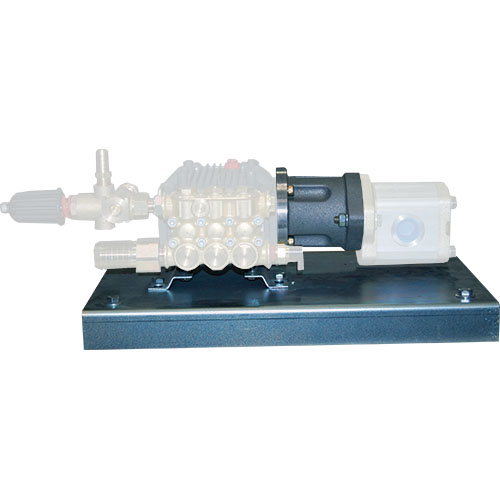

Hydraulic Base Kit 2
Features:
- Compatible with Hydraulic Motors: HYDM116, HYDM203, HYDM320
- Size: 12& x 18& x 1-5/8&
- Zinc plated 10 gauge steel
- Rubber feet included
- Pre-drilled for XM, RK & XW series pumps w/standard mounting rails
- Flange mount w/ L095 flex coupler (XM & RK
NL
shaft only)
| MODEL | SIZE | MATERIAL | COMPATIBLE | PRICE |
| HYDBK2 | 12" x 18" x 1-5/8" | Zinc plated 10 Gauge Steel | HYDM116, HYDM203, HYDM320 | $434.85 |

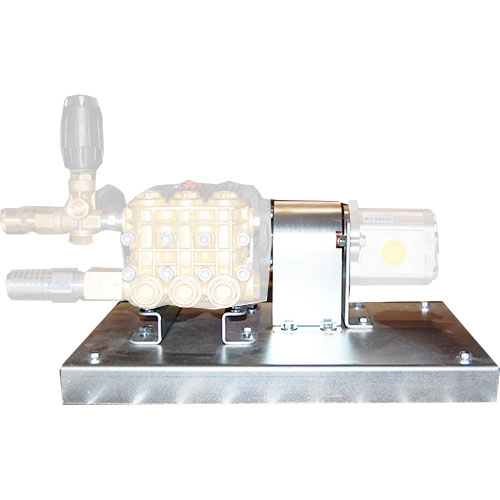

Hydraulic Base Kit 3
Features:
- Compatible with Hydraulic Motors: HYDM320
- Size: 14" x 19" x 1-5/8"
- Zinc plated 10 gauge steel with 2 welded rib supports
- Rubber feet included
- U-Bracket mounting rails
- L100 flex drive coupler
- Coupler shield
- Zinc plated 1/4" steel hydraulic motor mount
- Pre-drilled for XW & RW series pumps
| MODEL | SIZE | MATERIAL | COMPATIBLE | PRICE |
| HYDBK3 | 14" x 19" x 1-5/8" | Zinc plated 10 Gauge Steel w/ 2 welded rib supports |
HYDM320 | $442.15 |

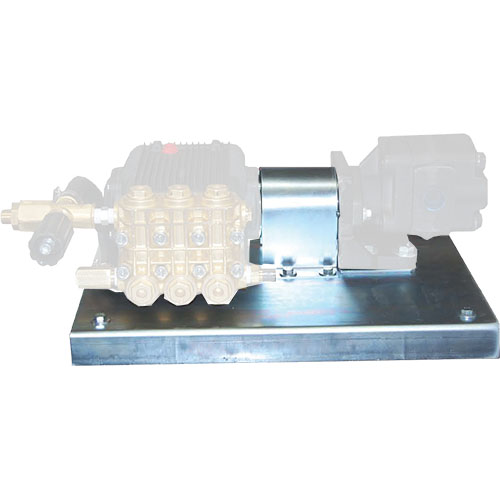

Hydraulic Base Kit 4
Features:
- Compatible with Hydraulic Motors: HYDM322 or HYDM403
- Size: 14" x 19" x 1-5/8"
- Zinc plated 10 gauge steel with 2 welded rib supports
- Rubber feet included
- L100 flex drive coupler
- Coupler shield
- Cast iron hydraulic motor mount
- Pre-drilled for XW, SXW & SHP series pumps
| MODEL | SIZE | MATERIAL | COMPATIBLE | PRICE |
| HYDBK4 | 14" x 19" x 1-5/8" | Zinc plated 10 Gauge Steel w/ 2 welded rib supports |
HYDM203, HYDM320 | $483.80 |
