Pressure Washer Adapters, Fittings, Connectors and Valves

QC Couplers & Sockets	Adapters	Reducers	Hose Barbs	Splitters
M22 QC	Gun Swivels	Hobby Fittings	Valves	O-Rings

Here are all the fittings you need!
Couplers, quick-connects, screw type, FNPT...

The O-ring seals within the female, socket half of the quick connect occasionally blow out or deteriorate. Allowing the pump to operate without the hose or nozzle attached is a common cause. If leaks occur, simply replace the O-ring seal.

Some pressure washers (Karcher, TroyBuilt...) are equipped with 22 mm couplers similar to garden house connections. Always tighten this type of connection securely.

Abbreviations:

MNPT	Male National Pipe Thread
FNPT	Female National Pipe Thread
M22	22 Millimeters, or 7/8"

Need help with finding the right dimensions and threading? CLICK HERE

Troybuilt, Excell, Devilbis, Karcher Fittings

M22 Male to MNPT

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	DESCRIPTION	PRICE
85.300.132	M22 Male to 1/4" MNPT	$7.65
85.300.133	M22 Male to 3/8" MNPT	$6.00

M22 Male to M22 Male

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	DESCRIPTION	PRICE
BN-6427	M22 Male to M22 Male	$12.20

M22 Male to FNPT

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	DESCRIPTION	PRICE
85.300.126	M22 Male to 1/4" FNPT	$7.15
85.300.127	M22 Male to 3/8" FNPT	$6.25

M22 Female to FNPT

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	DESCRIPTION	PRICE
85.300.124	M22 Female to 1/4" FNPT	$18.15
85.300.125	M22 Female to 3/8" FNPT	$8.95

M22 Female to MNPT

Features:

Max Pressure: 3600 PSI
Max Flow: 7.8 GPM
Max Temperature: 300 °F
Machined brass body
high-impact plastic knob

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	DESCRIPTION	PRICE
9.802-173.0	M22 Female to 1/4" MNPT	$10.15

M22 Female to Q/C Plug

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	DESCRIPTION	PRICE
85.300.142	M22 Female to 3/8" Plug	$10.25
24.0448	M22 Female to 3/8" Female Socket	$14.75
6323	22MM Plug x 3/8" QC Socket	$13.00

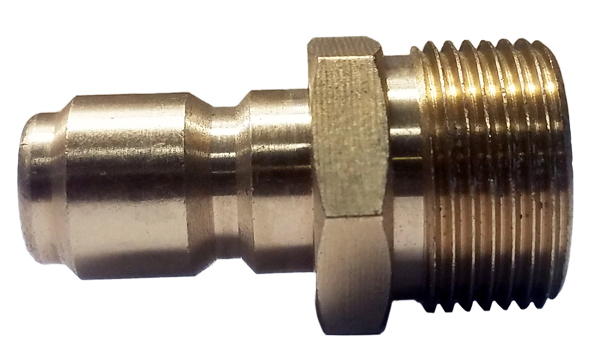

UW11-PW4A8D	M22 Male to 3/8" Male Quick Connect	$5.55

M22 Male to FNPT — 8.723-954.0
(top right)

M22 to 3/8" FNPT Swivel

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	DESCRIPTION	PRICE
8.723-954.0	Swivel Screw Coupling M22 to 3/8" FNPT	$20.20

Adapters

Brass Adapters

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	DESCRIPTION	MAX PRESSURE	PRICE
9.803-054.0	1/4" FNPT x 1/8" MNPT Brass Adapter	4000	$5.55
8.705-185.0	3/8" FNPT x 1/8" MNPT Brass Adapter	4000	$13.85
9.804-007.0	3/8" FNPT x 1/4" MNPT Brass Adapter	4000	$6.00
8.705-192.0	1/2" FNPT x 1/4" MNPT Brass Adapter	4000	$7.65
8.705-191.0	1/2" FNPT x 3/8" MNPT Brass Adapter	4000	$7.90
8.705-194.0	3/4" FNPT x 1/2" MNPT Brass Adapter	4000	$10.50

Garden Hose Hex Adapters - Full Assembly

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	DESCRIPTION	PRICE
85.300.119	3/8" MNPT to 3/4" FGHT	$8.10
85.300.120	1/2" MNPT to 3/4" FGH	$7.95

Reducers

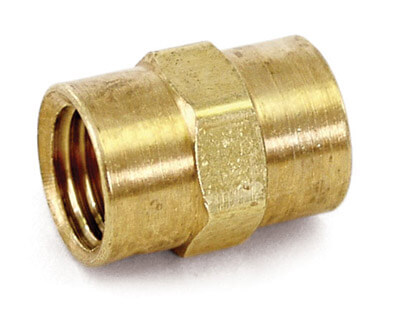

Brass Hex Couplers

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	DESCRIPTION	PRICE
8.705-150.0	Coupling 1/8" F x 1/8" F	$5.10
8.705-151.0	Coupling 1/4" F x 1/4" F	$5.55
8.705-152.0	Coupling 3/8" F x 3/8" F	$6.10
8.705-153.0	Coupling 1/2" F x 1/2" F	$7.10
8.705-154.0	Coupling 3/4" F x 3/4" F	$13.40

Brass Reducing Hex Couplings

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	DESCRIPTION	MAX PRESSURE	PRICE
8.705-155.0	Coupling 1/4" F x 1/8" F	4000	$6.00
8.705-156.0	Coupling 3/8" F x 1/4" F	4000	$5.35
8.705-157.0	Coupling 1/2" F x 1/4" F	4000	$10.45
8.705-158.0	Coupling 1/2" F x 3/8" F	4000	$9.65
8.705-159.0	Coupling 3/4" F x 1/2" F	4000	$15.35

HP Hex Nipples and Bushings

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	DESCRIPTION	MAX PRESSURE	PRICE
5406-06-04	1/4" FPT x 3/8" MPT Hex Bushing	4000	$5.00
5406-08-04	1/4" FPT x 1/2" MPT Hex Bushing	4000	$5.15
5406-08-06	3/8" FPT x 1/2" MPT Hex Bushing	4000	$4.50

Zinc-Plated Hex Nipple

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	DESCRIPTION	MAX PRESSURE	PRICE
9.802-010.0	1/4" MPT X 1/4" MPT	6000	$5.70
9.802-022.0	3/8" MPT x 1/4" MPT	6000	$4.60
9.802-011.0	3/8" MPT X 3/8" MPT	6000	$5.65
9.802-012.0	1/2" MPT X 1/2" MPT	6000	$7.40
8.705-380.0	3/4" MPT X 3/4" MP	6000	$13.10
8.705-375.0	1/2" MPT X 1/4" MPT	6000	$5.65
8.705-376.0	1/2" MPT X 3/8" MPT	6000	$8.30
8.705-379.0	3/4" MPT X 1/2" MPT	6000	$13.40
8.705-233.0	1/8" MPT X 3/8" MPT	6000	$14.60

Splitter - Tee

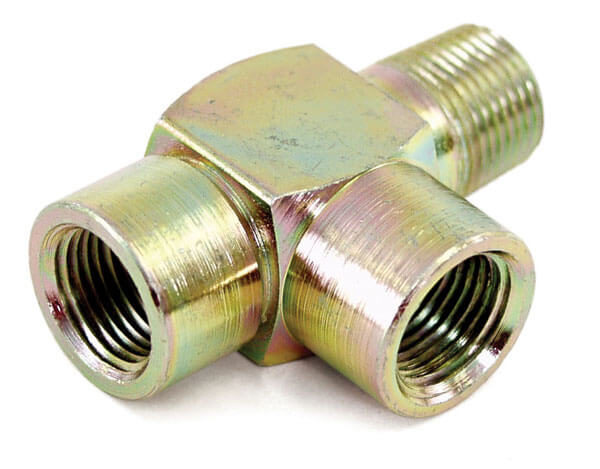

Street Tee

Fittings for discharge side of the pump.

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	FPT x FPT x MPT	MAX PRESSURE	PRICE
8.705-428.0	1/4"	5000	$12.15
9.802-033.0	3/8"	4500	$15.25
9.802-034.0	1/2"	3000	$22.60
8.705-431.0	3 /4"	3000	$36.10

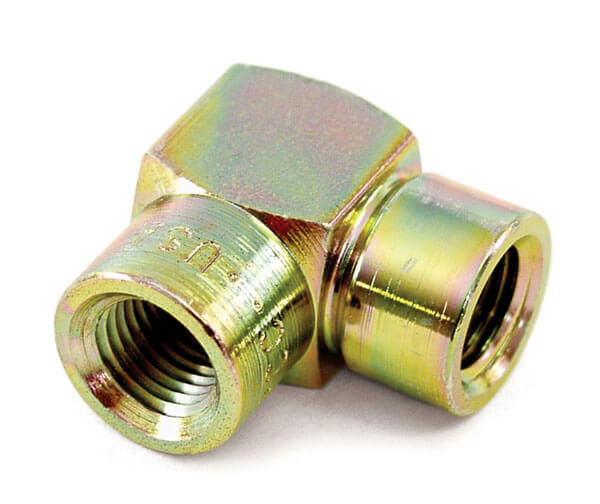

90 Degree Elbows

Fittings for discharge side of the pump.

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	FTP x FPT	MAX PRESSURE	PRICE
8.705-393.0	1/4" x 1/4"	5000	$8.40
8.705-394.0	1/4" x 3/8"	4500	$13.05
9.802-023.0	3/8" x 3/8"	4500	$9.15
8.705-396.0	3/8" x 1/2"	3000	$17.85
8.705-397.0	1/2" x 1/2"	3000	$14.25
8.705-398.0	1/2" x 3/4"	4000	$36.10
8.705-399.0	3/4" x 3/4"	4000	$25.80

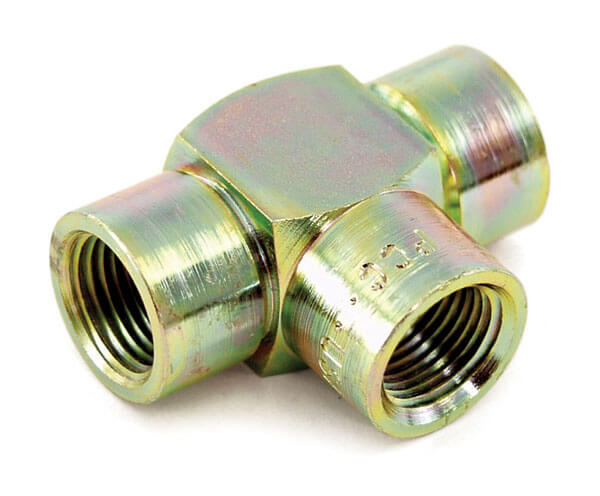

Tee - 3 Connects

Fittings for discharge side of the pump.

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	FPT	MAX PRESSURE	PRICE
8.705-412.0	1/4"	5000	$12.50
8.705-414.0	3/8"	4500	$13.65
9.802-032.0	1/2"	3000	$18.55
8.705-417.0	3/4"	3000	$32.25

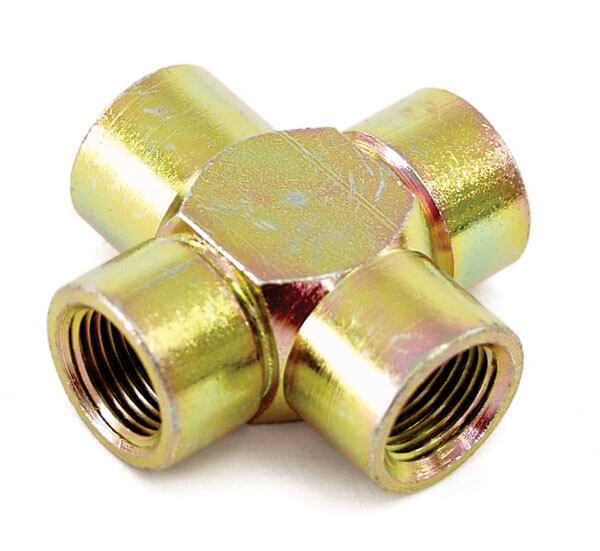

Cross - 4 Connects

Fittings for discharge side of the pump.

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	PFT	MAX PRESSURE	PRICE
8.705-418.0	1/4"	5000	$19.90
8.705-419.0	3/8"	4500	$20.90
8.705-421.0	3/4"	3000	$59.45

Gun Swivels

Gun Swivels

Mount the DGV series to any type of high pressure gun, lance or whip line for an easy turning, low maintenance gun swivel. An extra long stainless steel shaft guarantees stability and durability against side torque and heavy use. Works even at 4000 PSI pressure!

Features:

Max RPM: 30
Max Temperature: 250°F
Max Pressure: 4000PSI
No greasing required

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	DESCRIPTION	PRICE
MO-32.552	Swivel: 1/4" MNPT x 1/4" FNPT	$78.50
MO-32.564	Swivel: 3/8 " MNPT x 3/8 " FNPT	$54.70

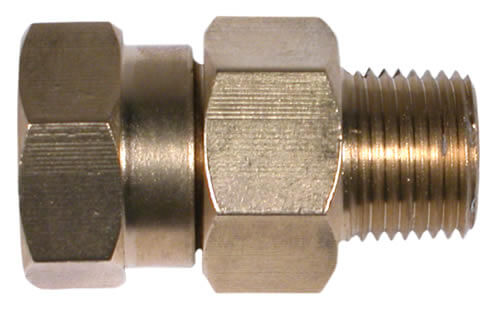

Hose Swivel Brass or Stainless Steel, FNPT Inlet to MNPT Outlet

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	DESCRIPTION	PRICE
85.300.111	1/4" FNPT to 1/4" MNPT	$13.00
85.300.110	3/8" FNPT to 3/8" MNPT	$11.70
UW11-PWB839	Stainless Steel 3/8" FNPT to 3/8" MNPT	$28.10

O-Rings

Features:

Cold Water O-Rings
EPDM

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	DESCRIPTION	PRICE
85.309.102	SINGLE EPDM 1/4" O-Ring	$1.10
85.309.103	SINGLE EPDM 3/8" O-Ring	$1.80

High Temp O-Rings

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	DESCRIPTION	PRICE
OR-110-VT-75-BROWN	SINGLE High Temp Viton 1/4" O-Ring	$3.45
OR-112-VT-75-BROWN	SINGLE High Temp Viton 3/8" O-Ring	$2.45

Replacement O-Rings

Features:

Nitrile up to 210 °F
Use Viton for 230 °F and above

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	DESCRIPTION	PRICE
8.701-994.0	SINGLE EPDM 1/8" O-Ring	$3.90
8.702-021.0	SINGLE EPDM 1/2" O-Ring	$4.50

O-Ring Tool

Indispensable for pump repair. Excellent for removing o-rings, seals...

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	DESCRIPTION	PRICE
8.707-467.0	O-Ring Remover	$16.00

Teflon Tape

Teflon Tape is the inexpensive and effective material used to seal pipe threads being joined together for plumbing purposes. It is used to seal water on pressure washers fittings and prevent from leaking through threaded connections. Technically known as PTFE (polytetrafluoroethylene).

Dimensions: 1/2" x 480"
Weight: 0.40 lbs

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	DESCRIPTION	PRICE
85.400.110	Teflon Tap - seals pipe threads from leaks	$4.50
