Industrial Duct Cleaning Units

Air Duct Cleaners for quick and easy cleaning of: Ducts, Vents, Pipes, Kegs, Chutes, Chimneys, Gutters, Barrels, Containers, Drains, Hoods...

• All Duct Cleaners come with 3/8" NPTF water inlet.
• Requires two 1/8“ Nozzles which are sold separately.
• Other versions and sizes available

Use this handy table to determine which duct cleaner is the best for your application.

Adjustable Duct Cleaners

Features:

• Adjustabe Duct Cleaner
• Gallons Per Minute (GPM): 10.5
• Pressure: 4000 PSI

MODEL	DESCRIPTION	SIZE	PRICE
9.115-326.0	Adjustable Duct Cleaner 4000 PSI 10.5 GPM	3"	$277.00
9.115-324.0	Adjustable Duct Cleaner 4000 PSI 10.5 GPM	6"	$301.75

Fixed Duct Cleaners

Features:

• Fixed Duct Cleaner
• Gallons Per Minute (GPM): 10.5
• Pressure: 4000 PSI

MODEL	DESCRIPTION	SIZE	PRICE
9.115-325.0	Fixed Duct Cleaner 4000 PSI 10.5 GPM	6"	$255.95

Replacement Swivel

Features:

• Replacement Swivel for Duct Cleaners

MODEL	DESCRIPTION	PRICE
9.116-400.0	Replacement Swivel for 3" and 6" Duct Cleaners	$111.30

Fixed Duct Cleaner

The complete stainless versions of these various cleaning units are specially designed for use with water and cleaning additive at high r.p.m.
Non adjustable arms. Perfect for vertical chutes.

Features:

• 2 Spray Nozzles 1/8" NPT
• Throughput Medium: water, cleaning additive pH 3-12
• Pressure: 4000 PSI
• Temperature: 40°F - 250°F
• R.P.M.: 2000
• Flow Rate: depending on pump performance(10 GPM Max)
• Body: DYG: Carbide, Double Bearings
• Head: brass, nickel plated
• Rotor Guard: stainless steel
• Nominal Width: NW 1/4"
• 1/8" Meg Nozzles are not included (will be determined based on your PSI and GPM)
• Rotary Duct Cleaner Replacement Parts

(Remember once you determine the orifice size of the nozzle, you will need to divide that number by the quantity of nozzles need for the attachment. For example, if you are using a machine with 4000 PSI and 4 GPM, that indicated a size 4.0 orifice. If your attachment requires 2 nozzles, you divide 4.0 by 2 and each duct cleaning nozzle should be 2.0. If dividing it does not make a whole number, round the number up to the next size. See spray nozzle chart for selection help.)

MODEL	DIAMETER	HEIGHT	PRICE
MO-81-406	3"	2.4"	$391.30
MO-81-426	6"	2.8"	$427.65
MO-81-456	12"	2.8"	$439.75
MO-81-466	16"	2.8"	$451.90
MO-81-476	20"	2.8"	$500.35
MO-81-486	24"	2.8"	$512.45

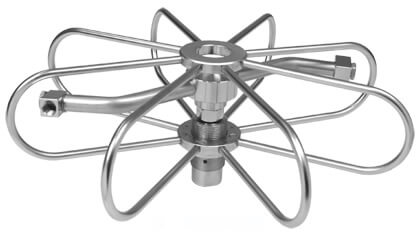

Adjustable Duct Cleaners

The complete stainless versions of these various cleaning units are specially designed for use with water and cleaning additive at high r.p.m.
Adjustable arms allow different spray angles. Perfect for 360?? cleaning.

Features:

• 2 Spray Nozzles 1/8" NPT *adjustable*
• Throughput Medium: water, cleaning additive pH 3-12
• Pressure: 4000 PSI
• Temperature: 40°F - 250°F
• R.P.M.: 2000
• Flow Rate: depending on pump performance(10 GPM Max)
• Body: DYG: Carbide, Double Bearings
• Head: brass, nickel plated
• Rotor Guard: stainless steel
• Nominal Width: NW 1/4"
• 1/8" Meg Nozzles are not included (will be determined based on your PSI and GPM)

(Remember once you determine the orifice size of the nozzle, you will need to divide that number by the quantity of nozzles need for the attachment. For example, if you are using a machine with 4000 PSI and 4 GPM, that indicated a size 4.0 orifice. If your attachment requires 2 nozzles, you divide 4.0 by 2 and each nozzle should be 2.0. If dividing it does not make a whole number, round the number up to the next size. See spray nozzle chart for selection help.)

MODEL	DIAMETER	HEIGHT	PRICE
MO-81-506	3"	2.4"	$437.35
MO-81-526	6"	2.8"	$473.70
MO-81-556	12"	2.8"	$485.80
MO-81-566	16"	2.8"	$497.90
MO-81-576	20"	2.8"	$546.40
MO-81-586	24"	2.8"	$558.50

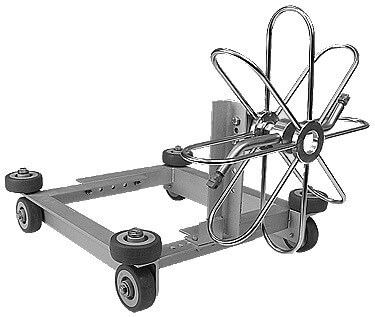

TYR Mobile

The complete stainless versions of this frame has side to side and height adjustable. This is the perfect tool for horizontal duct cleaning. This mobile cart prevents the duct cleaner from bouncing against the sides of the wall. Wheels allow easy sliding inside the duct. All stainless steel construction cart can be resized (weight and height) depending on your needs. Duct cleaning heads are not included, see top of this page for options.

MODEL	SIZE	WEIGHT	PRICE

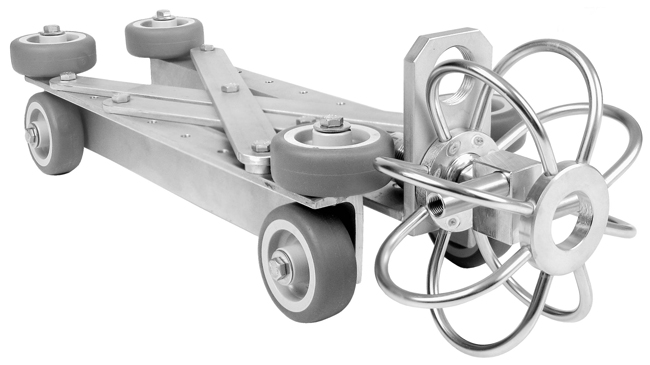

MO-81.911	for 6" to 12" Duct Cleaner	9.0 lbs	$482.15
MO-81-902	for 12" to 20" Duct Cleaner	9.5 lbs	$482.15
MO-81-903	for 20" to 24" Duct Cleaner	15.6 lbs	$603.30

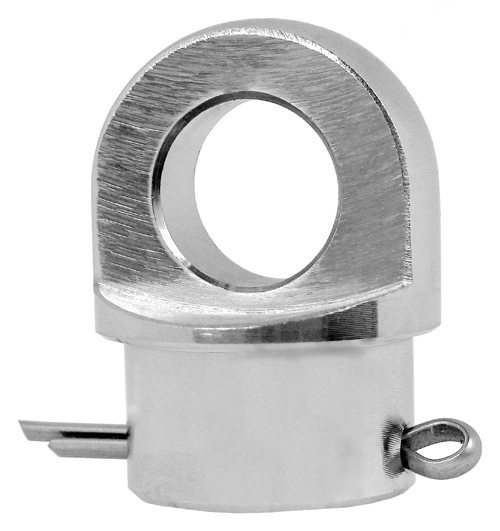

MO-81-905	Hook for Duct Cleaner (Optional Item)	0.2 lbs	$44.10

Rotating Nozzle

Adds extra agitation, handle up to 3000 PSI. Back jet only. Size 5.5.

MODEL	DESCRIPTION	PRICE
200049700	for 3" to 16" Duct Cleaner	$70.85

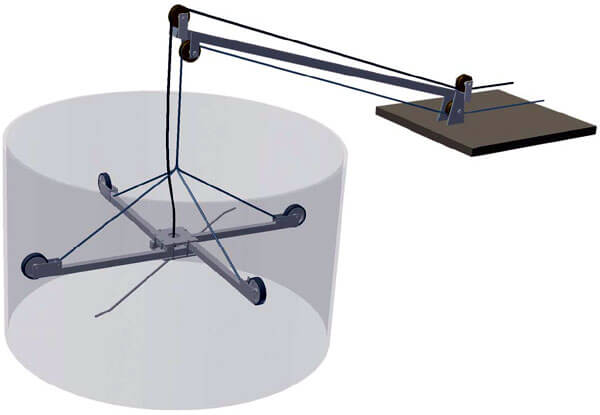

Vertical Silo Cleaner

The Vertical Silo Cleaner is a self guiding cleaning device for any type of surface. Slowly lower and raise the cleaner inside the silo and the self rotating arm will evenly clean the surface. Adjustable guides and interchangeable spray arms, make this the perfect tool for cleaning silos ranging from 7'-12' in Diameter. This cleaner is equipped with high RPM Swivel features reinforced self-lubricating stainless steel ball bearings and dual spring-based carbide seal sliding rings for long-lasting operation under tough conditions. Four 5" solid rubber wheels assure safe guidance inside the silo and keep to rotor arm at the right cleaning distance.

Features:

• Maximum Pressure: 5000 PSI
• Maximum Flow: 40 GPM
• Maximum Temperature: 250°F
• 1/2" Female Inlet
• 1 X Adjustable Guide Rack
• 1 X High RPM Swivel
• 5" x 4" Solid Rubber Wheels
• 3 sets of Spray Arms included:
  1 x 6' 7" Spray Arm
  1 x 8' 2" Spray Arm
  1 x 9' 10" Spray Arm
• Stainless Steel Swivel
• Spray Nozzles sold separately
• Lowering device and winch Not included

MODEL	DIAMETER	PRICE
MO-81-095	Self Guiding Vertical Silo Cleaner	$2,049.25

What is "Duct Cleaning" and why is it important?

See our articles and tips on restaurant duct cleaning and exhaust cleaning.

Air Duct cleaning generally refers to the cleaning of various heating and cooling system components of forced air systems, including the supply and return air ducts and registers, grilles and diffusers, heat exchangers heating and cooling coils, condensate drain pans (drip pans), fan motor and fan housing, and the air handling unit housing.

If not properly installed, maintained, and operated, these components may become contaminated with particles of dust, pollen or other debris. If moisture is present, the potential for microbiological growth (e.g., mold) is increased and spores from such growth may be released into the home's living space.

(Source http://allergies.about.com/library/blairduct01.htm)
