Car Wash Vacuum Systems
FEATURES & BENEFITS
- An important feature to look for is if the vacuum has 2 motors or 3 motors — Many of the coin operated vacuum car wash vacuum systems, manufacturers offer 2 and 3 motor options.
- The advantages of having a third motor include higher suction — This can be important at higher altitudes but may not be noticeable to the regular carwash customer.
- If the vacuum is remotely mounted or uses a long length of hose the third motor may be a better choice.
- Another reason to consider is if one of three motors is out, it is not nearly as noticeable as one of two being out.
- Most of the vacuums offer four filter bags — This gives a large total area of filtration to reduce the loss of suction to the filter.
- 2" vacuum hose is less likely to get plugged with debris than a 1-1/2" hose.
- Coin operated vacuum systems are not only a great convenience to your customers but also a great tool to generate revenue with low cost and low maintenance requirements.
Order Online or Call Toll Free (866) 858-4982
Coin Operated Vacuum Systems

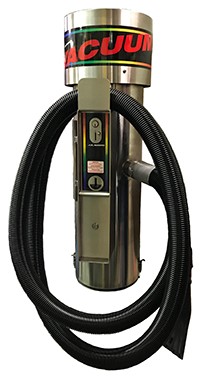

Single Motor Mini Vac
Features:
- 120 volt motor
- Requires 20 AMP service
- Single Motor with 2" Hose = 129.8 CFM / 633.9 Air Watts
- Coin operated model
- Imonex coin acceptor takes quarters
- 110 volt accumulating timer
- Coin box holds 630 quarters or $158
- Wall mount or post mount (post available #9299-POST)
- Drop bottom clean out for hands free cleaning
- Single service door with single pleated cartridge filter
- Standard 2" x 15’ Hose with swivel cuff and claw nozzle included
- 39.42"(H) x 12.596"(W) x 21.568"(D)
| MODEL | DESCRIPTION | MOTOR | VOLTAGE | MANUAL | PRICE |
| 9299 | Mini Vacuum - Coin Operated | 1-Motor | 120V/ 20 Amp | Download
| $2,961.25 |
Classic Single Door Vacuum Systems
Features:
- One Service door with 2 Spring-Action Style Bag Assemblies
- 120 Volt, 20 Amp (2 motor) Ratings
- SSAC 110 Volt Accumulating Timer
- 2" x 15 FT Hose with Swivel Cuff and Nozzle
- Stainless Steel or Lighted Dome (depending on model)
- Coin Acceptor
- ETL Approved
- Pin-lock security system for added protection
- Angled Lock Bar or Pin Lock Locking System (depending on model)
- Dome Colors: Red, Blue, Purple, Yellow, Dark Green, Light Green, White
- Hose Colors: Beige, Black (standard), Blue, Green, Red, Yellow
- Decal Colors: Black (standard), Blue, Violet, Yellow
- No power cord or plug provided (see your electrician to provide wires to terminal strip on unit)
Select dome light, vacuum hose, and decal colors at NO additional charge in shopping cart.
| MODEL | DESCRIPTION | MOTOR | VOLTAGE | PRICE |

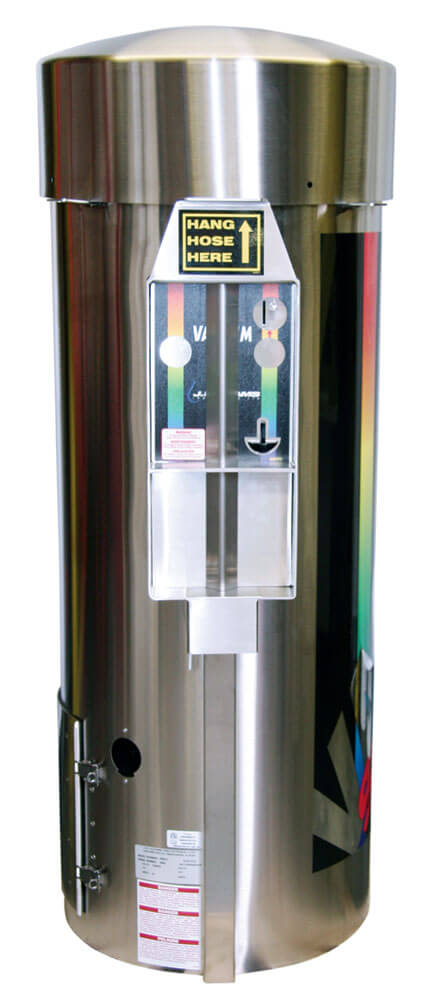

| 8100 | Vacuum w/ Small Stainless Steel Dome & Angled Lock Bar | 2-Motor | 120V/ 20 Amp | $1,801.45 |
| 8500 | Vacuum w/ Large Stainless Steel & Angled Lock Bar | 2-Motor | 120V/ 20 Amp | $1,846.25 |
| 8500LD | Vacuum w/ Lighted Dome & Angled Lock Bar | 2-Motor | 120V/ 20 Amp | $1,769.45 |
| 8200 | Vacuum w/ Small Stainless Steel Dome & Pin Lock | 2-Motor | 120V/ 20 Amp | $2,121.45 |
| 8600 | Vacuum w/ Large Stainless Steel & Pin Lock | 2-Motor | 120V/ 20 Amp | $2,223.85 |

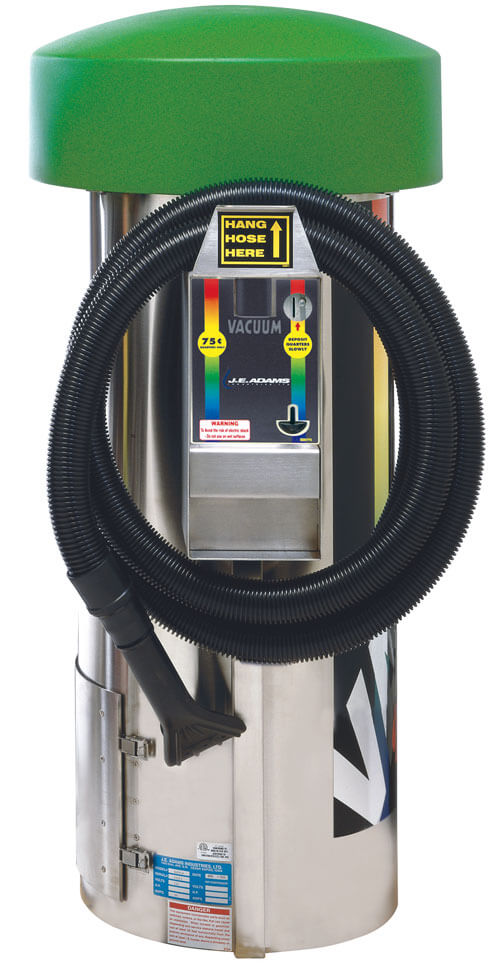

| 8600LD | Vacuum w/ Lighted Dome & Pin Lock | 2-Motor | 120V/ 20 Amp | $2,025.45 |

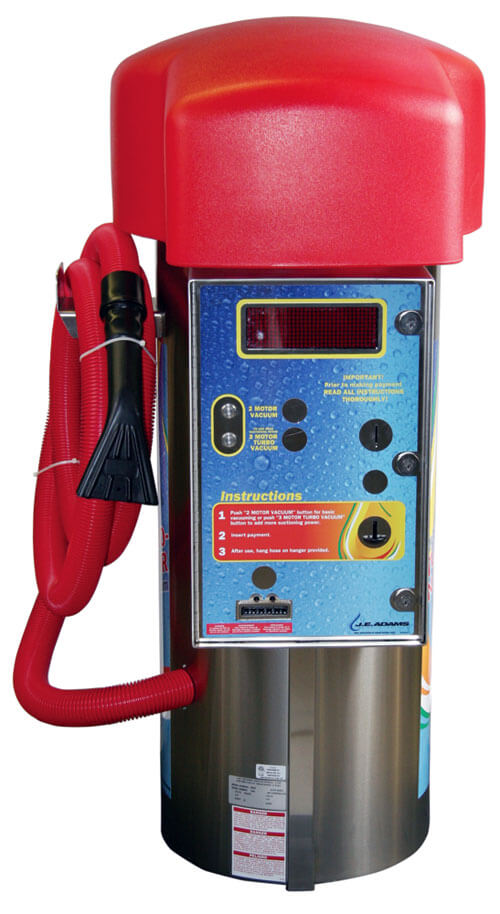

Ultra Turbonator Vacuums
The Ultra Turbonator allows you to charge two different prices for the 2-motor and 3-motor functions.
Features:
- (3) 1.6 HP, 120 volt Motors - Requires 30 AMP service
- 3 Motors with 2" hose = 210 CFM / 415.4 Air Watts
- 3 Motors with 1-1/2" hose = 165.9 CFM / 662.3 Air Watts
- Average vend on Turbo Vacuum $1.50 for 4 minutes
- Average vend on Vacuum $1.00 for 4 minutes
- Large Digital Display Timer
- Scrolls messages calculates time between functions, recalculates remaining time visual and audible last coin alarm
- 2 lighted push buttons: 2 motor vacuum - 3 motor turbo vacuum
- 15 FT x 2" Hose with swivel cuff and nozzle
- Dome Colors: Red, Blue, Purple, Yellow, Dark Green, Light Green, White
- Hose Colors: Beige, Black (standard), Blue, Green, Red, Yellow
- Decal Colors: Black (standard), Blue, Yellow
- Double service doors offer easy access to clean out compartment and 4 filter bag system
- Optional Accessories: Service Door Security Cover (Item #9427K), Vinyl Clean-out Bag (Item #8599) and Rubber Clean-out Container (Item #8080)
- Weight: 215 lbs
Select dome light, vacuum hose, and decal colors at NO additional charge in shopping cart.
| MODEL | DESCRIPTION | MOTOR | VOLTAGE | PRICE |
| 29025 | Vacuum w/ Bill Acceptor | 3-Motor | 120V/ 30 Amp | $5,921.55 |
| 29026 | Vacuum w/ Bill Acceptor - Vault Ready | 3-Motor | 120V/ 20 Amp | $5,921.55 |
| 29027 | Vacuum | 3-Motor | 120V/ 20 Amp | $5,102.35 |
| 29027-220V | Vacuum | 3-Motor | 220V/ 50 Hz | $5,428.75 |
| 29028 | Vacuum - Vault Ready | 3-Motor | 120V/ 20 Amp | $5,102.35 |
Commercial Vacuum Systems without Coin Box

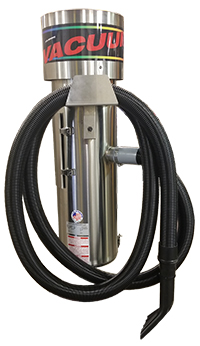

Single Motor Mini Vac
Features:
- 120 volt motor
- Requires 20 AMP service
- Single Motor with 2" Hose = 129.8 CFM / 633.9 Air Watts
- Wall mount or post mount (post available #9299-POST)
- Drop bottom clean out for hands free cleaning
- Single service door with single pleated cartridge filter
- Standard 2" x 15’ Hose with swivel cuff and claw nozzle included
- 39.42"(H) x 12.596"(W) x 21.568"(D)
| MODEL | DESCRIPTION | MOTOR | VOLTAGE | MANUAL | PRICE |
| 9299-C | Mini Vacuum - Commercial | 1-Motor | 120V/ 20 Amp | Download
| $1,517.05 |
Commercial Vacuums
With Toggle On-off Switches
Features:
- Unique 4 Filter System for increased motor life
- Heavy Duty toggle switches for on/off control
- (2) or (3) 1.6 HP Motors
- Exterior Channel to totally enclose supply wiring
- 120 Volt, 20 Amp (2 motor) or 30 Amp (3 motor) Ratings
- Upper Access Door For Filter Clean-Out
- Lower Cleanout Door for Easy Cleaning
- Top grade 18 gauge stainless steel construction
- 15 FT x 2" Black Hose with Claw
- Optional Colored Hoses (red, blue, yellow, green and rainbow)
- Dome Colors: Red, Blue, Purple, Yellow, Dark Green, Light Green, White
- Rated to 200 CFM & 90" Waterlift (2 motor vacs)
- Rated to 210 CFM (3 motor vacs)
- Dimensions: 19” Diameter/ 54” High
- Weight: 140 lbs.
- No power cord or plug provided (see your electrician to provide wires to terminal strip on unit)
- Optional: Push Button Conversion Kit
Select dome color in shopping cart.
| MODEL | DESCRIPTION | MOTOR | VOLTAGE | PRICE |

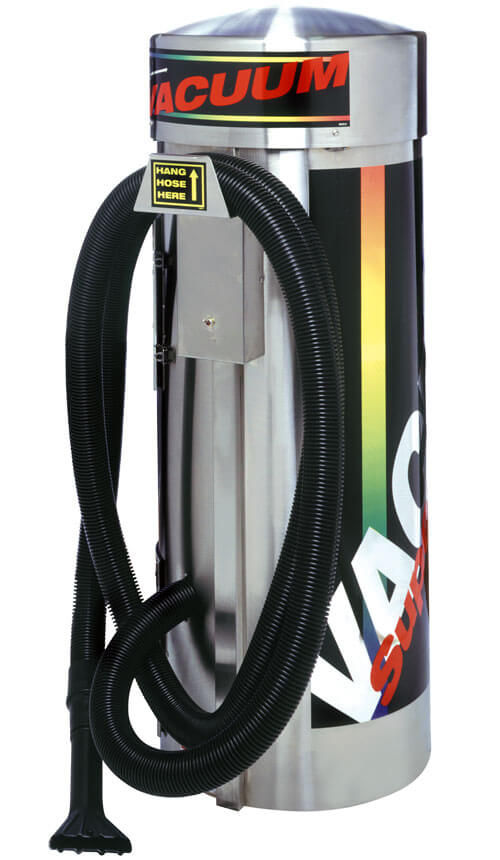

| 9225 | Small Stainless Steel Dome | 2-Motor | 120 V/ 20 Amp | $3,048.75 |
| 9235 | Large Stainless Steel Dome | 2-Motor | 120 V/ 20 Amp | $3,323.72 |
| 9235LD | Lighted Dome | 2-Motor | 120 V/ 20 Amp | $1,638.65 |
| 9235-3 | Large Stainless Steel Dome | 3-Motor | 120 V/ 30 Amp | $2,262.25 |
| 9235-3LD | Lighted Dome | 3-Motor | 120 V/ 30 Amp | $2,163.45 |
| 9225-2* | Small Stainless Steel Dome - Wall Mounted | 2-Motor | 120 V/ 20 Amp | $2,003.45 |
| 9225-3* | Large Stainless Steel Dome - Wall Mounted | 3-Motor | 120 V/ 30 Amp | $2,246.65 |

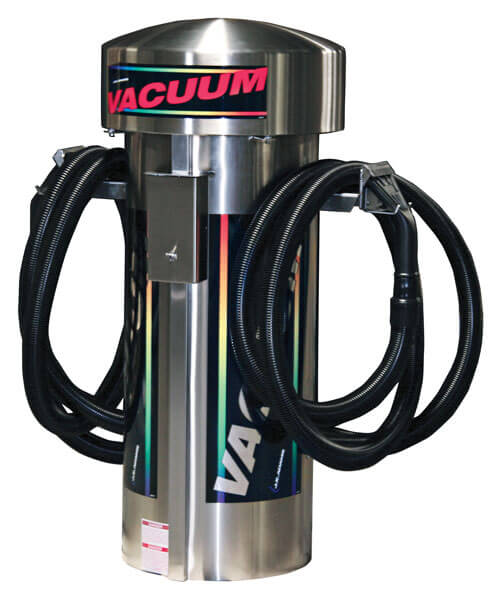

| 9235-3DH | Large Stainless Steel Dome - Dual Hose | 3-Motor | 120 V/ 30 Amp | $2,413.05 |
| 9235-3DH-WALL* | Large Stainless Steel Dome - Dual Hose & Wall Mounted | 3-Motor | 120 V/ 30 Amp | $2,534.65 |
| 9235-3DH-220V | Large Stainless Steel Dome - Dual Hose | 3-Motor | 220 V / 15 @ 50 Hz / 1ph | $2,502.65 |
| 9225-220v | Small Stainless Steel Dome | 2-Motor | 220 v / 1ph @ 50 Hz | $2,012.65 |
| 9235-220v | Large Stainless Steel Dome | 2-Motor | 220 V / 1ph @ 50 Hz | $2,310.65 |
| 9235-3-220V | Large Stainless Steel Dome | 3-Motor | 220 V / 15 @ 60 Hz / 1ph | $2,413.05 |
*9225-2,9225-3, & 9235-3DH-WALL are wired to an electrical switch.
Push Button Conversion Kit
This push button timeout option shuts down the vacuum if left on. Timer set at factory at 4 minutes for shut off, but can be changed to any time at factory or at customer site.Timer can be set for up to 12 minutes.
| MODEL | DESCRIPTION | PRICE |
| 9225PBK | Push Button Conversion Kit - for 9225, 9235-3, 9235LD | $216.45 |

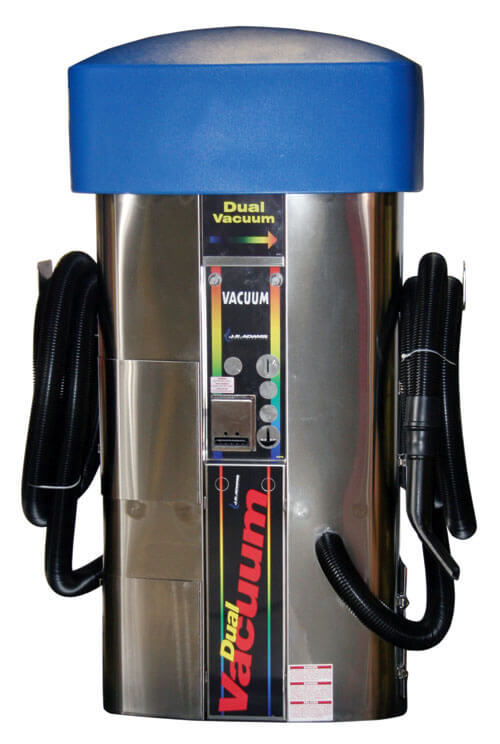

Dual Vacuums
Dual Vacuums
Features:
- Face plate with 1 Medeco cam lock (per side)
- Security channel with 2 Medeco cam locks
- 4 service doors for easy maintenance
- 2 vacs in 1 save island space and maximum profits
- Large central service and control compartments are common to both vacs, for easy installation and service
- Redesigned large capacity coin box accommodates an Abus lock, and holds over $500 in quarters
- 4 - 1.6 HP, 110 volt Ametek motors (2 per side)
- SSAC 110 volt accumulating timer standard (optional 220 volt)
- 2 plastic clean-out bins
- 15 FT x 2" Black Hose on each side with swivel cuff and nozzle (optional 1-1/2" available)
- Dome Colors: Red, Blue, Purple, Yellow, Dark Green, Light Green, White
- Optional Colored Hoses (red, blue, yellow, green and rainbow)
Select dome color in shopping cart.
| MODEL | DESCRIPTION | MOTOR | VOLTAGE | PRICE |
| 8960 | Dual Vacuum w/ Coin Acceptor | 4-Motor | 120V/ 20 Amp | $4,992.50 |
| 8960-C | Dual Vacuum | 4-Motor | 120V/ 20 Amp | $3,566.35 |
| 8970 | Dual Vacuum w/ Coin Acceptor - Vault Ready | 4-Motor | 120V/ 20 Amp | $4,886.25 |
| 8960-220 | Dual Vacuum w/ Coin Acceptor | 4-Motor | 220V @ 50 Hz | $3,936.30 |
| 8960C220 | Dual Vacuum | 4-Motor | 220V @ 50 Hz | $3,443.50 |

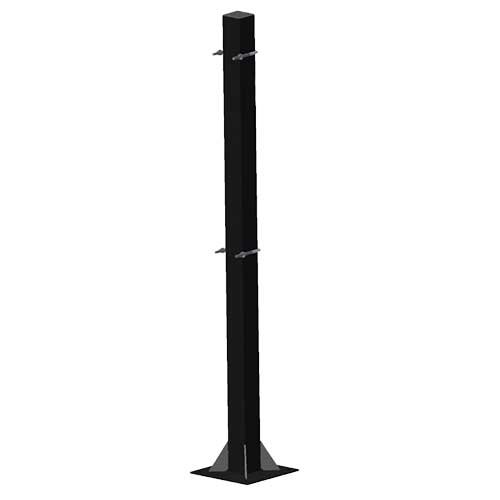

Vacuum Post
Optional Vacuum Post
Features:
- Color: Black
- Weight: 40 lbs
| MODEL | DESCRIPTION | PRICE |
| 9299-POST | Vacuum Post - for mini vacs (9299 & 9299-C) | $621.05 |
