Ultra High Pressure Hose
Ultra high pressure hose can be used for numerous applications and can either be made of rubber or plastic. The rubber water blast hose found below is commonly chosen in industries such as mining, chemical production plants, or petroleum producers. It is accepted world wide as specified by RMA (USA), BFPA (UK), and DIN (Germany), having a 2.5:1 safety factor.
- Its construction is made of a tube that is smooth with a polymeric liner for high flow rates.
- The inside is reinforced with high tensile steel wire spirals for maximum flexibility and strength.
- This makes it 80% more abrasion resistant while be 3-10% lighter in weight than other similar hoses.
- The bend radius will vary depending on the hose ID (inner diameter) and ranges from 7.09 to 13.4 inches.
- These are premium hoses that are compact, lightweight, and flexible.
UHP waterblast hoses are available in either 5 mm or 8 mm sizes in runs of 50 feet. It is not suggested for safety concerns to have long runs of this hose. Hose construction is designed for pressures up to 46,400 PSI with 8 layers of high tensile steel wire. Ideally suited for applications in water jet cutting. pipe cleaning, heat exchanger tube cleaning and surface preparation.
Water Blaster Hoses

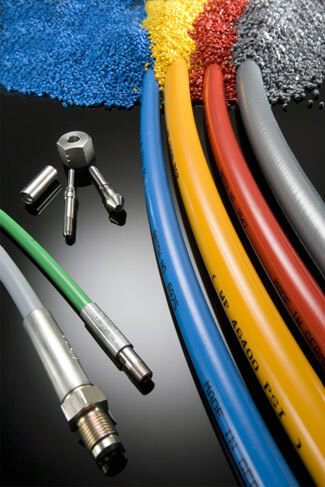

Ultra High Pressure Hose Thermoplastic Assemblies
Polyamide core tube, high strength wire reinforced and a polyamide outer cover for good flexibility and chemical resistance. Designed for applications such as steel pipe water blasting, cleaning pipes blocked with concrete, hydro-demolition, gas transfer, oil field service, and chemical injection service. All hose assemblies below are 50-100 FT lengths. Please call if longer lengths are needed. We can provide custom lengths to your specifications. Call 866-858-4982 too if you need a particular end type other than MNPT or Type M Swivel. Call for questions on other available lengths.
Features:
- Rated 15,000 PSI – 21,000 PSI (depending on model)
- Hose ID Ranges Between .31”-.74”(depending on model)
- Continuous service from -40°F to 140° F
- Abrasion Resistant Cover
- Safety Factor of 2.5 to 1
- Ends are M Type Swivel
- Minimum Bend Radius 7.87” to 13.78”
- Burst Shield Sleeve Protected
| MODEL | DESCRIPTION | PSI | WEIGHT | HOSE INNER DIAMETER | HOSE OUTER DIAMETER | PRICE |
SP-H84050FTMSC |
50’ Grey Water Blast Hose-Type M Swivel Nut 3/4” -16 SS |
21,000 |
13 lbs |
.31" (8 mm) |
.57" (14.6 mm) |
$1,396.85 |
SP-H84100FTMSC |
100’ Grey Water Blast Hose-Type M Swivel Nut 3/4" -16 SS |
21,000 |
27 lbs |
.31" (8 mm) |
.57" (14.6 mm) |
$2,349.05 |
SP-H134H050FTMSC |
50’ Grey Water Blast Hose- Type M Swivel Nut 1”-12 SS |
20,000 |
30 lbs |
.50" (12.8 mm) |
.87" (22 mm) |
$2,011.20 |
SP-H134H100FTMSC |
100’ Grey Water Blast Hose- Type M Swivel Nut 1”-12 SS |
20,000 |
60 lbs |
.50" (12.8 mm) |
.87" (22 mm) |
$3,449.30 |
SP-H204050FTMSC |
50’ Grey Water Blast Hose-Type M Swivel Nut 1- 5/16” -12 SS |
15,000 |
46 lbs |
.74" (18.8 mm) |
1.13" (28.8mm) |
$2,724.20 |
SP-H204100FTMSC |
100’ Gray Water Blast Hose-Type M Swivel Nut 1- 5/16” -12 SS |
15,000 |
91 lbs |
.74" (18.8 mm) |
1.13" (28.8mm) |
$4,718.10 |
SP-H206050FTMSC |
50’ Blue Water Blast Hose-Type M Swivel Nut 1- 5/16” -12 SS |
20,000 |
73 lbs |
.74" (18.8 mm) |
1.29" (32.8 mm) |
$3,008.85 |
SP-H206100FTMSC |
100’ Blue Water Blast Hose-Type M Swivel Nut 1- 5/16” -12 SS |
20,000 |
146 lbs |
.74" (18.8 mm) |
1.29" (32.8 mm) |
$5,256.05 |

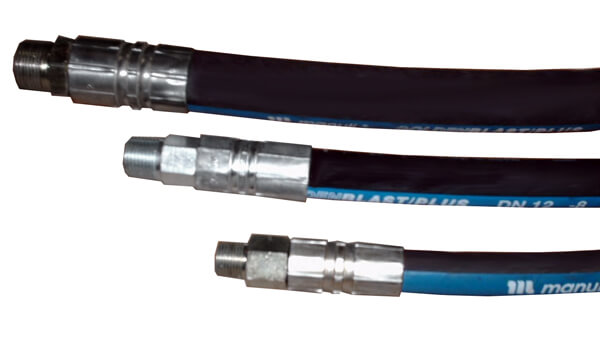

Ultra High Pressure Hose Assemblies
Designed for Ultra High Pressure Hose waterblasting applications. All hose assemblies below are 50 FT lengths. Please call if longer lengths are needed. We can provide custom lengths to your specifications.
Features:
- Rated 10,000 - 18,120 PSI (depending on model)
- Hose ID ranges between 1/4”-1” (depending on model)
- Continuous service from 14 – 158° F
- Synthetic Rubber Tube on Abrasion Resistant Cover
- Four to Six high tensile steel spirals
- Safety factor of 2.5 to 1
- Ends are MNPT (Male National Pipe Thread)
- Weights vary between 24-71 lbs (depending on model)
| MODEL | DESCRIPTION | PSI | HOSE DIAMETER | PRICE |
| 06/MPY-EE | 50’ Waterblast Hose | 12000 | 3/8" | $312.00 |
| PL-04/MPY | 50’ Waterblast Hose | 18000 | 3/8" | $379.75 |
| 08/1PSWBL-EE | 50’ Waterblast Hose | 10000 | 1/2" | $262.50 |
| PL-08/MPY-EE | 50’ Waterblast Hose | 16000 | 1/2" | $345.30 |
| PL-12/2PSUH-EE | 50’ Waterblast Hose | 14500 | 3/4" | $503.75 |
| 16/2PSUH-EE | 50’ Waterblast Hose | 10000 | 1" | $565.75 |
*** Other ultra high pressure hose ends available besides MNPT. Please call if you require BSP or DKO ends instead.
UHP Waterblaster Hoses
Used for applications in Waterblasting like ultra high pressure waterjet table cutting, surface preparation, paint removal, automated cleaning booths, hydro demolition of concrete, robotic surface cleaning of ships, tank and vessel cleaning. Also can be utilized in Hydraulics for pressure testing valves, tooling and control panels, and instrumentation packages for gauges.
Features:
- Rated 44,000 PSI
- Hose ID ranges between 5 – 8 mm (depending on model)
- Continuous service from -22 to 140° F
- Polyoxymethylene Inner Core
- Hose Color: 5 MM (Yellow) – 8 MM (Yellow)
- 8 Layers of High Tensile Steel Spirals.
- Safety factor of 2.5 to 1
- Ends are Type M Female Swivel End Connections
- Weights vary between 35-40 lbs (depending on model)
| MODEL | DESCRIPTION | PSI | HOSE DIAMETER | PRICE |
| SP-H5MMUHP050FTMSC | 50’ Waterblaster Hose | 44,000 | 5mm | $1,646.75 |
| SP-H8MMUHP050FTMSC | 50’ Waterblaster Hose | 44,000 | 8mm | $2,560.25 |
*** Other ultra high pressure hose ends available besides MNPT. Please call if you require BSP or DKO ends instead.
See Also
Water Blaster Safety Equipment
For proper protection use water blaster safety equipment; protective suite, safety goggles, safety boots, hand protection, gloves and more. This is a must when dealing with ultra high pressure (UHP) equipment.
Turtleskin Protective Equipment
Turtleskin protective equipment provides protection from users especially when water jetting or waterblasting. The turtleskin water armor can protect you up to 40,000 PSI / 2800 Bar.
