Skid Mount Pressure Washer
Tank Feed Unit
Starting a Pressure Washing Business?
Get a Special DISCOUNT PACKAGE!
Are you planning on starting a pressure washing business? Do you need professional equipment that will allow you to clean dirt or grime with ease and high speed? Ultimate Washer offers you a great solution - The Skid Mount Pressure Washer. This machine is equipped with the triplex plunger pump that will allow you to work 8 or more hours a day, every day of the week.
Cut down your pressure washing labor time and finish any prospect job in minutes and not hours or days. This professional gear will help you expedite every cleaning application that crosses its path. Pro-skid units can be combined with various cold water pressure washers skid units to achieve a "Totally Self Contained" 100 gallon tank feed system. The machines have available pressures of 2400 PSI to 5000 PSI and up to 5.5 GPM and are built in beltdrive or direct drive configuration.
All skids are constructed of Aircraft grade aluminum which are chemically resistant and rustproof. These skid mounted pressure washers attach and mount quickly and securely into truck beds, trailers, vans or other vehicles.
Order Online or Call Toll Free 866-858-4982
Skid Mounted Pressure Washers

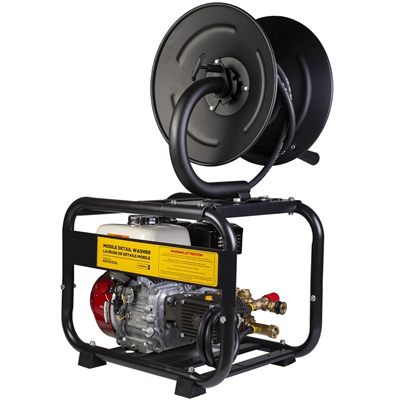

Truck Mount Ready Commercial Gas Pressure Washer
Features:
- 2500 PSI at 3.0 GPM
- Engine: Honda GX200
- Engine Oil Type SAE 10W-30
- Fuel Tank Cap: 3.1L (0.85 US gal
- Pump Type: Triplex-Comet LWD3025
- Unloader: External
- Fitting Type: Brass Quick Connect
- Wand Type: 36" Insulated
- Hose Type: 3/8" x 50’ Steel Braid
- Hose Reel: 100’ Capacity
- Pump Oil Type: 30W Non-Detergent
- Soap System: Adjustable Injector
- Safety: Thermal Valve
- Frame: Powder Coated Steel
- Weight: 70 lbs.
- Shipping Dimensions: 32"L x 24"W x 22"H
| MODEL | PSI | GPM | HOSE REEL | ENGINE | PRICE |
| PE-2565HPCOMSPH | 2500 | 3.0 | 100 FT Capacity | Honda GX200 | $1,326.05 |

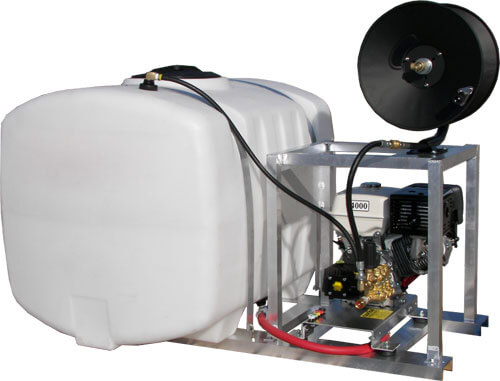

2400 PSI Pro-Skid Pressure Washer 100-200 Gallon Water Tank
Features:
- 2400 PSI at 3.0 GPM
- Engine : Honda (3 year warranty)
- Pump: General (5 Year Warranty)
- 7200 Cleaning Units
- Chemical Injector
- Adjustable Pressure
- 100-200 Gallon Water Tank with Bands (tie downs)
- Aircraft Aluminum Skid Frame
- Aluminum Hose Reel Support Assembly with Mounting Hardware
- Float Valve Assembly (tank auto fill and shut off if machine runs dry)
- Trigger Gun and 36" Wand
- 50 FT Steel BraidedPressure Hose
- 100 FT x 3/8" Hose Reel with Hardware (Reel not installed when shipped to avoid damage in transit, light assembly required to attach to frame.)
- 3 Quick-Connect Spray Nozzles and 1 Chemical Nozzle
- Thermo-Sensor (Prevents Overheating in Bypass Mode)
- Tank Feed Unloader Bypass Return and Jumper Hose Assembly
- Direct Drive
- Weight: 250 lbs
- Dimensions: 62"L x 49"W x 53"H (200 gal.)
- Assembled and Tested in the USA
| MODEL | PSI | GPM | WATER TANK CAPACITY | PRICE |
| SD-3024-KIT | 2400 | 3.0 | 100 Gallon | $3,666.50 |
| SD-3024-KIT200 | 2400 | 3.0 | 200 Gallon | $3,975.75 |
2700 PSI Pro-Skid Pressure Washer 100-200 Gallon Water Tank
Features:
- 2700 PSI at 3.0 GPM
- Engine : Honda (3 year warranty)
- Pump: General (5 Year Warranty)
- 7200 Cleaning Units
- Chemical Injector
- Adjustable Pressure
- 100-200 Gallon Water Tank with Bands (tie downs)
- Aircraft Aluminum Skid Frame
- Aluminum Hose Reel Support Assembly with Mounting Hardware
- Float Valve Assembly (tank auto fill and shut off if machine runs dry)
- Trigger Gun and 36" Wand
- 50 FT Steel BraidedPressure Hose
- 100 FT x 3/8" Hose Reel with Hardware (Reel not installed when shipped to avoid damage in transit, light assembly required to attach to frame.)
- 3 Quick-Connect Spray Nozzles and 1 Chemical Nozzle
- Thermo-Sensor (Prevents Overheating in Bypass Mode)
- Tank Feed Unloader Bypass Return and Jumper Hose Assembly
- Direct Drive
- Weight: 250 lbs
- Dimensions: 62"L x 49"W x 53"H (200 gal.)
- Assembled and Tested in the USA
| MODEL | PSI | GPM | WATER TANK CAPACITY | PRICE |
| SD-3027-KIT | 2700 | 3.0 | 100 Gallon | $3,708.30 |
| SD-3027-KIT200 | 2700 | 3.0 | 200 Gallon | $4,017.55 |
Pro-Skid Pressure Washers - Belt Drive
100 or 200 Gallon Water Tank
Features:
- 3500 PSI at 5.5 GPM
- Engine : Honda (3 year warranty)
- Pump: General (5 Year Warranty)
- 16000 Cleaning Units
- Chemical Injector
- Adjustable Pressure
- 100 or 200 Gallon Water Tank with Bands (tie downs)
- Aircraft Aluminum Skid Framed
- Aluminum Hose Reel Support Assembly with Mounting Hardware
- Float Valve Assembly (tank auto fill and shut off if machine runs dry)
- Trigger Gun and 36" Wand
- 50 FT Steel Braided Pressure Hose
- 100 FT x 3/8" Hose Reel with Hardware (Reel not installed when shipped to avoid damage in transit, light assembly required to attach to frame.)
- 3 Quick-Connect Spray Nozzles and 1 Chemical Nozzle
- Thermo-Sensor (Prevents Overheating in Bypass Mode)
- Tank Feed Unloader Bypass Return and Jumper Hose Assembly
- Belt Drive
- Weight: 260 lbs or 290 lbs
- Dimensions: 62"L x 39"W x 44"H (100 gal.), 62"L x 49"W x 53"H (200 gal.)
- Assembled and Tested in the USA
| MODEL | PSI | GPM | WATER TANK CAPACITY | PRICE |
| SVB-5535-KIT | 3500 | 5.5 | 100 Gallon | $6,505.40 |
| SVB-5535-KIT200 | 3500 | 5.5 | 200 Gallon | $6,814.65 |
Pro-Skid Pressure Washers
100 or 200 Gallon Water Tank
Features:
- 4000 PSI at 4.0 GPM
- Engine : Honda (3 year warranty)
- Pump: General(5 Year Warranty)
- 16000 Cleaning Units
- Chemical Injector
- Adjustable Pressure
- 100 or 200 Gallon Water Tank with Bands (tie downs)
- Aircraft Aluminum Skid Frame
- Aluminum Hose Reel Support Assembly with Mounting Hardware
- Float Valve Assembly (tank auto fill and shut off if machine runs dry)
- Trigger Gun and 36" Wand
- 50 FT Steel Braided Pressure Hose
- 100 FT x 3/8" Hose Reel with Hardware (Reel not installed when shipped to avoid damage in transit, light assembly required to attach to frame.)
- 3 Quick-Connect Spray Nozzles and 1 Chemical Nozzle
- Thermo-Sensor (Prevents Overheating in Bypass Mode)
- Tank Feed Unloader Bypass Return and Jumper Hose Assembly
- Direct Drive
- Weight: 260 lbs or 290 lbs
- Dimensions: 62"L x 39"W x 44"H (100 gal.), 62"L x 49"W x 53"H (200 gal.)
- Assembled and Tested in the USA
| MODEL | PSI | GPM | WATER TANK CAPACITY | PRICE |
| SD-4040-KIT | 4000 | 4.0 | 100 Gallon | $4,136.70 |
| SD-4040-KIT200 | 4000 | 4.0 | 200 Gallon | $4,445.95 |
Pro-ATV Skid Mount Pressure Washer - Direct Drive
This will fit perfectly in the back of most ATV's
Features:
- 3.0 GPM at 2700 PSI
- Engine:Honda(3 year warranty)
- Pump: Direct Drive General Pump with Pulsar EZ Start (5 Year Warranty)
- 8100 Cleaning Units
- Chemical Injector
- Adjustable Pressure
- 50 Gallon Skid Tank with Inlet Plumbing
- Aircraft Aluminum Skid Frame
- Aluminum Hose Reel Support Assembly with Mounting Hardware
- Optional: Float Valve Assembly (tank auto fill and shut off if machine runs dry)
- 3 Quick-Connect Spray Nozzles and 1 Chemical Nozzle
- Thermo-Sensor (Prevents Overheating in Bypass Mode)
- Trigger Gun and 36" Wand
- 50 FT Steel Braided Pressure Hose with QC's
- Optional Hose Reel (200 FT x 3/8" Capacity) with Hardware (see below)
- Weight: 300 lbs
- Dimensions: 38”W x 48”L x 44”H
| MODEL | DESCRIPTION | PRICE |
| AST050-G-K | Pro-ATV Skid Pressure Washer KIT 3.0 GPM at 2700 PSI (50 Gal. Tank) |
$2,296.45 |
| KTF100 | Float Valve Assembly shuts water off when tank is full | $198.00 |
| LWS100 | Low Water Shutdown prevents pump from starving for water | $274.00 |
| KBP100 | Tank feed unloader bypass return and hose assembly (Not for CST050 model) | $96.10 |
| KTD075 | 3/4" Tank Drain | $156.70 |
| AHR200-1 | Optional: 200 ft Gen. Hose reel w/ Hardware (200 FT Hose not included) |
$232.90 |
Mobile Wash Systems
Mobile Wash Systems
Innovative design in portability for vehicle detailing. Made to meet the tough demands of everyday use, the Mobile Wash System standard features include a Honda overhead valve gasoline engine, powerful 3.0 and 4.0 GPM direct drive triplex plunger pump, downstream detergent injector, adjustable pressure regulator, and a heavy duty hose reel with a 50 ft. high pressure hose all mounted to a power plate to reduce shock and vibration. Slide into a van or truck bed or combine with a Detail Trailer when "out-of-vehicle" system is desired. This system can be purchased as it is for start up businesses and later upgraded to a trailer mount to free up your truck bed or van. Professional looking design tells your clients you are ready for the job. Car dealerships will find this unit appealing for portability and compact design.
Features:
- 3.0- 4.0 GPM (depending on model)
- 2000-3500 PSI (depending on model)
- Engine: Honda (3 year Warranty)
- Pump: General (5 Year Warranty)
- Remaining components (1 Year Warranty)
- 6,000 – 14,000 Cleaning Units
- Three Way Inlet Water Valve for Hose or Tank Feed
- Downstream Chemical Injector
- Adjustable Pressure Regulator
- 100 Gallon Water Tank (except AA-MC3020HDXX)
- Powdered Coated Steel Skid Frame
- Trigger Gun and 24" Wand
- 50 FT Steel Braided Pressure Hose
- Locking Hose Reel (100 FT x 3/8" Capacity) with Hardware
- 3 Quick-Connect Spray Nozzles and 1 Chemical Nozzle
- Inlet Pump Filter
- Direct Drive
- Weight: 150 lbs to 325 lbs (570-745 lbs with trailer)
- Skid Mounted Dimensions: 48”L x 48”W x 27”H
- Assembled and Tested in the USA
| MODEL | PSI | GPM | WATER TANK CAPCACITY | PRICE |
| MC3020HDXXT | 2000 | 3.0 | 100 Gallon | $5,475.85 |
| MC4030HDXXT | 3000 | 4.0 | 100 Gallon | $6,890.25 |
| MC4035HDXXT | 3500 | 4.0 | 100 Gallon | $5,195.20 |
| MC3020HDXX | 2000 | 3.0 | NO TANK | $4,750.00 |
