General Pump Parts - Repair Kits

These accessories are manufactured by GP so you know you're getting the correct maintenance kit for your GP pump.

General Pump Repair Kit Chart

Use the General pump repair kit chart below to find the correct kit or part to repair you General pressure washer pump. Pricing is listed below the repair kit chart.

If you are not sure on the part you need for your General pump, please refer to the General pump breakdown diagrams located near each pump. If you still need further support, please send us an e-mail to info@ultimatewasher.com with your General pump model number and the part that you need.

PUMP MODEL	VALVES (6 PER KIT)	PISTON OIL SEAL	PACKINGS	PACKINGS W/ BRASS*	PISTONS*	VALVE CAP	PISTON BOLTS	HEAD RINGS	CRANK OIL SEAL
TP2530J34UIL	KIT123	KIT083	KIT097	KIT096	51040009	98221600	N/A	N/A	90164400
EZ4040G	KIT123	KIT023	KIT153	KIT156	44040266	KIT124	N/A	KIT155	90169000
T5050	KIT150	KIT002	KIT109	KIT151	47040856	N/A	N/A	KIT108	KIT003
TS1511	KIT001	KIT002	KIT069	KIT028	47040409	KIT004	KIT006	KIT007	KIT003
TS2021	KIT001	KIT002	KIT069	KIT028	47040409	KIT005	KIT006	KIT007	KIT003
TX1510G8	KIT123	KIT159	KIT160	KIT166	52040009	KIT124	N/A	N/A	90169000
TP2530J34	KIT123	KIT083	KIT097	KIT096	51040009	98221600	N/A	N/A	90164400
TT2035GBF	KIT001	KIT083	KIT097	KIT096	51040009	KIT084	N/A	N/A	90164400
TX1510G8UIA	KIT123	KIT159	KIT160	KIT166	52040009	KIT124	N/A	N/A	90169000
TX1506G8	KIT123	KIT159	KIT160	KIT166	52040009	KIT124	N/A	N/A	90169000
TX1508G8	KIT123	KIT159	KIT160	KIT166	52040009	KIT124	N/A	N/A	90169000
EZ3045G	KIT123	KIT023	KIT088	KIT130	52040009	KIT124	N/A	KIT090	90169000
EZ4035G34	KIT123	KIT023	KIT153	KIT156	44040266	KIT124	N/A	KIT155	90169000
TT9061EBF	KIT001	KIT083	KIT097	KIT096	51040009	KIT084	N/A	N/A	90164400
TT9061EBFL (Left)	KIT001	KIT083	KIT097	KIT096	51040009	KIT084	N/A	N/A	90164400
TT9071EBFL (Left)	KIT001	KIT083	KIT097	KIT096	51040009	KIT084	N/A	N/A	90164400
TC1504E345UI	KIT123	KIT083	KIT196	N/A	PP-60040009	98221400	N/A	N/A	90167500
EZ2536E	KIT123	KIT023	KIT127	KIT131	44040109	KIT124	N/A	KIT129	90169000
EZ2542E	KIT123	KIT023	KIT127	KIT131	44040109	KIT124	N/A	KIT129	90169000
TX1508S34	KIT123	KIT159	KIT160	KIT166	52040009	KIT124	N/A	N/A	90169000
EZ2536S	KIT123	KIT023	KIT127	KIT131	44040109	KIT124	N/A	KIT129	90169000
TS1021	KIT001	KIT002	KIT069	KIT028	47040409	KIT004	KIT006	KIT007	KIT003
TS4040	KIT001	KIT002	KIT069	KIT028	47040409	KIT004	KIT006	KIT007	KIT003
TS2021B	KIT001	KIT002	KIT069	KIT028	47040409	KIT004	KIT006	KIT007	KIT003
TS1511UR	KIT001	KIT002	KIT069	KIT028	47040409	KIT004	KIT006	KIT007	KIT003
TS2021BUR	KIT001	KIT002	KIT069	KIT028	47040409	KIT004	KIT006	KIT007	KIT003
TS2021UR	KIT001	KIT002	KIT069	KIT028	47040409	KIT004	KIT006	KIT007	KIT003
T9281	KIT001	KIT002	KIT109	KIT112	47040856	KIT106	KIT107	KIT108	KIT003
TSF2021	KIT169	KIT002	KIT170	KIT171	66040009	66130041	66219566	N/A	KIT003
TSF2219	KIT169	KIT002	KIT172	KIT173	66040109	66130041	66219566	N/A	KIT003
TSF2221	KIT169	KIT002	KIT172	KIT173	66040109	66130041	66219566	N/A	KIT003
TSF2421	KIT169	KIT002	KIT181	KIT182	66040409	66130041	66219566	N/A	KIT003
TSP1621	KIT150	KIT002	KIT174	KIT175	66040209	66130141	66219566	N/A	KIT003
TSP1821	KIT150	KIT002	KIT180	KIT176	66040309	66130141	66219566	N/A	KIT003

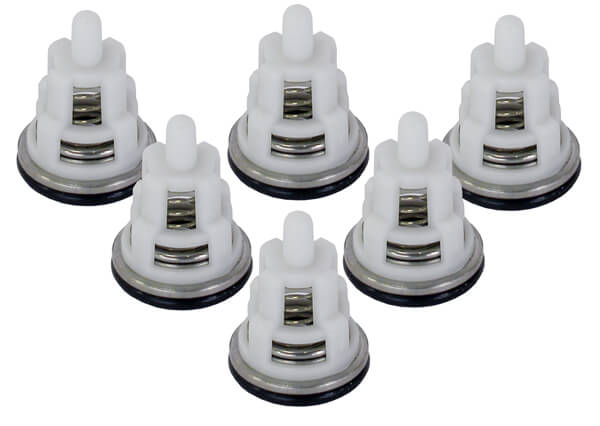

Valves (6 per kit)

KIT #	DESCRIPTION	PRICE
KIT001	Valve Kit	$57.30
KIT123	Valve Kit	$113.90
KIT150	Valve Kit, T5050	$333.65
KIT169	Valve Kit	$268.75

Piston Oil Seals

KIT #	DESCRIPTION	PRICE
KIT002	Oil Seal Kit (Piston)	$19.05
KIT023	Oil Seal Kit (Piston)	$43.70
KIT083	Oil Seal Kit	$45.80
KIT159	Oil Seal Kit (Piston)	$45.40

Packings

KIT #	DESCRIPTION	PRICE

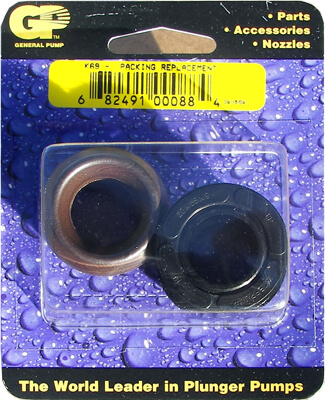

KIT069	Packing Kit w/ Restop	$137.35
KIT088	Packing Kit w/ Restop	$104.20
KIT097	Packing Kit	$45.00
KIT109	Packing Kit, 16mm	$199.90
KIT127	Packing Assembly Kit	$138.50
KIT153	Packing Kit	$194.40

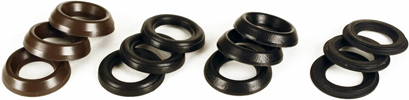

RKI069	20MM Seal Kit for General Pump models T1011, T2031, T9211, TS1011, TS1021, TS1041, TS1511, TS1531, TS1711, TS1811, TS2011, TS2011	$112.00
KIT160	Packing Kit, 15mm	$170.00
KIT170	TSF Pumps Seal Kit, 20mm	$211.95
KIT172	TSF Pumps Seal Kit, 22mm	$211.95
KIT174	TSF Pumps Seal Kit, 16mm	$231.85
KIT180	TSP181 Seal Kit, 18mm	$258.90
KIT181	Seal Kit	$184.70
KIT196	Packing Kit	$101.90

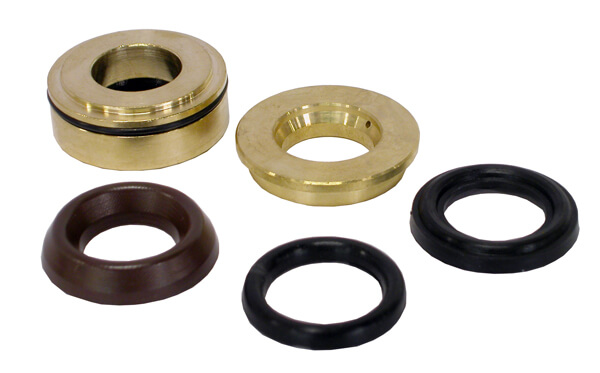

Packings w/ Brass

* Need 3 per pump

KIT #	DESCRIPTION	PRICE
KIT028	Packing Assembly Kit, 20mm	$69.65
KIT096	Packing Kit	$31.45
KIT112	Long Packing Kit	$187.60
KIT130	Packing Assembly Kit	$99.50
KIT131	Long Packing Kit	$118.40
KIT151	Packing Kit	$192.55
KIT156	Long Packing Kit	$176.50
KIT166	Kit	$105.00
KIT171	Packing Assembly Kit, 20mm	$173.60
KIT173	Packing Assembly Kit, 22mm	$178.00
KIT175	Packing Kit, 16mm	$181.75
KIT176	Packing Kit, 18mm	$183.15
KIT182	Packing Kit, 24mm	$177.55

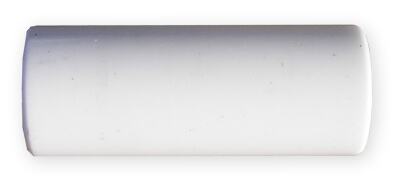

Pistons

* Need 3 per pump

KIT #	DESCRIPTION	PRICE
44040109	Plunger	$93.80
44040266	Plunger	$151.30
47040409	Plunger	$104.15
47040856	Plunger	$167.50
51040009	Plunger	$81.35
52040009	Plunger	$89.55
66040009	Plunger, 20mm	$148.25
66040109	Plunger	$154.65
66040209	Plunger	$148.25
66040309	Plunger	$148.25
66040409	Plunger	$151.70

Valve Caps

KIT #	DESCRIPTION	PRICE
KIT004	Valve Cap Kit	$160.60
KIT005	Valve Cap Kit	$243.00
KIT084	Valve Cap Kit	$140.65
KIT124	Valve Cap Kit, EZ	$162.20
66130041	Valve Cap Kit	$54.40
98221400	Valve Cap Kit	$36.35
98221600	Valve Plug, TP2530	$25.40

Product Group Title

KIT #	DESCRIPTION	PRICE

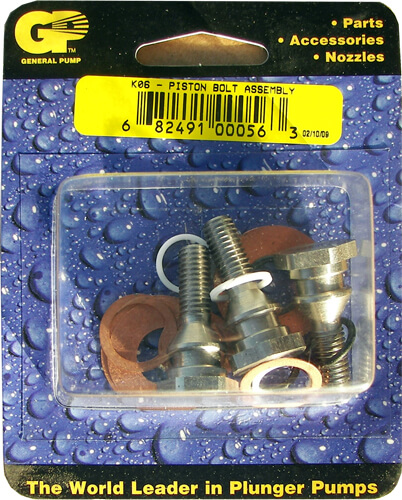

KIT006	Plunger Bolt Repair Kit	$52.10
66219566	Plunger Bolt	$63.65

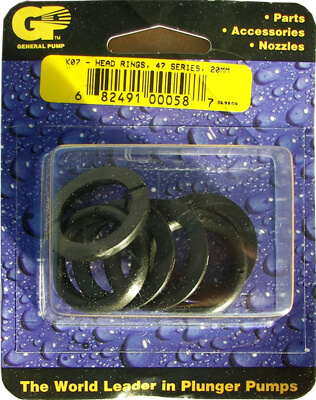

Head Rings

KIT #	DESCRIPTION	PRICE
KIT007	Head Ring Kit	$29.90
KIT090	Head Ring Kit	$15.60
KIT108	Repair Kit	$23.30
KIT155	Head Ring Kit	$17.80
KIT129	Head Ring Kit, 18mm	$21.25

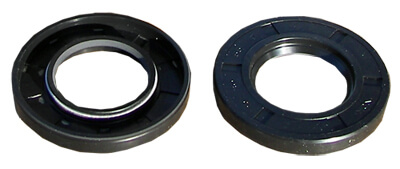

Crankshaft Oil Seals

KIT #	DESCRIPTION	PRICE
KIT003	Crankshaft Oil Seal Kit	$38.80
90164400	Oil Seal	$24.45
90167500	Oil Seal	$34.65
90169000	Oil Seal	$35.15

Packing Extractor Kit

Kit includes: Comes with handy carrying case, and includes a slide hammer, 13mm, 15mm, 18mm, 20mm, and 24 sockets.

KIT #	DESCRIPTION	PRICE
BN-4030	Packing Extractor Kit	$175.50
BN-4012	Slide Hammer	$46.05
BN-4029	13mm Socket	$22.75
BN-3640	15mm Socket	$16.70
BN-4084	16mm Socket	$20.10
BN-4194	18mm Socket	$18.05
BN-4041	20mm Socket	$16.80
BN-5936	22mm Socket	$16.80
BN-5378	24mm Socket	$16.70
BN-1628	Carrying Case	$23.40
BN-1189	Socket Screw	$10.15
BN-3859	Slide Pin	$19.25

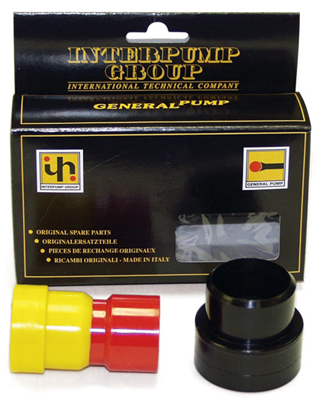

Packing Insertion Kit

Plastic insertion tools for reassembly of packings in General Pumps. May also be used in other manufacturers' pumps. Tools for 20mm, 22mm, 24, packings.

KIT #	DESCRIPTION	PRICE
BN-4341	Packing Insertion Tool Kit	$53.65
