Float Valves

The float valve assembly is designed to shut off water flow coming into the tank. When water is filling the tank, it raises the ball to a predetermined level. As the ball reaches its peak, it closes the valve at the other end of the ratchet pole thereby not allowing water to enter the tank. This permits the user to do other things while the tank is filling.

Float Valves

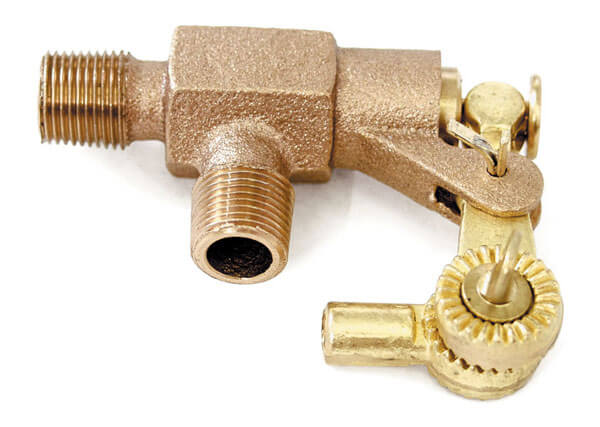

Adjustable Bronze Float Valves

Features:

Cast bronze body
Live rubber stopper
Adjustable float arm
180° F

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	THREAD	STEM	GPM @ 40 PSI	PRICE
8.710-041.0	3/8"	1/4" - 20	10	$34.40
8.710-043.0	1/2"	1/4" - 20	17	$57.70
8.710-044.0	3/4"	1/4" - 20	31	$113.60
8.710-045.0	1"	1/4" - 20	47	$136.55

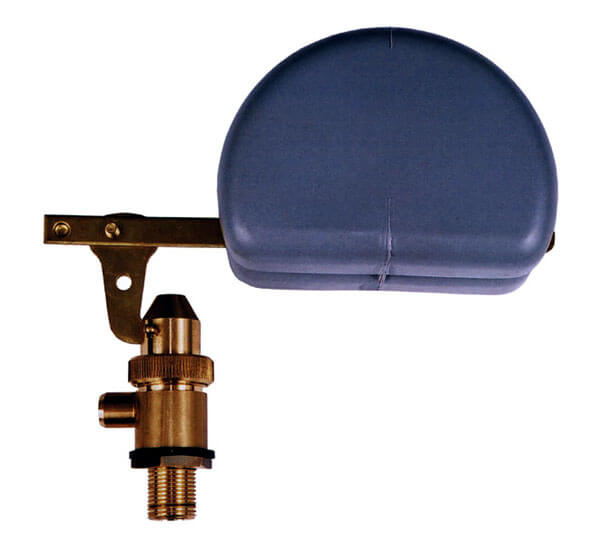

PA Float Valve

Features:

140° F
3/8" MPT inlet
Brass body
Positional/Adjustable arm
5 GPM @ 15 PSI
7 GPM @ 30 PSI

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	DESCRIPTION	PRICE
8.710-042.0	3/8" M Inlet Float Valve	$48.80

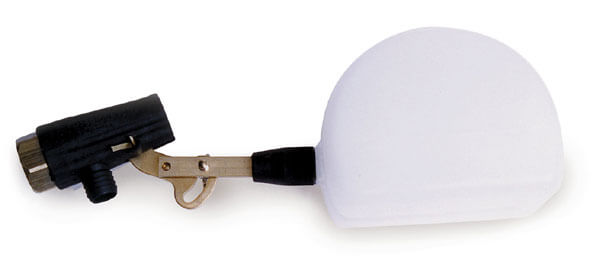

Brass Float Valve Assembly

COMPLETE: Valve, Stem & Float

Features:

1/2" FPT inlet
Brass housing with polyamide cover
4.5 GPM
175° F

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	DESCRIPTION	PRICE
8.710-031.0	1/2" FPT Float Valve w/ Float	$44.15

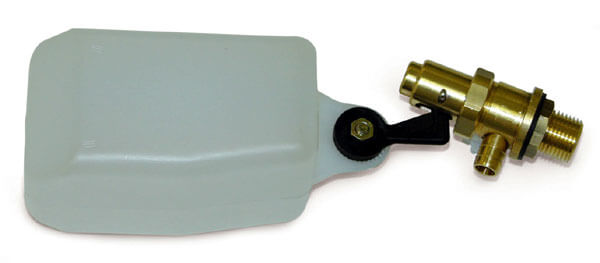

Brass Float, Ball & Stem

Features:

142 PSI max inlet pressure
140° F
7.1 GPM @ 28 PSI - 1/2" MPT inlet
Positive soft Buna/brass shut-off
Adjustable float ball settings
Inlet nut and washer seal provided

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	DESCRIPTION	PRICE
8.710-037.0	1/2" Brass Float Valve	$47.00

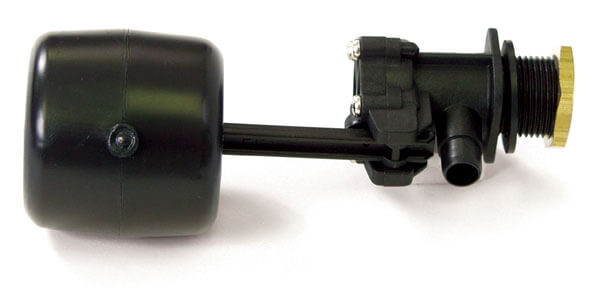

Diaphragm Float Valve

Features:

Requires only 6.5" X 3" INSIDE TANK
All plastic snap-on-float
Positive shut off diaphragm style
Inlet screen, tank gasket & nut included
Rebuildable-repair parts available
3/4 MPT inlet
142 PSI
7.86 GPM @ 28 PSI
6.68 GPM @ 14 PSI
140° F

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	DESCRIPTION	PRICE
8.710-030.0	Plastic Float Valve	$28.20

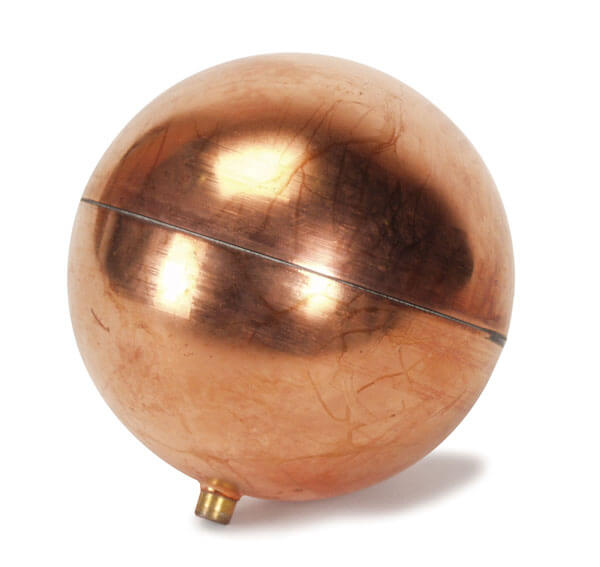

Copper Float Balls

Features:

Copper construction

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	LENGTH	THREAD	PRICE
8.710-061.0	4" x 5"	1/4" x 20	$141.25
8.710-052.0	5"	1/4" x 20	$178.95
8.710-053.0	6"	1/4" x 20	$198.10

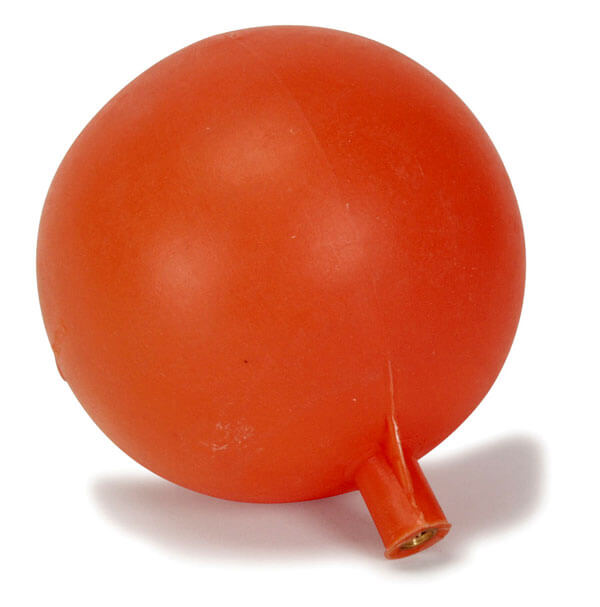

Plastic Float Balls

Features:

Plastic construction

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	LENGTH	THREAD	PRICE
8.710-057.0	6" (Round)	1/4" x 20	$49.35
8.710-058.0	6" (Round)	5/16" x 18	$12.95
8.710-059.0	8" (Round)	1/4" x 20	$82.40
9.802-061.0	4" x 5" (Oval)	1/4" x 20	$8.40

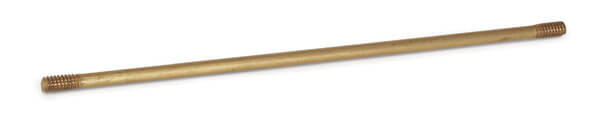

Valve Stems

Features:

All Brass construction

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	LENGTH	THREAD	PRICE
9.802-157.0	8"	1/4" - 20	$14.45
8.710-048.0	8"	5 1/16" - 18	$6.65
8.710-051.0	10"	1/4" - 20	$8.10
8.710-049.0	18"	3/8 - 16	$12.40
8.740-042.0	19"	1/2" - 20	$14.45
