Chemical Valves

HydroMinder - keeps any reservoir ready with accurately mixed solution at all times.

Proportioning Valves

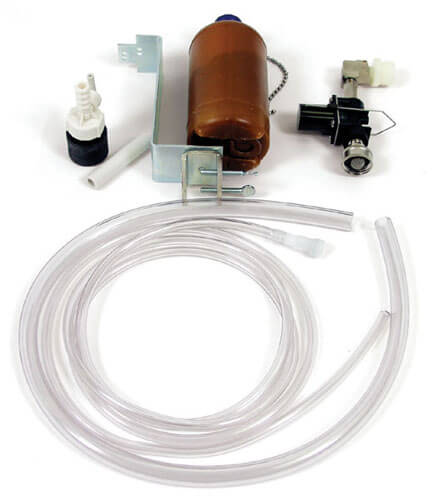

Proportioning Valve

Automatically maintain a desired level of proportioned mixture in a drum, tank or other type of reservoir. Magnetically activated "snap acting" flow chemical valves provide full water flow to activate the chemical proportioners. There are two basic sizes to give a choice of water flows as shown in the table below. Chemical feed rate is adjusted by metering screw or metering tips. The Float valve is made of silicone plastic and is easily accessible for field maintenance. Liquid level proportioning controls are available in two flow capacities, 4 GPM or 22 GPM at 50 PSI. Either size can be used with or without a proportioner. The proportioner also allows chemicals to be inducted while the valve is open.

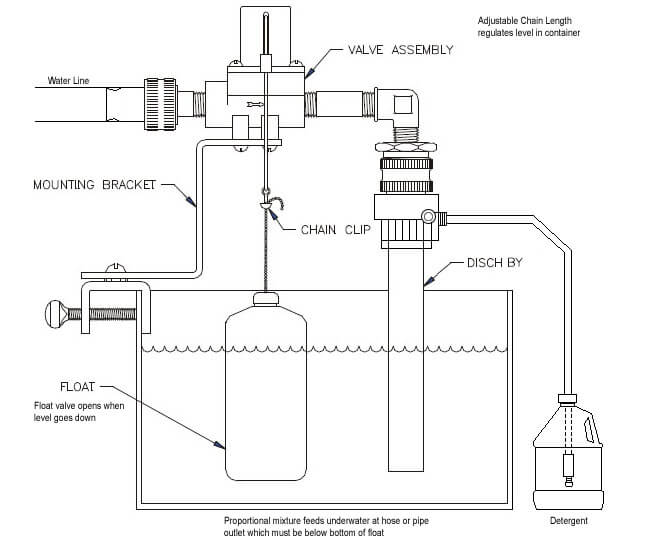

View diagram here.

NOTE: All models are equipped with siphon breakers to prevent back flow into the fresh water line.

Ordering Information - FREE SHIPPING

MODEL	DESCRIPTION	CAPACITY	GPM	PRICE
8.710-525.0	Medium Capacity Proportioner Valve	12 oz	4	$337.10
8.710-524.0	High Capacity Proportioner Valve	30 oz	4	$337.10
8.710-526.0	Highest Capacity Proportioner Valve	70 oz	4	$403.20
8.710-532.0	Medium Capacity Proportioner Valve	10 oz	22	$461.90

* Optional Tips

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	DESCRIPTION	PRICE
8.710-534.0	Optional Proportioner Valve Tips	$39.30

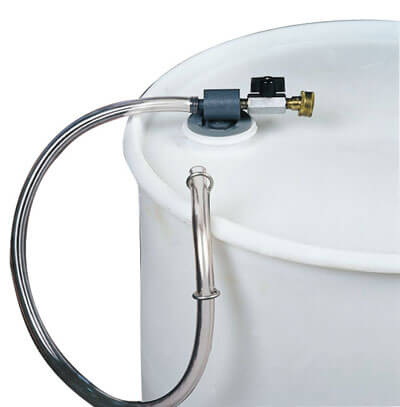

Drum Mounted Proportioners

Designed to blend liquid chemical concentrates with water (flowing at normal city water pressure) to create an accurate mix of diluted chemicals. Complete with metering orifice set and metering adjustment valve. Comes with diagram for meter adjustment.

Model	Description	Capacity
MAX BLEND RATE = Oz Chemical Per Gallon Water
MODEL No.	1 CPS	75 CPS	220 CPS
162	24	14	6
163H*	64	30	14
*High concentration chemical blender

1 CPS = Viscosity of Water

75 CPS = Viscosity of SAE 10 oil

220 CPS = Viscosity of SAE 30 oil

Ordering Information - FREE SHIPPING

MODEL	DESCRIPTION	PRICE
8.710-530.0	Drum Mount with Proportioner	$208.70
8.710-529.0	High Concentrate Proportioner Low Side	$116.55

Siphon Pump

Siphon liquids from higher to lower levels. Simply pump the bellows a few times to prime and start flow. Loosen air lock to stop.

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	DESCRIPTION	PRICE
8.704-699.0	Siphon Pump 7 GPM	$42.80

Metering Valves

Brass Metering Valve

Max Pressure: 450 PSI
Max Temperature: 170° F
1/4" inlet / outlet
Easy grip, fluted plastic handle with pointer
Brass body, Viton gland seal eliminates air leaks
Panel mount 11/16" or 3/4" hole
Extremely compact T-style

(Shipping charge of $8.95 will apply on these items if the total order is less than $69.00)

MODEL	DESCIPTION	PRICE
8.710-773.0	"T" 1/4 F x F - Forged	$49.60
8.710-774.0	"L" 1/4 M x M - Machined	$44.75
