Briggs & Stratton Parts
Call for assistance in identifying your part if necessary.
Please identify which type of Briggs & StrattonEngine you have before calling. The engine class and size can be located on the top of the recoil assembly. If possible, locate the Original Equipment Model or OEM# of the part you are trying to find so we can identify it easily for you. Toll Free; (866)-858-4982, Local: (561) 741-7022
Ultimate Washer is the place to come for Briggs & Stratton Engine Parts. Each replacement Briggs & Stratton part is the quality you have come to expect from us. Our knowledgeable staff can help you find the correct Briggs & Stratton parts you need. We look forward to supplying you with the best, most reliable engine parts on the market. You will find replacement Briggs & Stratton engine parts on many of our pressure washers.
Mufflers
Briggs & Stratton Muffler
Features:
- Fits 60500, 80500 and 81500
- for 2 thru 4 HP horizontal engines
- Length: 4 15/16"
- ID: 3/4"
- OD: 1 9/16"
- Pipe Thread: 1/2”
- Heavy gauge steel
- Painted finish
- Replaces OEM: 89966
| MODEL | DESCRIPTION | PRICE |
| SN-105-007 | 4 15/16"L x 3/4"ID x 1 9/16" OD | $28.80 |
Briggs & Stratton Muffler
Features:
- Fits 141200, 140700, 146400 and 146700
- For 4 thru8 HP engines
- Length: 6 5/16"
- OD: 2 1/8"
- Pire Thread: 3/4”
- Heavy gauge steel
- Painted finish
- Replaces OEM: 294599 and 294599S
| MODEL | DESCRIPTION | PRICE |
| SN-105-106 | 6 5/16"L x 2 1/8"OD | $18.55 |
Briggs & Stratton Muffler
Features:
- Fits 90700, 92500, 92502, 93902, 95902, 96502, 96902, 98902, 110700, 133702, 10A902 and 9D902
- For 3 thru 4 HP vertical engines
- Length: 2 7/16"
- OD: 3 1/8"
- Pire Thread: 1/2” Male Inlet
- Aluminized steel
- Painted finish
- Replaces OEM: 298830, 391435, 394569 and 394569S
| MODEL | DESCRIPTION | PRICE |
| SN-105-501 | 2 7/16"L x 3 1/8"OD | $27.45 |
Gas Caps
Briggs & Stratton Gas Cap
Features:
- For 3.5 thru 6 HP vertical Max, Quantum and Europa engines
- ID: 1-3/4”
- Replaces OEM: 397974, 397974S, 4131, 4227, 493017 and 692046
- Not compatible and warranty void with equipment using greater than 10% ethanol-blend fuel
| MODEL | DESCRIPTION | PRICE |
| SN-125-070 | For 3.5 thru 6 HP Vertical Max, Quantum and Europa Engines | $7.35 |
Briggs & Stratton Gas Cap
Features:
- Fits 90200, 91200, 133200 and 135200
- For 3 thru 5HP horizontal engines
- 1/4 turn style
- 2 locking ears 1 5/8" across
- Replaces OEM: 494559
- Not compatible and warranty void with equipment using greater than 10% ethanol-blend fuel
| MODEL | DESCRIPTION | PRICE |
| SN-125-078 | For 3 thru 5HP Horizontal Engines | $13.15 |
Starter Parts
Briggs & Stratton Starter Handle
Features:
- Fits most models
- For 3.2 thru 18 HP engines
- New Style Handle with insert
- Replaces OEM: 4130, 490652 and 66728
| MODEL | DESCRIPTION | PRICE |
| SN-140-020 | For 3.2 thru 18 HP Engines | $7.05 |
Briggs & Stratton Starter Handle
Features:
- Fits 98900
- For 2 thru 5.5 HP Quantum, Europa (9 CID) and all vertical pull engines
- Handle with insert
- Replaces OEM: 393152 and 4119
| MODEL | DESCRIPTION | PRICE |
| SN-140-087 | For 2 thru 5.5 HP Quantum, Europa (9 CID) and All Vertical Pull Engines | $6.80 |
Starter Drive Gear
Features:
- Fits Electric start engines
- OD: 1 5/8"
- 16 teeth
- For aluminum and plastic ring gears
- Available in our SN-150-027 Starter Drive Gear Shop Pack
- Replaces OEM: Briggs & Stratton 280104, 280104S, 4114, 4155, 4194, 693058, 693059 and 695708
| MODEL | DESCRIPTION | PRICE |
| SN-150-292 | For Aluminum and Plastic Ring Gears | $8.65 |
Briggs & Stratton Starter Clutch
Features:
- Fits 60100-326400 and most rewind starter engines
- For most 3 thru 16 HP engines
| MODEL | DESCRIPTION | PRICE |
| SN-150-029 | For Most 3 thru 16 HP Engines/td> | $38.80 |
Briggs & Stratton Recoil Starter Assembly
Features:
- Fits 128700, 129700, 12F800, 12G700, and 12G800
- Includes starter cup to use on engines with Susa Starters
- Replaces OEM: 493295 and 497598
| MODEL | DESCRIPTION | PRICE |
| SN-150-213 | Includes starter cup to use on engines with Susa Starters | $89.40 |
Briggs & Stratton Spring Kit
Features:
- Fits all electric start engines retained with a roll pin
- Kit includes starter gear, spring retainer, return spring, clutch retainer, roll pin and roll pin cage
- 16 tooth gear
- Replaces OEM: 495877 and 696539
| MODEL | DESCRIPTION | PRICE |
| SN-150-114 | Kit includes starter gear, spring retainer, return spring, clutch retainer, roll pin and roll pin cage | $27.60 |
Briggs & Stratton Flywheel Ring Gear
Features:
- Fits 192400, 196400, 19F400, 257400, 286700, 289700, 28B702, 28D707, 28M707, 28N707, 28N777, 28P777 and 28Z777
- Aluminum gear
- Includes mounting hardware and starter gear
- Replaces OEM: 92134, 399676 and 696537
| MODEL | DESCRIPTION | PRICE |
| SN-150-435 | Includes Mounting Hardware and Starter Gear | $52.65 |
Briggs & Stratton Starter Spring
Features:
- Replaces OEM: 294303 and 490179
- Horizontal pull engines and most rewind starter engines with starter clutch
| MODEL | DESCRIPTION | PRICE |
| SN-155-002 | Starter Spring | $15.50 |
Briggs & Stratton Mega-Fire Electric Starter
Features:
- Fits 326437, 243437 and 243436
- Length: 4 4/14” overall
- Center to: 3 25/32”
- 16 tooth gear
- 4 3/8" housing length between caps
- Replace OEM: 396306
| MODEL | DESCRIPTION | PRICE |
| SN-435-299 | Mega-Fire Electric Starter | $176.40 |
Briggs & Stratton Mega-Fire Electric Starter
Features:
- Fits 254422, 254427, 286707, 28A707, 28B702, 28B707, 28M707, 28Q777 and 28N707
- Length: 6 1/2" overall
- Center to: 2 1/4”
- For single cylinder and twin cylinder aluminum block engines
- 3 3/4" housing length between caps
- 16 tooth gear
- Replaces OEM: 394805, 490420, 494990, 497401, 497595, 499521and 691262
- Optional: SN-435-859 Starter Drive Kit
| MODEL | DESCRIPTION | PRICE |
| SN-435-303 | Mega-Fire Electric Starter | $131.75 |
Briggs & Stratton Starter Drive Kit
Features:
- Fits all electric start engines retained with a roll pin
- Kit includes starter gear, spring retainer, return spring, clutch retainer, roll pin, roll pin cage and clutch drive
- 16 tooth gear
- Replaces OEM: 495878 and 696540
| MODEL | DESCRIPTION | PRICE |
| SN-150-118 | Kit includes starter gear, spring retainer, return spring, clutch retainer, roll pin, roll pin cage and clutch drive | $44.65 |
Briggs & Stratton Starter Drive Kit
Features:
- Fits 260777, 261772, 261776 and 261777
- Kit includes starter gear, spring retainer, return spring, clutch retainer, roll pin, roll pin cage, clip, clutch drive, flat washer and thin washer
- 16 tooth gear
- Replaces OEM: 491836
| MODEL | DESCRIPTION | PRICE |
| SN-435-855 | Kit includes starter gear, spring retainer, return spring, clutch retainer, roll pin, roll pin cage, clip, clutch drive, flat washer and thin washer | $68.40 |
Briggs & Stratton Starter Drive Kit
Features:
- Fits 176432, 176437, 176452, 196402, 196412, 196417, 196422, 196427, 196432, 196436, 196437, 196452, 196457, 197402, 197412, 197415, 197417,28A707, 28B702, 28B705, 28B707, 28C702, 28C707, 28D702, 28D707, 28M076, 28M707, 28N707, 28N777, 28P777, 28Q777 and 40A777
- For 7 thru8.5, 12, 14 and 15 HP engines
- Length: 7 1/4" overall
- New style kit with "C" ring retainer
- Kit includes starter gear, drive gear, return spring, clutch drive, retention plate, washer and clip
- 16 tooth gear
- Replaces OEM: 497606 and 696541
- Fits SN-435-303, SN-435-307, SN-435-299 Mega-fire Electric Starter
| MODEL | DESCRIPTION | PRICE |
| SN-435-859 | Kit iIncludes starter gear, drive gear, return spring, clutch drive, retention plate, washer and clip | $37.60 |
Briggs & Stratton Starter Drive Kit
Features:
- Fits 146701, 146702, 147401, 147402, 147431, 147432, 147451 and 243431
- Kit includes starter gear, clutch drive, clutch retainer and roll pin
- 16 tooth gear
- Replaces OEM: 391461and 696535
| MODEL | DESCRIPTION | PRICE |
| SN-435-863 | Kit includes starter gear, clutch drive, clutch retainer and roll pin | $38.80 |
Head Gaskets
Briggs & Stratton Head Gasket
Features:
- Fits 100200-100900 and 130200-132900
- For 5 HP horizontal and vertical engines
- Material: Metal
- Replaces OEM: 270383, 272157, 272157S and 4120
- Not compatible and warranty void with equipment using greater than 10% ethanol-blend fuel
| MODEL | DESCRIPTION | PRICE |
| SN-465-021 | For 5 HP Horizontal and Vertical Engines | $10.30 |
Briggs & Stratton Head Gasket
Features:
- Fits 220400-222400, 252400-252700, 257700 and 280700-286700
- For 10, 10.5, 11.5, 12, 13 and 13.5 HP horizontal and vertical engines
- Material: Graphite
- Replaces OEM: 271075, 271707, 271866, 271866S and 4125
- Not compatible and warranty void with equipment using greater than 10% ethanol-blend fuel
| MODEL | DESCRIPTION | PRICE |
| SN-465-025 | For 10, 10.5, 11.5, 12, 13 and 13.5 HP Horizontal and Vertical Engines | $35.50 |

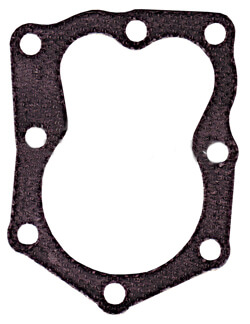

Briggs & Stratton Head Gasket
Features:
- Fits 121700, 121800, 122700, 123700, 123800, 124700, 124800, 125700, 126700 and 126800
- For Quantum 12 CID engines
- Material: Graphite
- Replaces OEM: 272200, 272200S and 4122
- Not compatible and warranty void with equipment using greater than 10% ethanol-blend fuel
| MODEL | DESCRIPTION | PRICE |
| SN-465-029 | For Quantum 12 CID Engines | $14.45 |

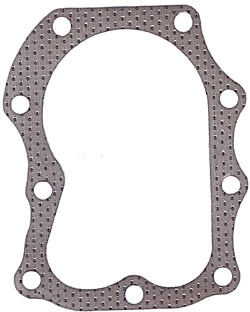

Briggs & Stratton Head Gasket
Features:
- Fits 170400-196700
- For 7 and 8 HP horizontal and vertical engines
- Material: metal
- Replaces OEM: 270430, 272163, 272163S and 4121
- Not compatible and warranty void with equipment using greater than 10% ethanol-blend fuel
| MODEL | DESCRIPTION | PRICE |
| SN-465-054 | For 7 and 8 HP Horizontal and Vertical Engines | $12.45 |
